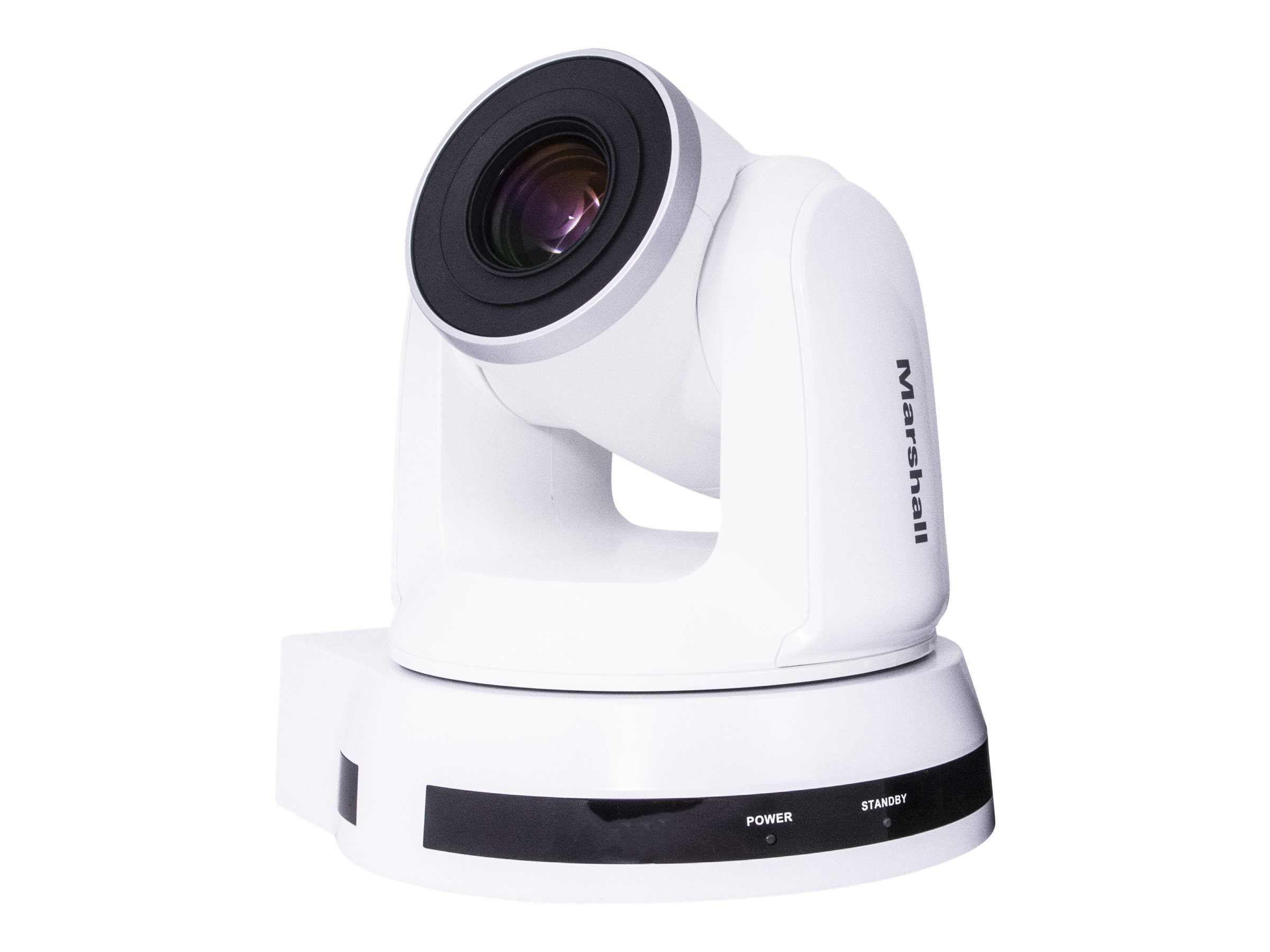

Marshall CV620-WH4 - Surveillance camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Marshall CV620-WH4 - Surveillance camera
- PTZ
- color
- 2 MP
- 1920 x 1080
- 1080i, 1080p
- HDMI, 3G-SDI
- DC 12 V
| Additional Details | |
|---|---|
| Mfr Part #: | CV620-WH4 |
| SHI Part #: | 40623333 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Marshall Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Marshall CV620-WH4 - Surveillance camera - PTZ - color - 2 MP - 1920 x 1080 - 1080i, 1080p - HDMI, 3G-SDI - DC 12 V |
| Manufacturer | Marshall Electronics |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.4 cm |
| Dimensions & Weight / Height | 18.55 cm |
| Dimensions & Weight / Weight | 2 kg |
| Dimensions & Weight / Width | 18.62 cm |
| Header / Brand | Marshall |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Digital Zoom | 12 |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080i, 1080p |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Camera Mount Type | Surface mount, wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Depth | 17.4 cm |
| Device Type | Surveillance camera |
| Height | 18.55 cm |
| Weight | 2 kg |
| Width | 18.62 cm |
| Image Sensor | |
| Type | 2 MP 1/2.8" |
| Interfaces | |
| Control Interface | RS-422, RS-232 |
| Video | HDMI, 3G-SDI |
| Lens Construction | |
| Focal Length | 4.7 mm - 94 mm |
| Lens Iris | F/1.6-3.5 |
| Optical Zoom | 20 x |
| Miscellaneous | |
| Color | White |
| Included Accessories | Remote control, mounting hardware |
| Panning | |
| Range (degree) | 340 |
| Power | |
| Power Device | Power adapter - external |
| Power Requirements | DC 12 V |
| Tilting | |
| Range (degree) | 120 |
