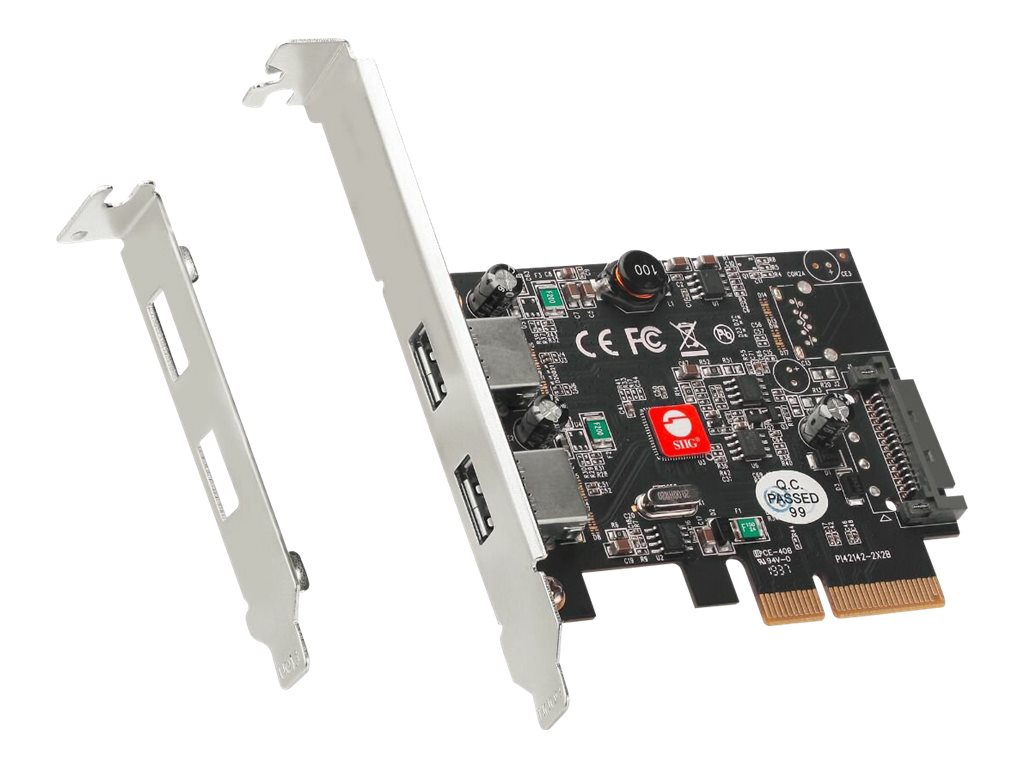

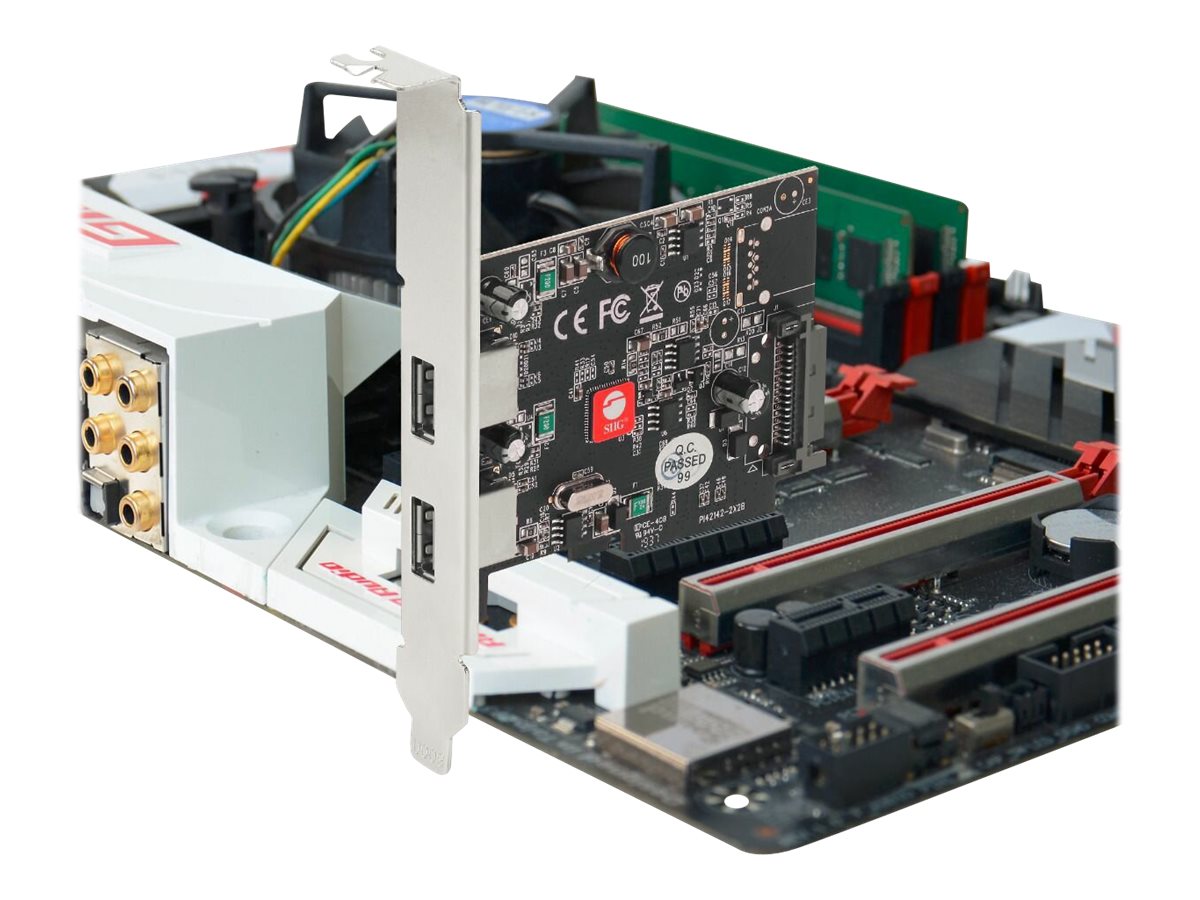

SIIG USB 3.1 2 Port PCIe Host Adapter Type A
MSRP$69.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SIIG USB 3.1 2 Port PCIe Host Adapter Type A
- USB adapter
- PCIe 3.0 x4 low profile
- USB 3.1 Gen 2 x 2
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $69.99 |
| Mfr Part #: | JU-P20912-S2 |
| SHI Part #: | 40380609 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | SIIG |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | SIIG USB 3.1 2 Port PCIe Host Adapter Type A - USB adapter - PCIe 3.0 x4 low profile - USB 3.1 Gen 2 x 2 - black |
| Manufacturer | SIIG |
| MSRP | $69.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 2 cm |
| Dimensions & Weight / Weight | 49.9 g |
| Dimensions & Weight / Width | 10 cm |
| Header / Brand | SIIG |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | USB 3.1 Gen 2 |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | USB adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 2 cm |
| Weight | 49.9 g |
| Width | 10 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.1 Gen 2 - 9 pin USB Type A (external) |
| General | |
| Device Type | USB adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 |
| PCI Specification Revision | PCIe 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |
| Included Accessories | Low-profile bracket |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB 3.1 Gen 2 |
| Data Transfer Rate | 10 Gbps |
| Ports | USB 3.1 Gen 2 x 2 |
| Power | |
| Power Consumption Operational | 3 watt |
| Processor / Memory | |
| Processor | 1 x ASMedia ASM3142 |
| Software / System Requirements | |
| OS Required | Apple macOS 10.13 - 10.15, Windows 8 / 10 (64 bits) |
