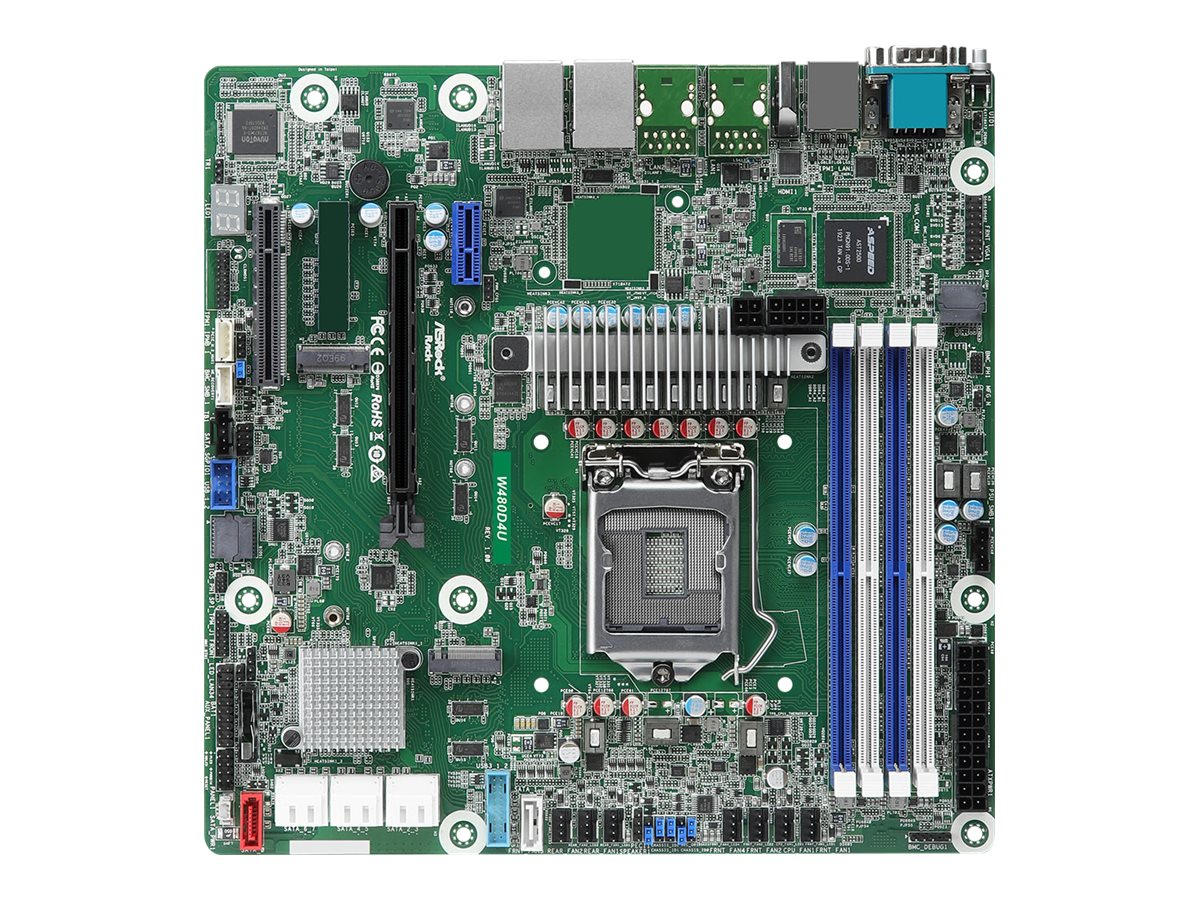

ASRock Rack W480D4U - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASRock Rack W480D4U - Motherboard
- micro ATX
- LGA1200 Socket
- W480 Chipset
- USB 3.2 Gen 2, USB 3.2 Gen 1
- 2 x Gigabit LAN
- onboard graphics
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | W480D4U |
| SHI Part #: | 40345583 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack W480D4U - Motherboard - micro ATX - LGA1200 Socket - W480 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard graphics |
| Manufacturer | ASRock |
| MSRP | $358.80 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Chipset Type | Intel W480 |
| Mainboard / Processor Socket | LGA1200 Socket |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2500 |
| Video Output / Type | Graphics adapter |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | Debug LED |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, power supply fan tachometer |
| General | |
| Chipset Type | Intel W480 |
| Compatible Processors | (supports 10th Generation Intel Xeon / Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - micro ATX |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Intel I210 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Depth | 24.4 cm |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2666 MHz, 2933 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
