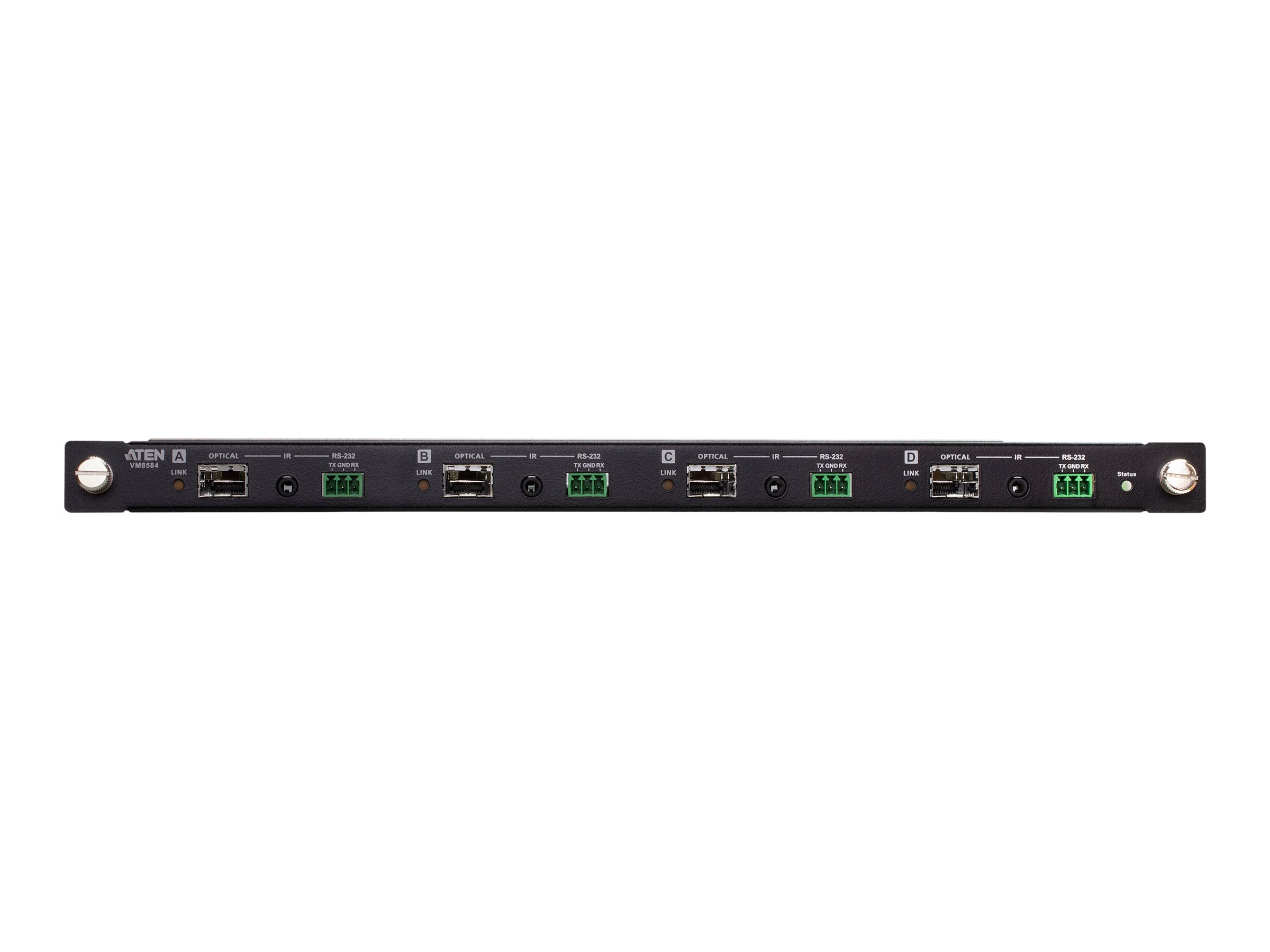

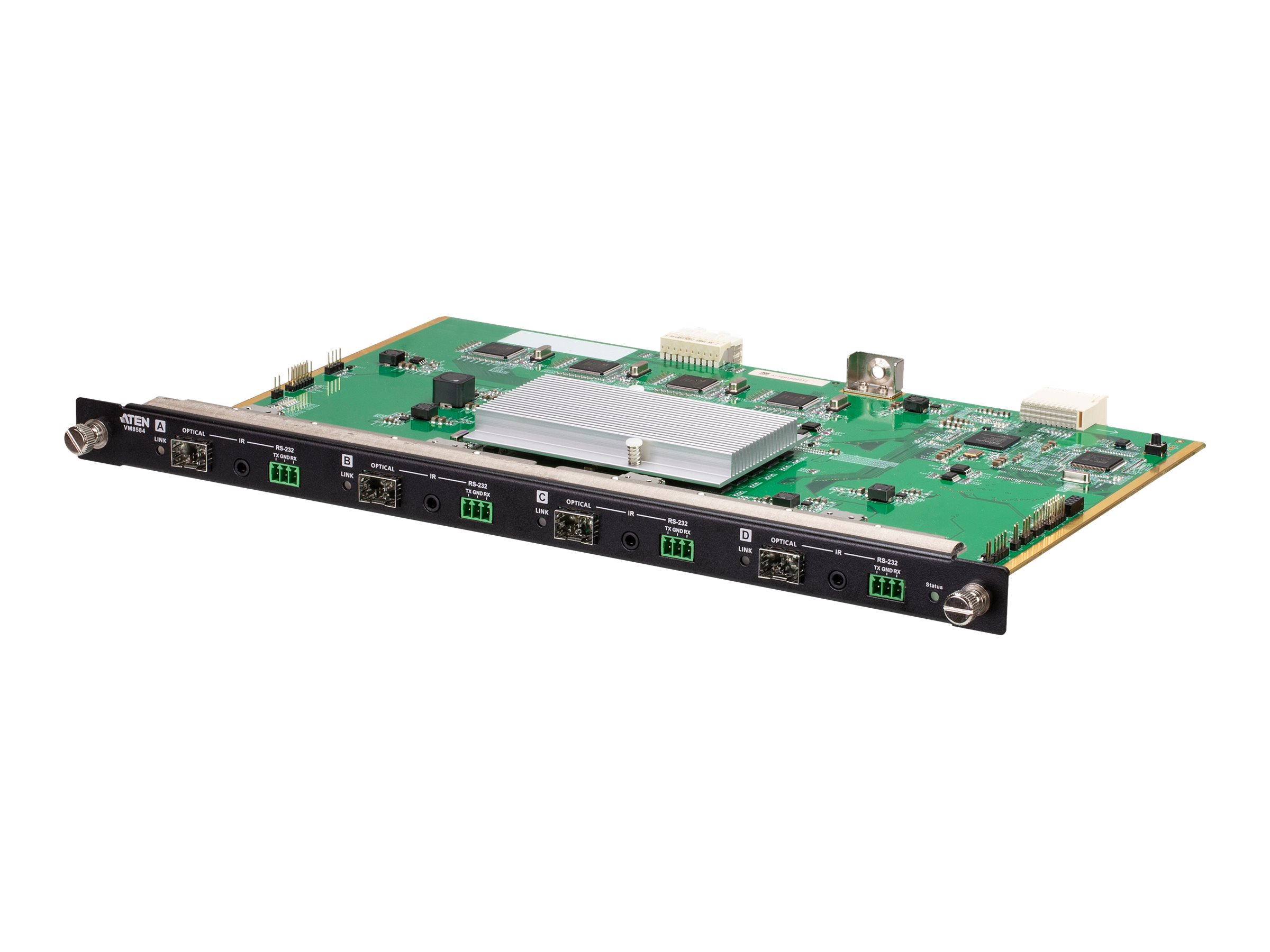

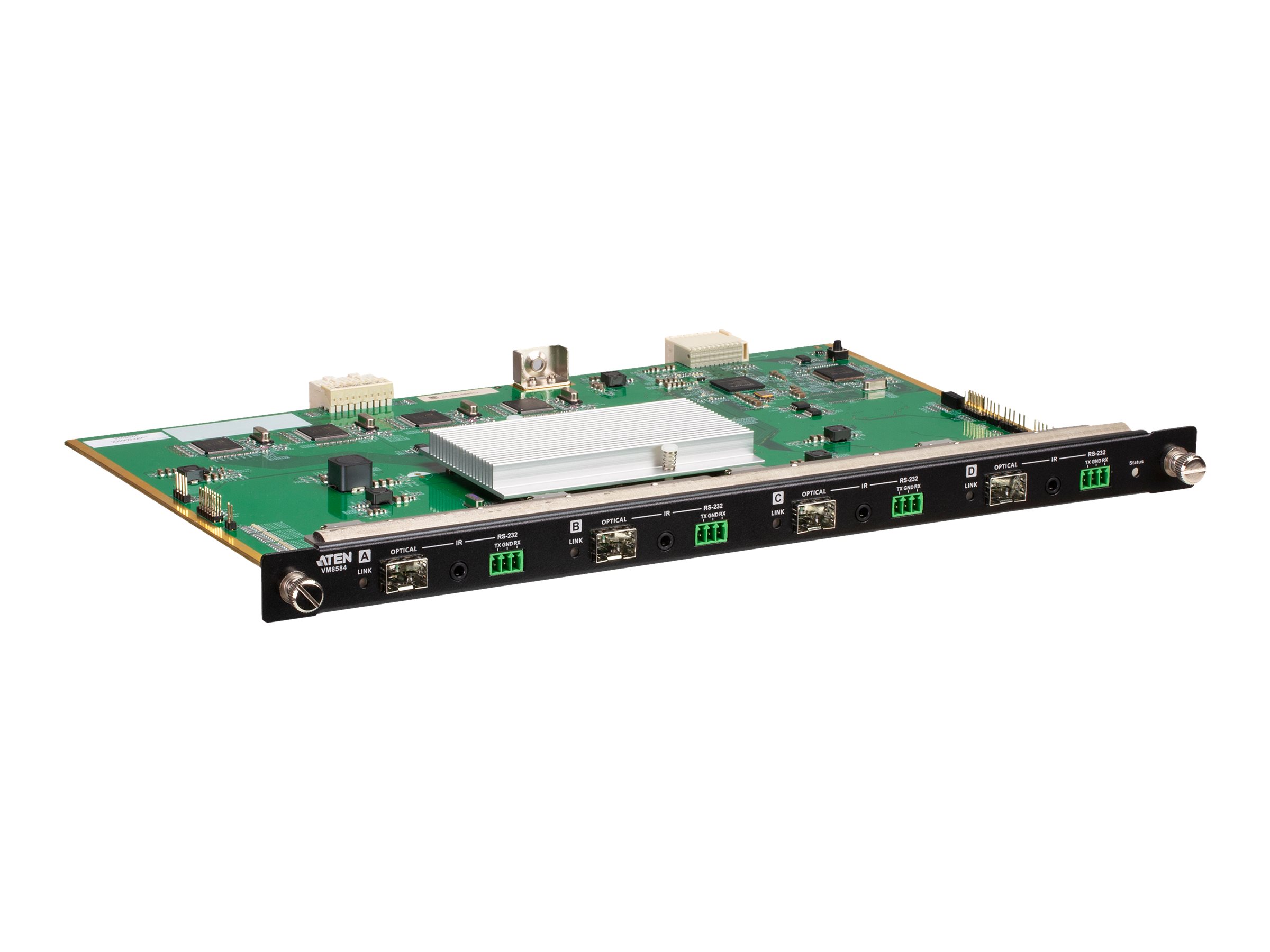

ATEN VM8584K1 - Expansion module
MSRP$3,621.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VM8584K1 - Expansion module
- 10Gb Ethernet SFP+ x 4
- 850 nm
- for ATEN VM1600A 16x16, VM3200 32, VM3250 32
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,621.00 |
| Mfr Part #: | VM8584K1 |
| SHI Part #: | 40334329 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | ATEN VM8584K1 - Expansion module - 10Gb Ethernet SFP+ x 4 - 850 nm - for ATEN VM1600A 16x16, VM3200 32, VM3250 32 |
| Manufacturer | ATEN |
| MSRP | $3,621.00 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.8 cm |
| Dimensions & Weight / Height | 2.33 cm |
| Dimensions & Weight / Weight | 650 g |
| Dimensions & Weight / Width | 35.2 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet (optical) |
| Networking / Data Transfer Rate | 10.3 Gbps |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | ATEN VM1600A 16x16 Modular Matrix Switch, VM3200 32 x32 Modular Matrix Switch, VM3250 32 x 32 Modular Matrix Switch Gen.2 |
| Dimensions & Weight | |
| Depth | 23.8 cm |
| Height | 2.33 cm |
| Weight | 650 g |
| Width | 35.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM3 |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet (optical) |
| Data Transfer Rate | 10.3 Gbps |
| Features | 3D support, 4K resolution support, EDID Expert, FrameSync, video wall function |
| Max Range Open Space | 300 m |
| Optical Wave Length | 850 nm |
| Ports | 10Gb Ethernet SFP+ x 4 |
| Power | |
| Power Consumption Operational | 22.96 Watt |
