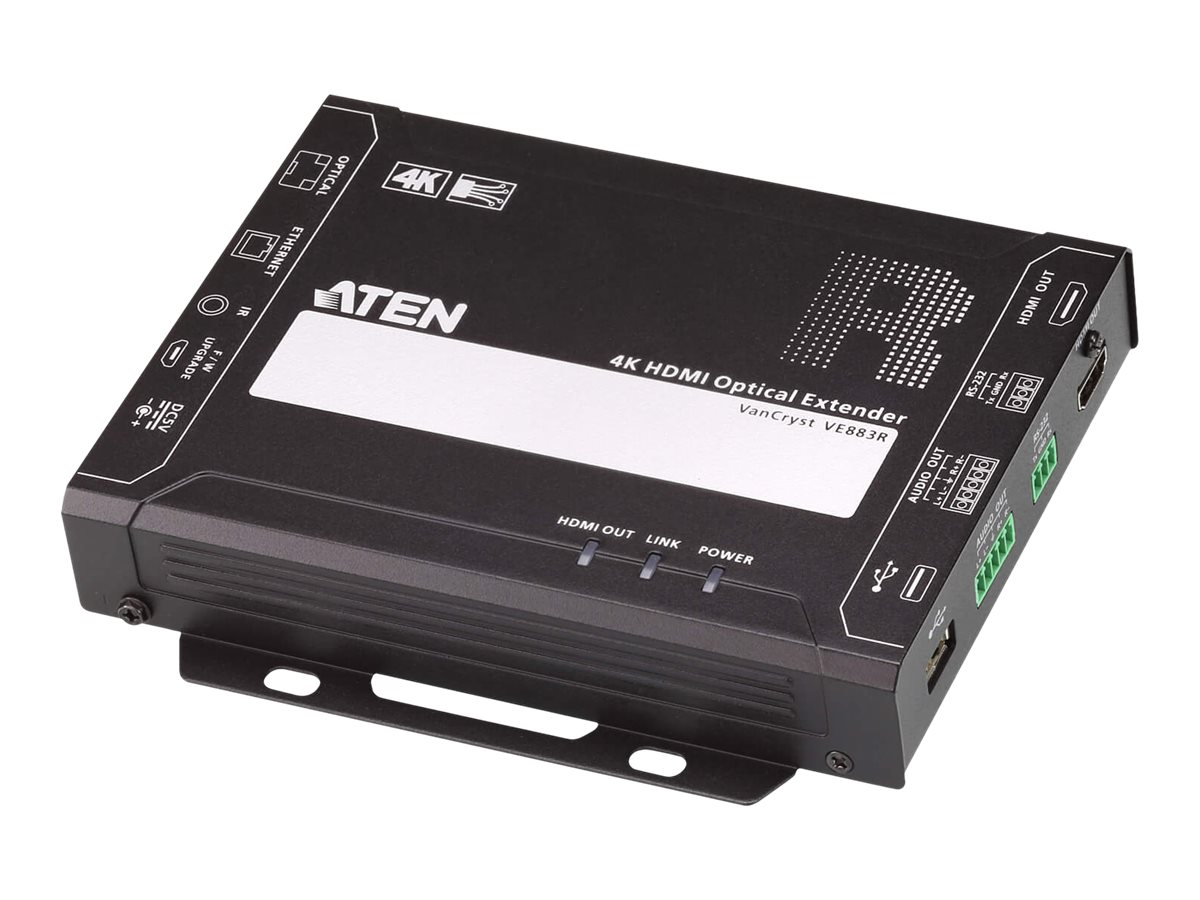

ATEN VanCryst VE883R
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ATEN VanCryst VE883R
- Video/audio/infrared/USB/serial/network extender
- receiver
- over fiber optic
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Mfr Part #: | VE883RK2 |
| SHI Part #: | 40269062 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VanCryst VE883R - Video/audio/infrared/USB/serial/network extender - receiver - over fiber optic - up to 10 km - 1310 nm |
| Manufacturer | ATEN |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.6 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 640 g |
| Dimensions & Weight / Width | 12.49 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/USB/serial/network extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 16.6 cm |
| Height | 2.9 cm |
| Weight | 640 g |
| Width | 12.49 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/USB/serial/network extender (receiver) |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, RoHS, Laser Class 1, KCC, 21 CFR 1040.10, 21 CFR 1040.11, IEC/EN 60825-1 |
| Included Accessories | IR receiver, IR transmitter, HDMI LockPro, 3-pin terminal block, 5-pin terminal block, duplex LC singlemode SFP+ transceiver (2X-C32-2G) |
| Mounting Kit | Optional |
| Networking | |
| Compliant Standards | USB 2.0, HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10.2 Gbps |
| Features | Firmware upgradable, HDCP compliant, 3D support, 4K resolution support, 8KV/15KV ESD Protector, metal housing, 12-bit Deep Color support, FarSmooth technology |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 10 km |
| Max Video Bandwidth | 340 MHz |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, video, link |
| Power | |
| Power Consumption Operational | 6.77 Watt |
| Power Device | External power adapter |
