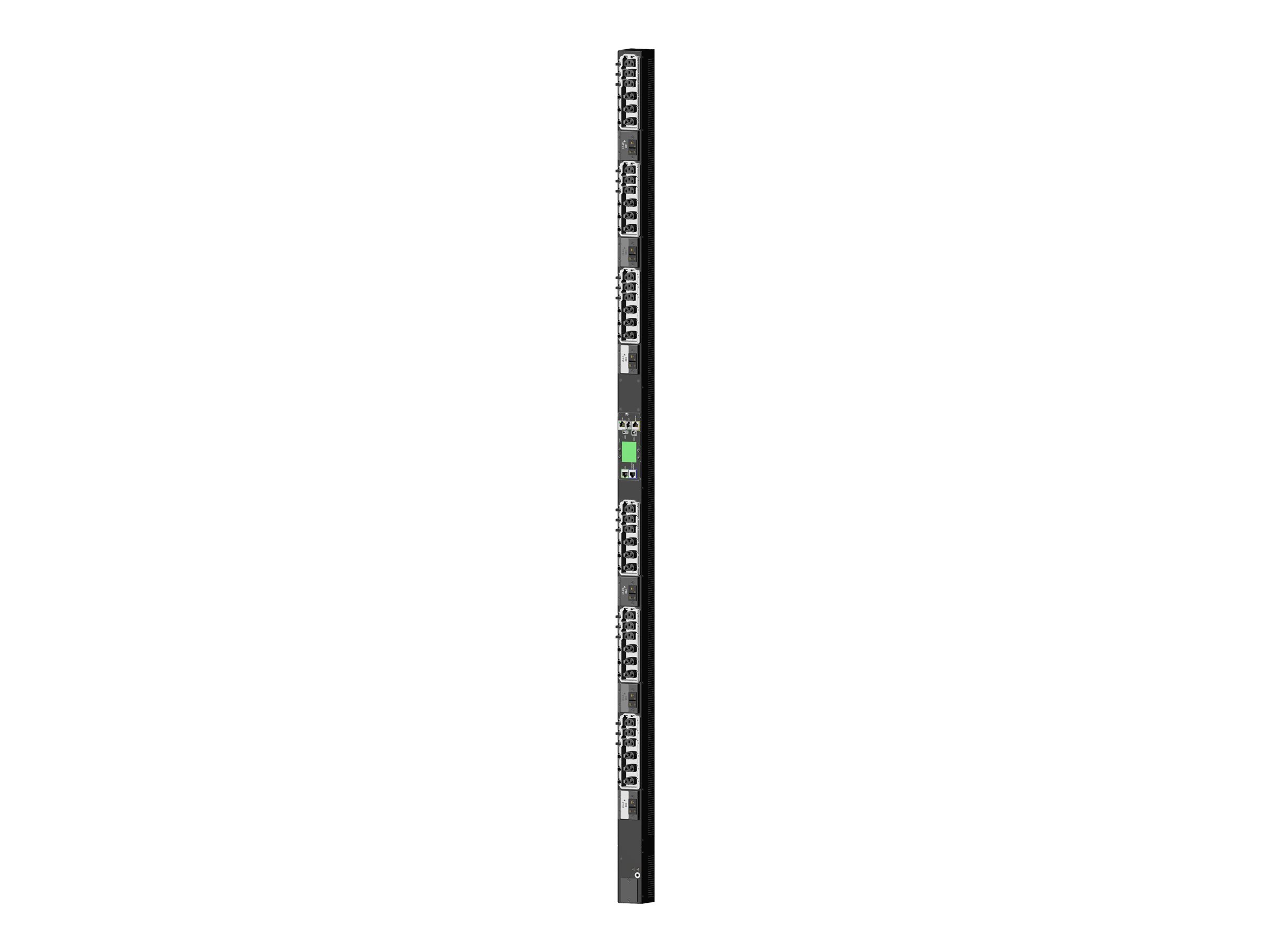

Server Technology PRO3X Switched PDU C3W36RL-DFJE2MT2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO3X Switched PDU C3W36RL-DFJE2MT2
- Power distribution unit (rack-mountable)
- AC 208 V
- 14.4 kW
- 3-phase
- USB, Ethernet 10/100/1000
- input: CS8365
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C3W36RL-DFJE2MT2 |
| SHI Part #: | 40237385 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO3X Switched PDU C3W36RL-DFJE2MT2 - Power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase - USB, Ethernet 10/100/1000 - input: CS8365 - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $3,124.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | cTUVus, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, FCC Subpart B 15.107, FCC Subpart B 15.109, UL 60950-1:2007 R10.14 |
| Features | LED display, thermal monitoring, voltage monitoring, humidity monitoring, current meter, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), High Density Outlet Technology (HDOT), crest factor meter, Branch Current Monitoring, Branch Circuit Protection, Ramlock Locking Outlets |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, SFTP, IPv4, IPv6, TACACS+, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power CS8365 |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 50 A |
| Output Voltage | AC 208 V |
| Power Capacity | 14.4 kW |
| Power Output Connectors Details |
|
