KIOXIA CM5-V Mainstream
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

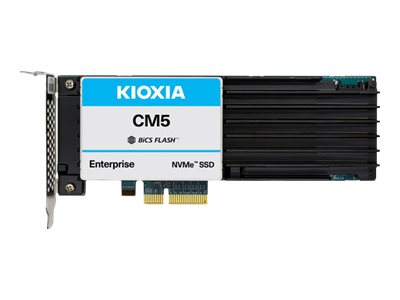

KIOXIA CM5-V Mainstream
- SSD
- 3.2 TB
- internal
- PCIe card (HHHL)
- PCIe 3.0 x4 (NVMe)
- for ThinkSystem SR570; SR590; SR630; SR650; SR850; SR860; SR950
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 4XB7A38237 |
| SHI Part #: | 40104165 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | KIOXIA CM5-V Mainstream - SSD - 3.2 TB - internal - PCIe card (HHHL) - PCIe 3.0 x4 (NVMe) - for ThinkSystem SR570; SR590; SR630; SR650; SR850; SR860; SR950 |
| Manufacturer | Lenovo |
| MSRP | $3,929.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 168 mm |
| Dimensions & Weight / Height | 69 mm |
| Dimensions & Weight / Weight | 220 g |
| Dimensions & Weight / Width | 19 mm |
| Hard Drive / Capacity | 3.2 TB |
| Hard Drive / Form Factor | PCIe card (HHHL) |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | KIOXIA |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion & Connectivity | |
| Compatible Bay | PCIe card (HHHL) |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 3.2 TB |
| Depth | 168 mm |
| Device Type | Solid state drive - internal |
| Features | 64-layer 3D BiCS FLASH, End-to-end data protection |
| Form Factor | PCIe card (HHHL) |
| Height | 69 mm |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 220 g |
| Width | 19 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, TUV, BSMI CNS 13438, MSIP, KN22, KN24, AS/NZS CISPR32:2015 Class B, ICES-003 issue 6 Class B, EMC, EN 55022:2010 Class B, EN 55024:2010, RoHS 2011/65/EU, EN 60950-1 |
| Included Accessories | Low profile bracket |
| Performance | |
| 4KB Random Read | 718000 IOPS |
| 4KB Random Write | 121000 IOPS |
| Average Latency | 106 µs |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 3119 MBps (read) / 3047 MBps (write) |
| SSD Endurance | 17520 TB |
| Power | |
| Power Consumption | 15 watt (maximum) |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
