Tripp Lite HDMI over Cat6 Active Remote Receiver 2-Port for Video/Audio, PoC, 4K @ 60 Hz, Up to 125 ft., TAA

MSRP$196.80

$145.00

Tripp Lite HDMI over Cat6 Active Remote Receiver 2-Port for Video/Audio, PoC, 4K @ 60 Hz, Up to 125 ft., TAA

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Video/audio extender receiver HDMI over CAT 6 4 ports

Tripp Lite HDMI over Cat6 Active Remote Receiver 2-Port for Video/Audio, PoC, 4K @ 60 Hz, Up to 125 ft., TAA

Video/audio extender
receiver
HDMI
over CAT 6
4 ports
up to 38.1 m
TAA Compliant

Additional Details
Price:	$145.00
MSRP:	$196.80
Mfr Part #:	B127-200-H
SHI Part #:	40063261
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	Eaton
Product Type:	Hardware

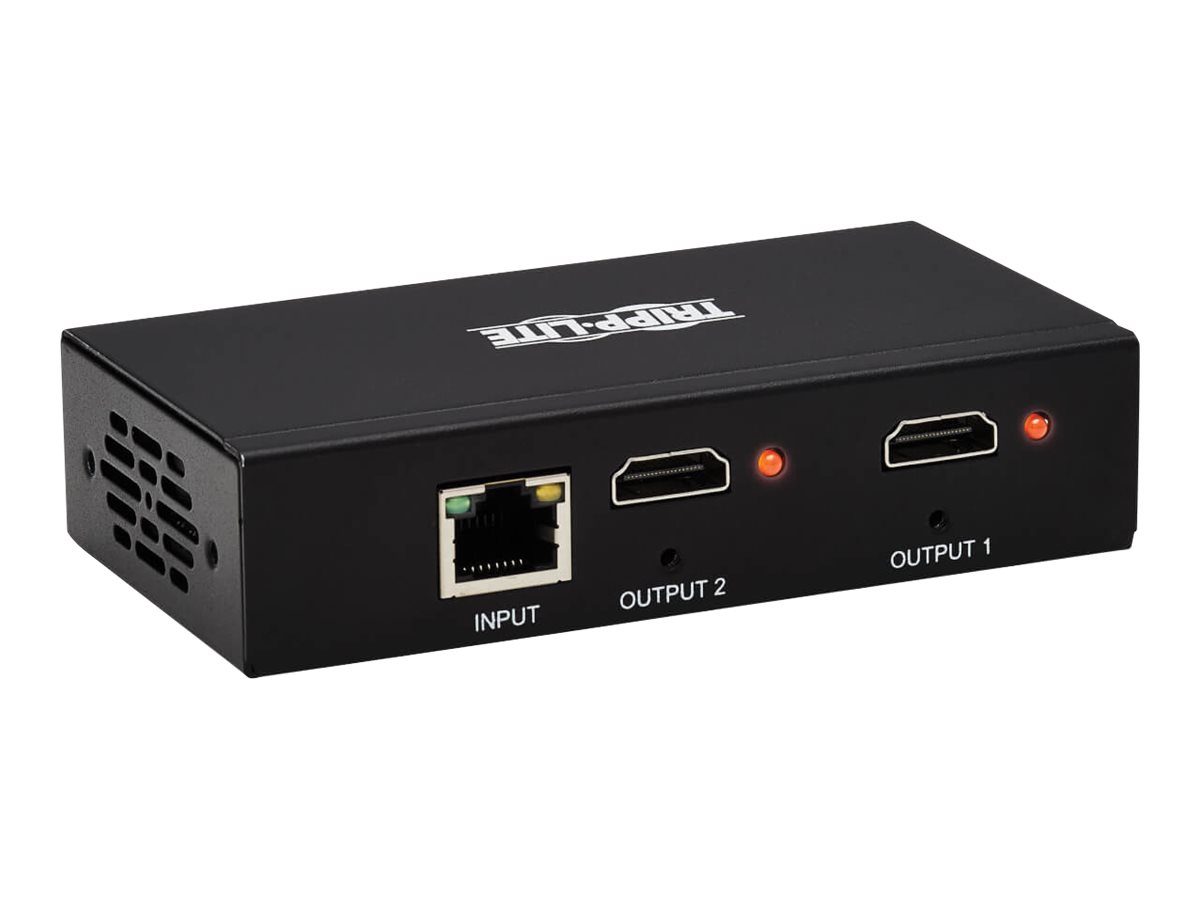

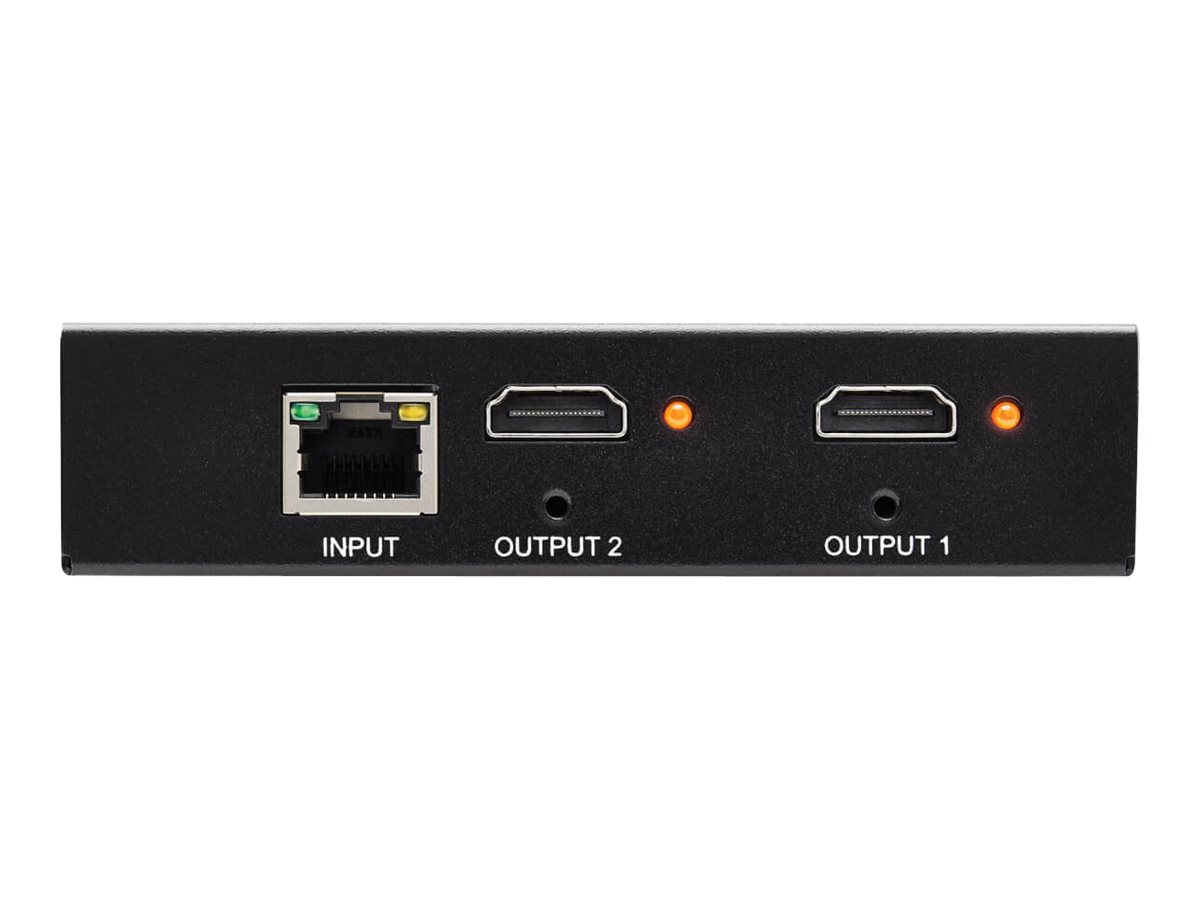

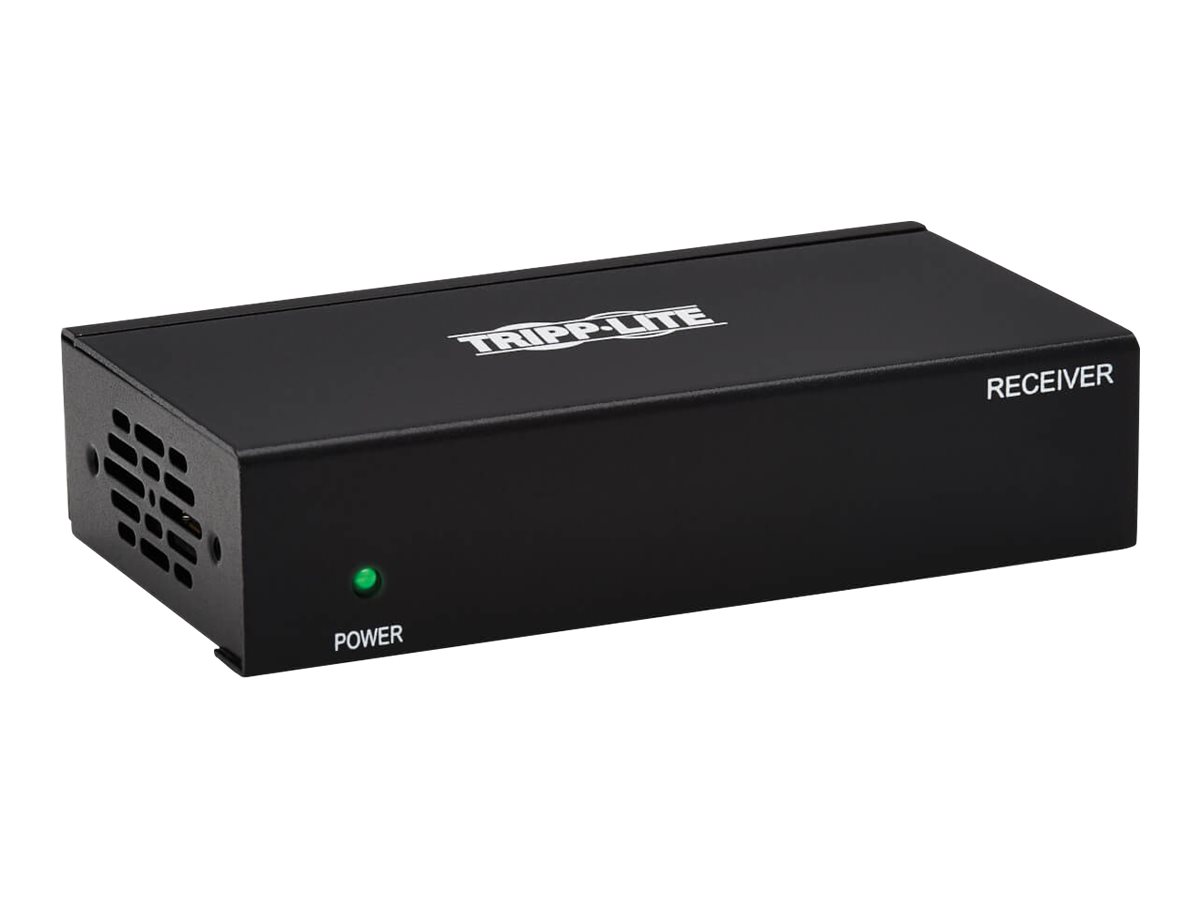

This box-style active remote receiver works in tandem with Tripp Lite's B127-002-H or B127-004-H transmitter to extend 4K video (at 60 Hz) and 7.1 audio from an HDMI source to two HDMI displays up to 125 feet using Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet and a 1080p HDMI signal (at 60 Hz) up to 200 feet.

The B127-200-H is recommended for home theaters and video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

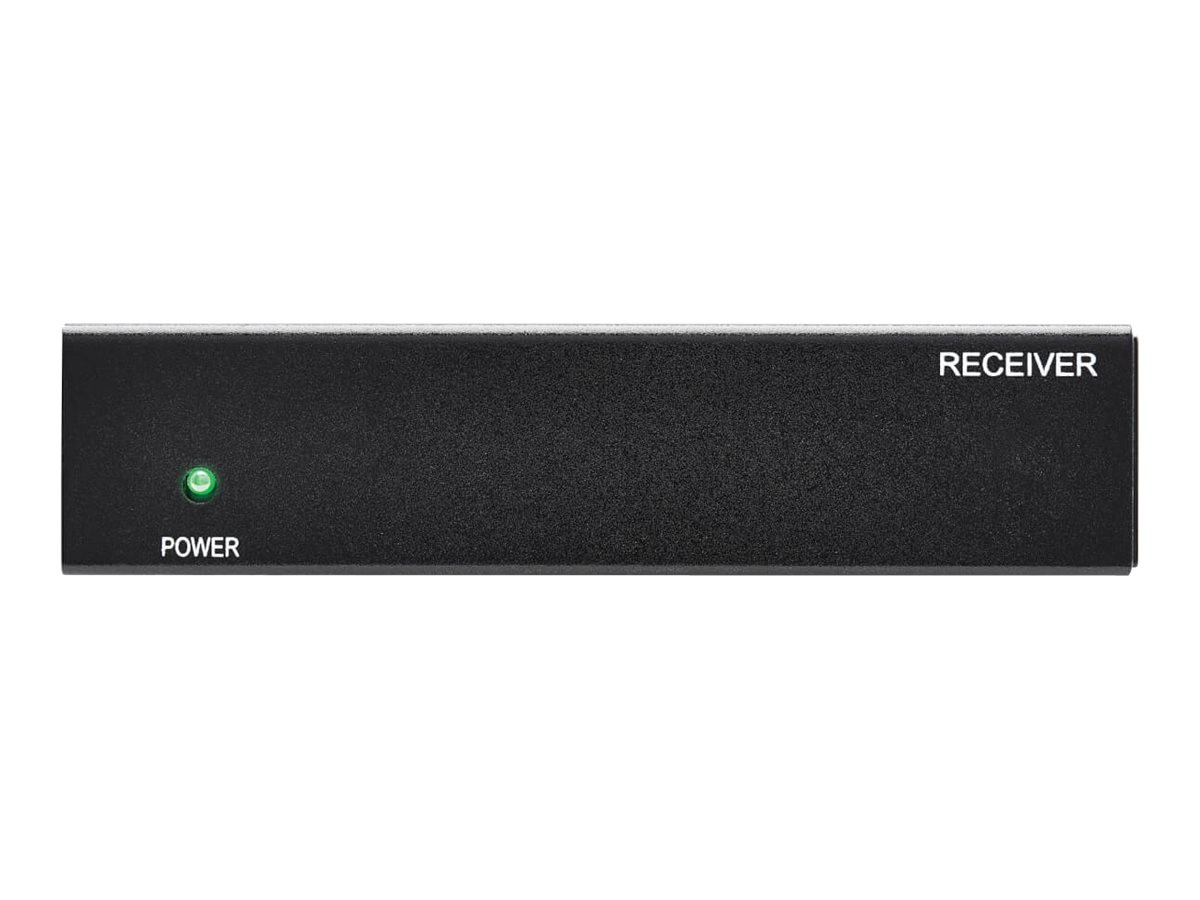

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

The B127-200-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. The receiver is compatible with HDMI 2.0 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-200-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

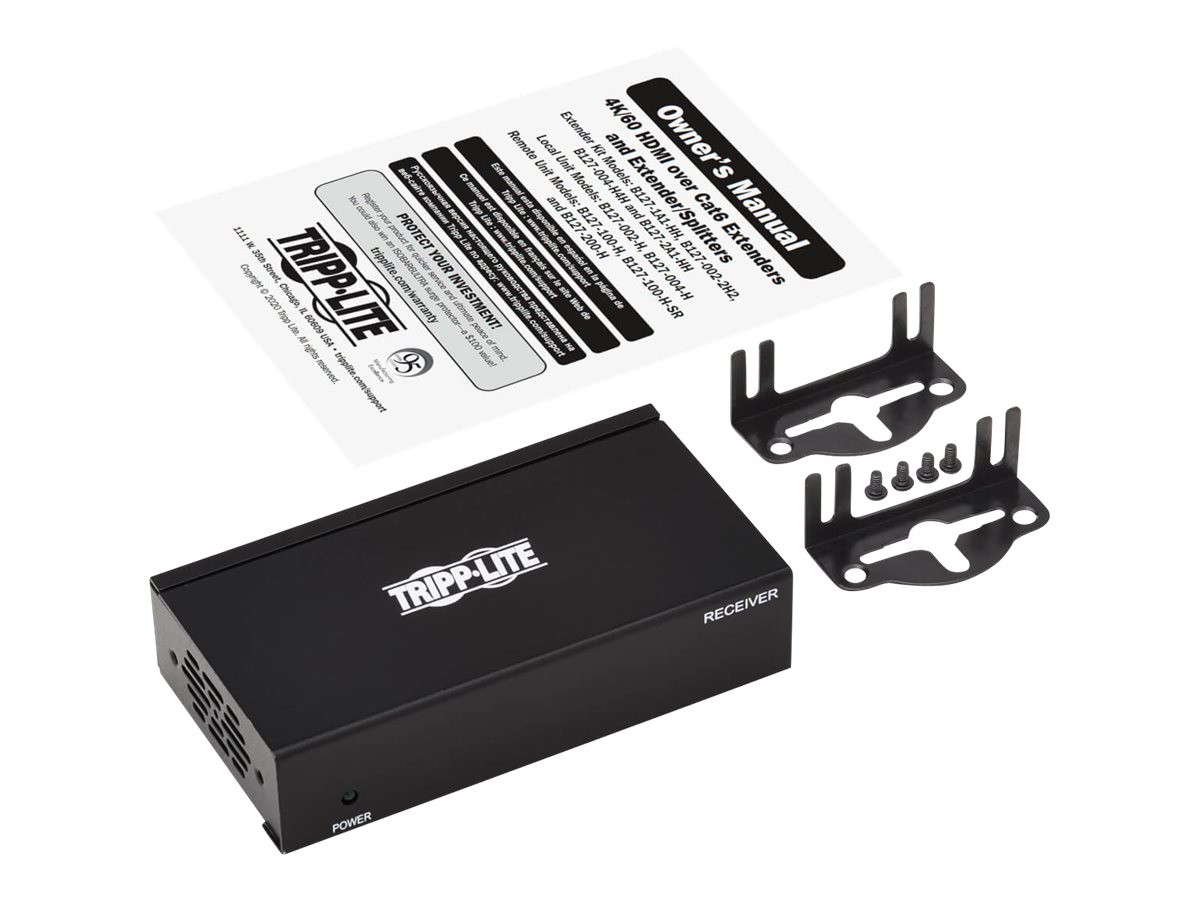

The receiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to the display with a user-supplied high-speed HDMI cable (such as Tripp Lite's P568- or P569-Series) and to the transmitter with Cat6 Ethernet cable (such as Tripp Lite N202-Series cable).

The B127-200-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Audio/Video Cables

Eaton Tripp Lite Series 4K HDMI Cable (M/M)

4K 60 Hz, HDR, 4:4:4, Gripping Connectors, Black, 6 ft.
HDMI cable
HDMI male to HDMI male
1.83 m
shielded
black

MSRP $14.95

$7.00

Tripp Lite High-Speed HDMI Cable with Gripping Connectors 4K 60 Hz 4:4:4 M/M Black 3ft

HDMI cable
HDMI (M) to HDMI (M)
91 cm
shielded
black
molded

MSRP $13.80

$7.00

Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'

Patch cable
RJ-45 (M) to RJ-45 (M)
15.3 m
CAT 6
booted, snagless, solid
blue

MSRP $50.88

$26.00

General Information
Category	Serial port cards
Description	Tripp Lite HDMI over Cat6 Active Remote Receiver 2-Port for Video/Audio, PoC, 4K @ 60 Hz, Up to 125 ft., TAA - Video/audio extender - receiver - HDMI - over CAT 6 - 4 ports - up to 38.1 m - TAA Compliant
Manufacturer	Eaton
MSRP	$196.80
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	6.25 cm
Dimensions & Weight / Height	2.7 cm
Dimensions & Weight / Weight	200 g
Dimensions & Weight / Width	11.5 cm
Header / Brand	Tripp Lite
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDMI
Networking / Form Factor	Rack-mountable
Networking / Type	Video/audio extender
Packaged Quantity	1
Dimensions & Weight
Depth	6.25 cm
Height	2.7 cm
Weight	200 g
Width	11.5 cm
Expansion / Connectivity
Interfaces	1 x HDMI (input) - Type A female 1 x HDMI (output) - Type A female 1 x network (output) - RJ-45 female
General
Color	Black
Device Type	Video/audio extender (receiver)
Form Factor	Rack-mountable
Miscellaneous
Compliant Standards	Plug and Play, FCC, RoHS, REACH
Included Accessories	4 power plug adapters
Mounting Kit	Included
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Compliant Standards	HDCP 2.2
Connectivity Technology	Wired
Data Link Protocol	HDMI
Features	Wall mountable, HDTV Compatible, pole mountable, 4K resolution support, 7.1 channel audio support, metal housing, Dolby TrueHD support, 24-bit Deep Color support, DTS-HD support, HDR support
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	38.1 m
Ports Qty	4
Status Indicators	Power, active
Power
Power Device	External power adapter
Power Over Ethernet (PoE)	PoC
Voltage Required	AC 120/230 V (50/60 Hz)
