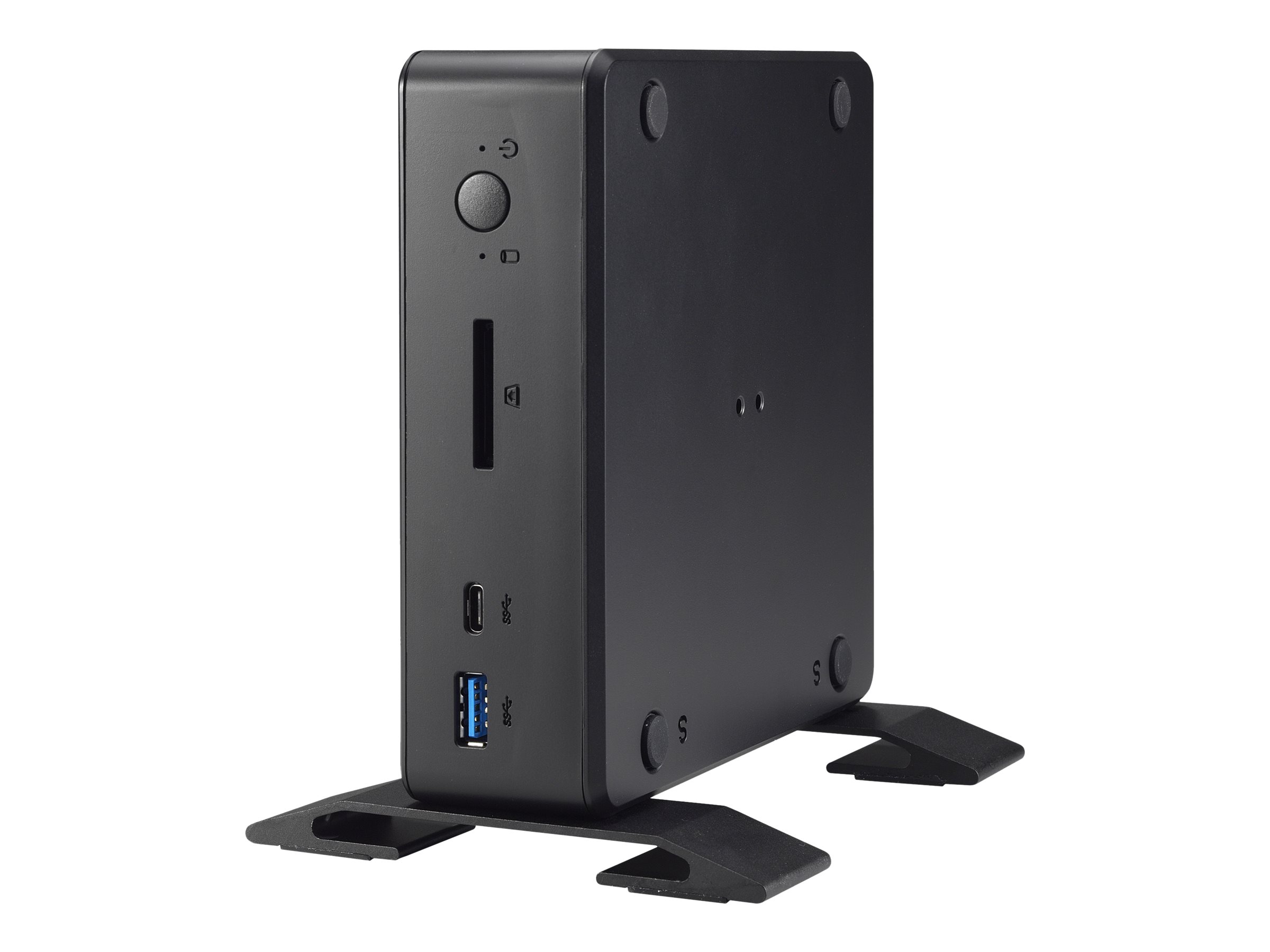

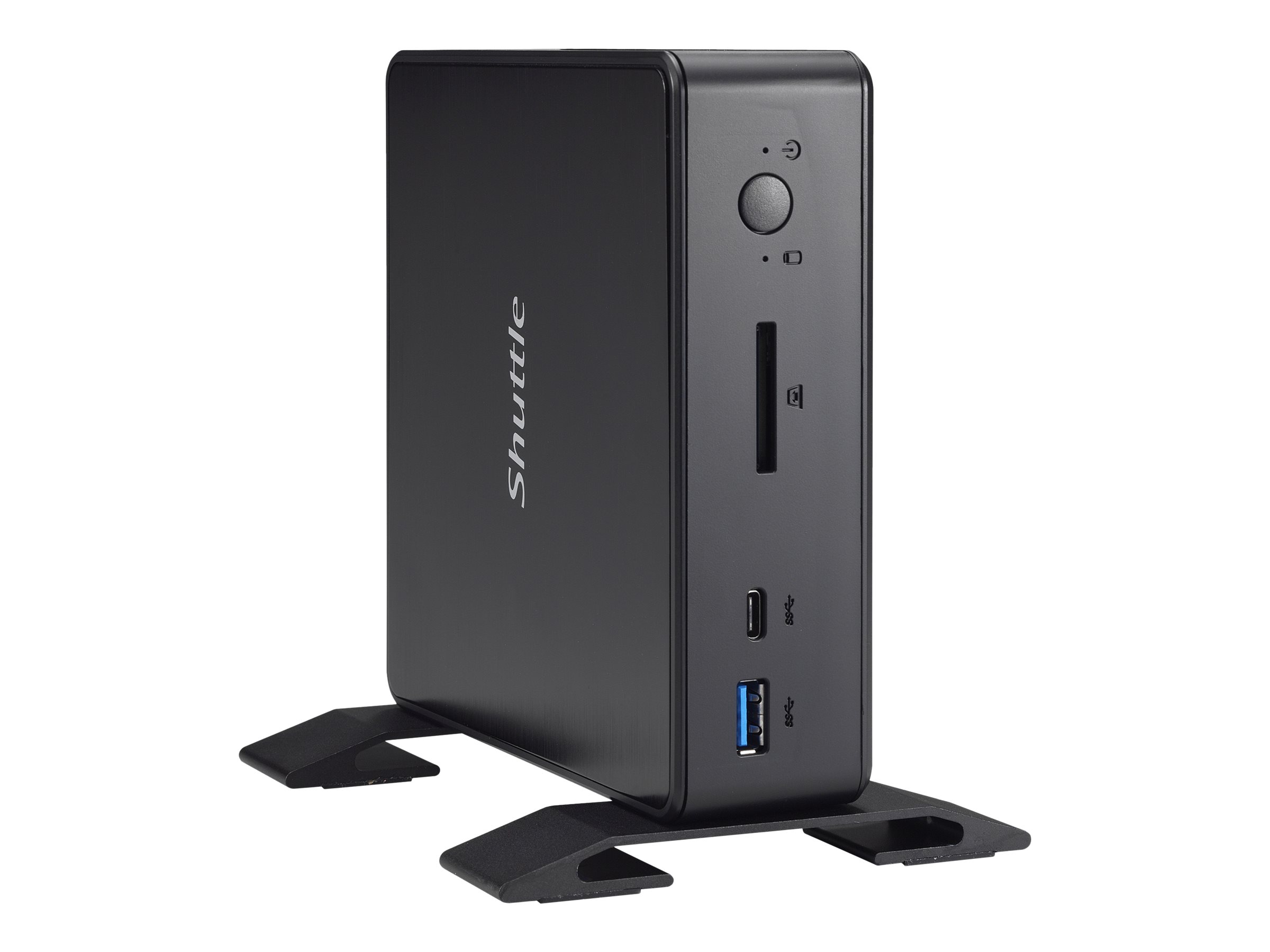

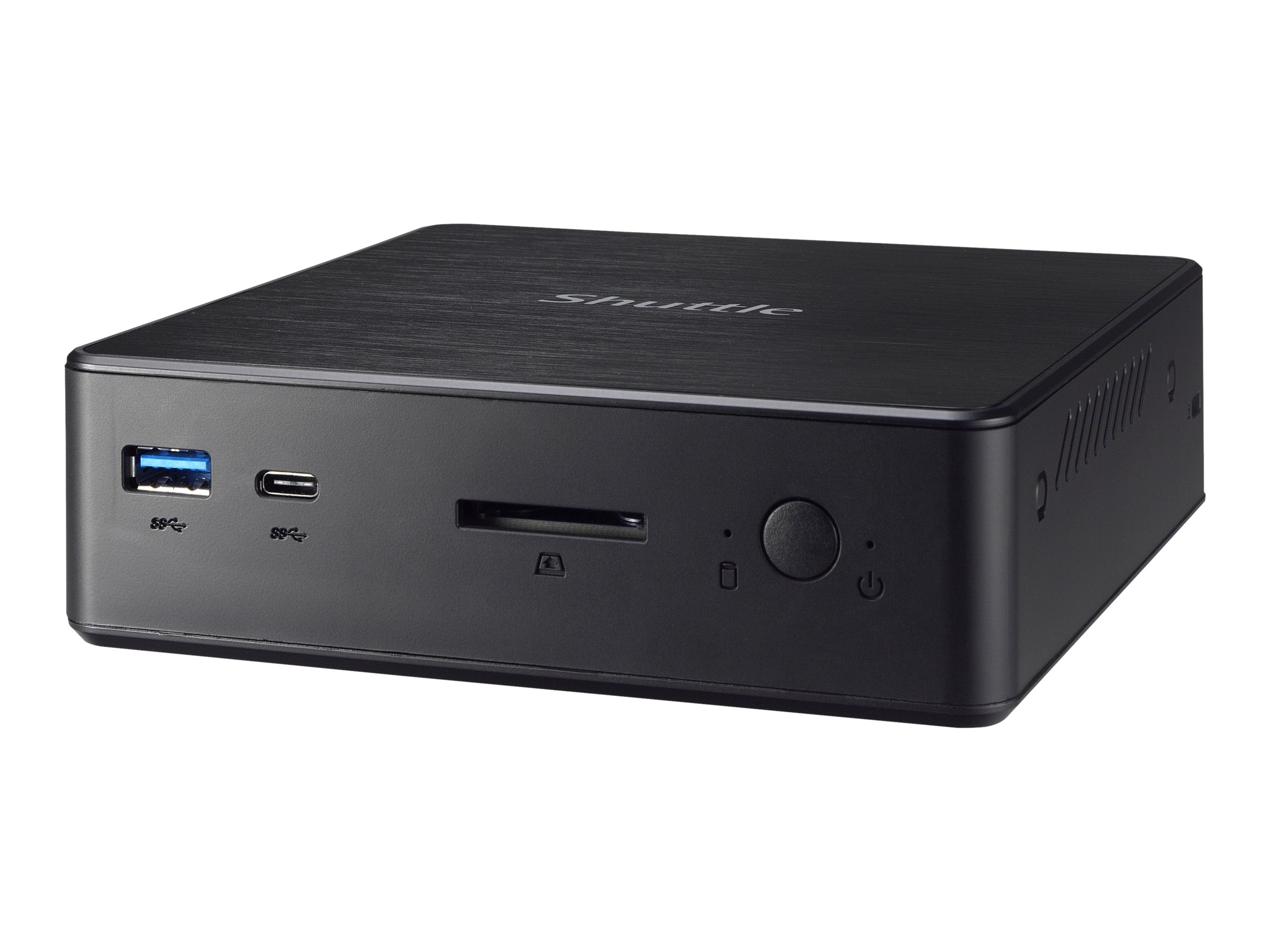

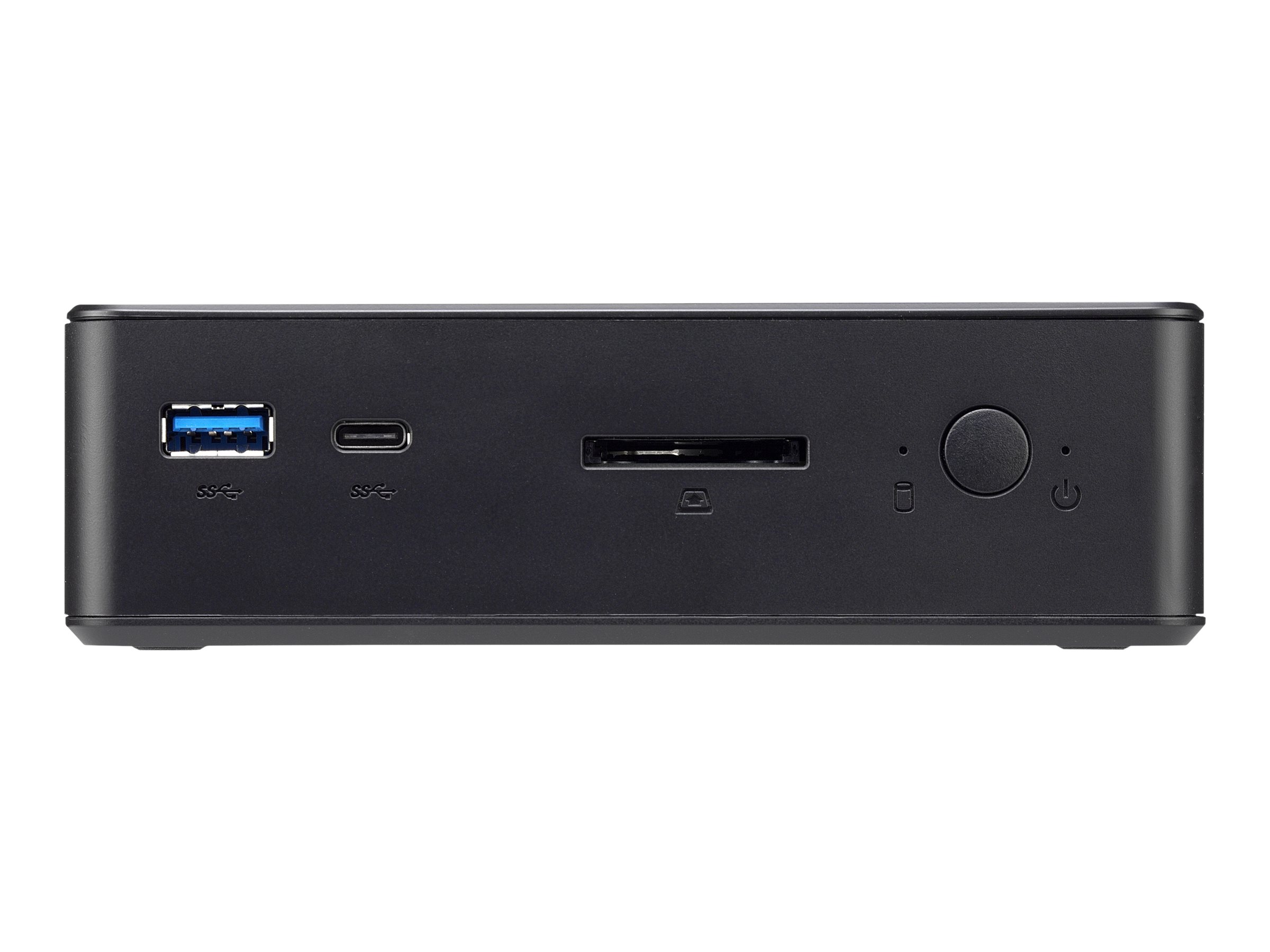

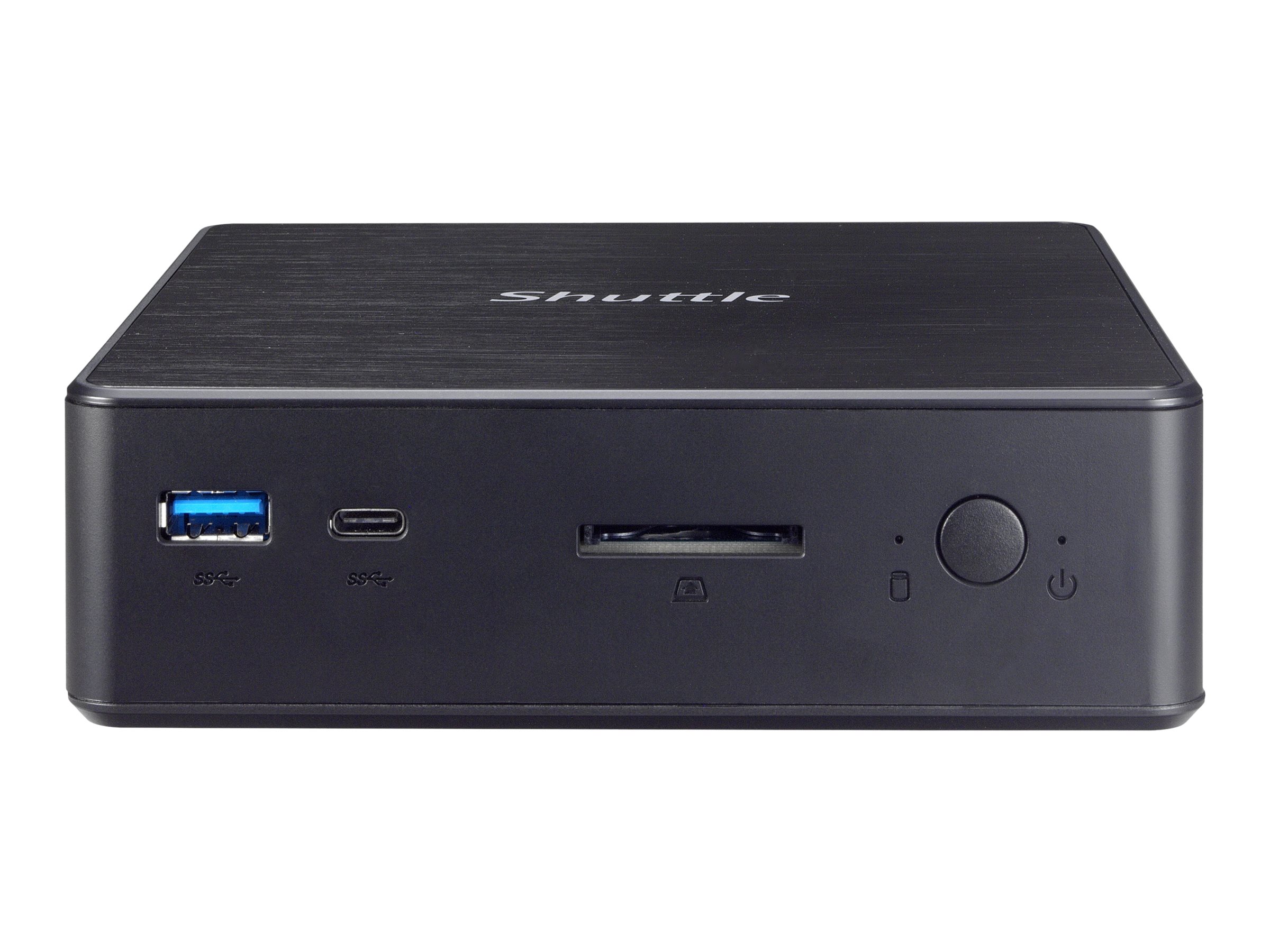

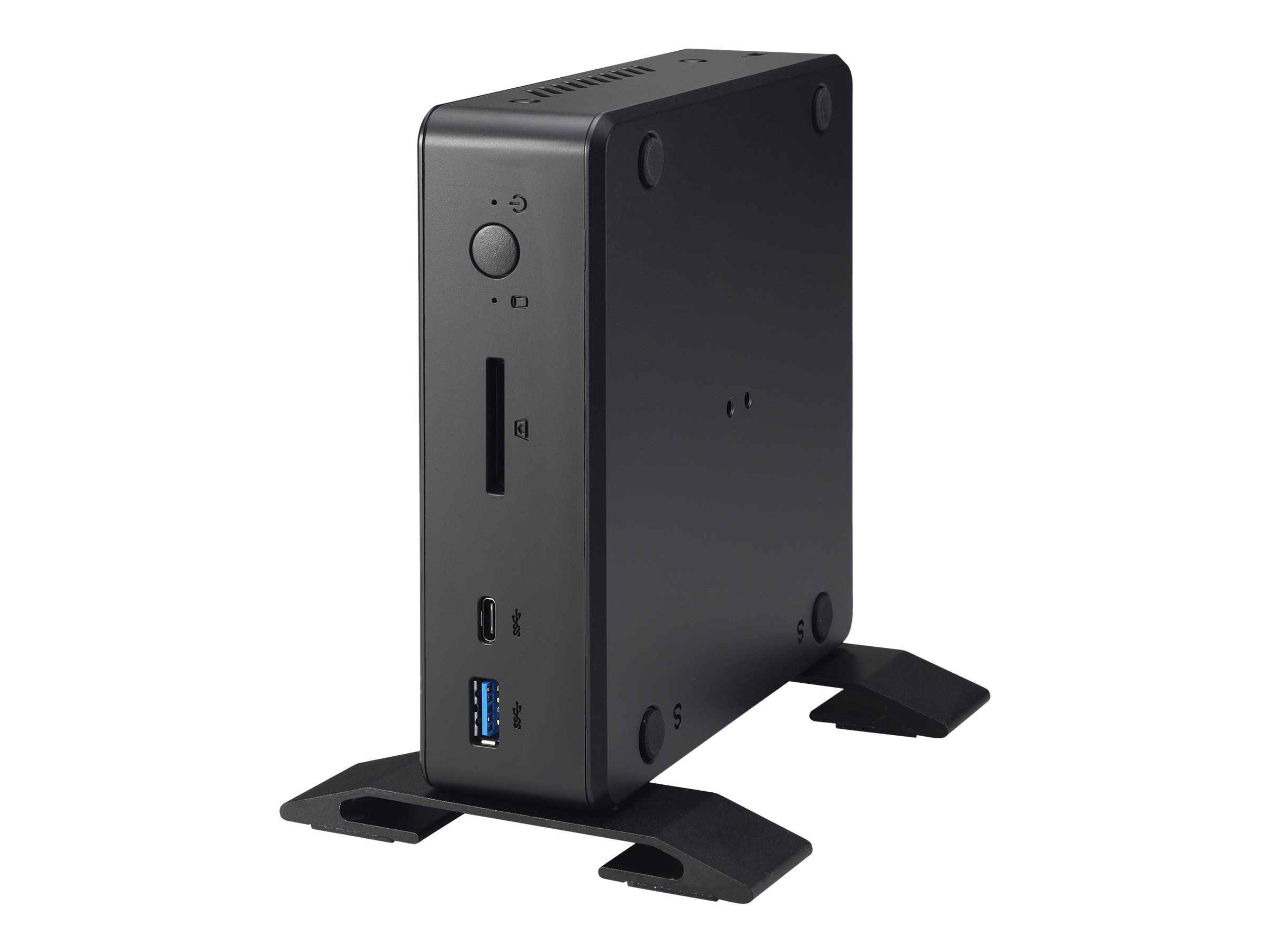

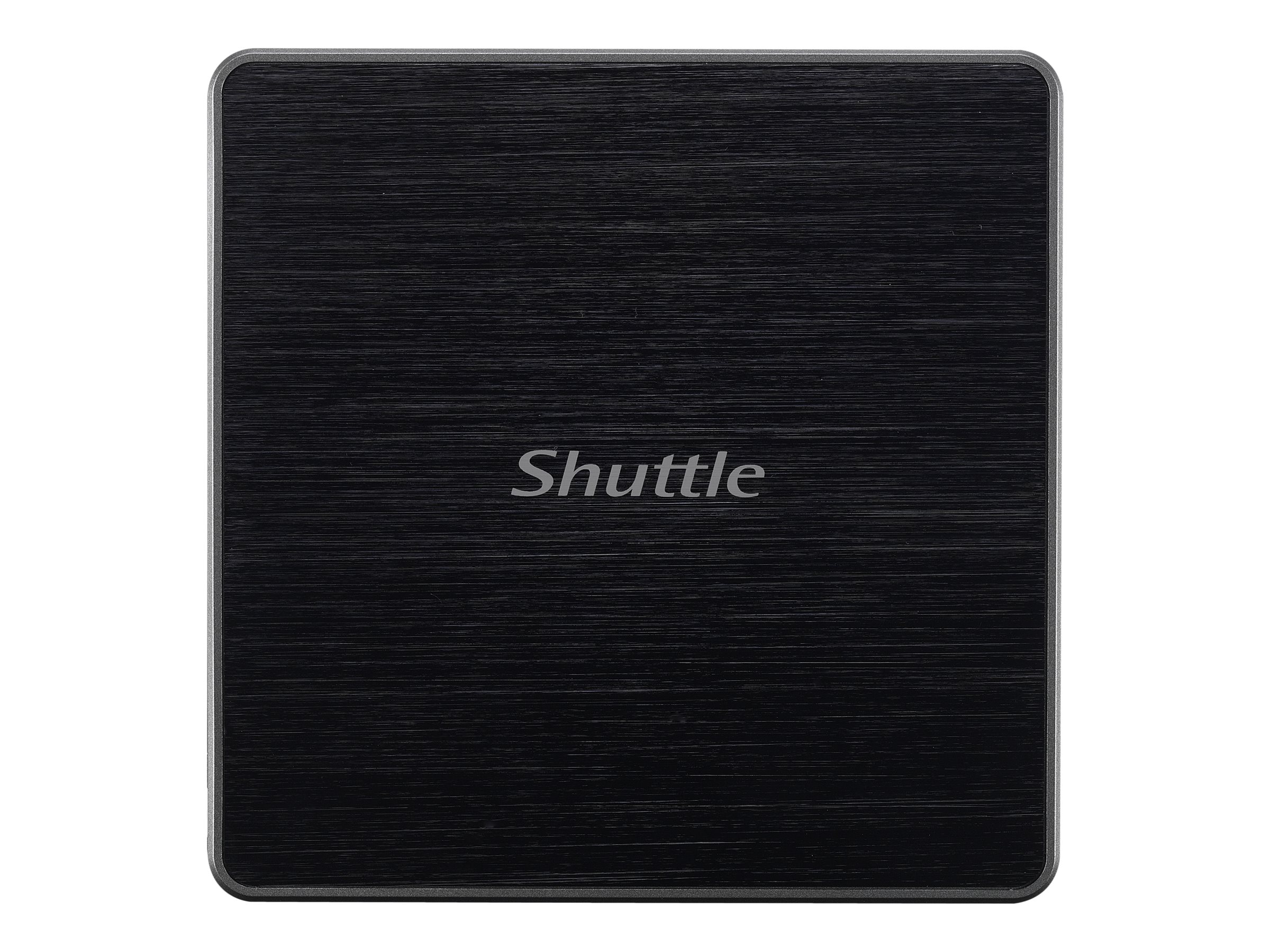

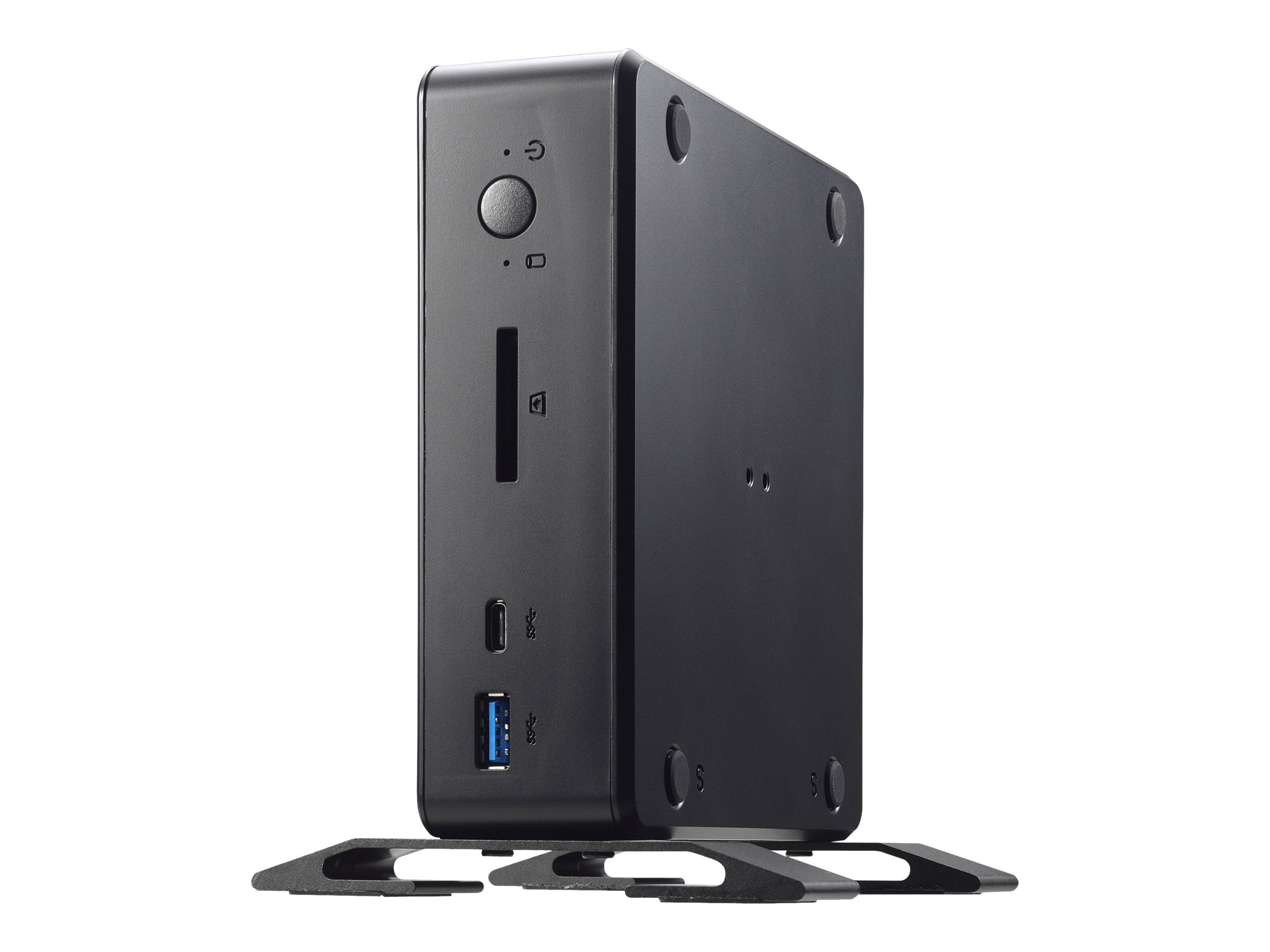

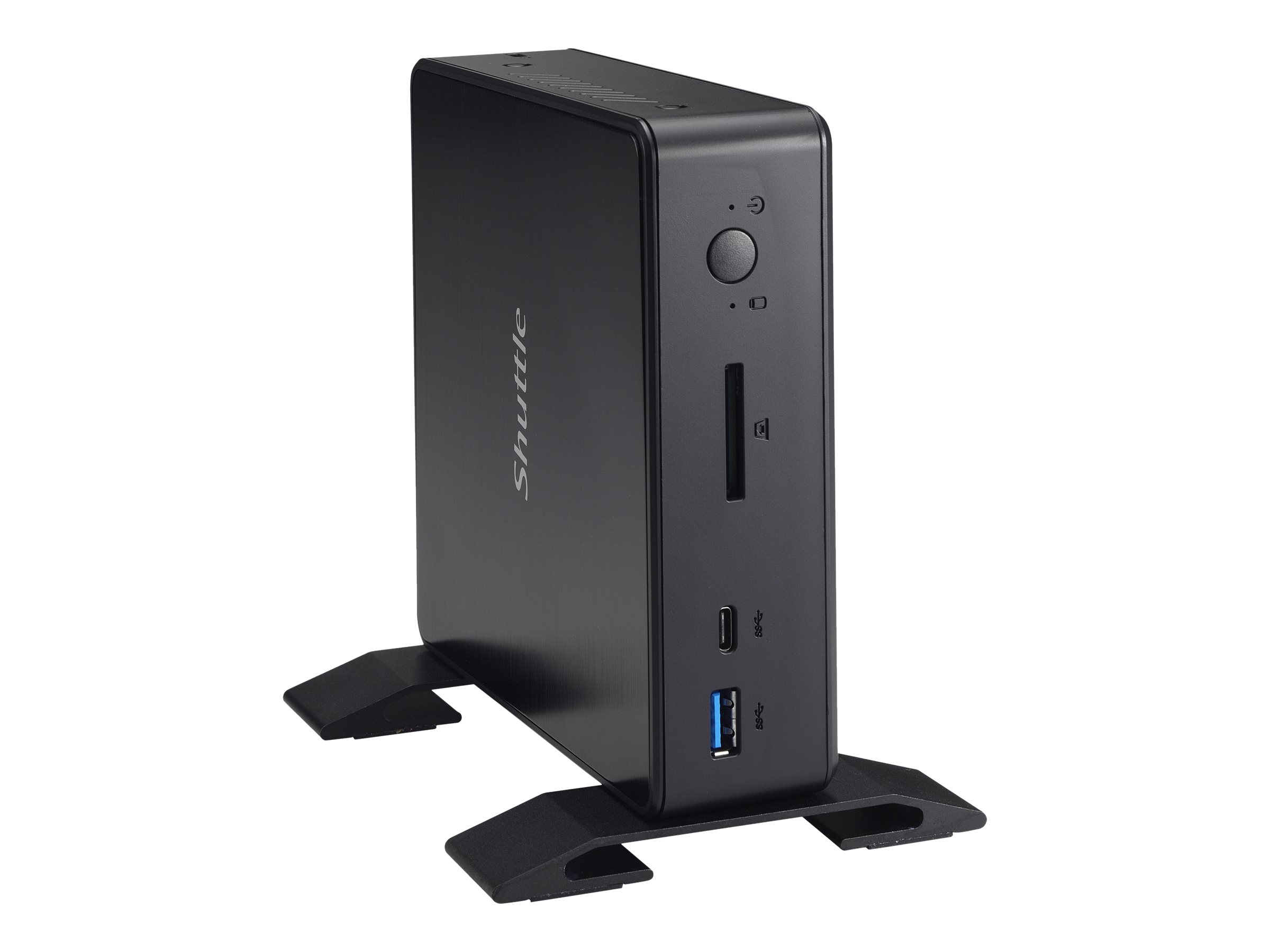

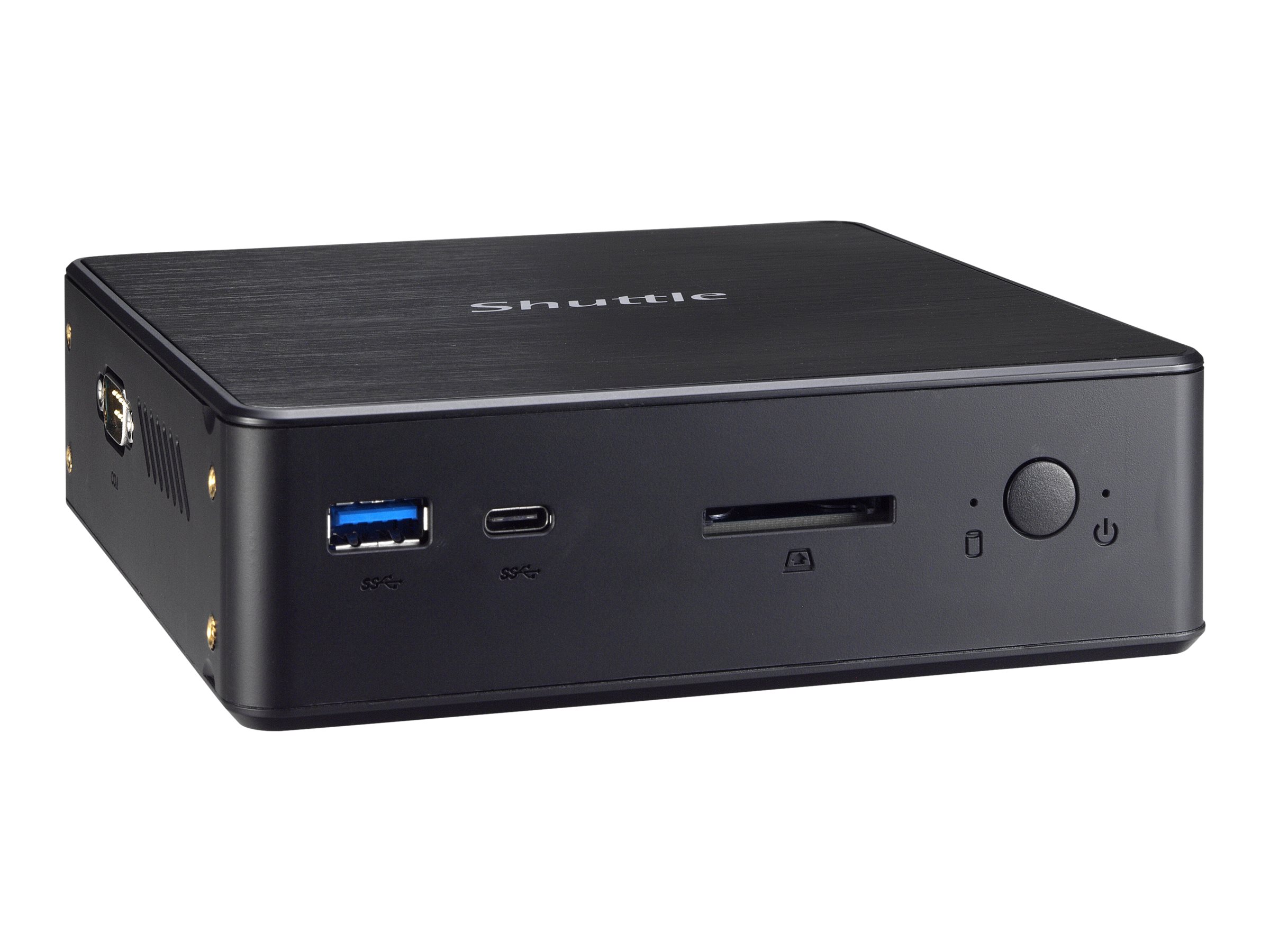

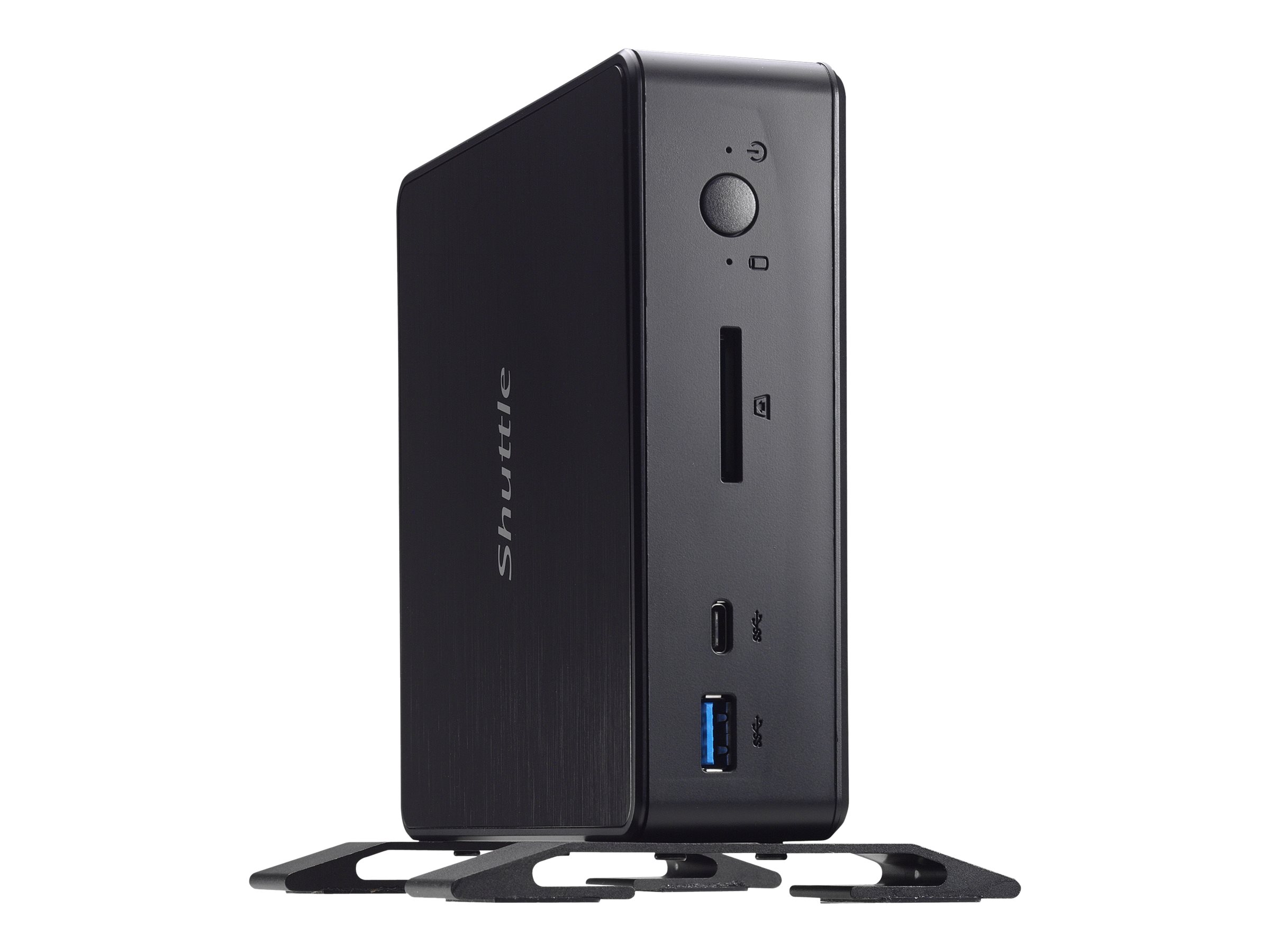

Shuttle XPC nano NC03B5
MSRP$1,039.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Shuttle XPC nano NC03B5
- Barebone
- mini PC 1 x Core i5 7200U
- RAM 0 GB
- HD Graphics 620
- Gigabit Ethernet
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,039.00 |
| Mfr Part #: | NC03B5 |
| SHI Part #: | 39947944 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Shuttle Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Shuttle XPC nano NC03B5 - Barebone - mini PC 1 x Core i5 7200U - RAM 0 GB - HD Graphics 620 - Gigabit Ethernet - black |
| Manufacturer | Shuttle Computer |
| MSRP | $1,039.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 14.2 cm |
| Dimensions & Weight / Height | 4.2 cm |
| Dimensions & Weight / Weight | 400 g |
| Dimensions & Weight / Width | 14.2 cm |
| Display / Type | None. |
| Header / Brand | Shuttle |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol | 802.11b/g/n |
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Generation | 7 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | I5-7200U |
| Processor / Type | Core i5 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel HD Graphics 620 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | Stereo |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 14.2 cm |
| Height | 4.2 cm |
| Weight | 400 g |
| Width | 14.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 620 |
| Max Monitors Supported | 2 |

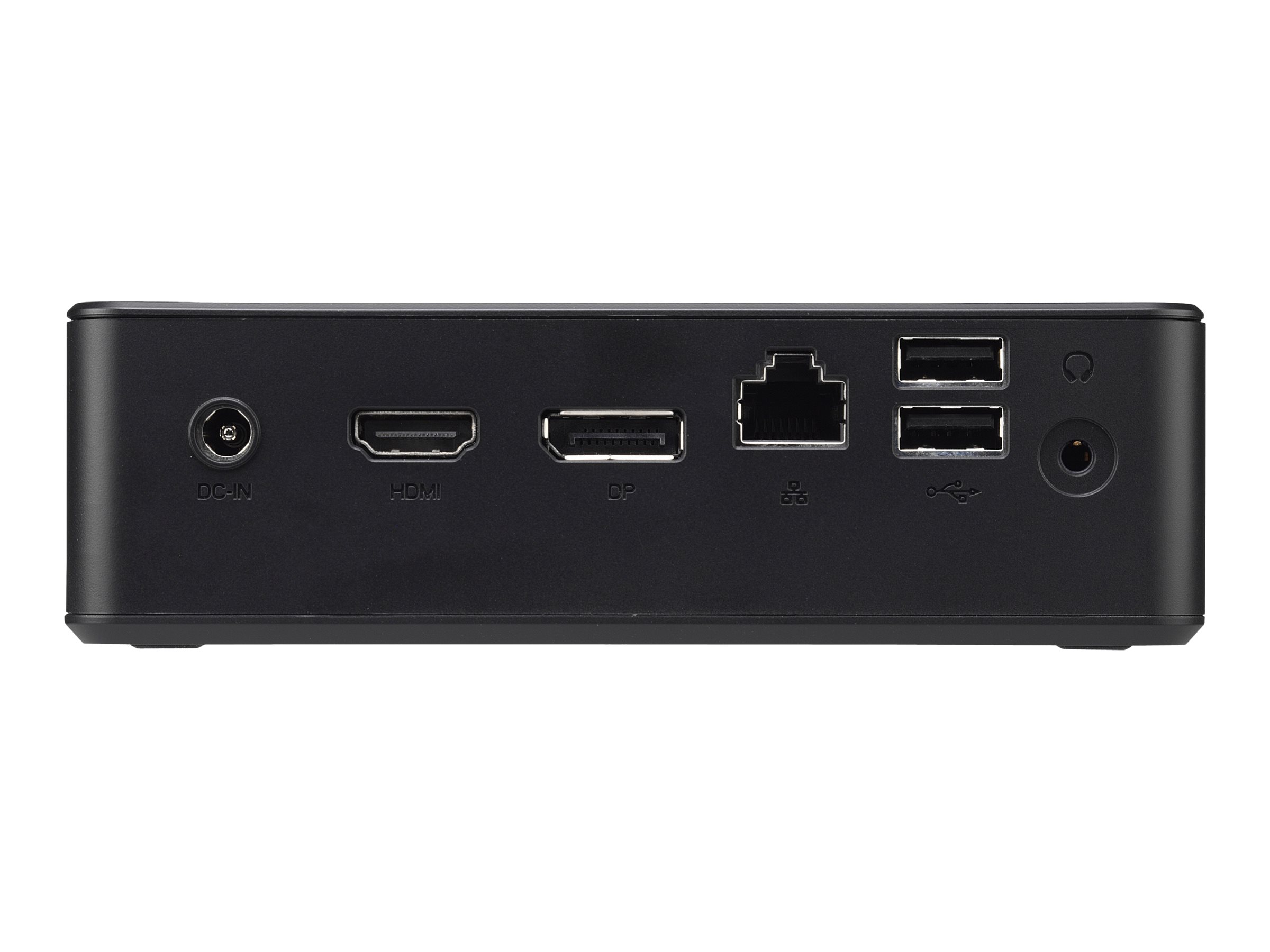

| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, CB, CCC, FCC, R&TTE, RoHS, ETL, ErP Ready, EMI, RCM, EMC 2004/108/EC, LVD 2006/95/EC, ErP 2009/125/EC, R&TTE Directive 1999/5/EC |
| Included Accessories | Horizontal feet, VESA mounting kit, 2.5" HDD bracket |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.11i, IEEE 802.3az, IEEE 802.11x |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet Controller | Intel I211 |
| Features | Wake on LAN (WoL), PXE support |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8188EE |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| CPU | Intel Core i5 (7th Gen) 7200U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Number of Cores | Dual-Core |
| RAM | |
| Features | Unbuffered, dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
