Hanwha Vision WiseNet Q QNV-6024RM
MSRP$455.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

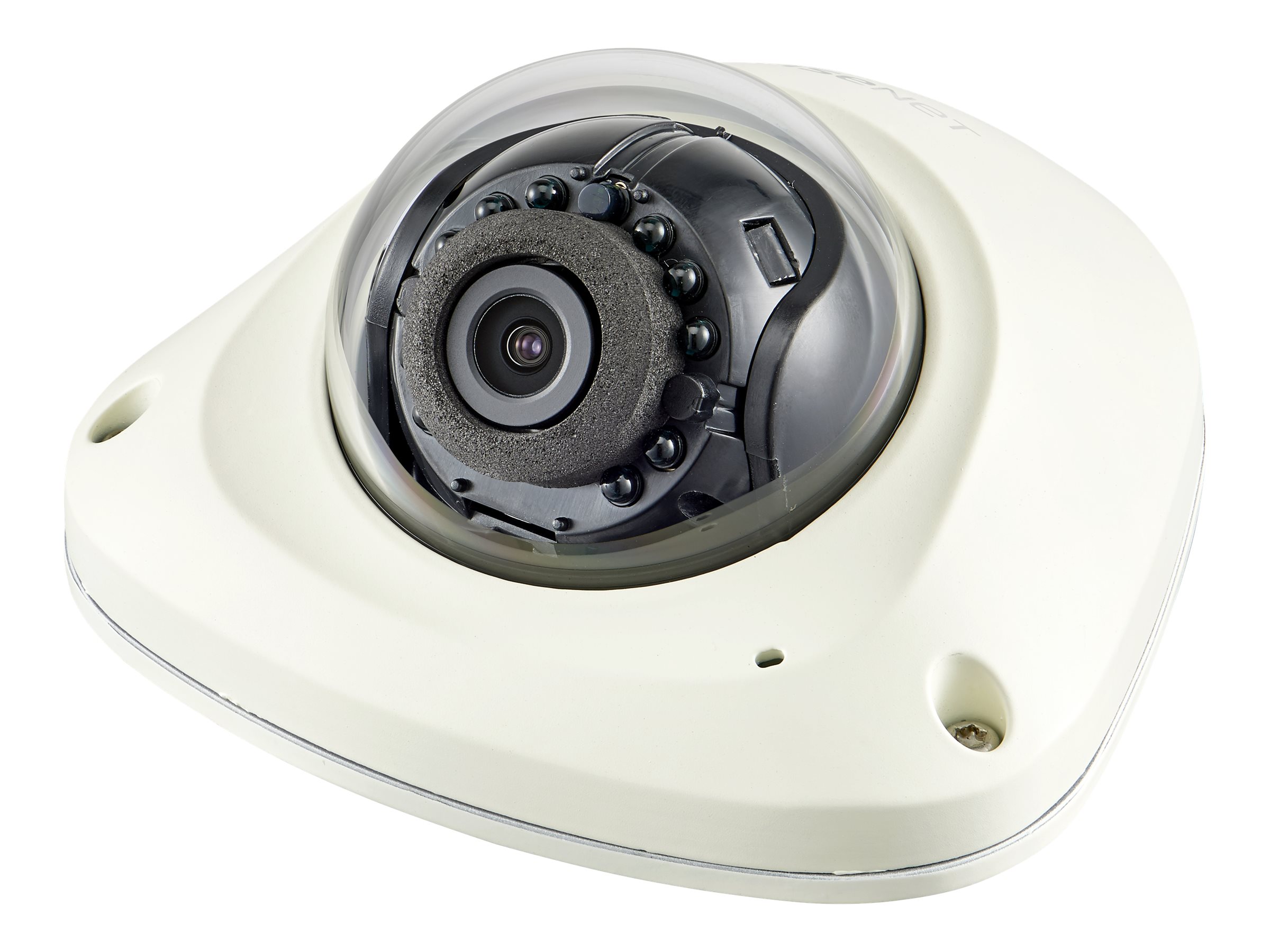

Hanwha Vision WiseNet Q QNV-6024RM
- Network surveillance camera
- dome
- vandal-proof
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $455.00 |
| Mfr Part #: | QNV-6024RM |
| SHI Part #: | 39793455 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNV-6024RM - Network surveillance camera - dome - vandal-proof - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $455.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.2 cm |
| Dimensions & Weight / Height | 10 cm |
| Dimensions & Weight / Weight | 295 g |
| Dimensions & Weight / Width | 9.89 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Beige |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), white balance, image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), entrance / exit detection, digest authentication, WiseStream II support, IP address filtering, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, Gain Control |
| Flash Memory | 256 MB |
| Infrared Distance | 15 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed - vandal-proof |
| Video Capture | 1920 x 1080 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, G.711, U-LAW |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 5.2 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 10 cm |
| Weight | 295 g |
| Width | 9.89 cm |
| Image Sensor | |
| Effective Pixels | 1920 x 1080 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 114.3 |
| Focal Length | 3.6 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 94.8 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 49.3 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | NEMA Type 4X, E Mark, IK10, IP66, EN 50581:2012, EN 61000-4-2:2009, EN 61000-4-6:2009, NFPA 130, EN 61000-4-5:2014, EN 45545-2, EN 61000-4-3:2006+A2:2010, EN 55011:2009+A1:2010, EN 50121-3-2:2015, EN 50155:2007, IEEE 802.3af, BSS 7239, EN 61000-4-4:2012 |
| Panning | |
| Range (degree) | -5 to +5 |
| Power | |
| Power Device | 6.7 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14 |
| Tilting | |
| Range (degree) | 0 to 67 |
