ASUS E394S-IM-AA - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

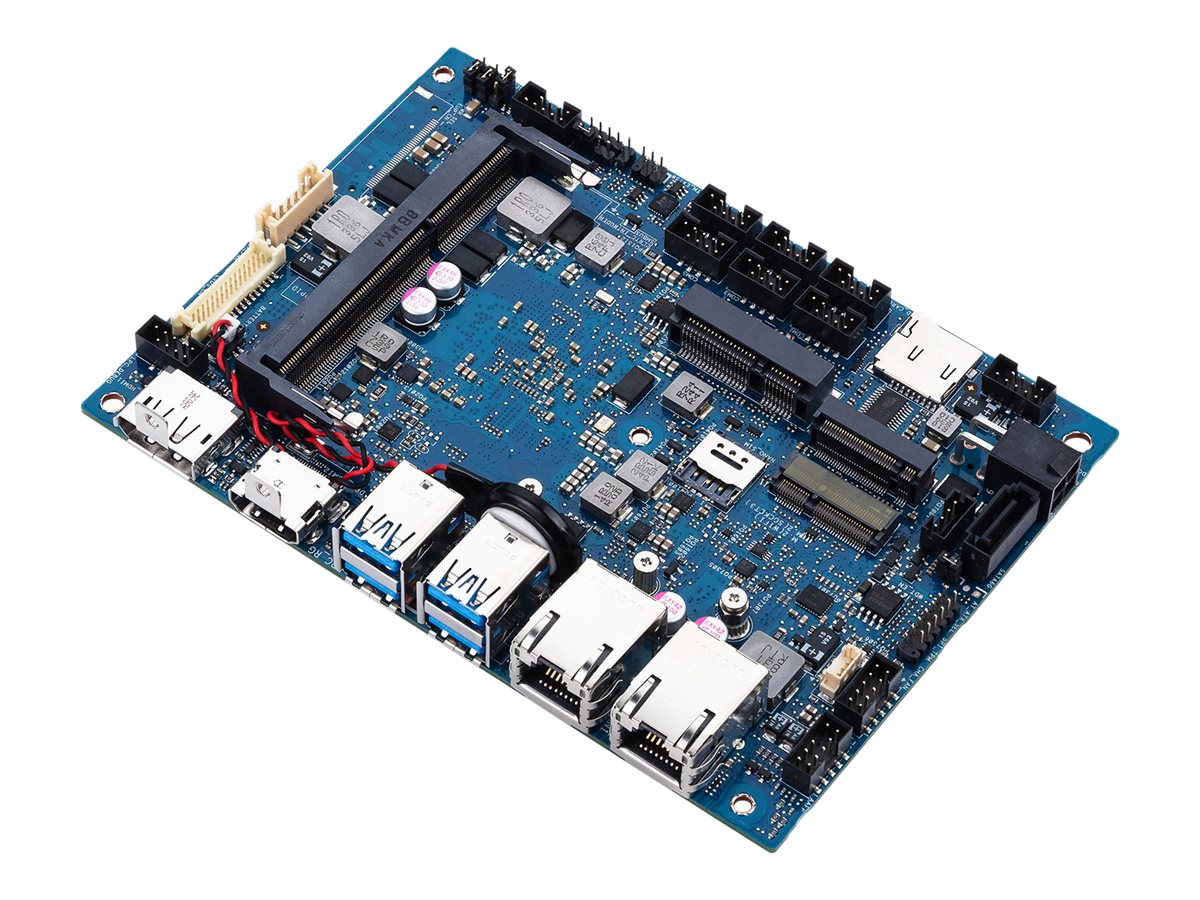

ASUS E394S-IM-AA - Motherboard
- 3.5" SBC
- Intel Atom x5 E3940
- USB 3.1 Gen 1
- 2 x Gigabit LAN
- onboard graphics
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E394S-IM-AA |
| SHI Part #: | 39704509 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS E394S-IM-AA - Motherboard - 3.5" SBC - Intel Atom x5 E3940 - USB 3.1 Gen 1 - 2 x Gigabit LAN - onboard graphics - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $227.00 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Width | 14.6 cm |
| Header / Brand | ASUS |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.6 GHz |
| Processor / Manufacturer | Intel |
| Processor / Type | Atom x5 |
| Video Output / Graphics Processor | Intel HD Graphics 500 |
| Video Output / Type | Graphics adapter |
| Audio | |
| Audio Codec | Realtek ALC887-VD2 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, DC-in power connector |
| Storage Interfaces |
|
| Features | |
| Hardware Features | SIM card slot, SD card slot, WatchDog Timer, Preboot eXecution Environment (PXE) |
| Sleep / Wake Up | Wake on LAN (WOL) |
| General | |
| Max Processors Qty | 1 |
| Processor | Intel Atom x5 E3940 / 1.6 GHz (Quad-Core) |
| Product Type | Motherboard - 3.5" SBC |
| Graphics | |
| Graphics Controller | Intel HD Graphics 500 |
| LAN | |
| Network Controller | 2 x Intel I210-IT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC, CCC, UL |
| Depth | 10.5 cm |
| Width | 14.6 cm |
| Supported RAM | |
| Bus Clock | 1866 MHz, 1600 MHz, 1333 MHz |
| Max Size | 8 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR3L |
