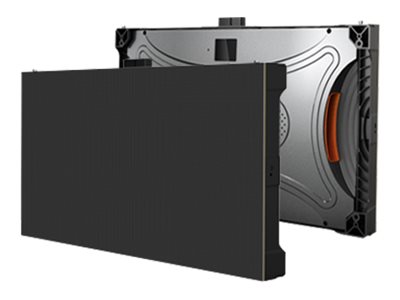

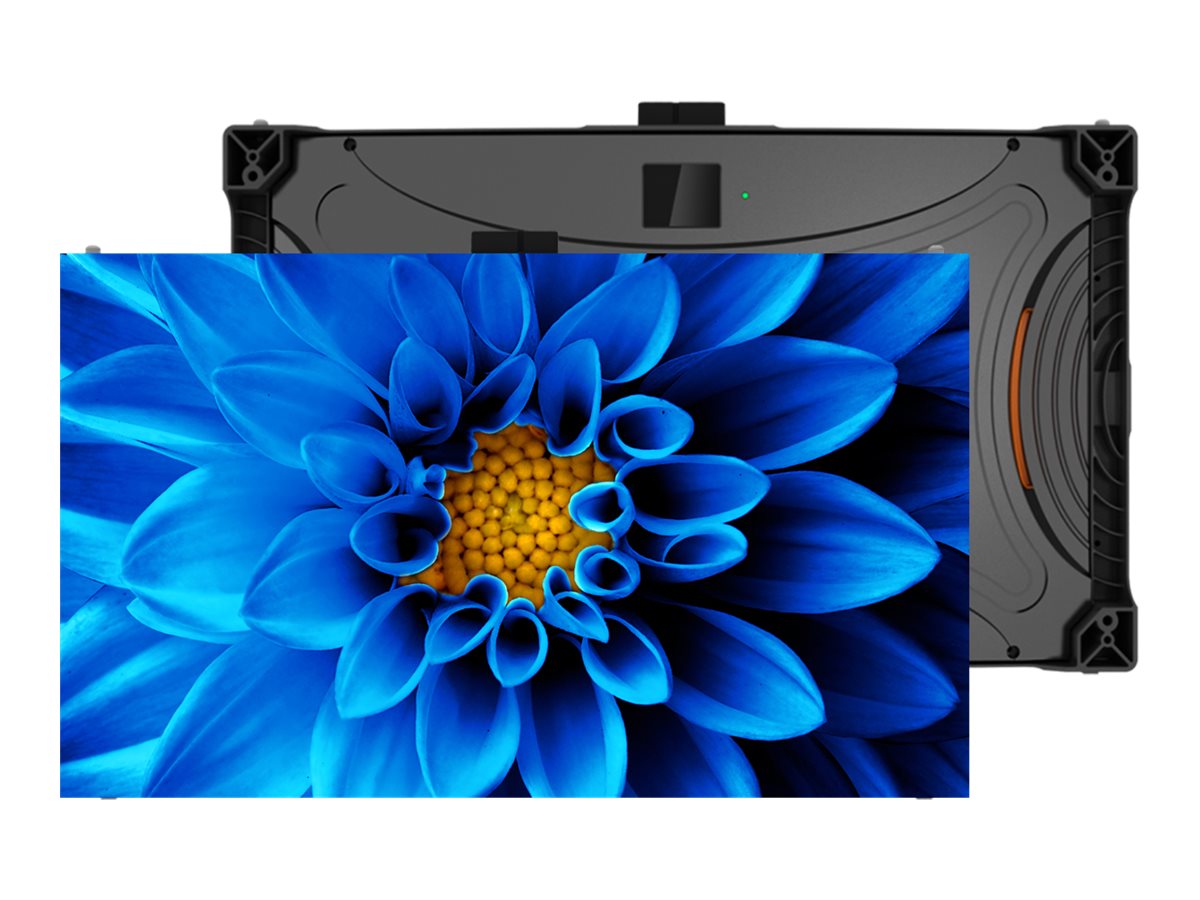

Planar TVF1.2 - TFV Series LED video wall
MSRP$4,152.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar TVF1.2 - TFV Series LED video wall
- digital signage 27.32" 240 x 135 per unit
- SMD
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,152.00 |
| Mfr Part #: | 998-0451-00 |
| SHI Part #: | 39682308 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Planar TVF1.2 - TFV Series LED video wall - digital signage 27.32" 240 x 135 per unit - SMD |
| Manufacturer | Planar |
| MSRP | $4,152.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.25 cm |
| Dimensions & Weight / Height | 34.02 cm |
| Dimensions & Weight / Weight | 6.94 kg |
| Dimensions & Weight / Width | 60.48 cm |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 600 cd/m² |
| Television / Image Contrast Ratio | 7000:1 |
| Television / PC Interface | DVI |
| Television / Type | LED video wall |
| Television / Viewing Angle | 160° |
| Connections | |
| Connector Type |
|
| Display | |
| Additional Features | Designed for 24/7 operation |
| Brightness | 600 cd/m² |
| Color Temperature | 3000 - 10000K |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3000 Hz LED Refresh Rate |
| Image Contrast Ratio | 7000:1 |
| LCD Backlight Technology | LED backlight |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 140° |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -10 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 7.25 cm |
| HDMI Ports Qty | 1 ports |
| Height | 34.02 cm |
| PC Interface | DVI |
| Product Type | LED video wall |
| Series | TFV Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Weight | 6.94 kg |
| Width | 60.48 cm |
| Media Player | |
| USB Port | Yes |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply - redundant |
| Video Wall Display Unit | |
| Area | 0.2058 m² |
| Cabinet Diagonal Size | 27.32" |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Rear and front |
| Pixel Density | 629882 pixels/m² |
| Pixel Pitch | 1.26 mm |
| Pixels Per Panel | 129600 |
| Resolution | 240 x 135 |
