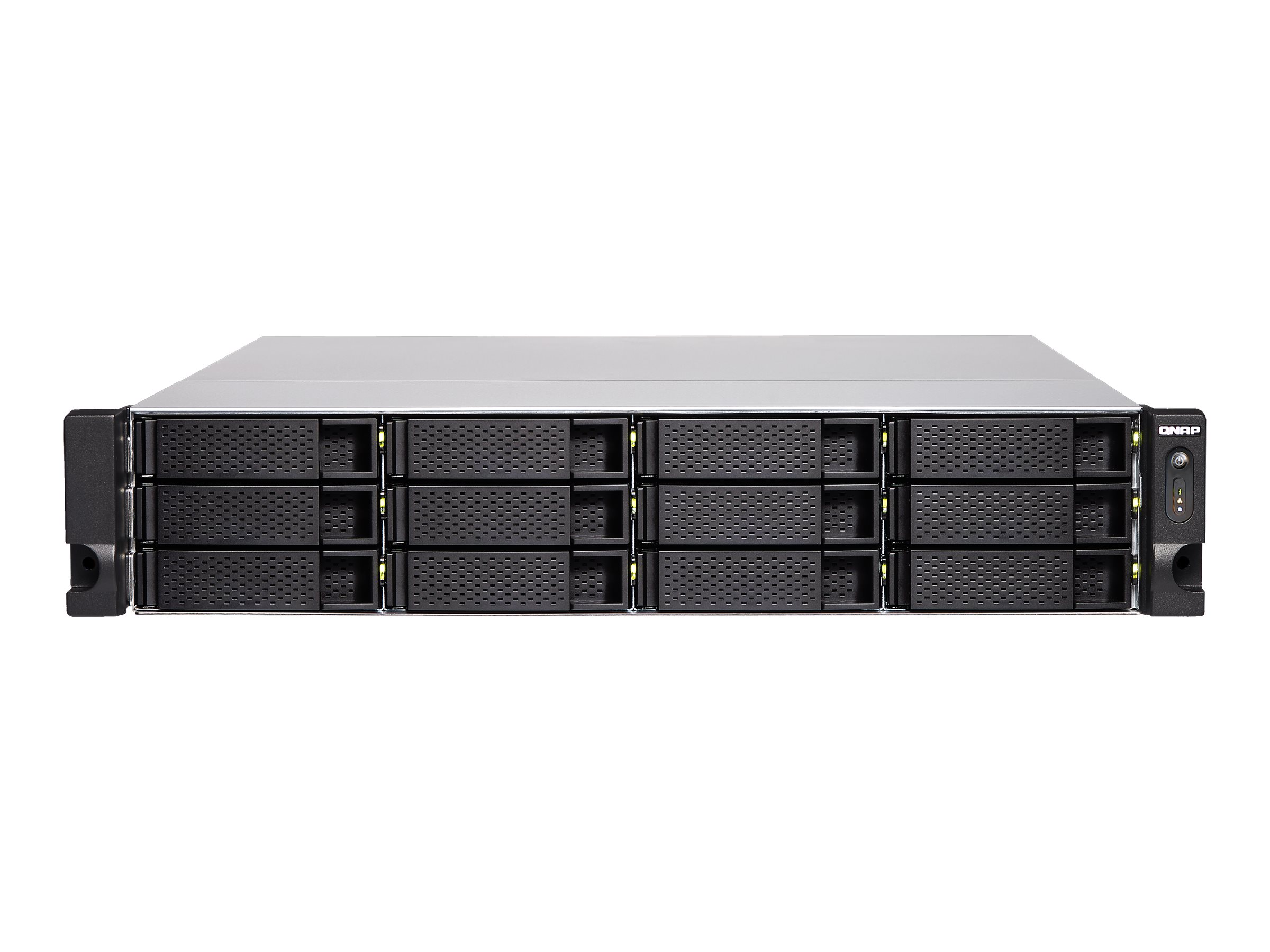

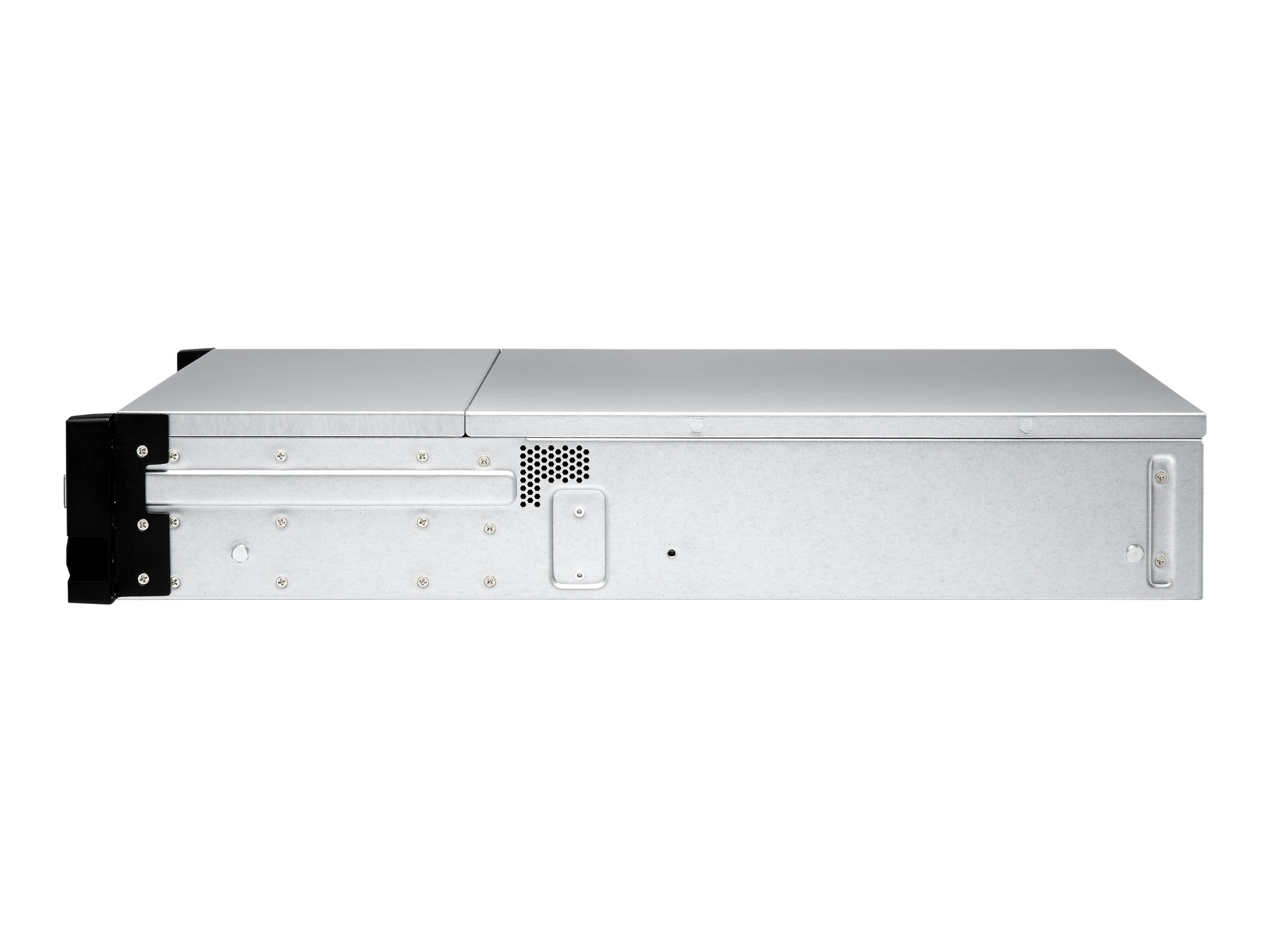

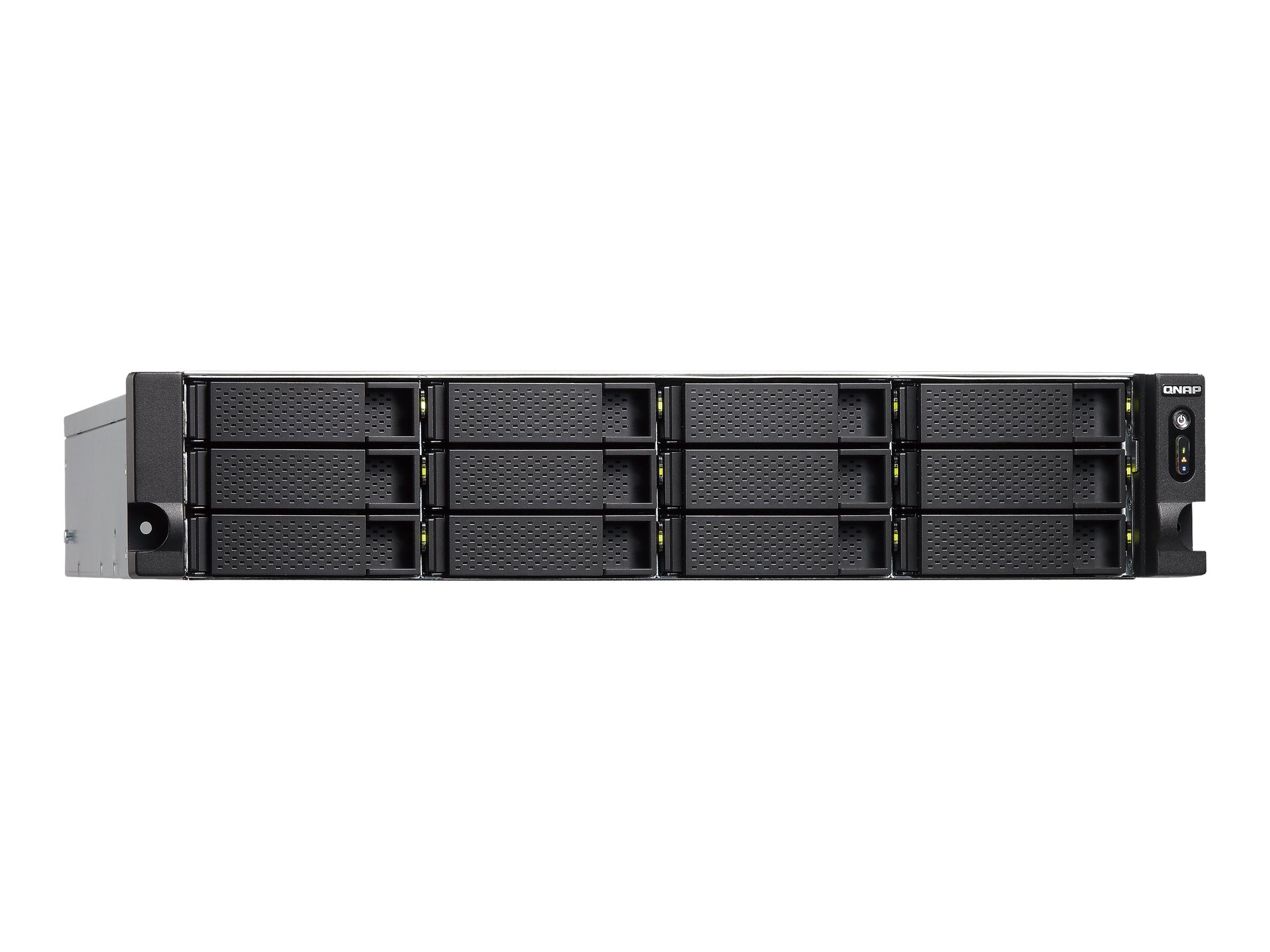

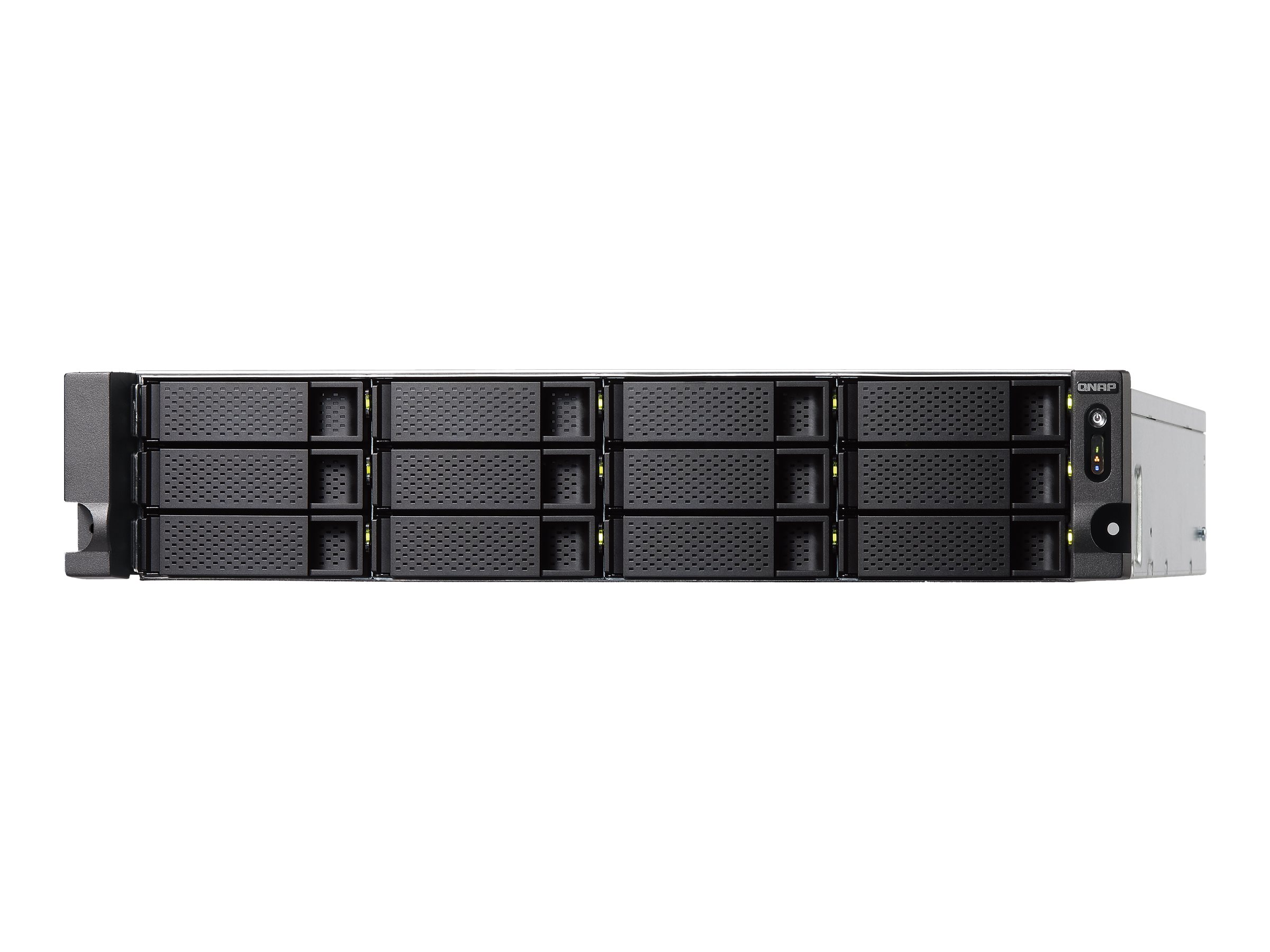

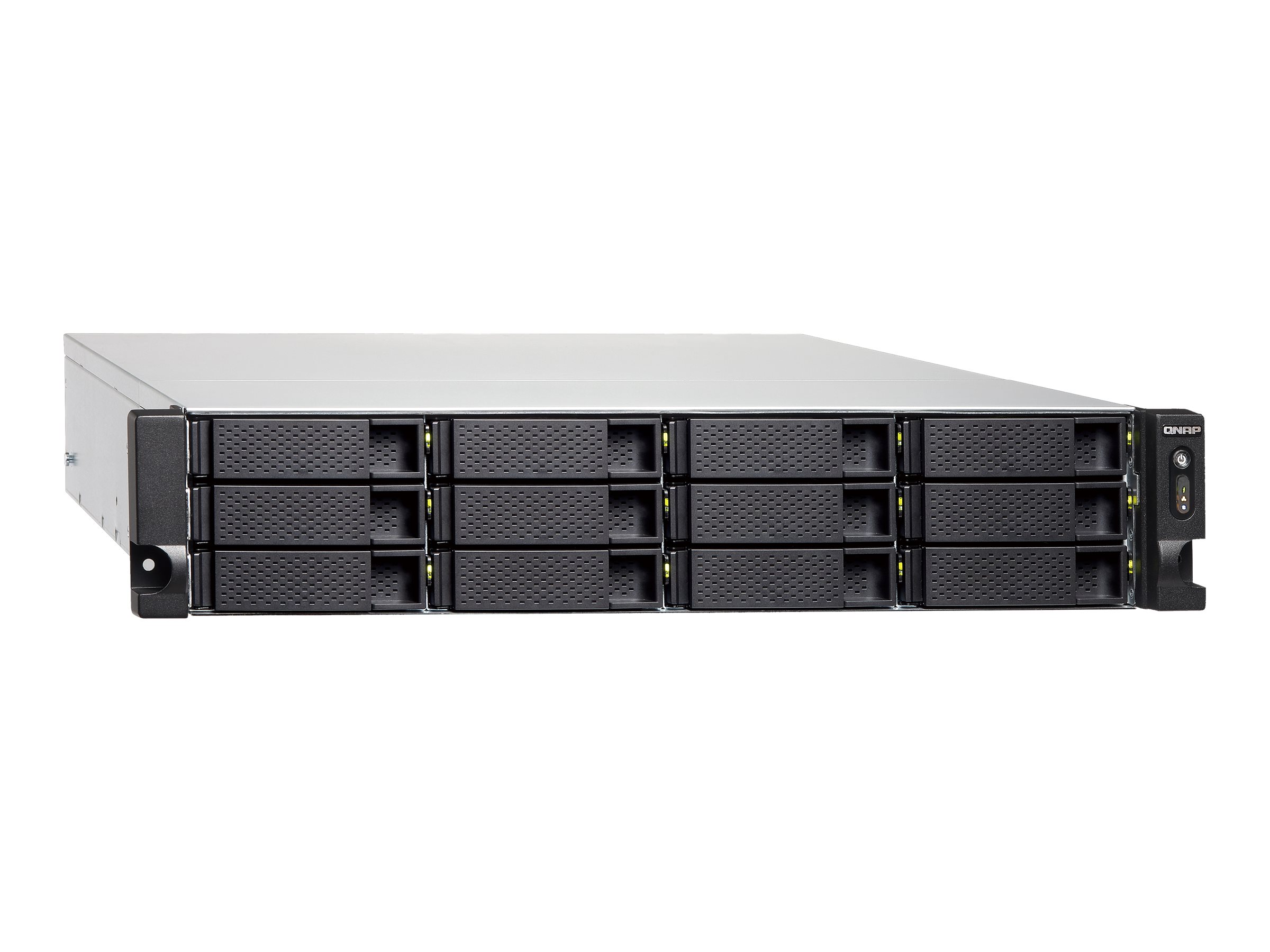

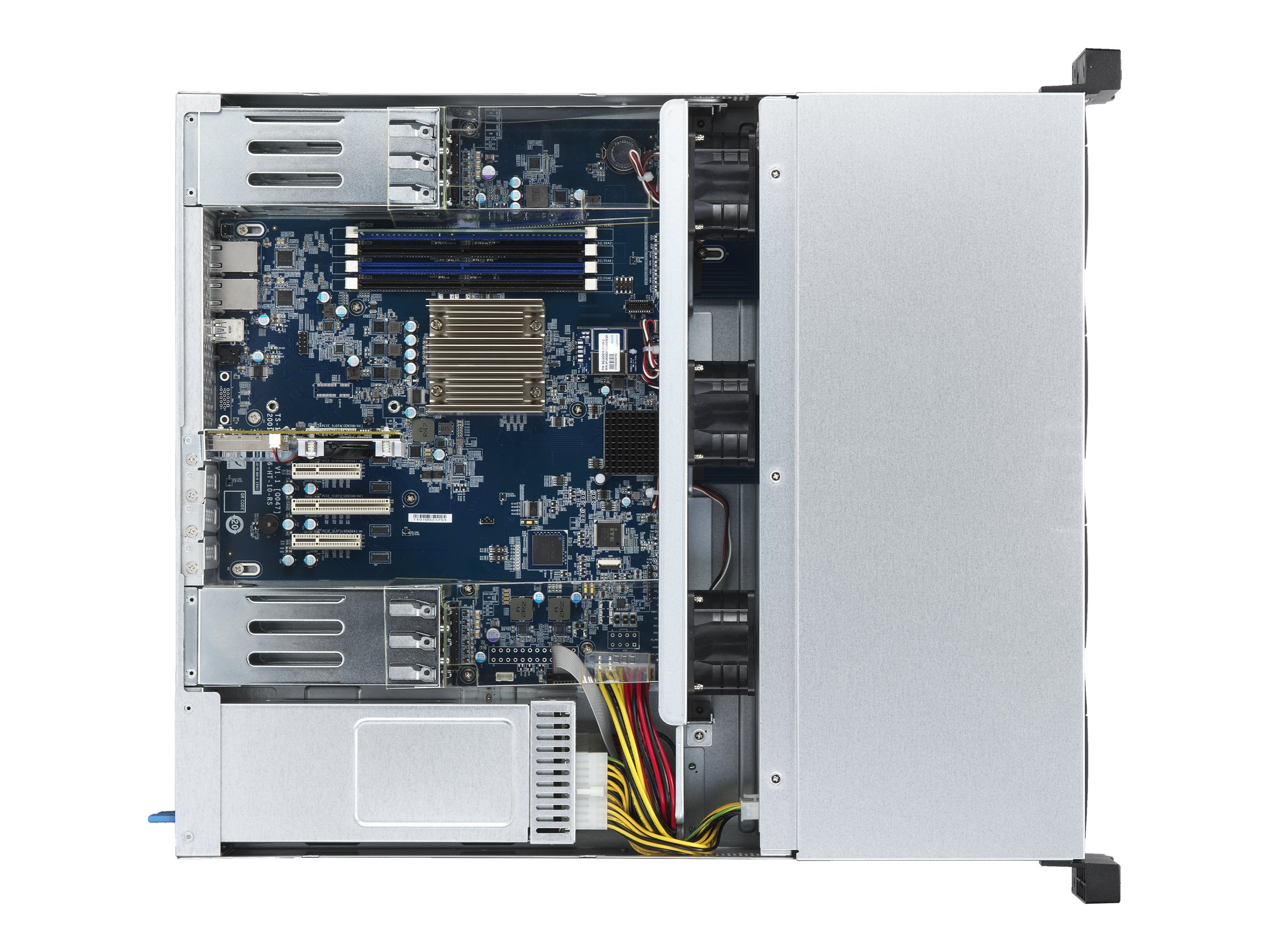

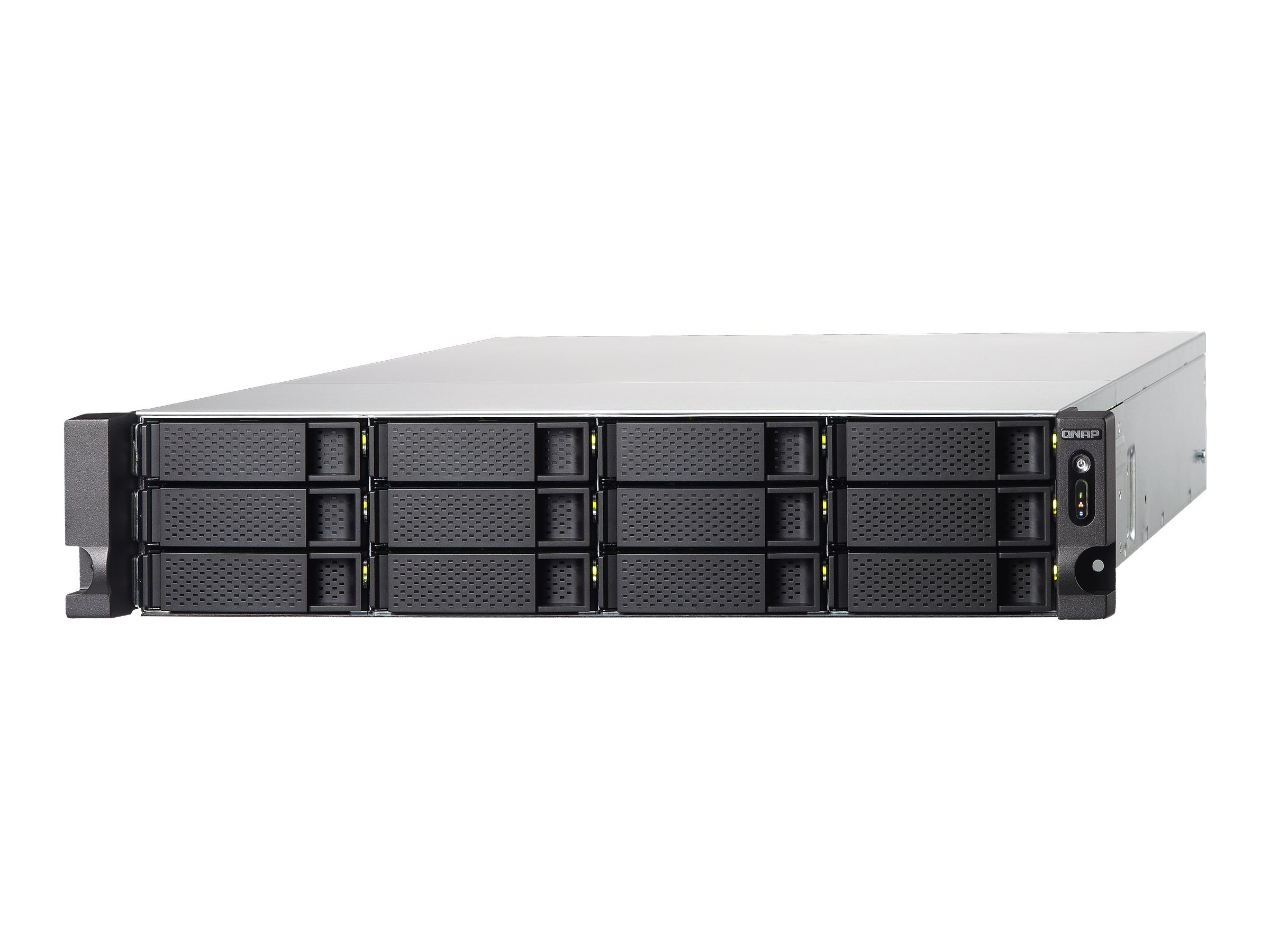

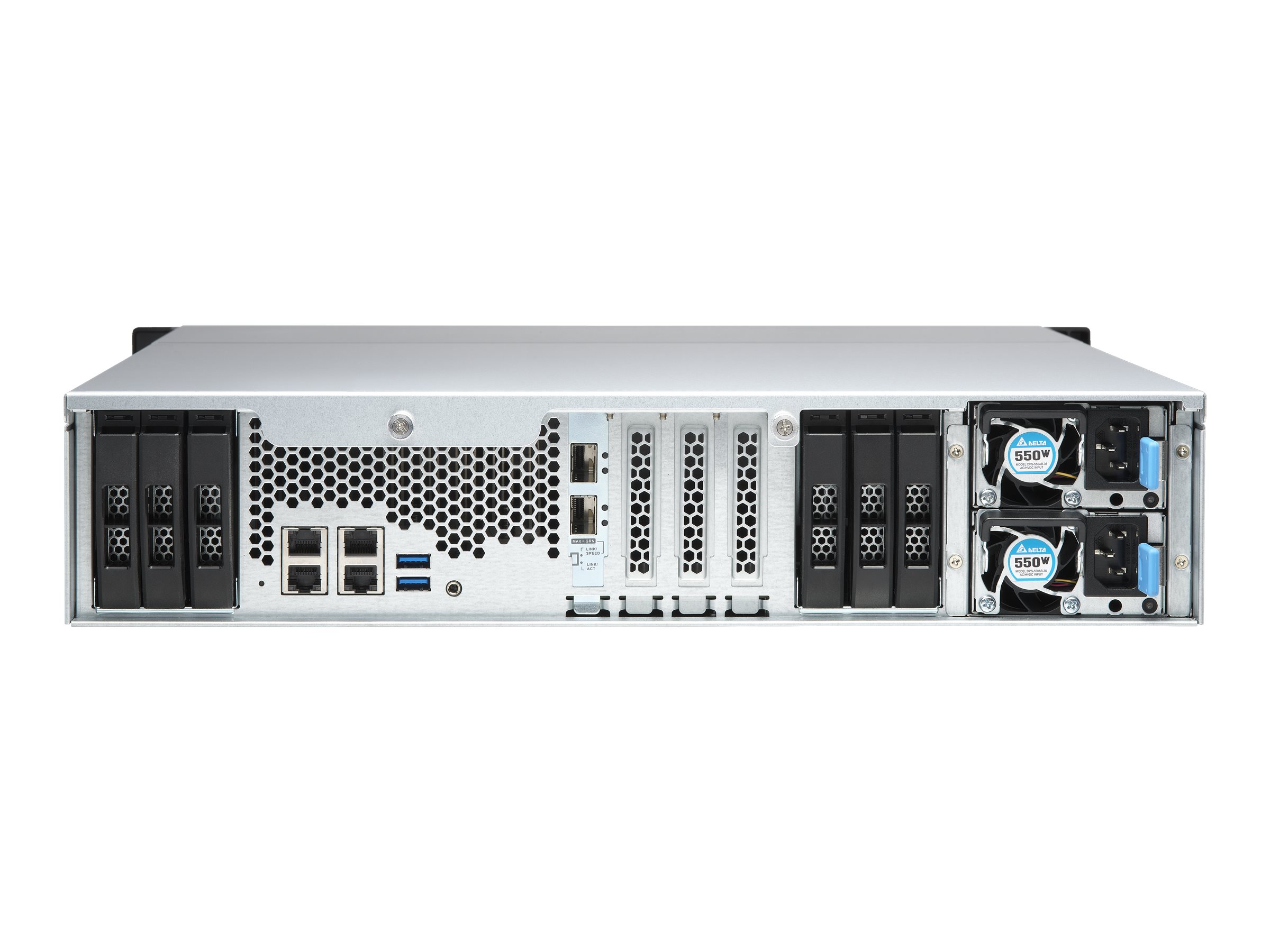

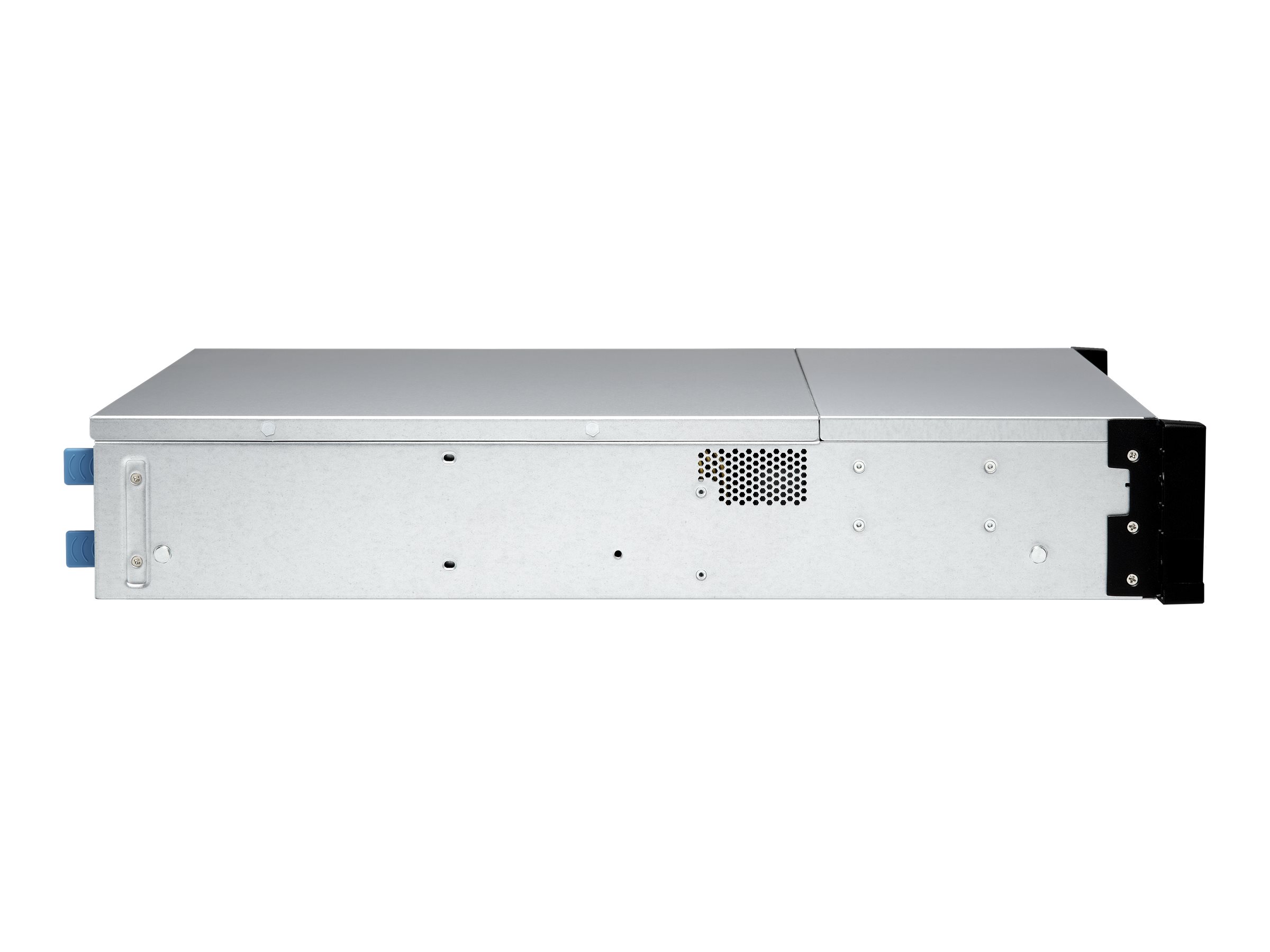

QNAP TS-1886XU-RP - NAS server
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
QNAP TS-1886XU-RP - NAS server
- 18 bays
- rack-mountable
- SATA 6Gb/s
- RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60
- RAM 8 GB
- Gigabit Ethernet / 10Gbps SFP+
- iSCSI support
- 2U
| Additional Details | |
|---|---|
| Mfr Part #: | TS-1886XU-RP-D1622-8G-US |
| SHI Part #: | 39537754 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | QNAP |
| Product Type: | Hardware |
Control/Interface Boards
- M.2
- PCIe 3.0 x4 (NVMe)
- low profile
- PCIe 3.0 x8
- for QNAP TDS-H2489, TNS-H1083X-E2234, H1083X-E2236-16, TS-473, H1677, H2477, TVS-672, h1288
- M.2
- M.2 NVMe Card / PCIe 3.0 (NVMe)
- low profile
- PCIe 3.0 x4, 2.5 Gigabit Ethernet
- for QNAP QVP-63, TS-453, 473, 673, 832, 873, TVS-672, 872, h1288; VioStor QVP-85
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | QNAP TS-1886XU-RP - NAS server - 18 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 8 GB - Gigabit Ethernet / 10Gbps SFP+ - iSCSI support - 2U |
| Manufacturer | QNAP |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 54.97 cm |
| Dimensions & Weight / Height | 8.83 cm |
| Dimensions & Weight / Weight | 12.73 kg |
| Dimensions & Weight / Width | 48.2 cm |
| Header / Brand | QNAP |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | D-1622 |
| Processor / Type | Xeon |
| Service & Support / Type | 5-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 18.69 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 56.9 dBA |
| Expansion / Connectivity | |
| Expansion Bays |
|
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Built-in Devices | LED panel |
| Depth | 54.97 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 2U |
| Height | 8.83 cm |
| Host Connectivity | Gigabit Ethernet / 10Gbps SFP+ |
| Installed Devices / Modules Qty | 0 (installed) / 18 (max) |
| Localization | United States |
| Total Storage Capacity | 0 GB |
| Weight | 12.73 kg () |
| Width | 48.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 2 x network cable |
| Compliant Standards | TLS v1.2, TLS v1.0, TLS v1.1, SSL |
| Features | Built-in 3 cooling fans |
| Included Accessories | 48 x flat head screws (for 3.5" HDD), 64 x flat head screws (for 2.5" HDD) |
| Networking | |
| Compliant Standards | UPnP |
| Data Link Protocol | 1GbE, 10GbE |
| Encryption Algorithm | SSL, FIPS 140-2, 256-bit AES |
| Features | NAT support, VPN support, load balancing, LDAP support, wake on LAN (WOL), E-mail alert, IPv6 support, 256-bit encryption, proxy server, Spanning Tree Protocol (STP) support, backup server, download client, file sharing, anti-malware protection, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, SSH support, Jumbo Frames support, RDMA support, DHCP server, FTP server, SMS alert, BitTorrent Client, surveillance station, online RAID capacity expansion, online RAID level migration, DNS server, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, static routing, cloud backup, VPN Server, SNMP support, 720p resolution support, Dropbox support, 3 fans, RDMA over Converged Ethernet (RoCE), anti-virus protection, Real-time Remote Replication (RTRR), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Google Drive support, 1080p resolution support, failover protection, built-in hardware transcoding, VPN client, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, DLNA support, OpenStack compatible, Chromecast support, file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, port trunking, IFTTT agent, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, HiDrive support, FXP support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, WebRTC, snapshot (folder and LUN), OpenVPN client, Alibaba Cloud OSS support, Backblaze B2 support, VJBOD Cloud, Qsync, QuMagie, Qmiix agent |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, SMB, DDNS, SFTP, RTSP |
| Network Services Compatibility | Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, LDAP |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 117.92 Watt |
| Power Device | Internal power supply |
| Power Provided | 550 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Memory | |
| Features | ECC |
| Flash Memory Installed | 5 GB |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | Quad-Core |
| Processors Installed | 1 x Intel Xeon D-1622 2.6 GHz |
| RAM | 8 GB (installed) / 128 GB (supported) - DDR4 |
| Security DVR | |
| IP Cameras Supported | 5000 |
| Software / System Requirements | |
| OS Required | UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 |
| Storage Operating System | QNAP QTS 4.4.1 |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Type | RAID |
