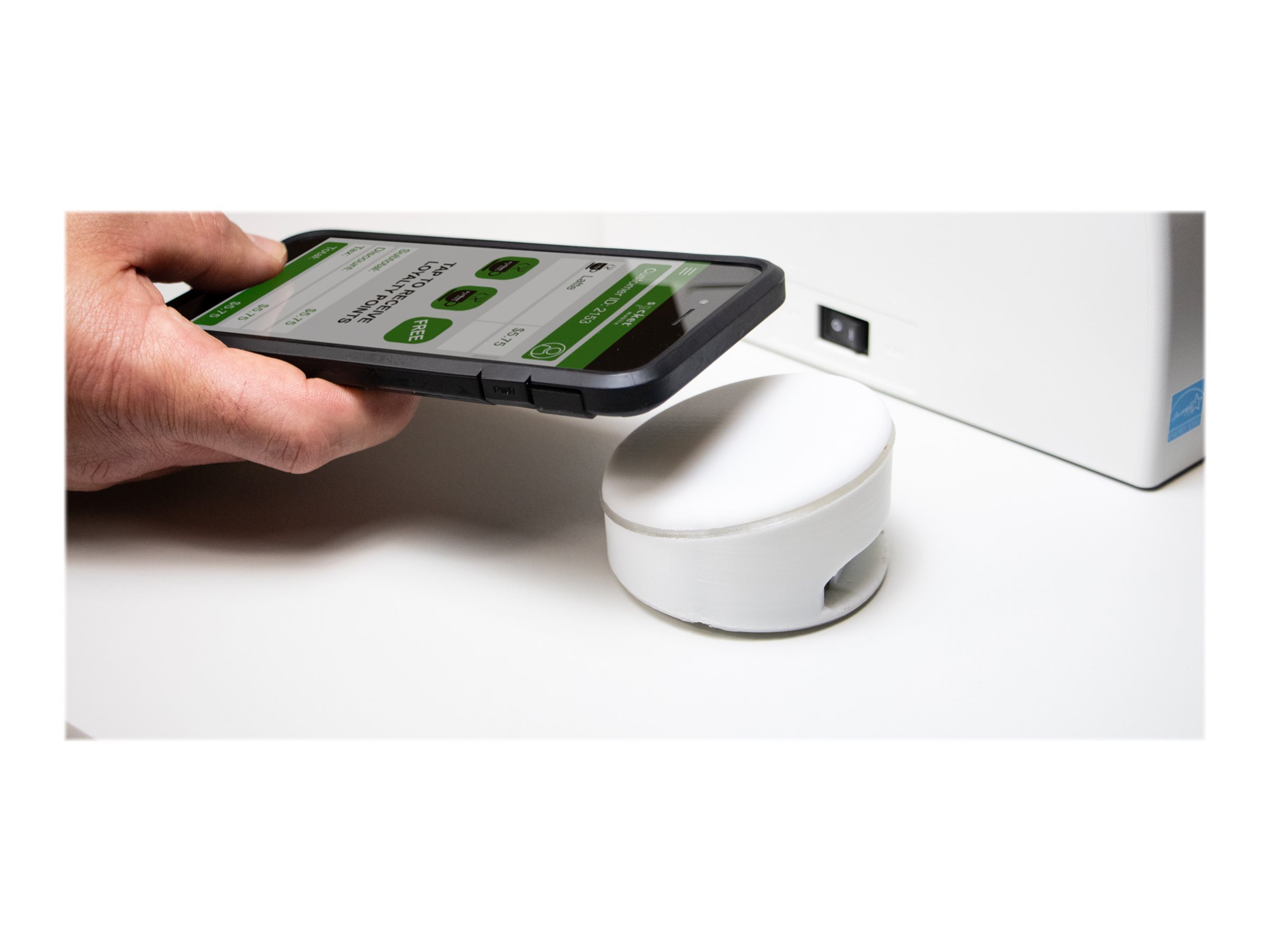

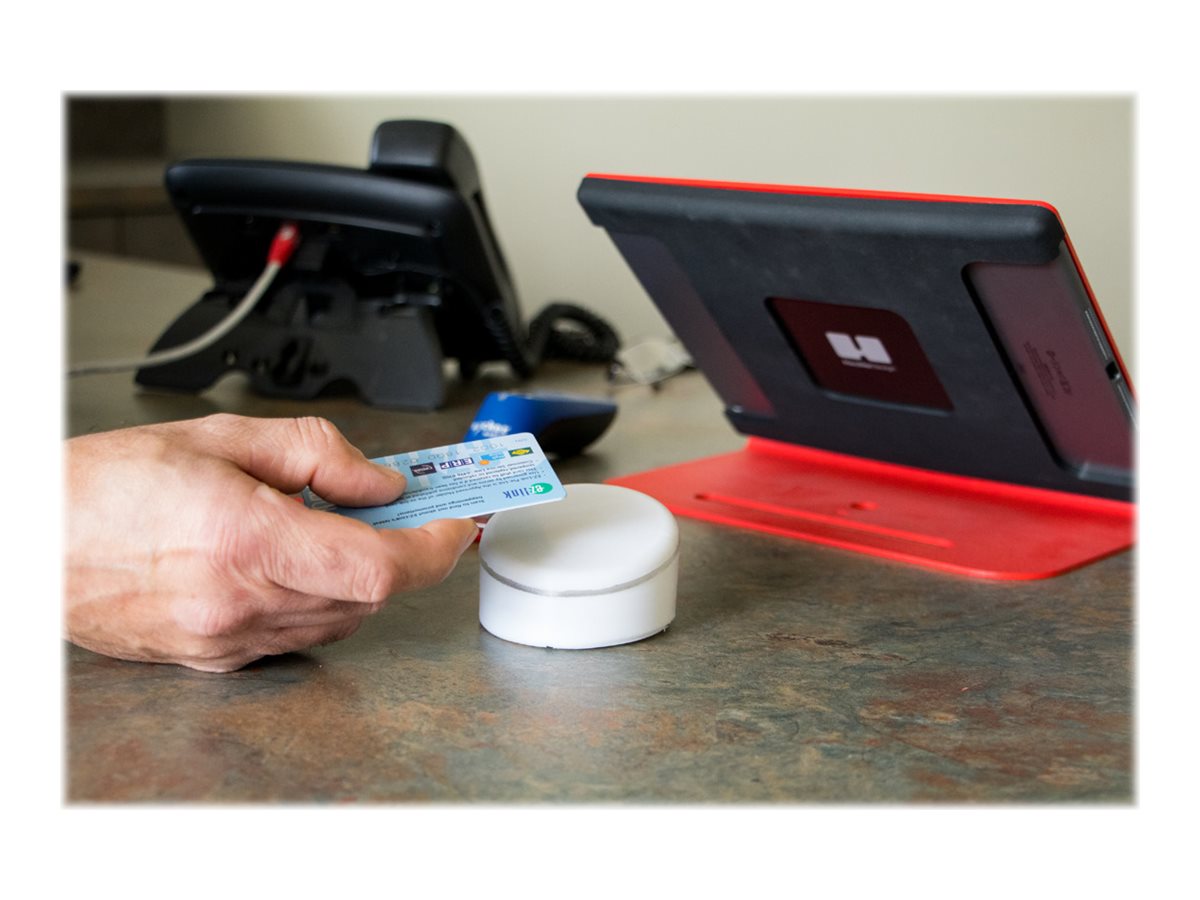

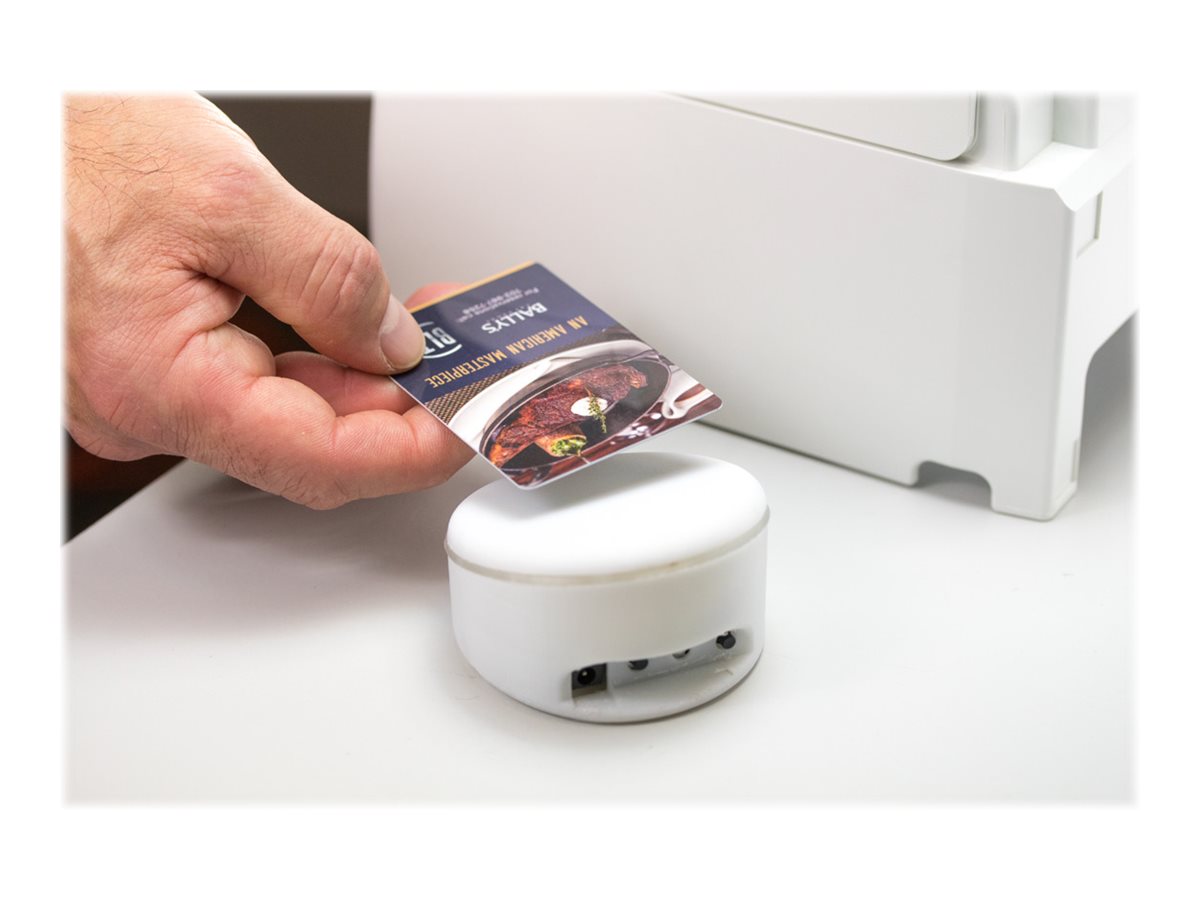

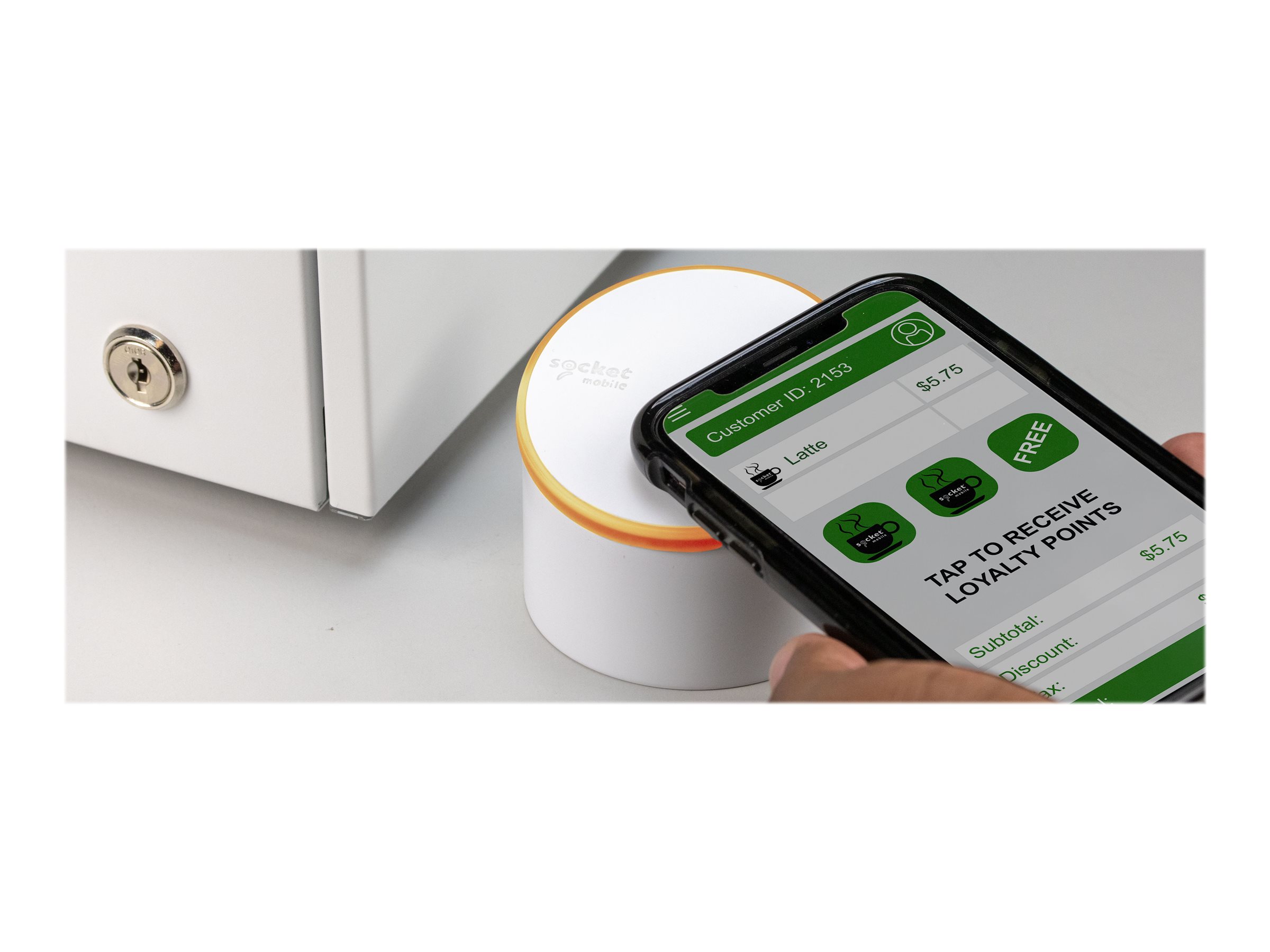

SocketScan S550 - NFC reader / Smart card / RFID reader / writer
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SocketScan S550 - NFC reader / Smart card / RFID reader / writer
- Bluetooth 5.0
- 13.56 MHz
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TX3489-1984 |
| SHI Part #: | 39398139 |
| Category: | Computer cables and accessories |
| UNSPSC: | 43202222 |
| Manufacturer: | Socket Mobile |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Computer cables and accessories |
| Description | SocketScan S550 - NFC reader / Smart card / RFID reader / writer - Bluetooth 5.0 - 13.56 MHz |
| Manufacturer | Socket Mobile |
| MSRP | $269.00 |
| UNSPSC | 43202222 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.5 cm |
| Dimensions & Weight / Height | 6.13 cm |
| Dimensions & Weight / Weight | 74 g |
| Dimensions & Weight / Width | 7.5 cm |
| Header / Brand | Socket |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Depth | 7.5 cm |
| Device Type | NFC reader / Smart card / RFID reader / writer - contactless |
| Frequency | 13.56 MHz |
| Height | 6.13 cm |
| Interface Type | Bluetooth 5.0 |
| Weight | 74 g |
| Width | 7.5 cm |
| Magnetic Card Reader | |
| Recording Standard | ISO14443A, ISO14443B, ISO15693, ISO 18092 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | C-Tick, EN55022, ICES-003, EN55024, CISPR 22, RSS-210, ISO 14443 type A, RoHS, UL 60950-1, IEC 60950-1, IEC 60068-2-32, TELEC, ISO 14443 type B, ISO 15693, IEC 60068-2-31, EN 50581, ISO/IEC 18092, CAN/CSA C22.2, FCC Part 15 Class C, EPC Class 2 Gen 2, ISO 18000-3 mode 3 |
| Device Features | Bluetooth HID Keyboard Interface, MiFare cards compatible, built-in Li-ion battery (700 mAh) |
| Included Accessories | USB charging cable |
| OK Notification | LED indicator |
| Software / System Requirements | |
| OS Required | Apple MacOS X, Android, Apple iOS, Microsoft Windows 7 / 8 / 10 |
