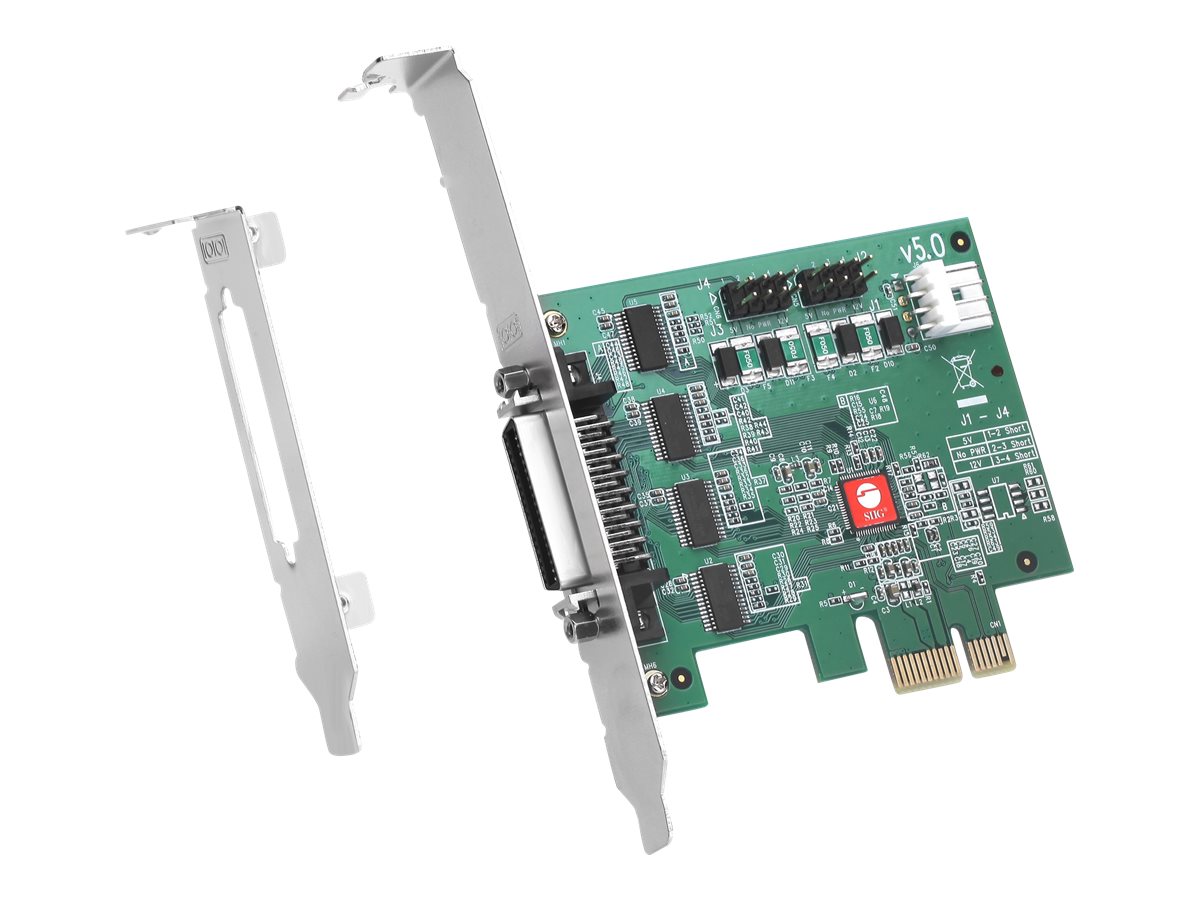

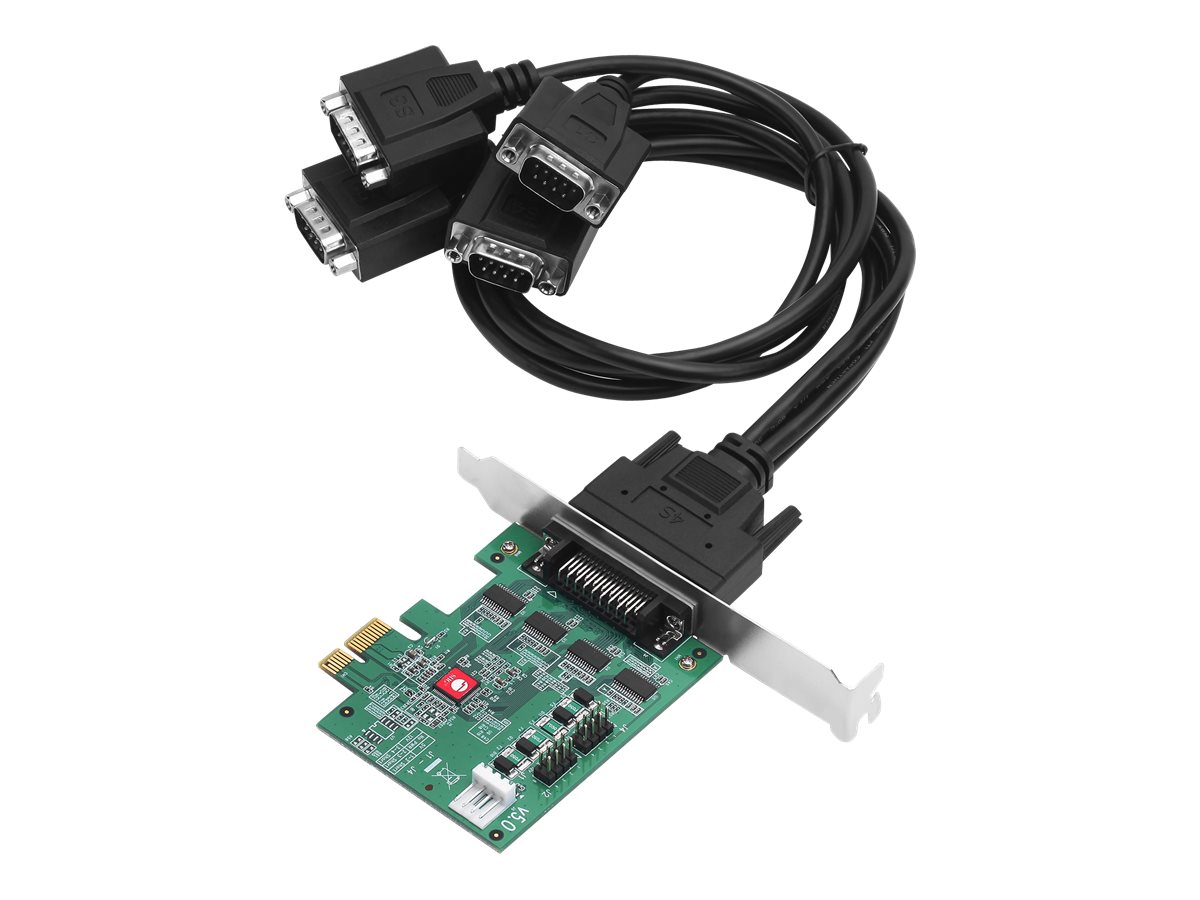

SIIG DP CyberSerial 4S PCIe
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SIIG DP CyberSerial 4S PCIe
- Serial adapter
- PCI Express x1 low profile
- RS-232 x 4
- green
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | JJ-E40011-S5 |
| SHI Part #: | 39304560 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | SIIG |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | SIIG DP CyberSerial 4S PCIe - Serial adapter - PCI Express x1 low profile - RS-232 x 4 - green - TAA Compliant |
| Manufacturer | SIIG |
| MSRP | $129.99 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 9.3 cm |
| Dimensions & Weight / Weight | 45.4 g |
| Dimensions & Weight / Width | 2.2 cm |
| Header / Brand | SIIG |
| Miscellaneous / Product Color | Green |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | RS-232 |
| Networking / Data Transfer Rate | 921 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 9.3 cm |
| Weight | 45.4 g |
| Width | 2.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232 - 9 pin D-Sub (DB-9) (on cable) |
| General | |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x serial cable (external) |
| Color | Green |
| Compliant Standards | FCC, RoHS |
| Included Accessories | Low-profile bracket |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | 16C550 UART |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 921 Kbps |
| Features | 256-byte FIFO, flow control |
| Ports | RS-232 x 4 |
| Processor / Memory | |
| Processor | ASIX |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits), Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 (32/64 bits), Microsoft Windows 7, Windows 8 / 8.1 / 10 |
| Software Included | Drivers & Utilities |
