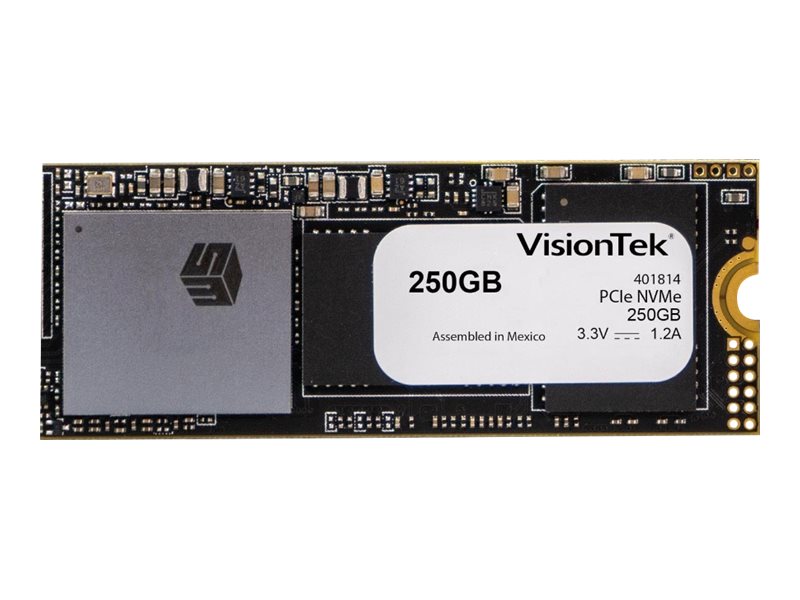

VisionTek PRO XMN - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
VisionTek PRO XMN - SSD
- 250 GB
- internal
- M.2 2280
- PCIe 3.1 x4 (NVMe)
| Additional Details | |
|---|---|
| Mfr Part #: | 901302 |
| SHI Part #: | 39168874 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | VisionTek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | VisionTek PRO XMN - SSD - 250 GB - internal - M.2 2280 - PCIe 3.1 x4 (NVMe) |
| Manufacturer | VisionTek |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 7 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 250 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Header / Brand | VisionTek |
| Packaged Quantity | 1 |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.1 x4 (NVMe) |
| General | |
| Capacity | 250 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | StaticDataRefresh Technology, Garbage Collection technology, single-level cell (SLC), LDPC error correction, 3D NAND Technology, Global Wear Leveling, NVM Express (NVMe) deallocate support, Host Memory Buffer (HMB) |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.1 x4 (NVMe) |
| Weight | 7 g |
| Width | 22 mm |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Performance | |
| 4KB Random Read | 200000 IOPS |
| 4KB Random Write | 260000 IOPS |
| Internal Data Rate | 2010 MBps (read) / 1250 MBps (write) |
| SSD Endurance | 606 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
