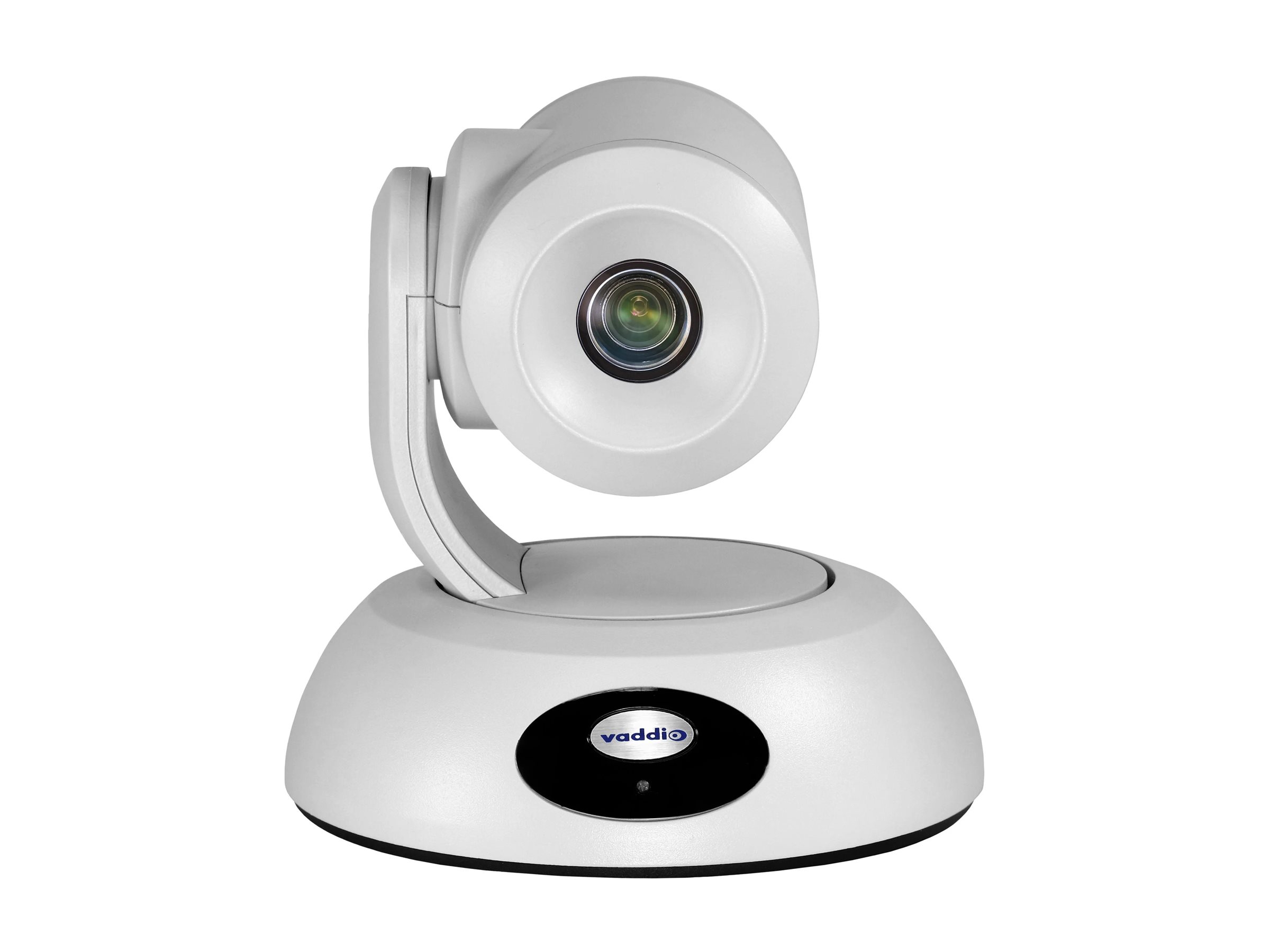

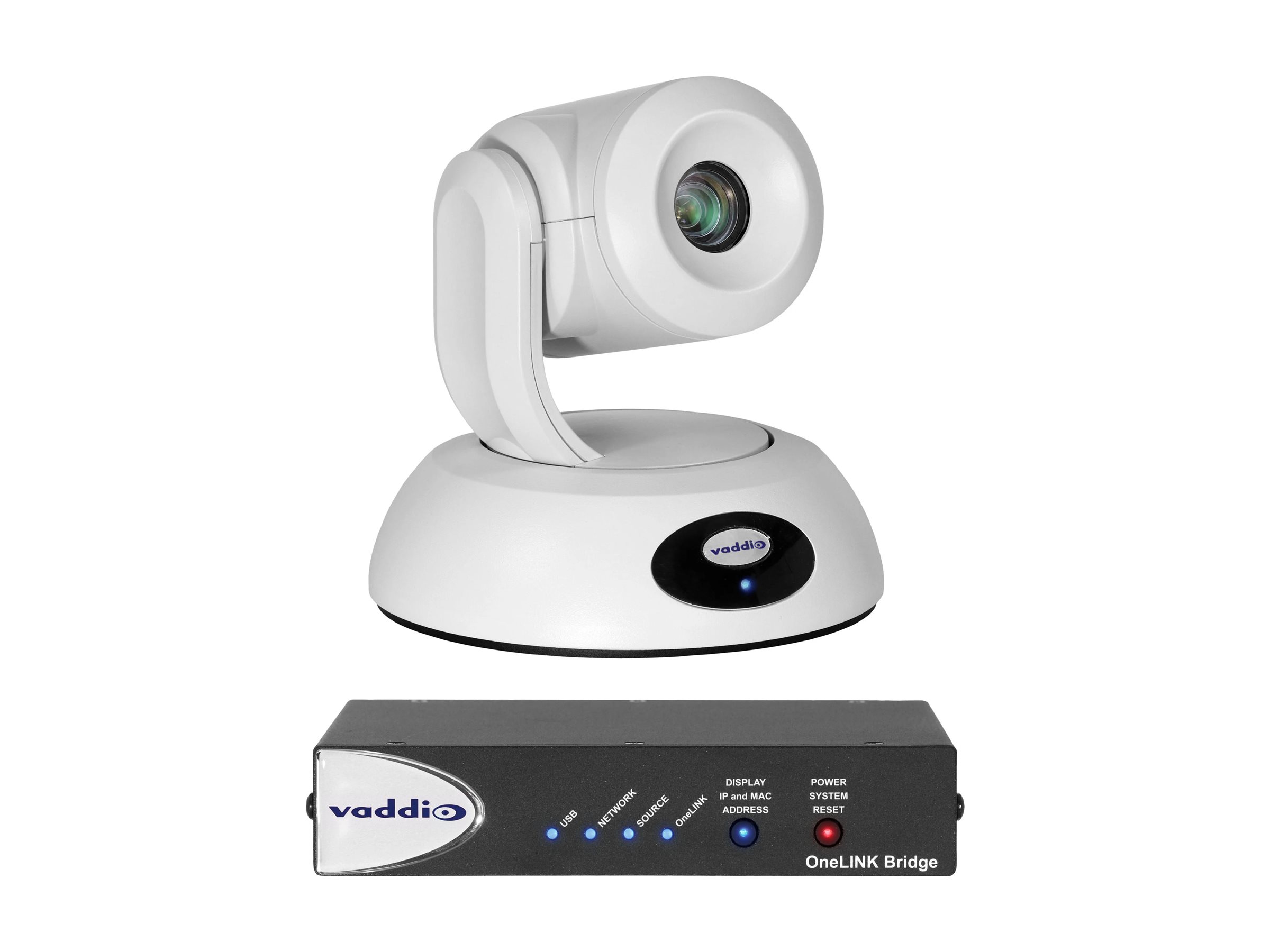

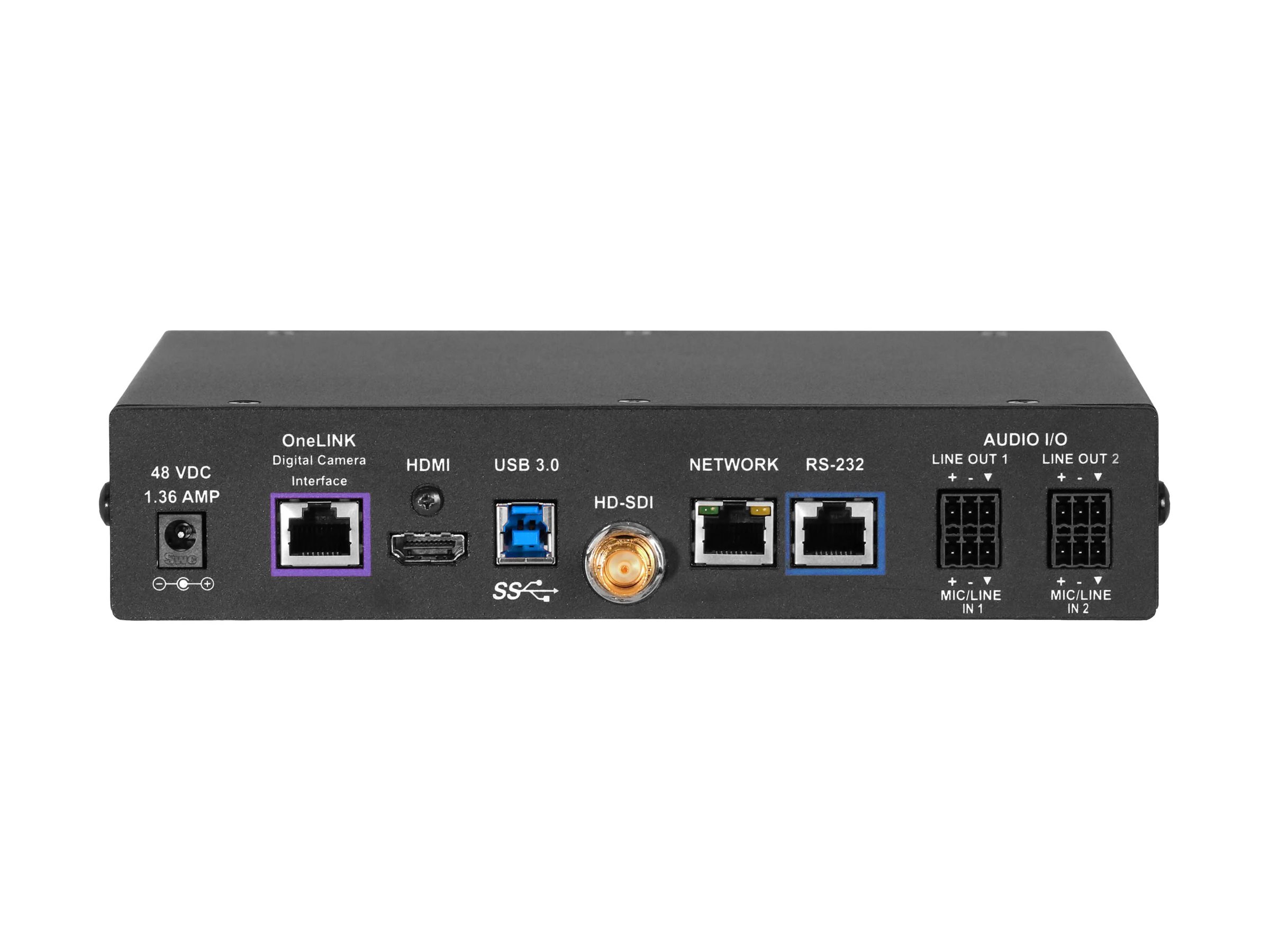

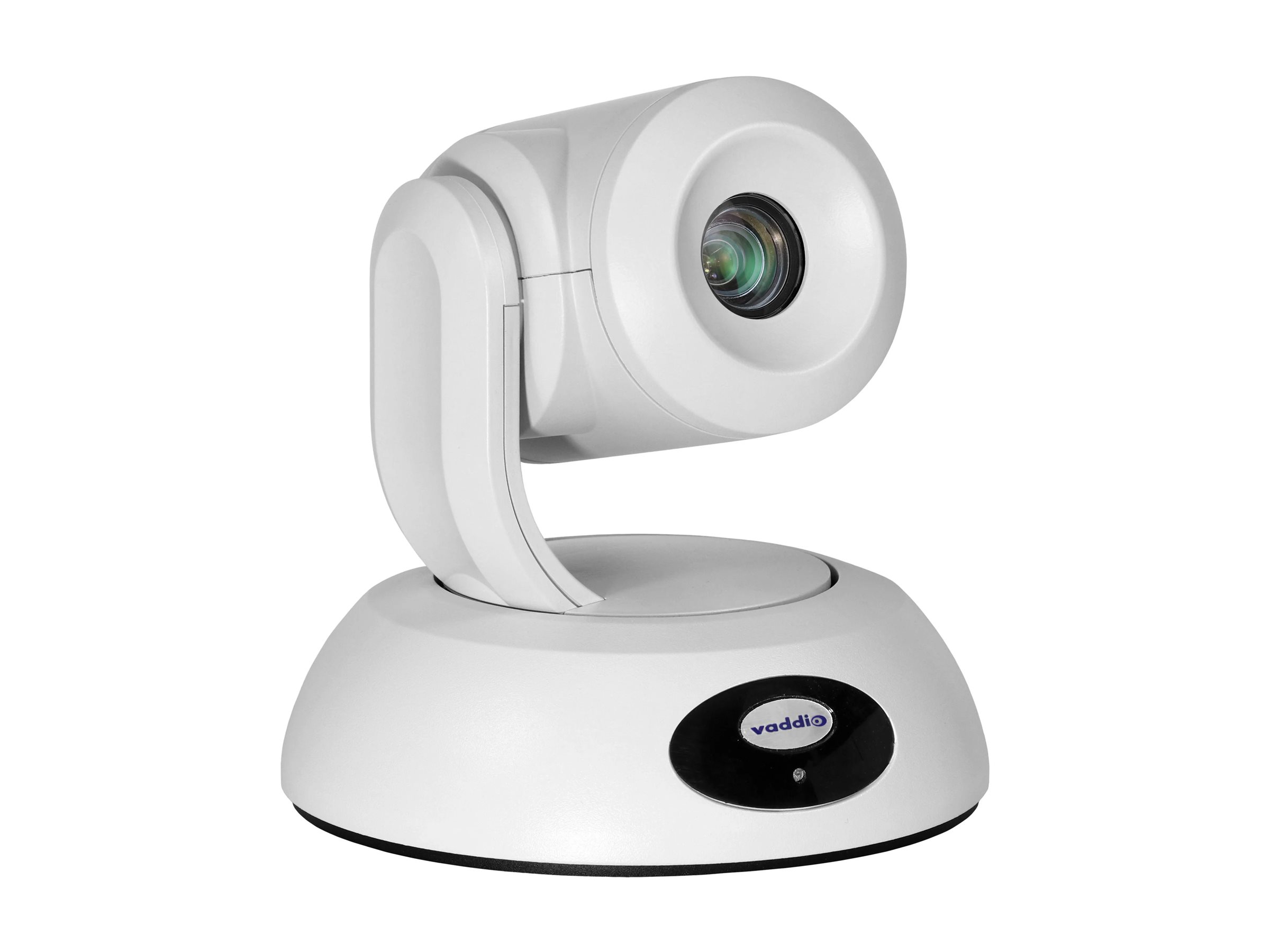

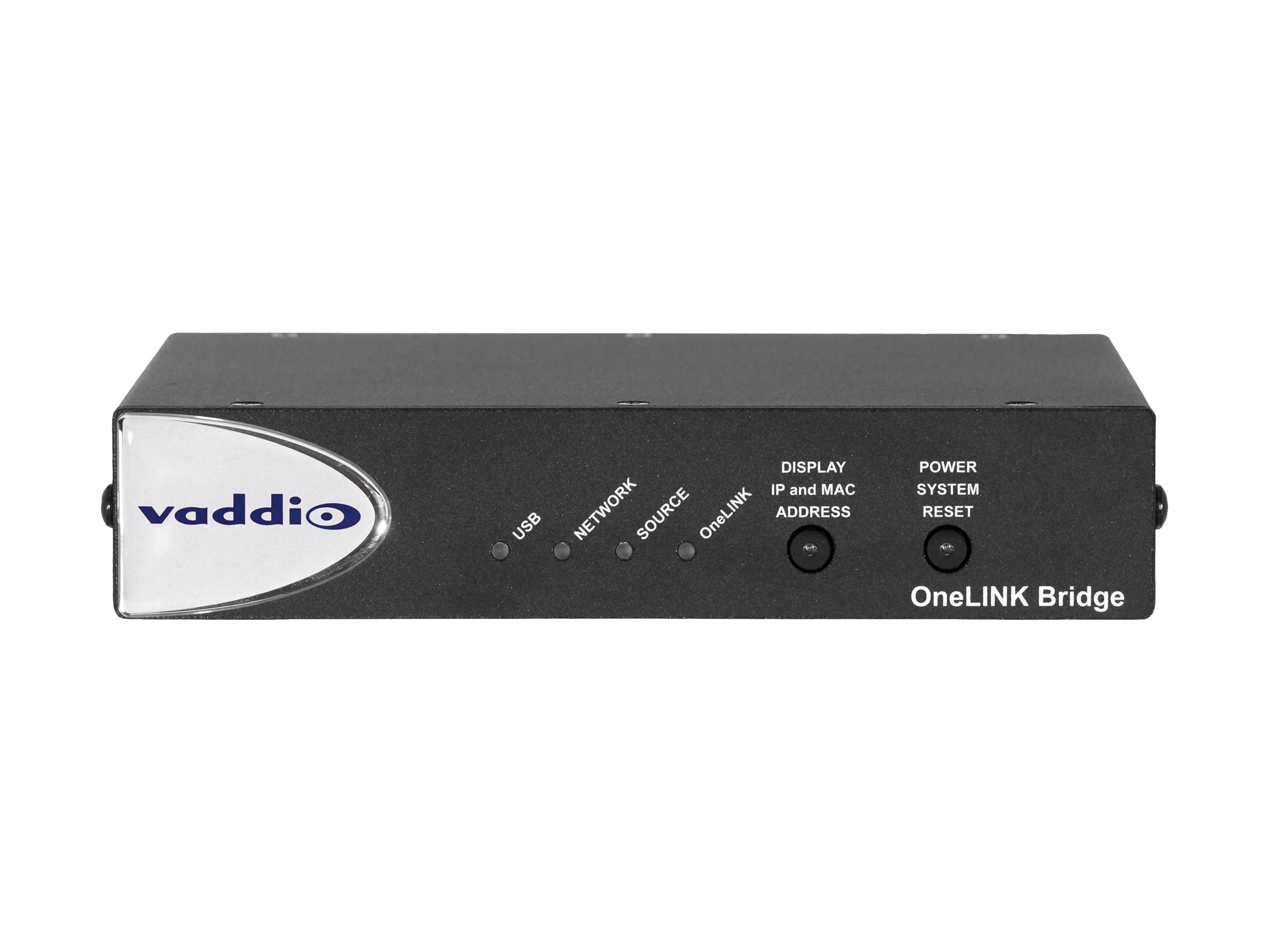

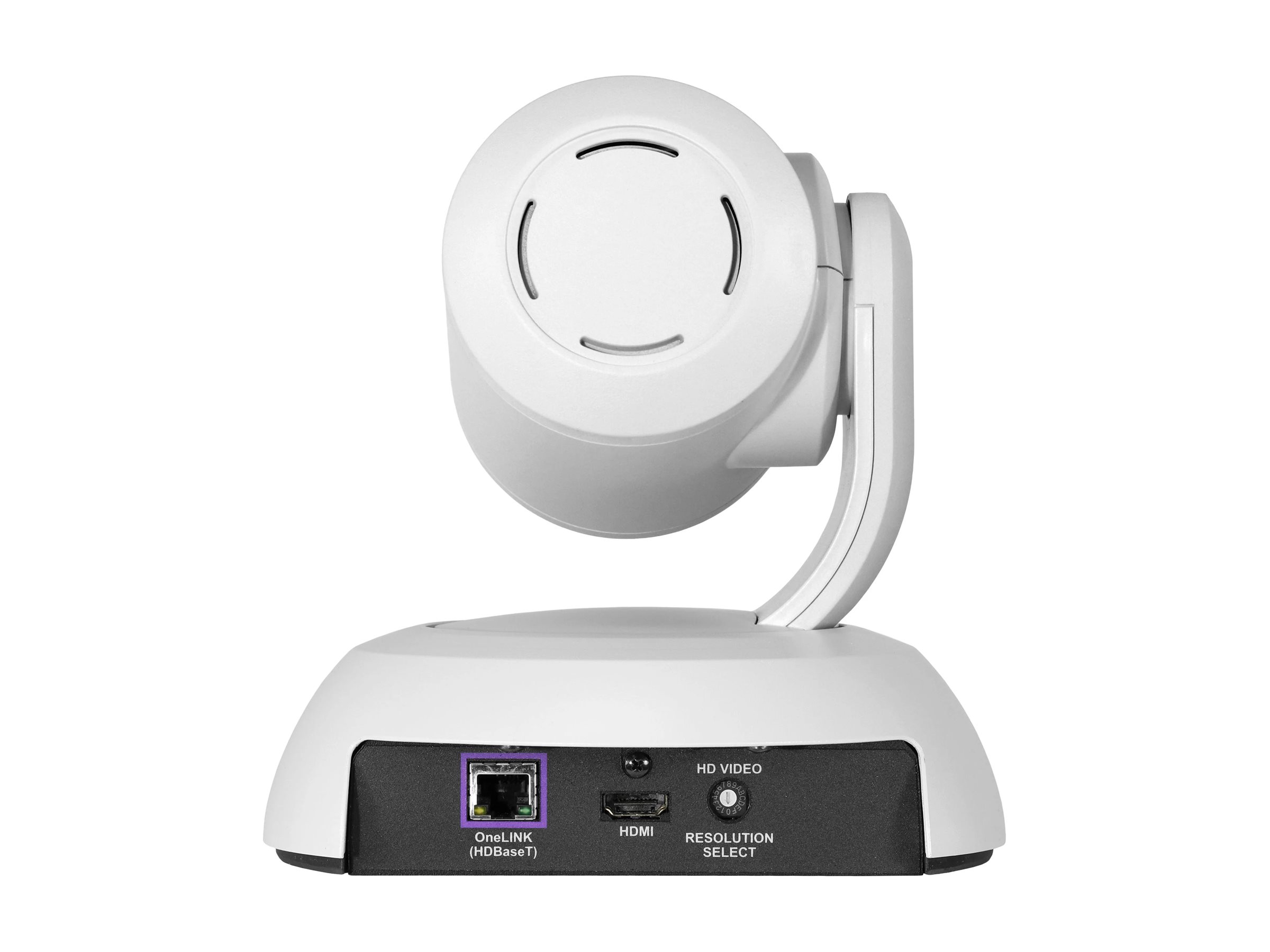

Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs
MSRP$7,819.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs
- Includes PTZ Camera and Bridge
- White
- Conference camera
- PTZ
- color
- 8.6 MP
- 1920 x 1080
- motorized
- HDMI
- HDBaseT
- H.264
- PoE Plus
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $7,819.00 |
| Mfr Part #: | 999-96750-400W |
| SHI Part #: | 39101647 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Vaddio |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs - Includes PTZ Camera and Bridge - White - Conference camera - PTZ - color - 8.6 MP - 1920 x 1080 - motorized - HDMI - HDBaseT - H.264 - PoE Plus - TAA Compliant |
| Manufacturer | Vaddio |
| MSRP | $7,819.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.14 cm |
| Dimensions & Weight / Height | 17.63 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 17.91 cm |
| Header / Brand | Vaddio |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080 |
| Digital Video Format | H.264 |
| Digital Zoom | 19 |
| Exposure Range | 1 sec - 1/10000 sec |
| Features | Manual white balance, Backlight Compensation (BLC), 16 preset positions, manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range, Spotlight Compensation Mode |
| Frame Rate (max) | 60 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 1 lux F1.6 |
| Type | Color - pan / tilt / zoom |
| Video Modes | 1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 1080/59.94i, 1080/59.94p, 720/59.94p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 80% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |

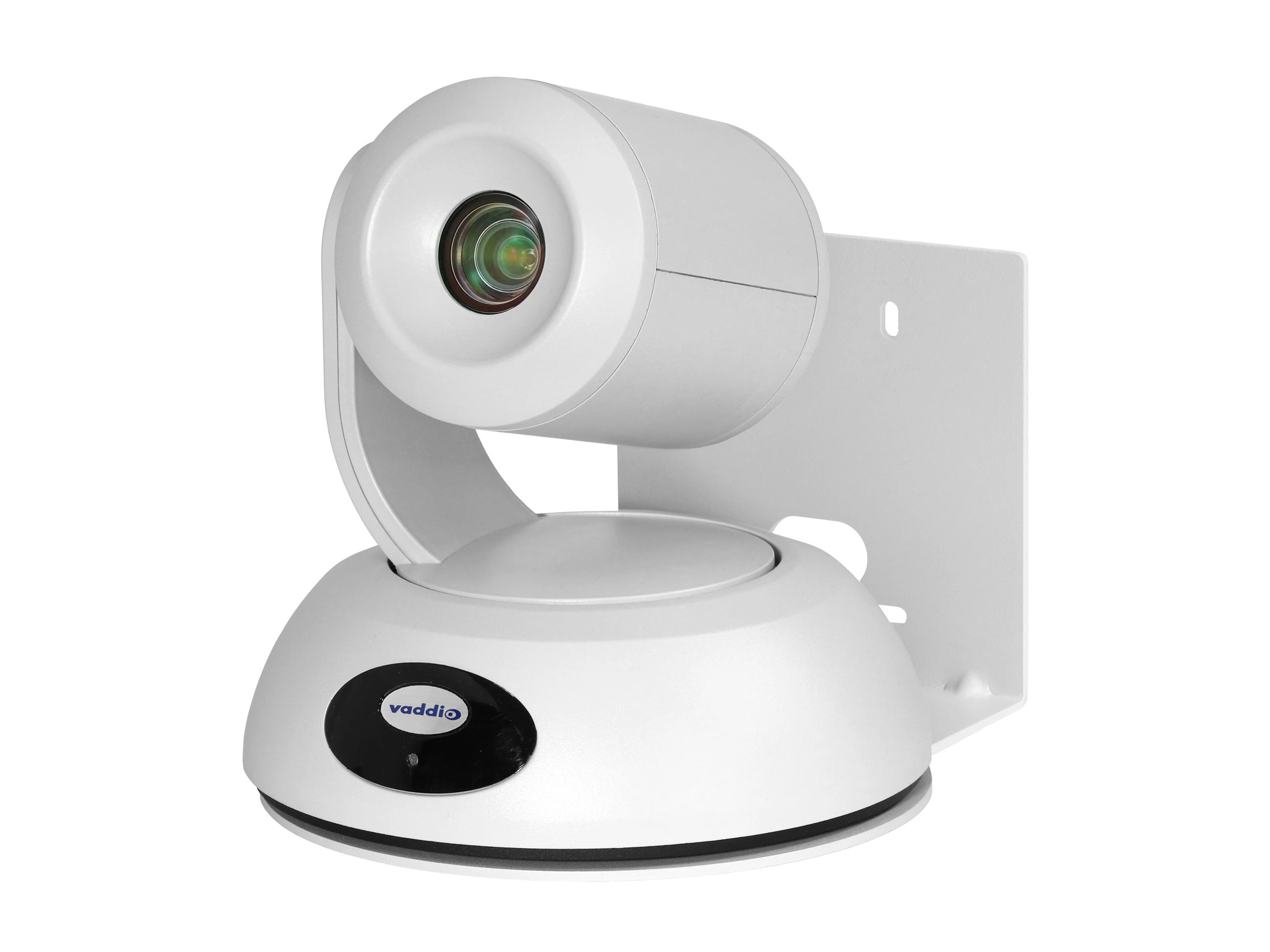

| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 17.14 cm |
| Device Type | Conference camera |
| Height | 17.63 cm |
| Localization | North America |
| Weight | 2.2 kg |
| Width | 17.91 cm |
| Image Sensor | |
| Type | 8.6 MP Exmor R CMOS 1/2.5" |
| Interfaces | |
| Network Interface | HDBaseT |
| Network Protocols | RTSP, Telnet, RTMP |
| Video | HDMI |
| Lens Construction | |
| Focal Length | 4.4 mm - 88.4 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
| Lens Iris | F/2.0-3.8 |
| Min Focus Distance | 8 cm |
| Optical Zoom | 12 x |
| Type | Motorized zoom |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Color | White |
| Compliant Standards | FCC |
| Included Accessories | Wall mount kit, Vaddio IR Remote Commander, 3-position phoenix-style connector, EZCamera RS-232 Control Adapter, OneLINK Bridge AV interface, power adapter, EZCamera RS-232 Control Adapter for Cisco codec |
| TAA Compliant | Yes |
| Panning | |
| Range (degree) | -150 to +150 |
| Speed (degree/sec) | Up to 120 |
| Power | |
| Power Requirements | PoE Plus |
| Tilting | |
| Range (degree) | -30 to +90 |
| Speed (degree/sec) | Up to 120 |
