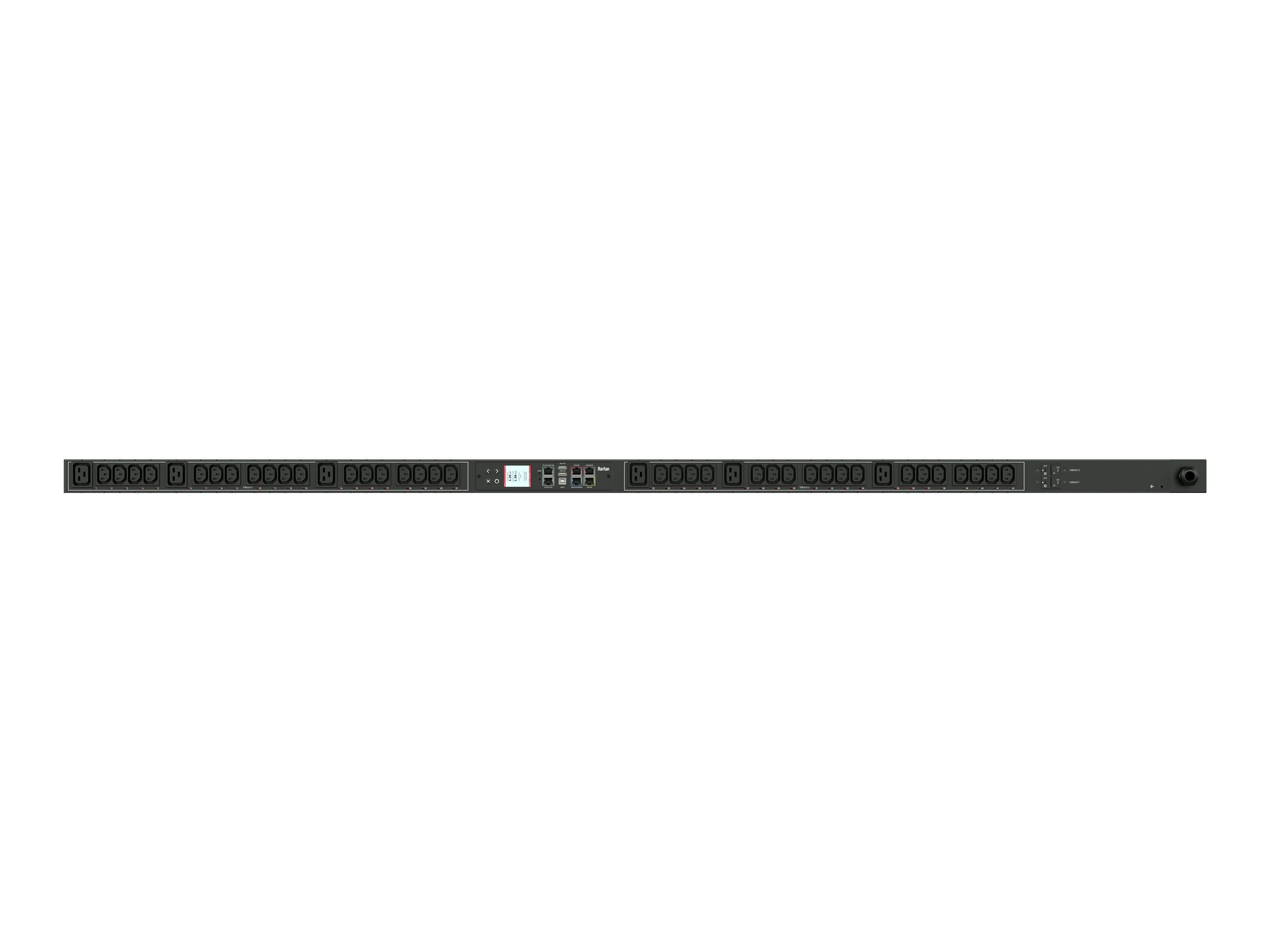

Raritan PX3-5847 - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5847 - Power distribution unit (rack-mountable)
- AC 230 V
- 7400 VA
- 1-phase
- RS-232, Ethernet 10/100/1000
- input: IEC 60309 2P+E
- output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5847 |
| SHI Part #: | 39038856 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-5847 - Power distribution unit (rack-mountable) - AC 230 V - 7400 VA - 1-phase - RS-232, Ethernet 10/100/1000 - input: IEC 60309 2P+E - output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,967.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 6.7 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 42 |
| Power Device / Power Capacity (VA) | 7400 VA |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Weight | 6.7 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11.5 cm |
| Shipping Height | 191.5 cm |
| Shipping Weight | 8.9 kg |
| Shipping Width | 28.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ICES-003, RoHS, FCC Part 15 A |
| Features | Vertical orientation, LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, ISO/IEC 62053-21 1% metering accuracy, power cable IP44 compliant, 2 x LEGBXA6-16 overload protection, removable controller, bottom-front feed cord entry, voltage meter, environmental sensor ready, 16MB SPI Flash |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 2P+E |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 7400 VA |
| Power Capacity Details | 6.4 kVA at 200 V, 7.7 kVA at 240 V |
| Power Output Connectors Details |
|
