Promise Pegasus32 R4
MSRP$3,599.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

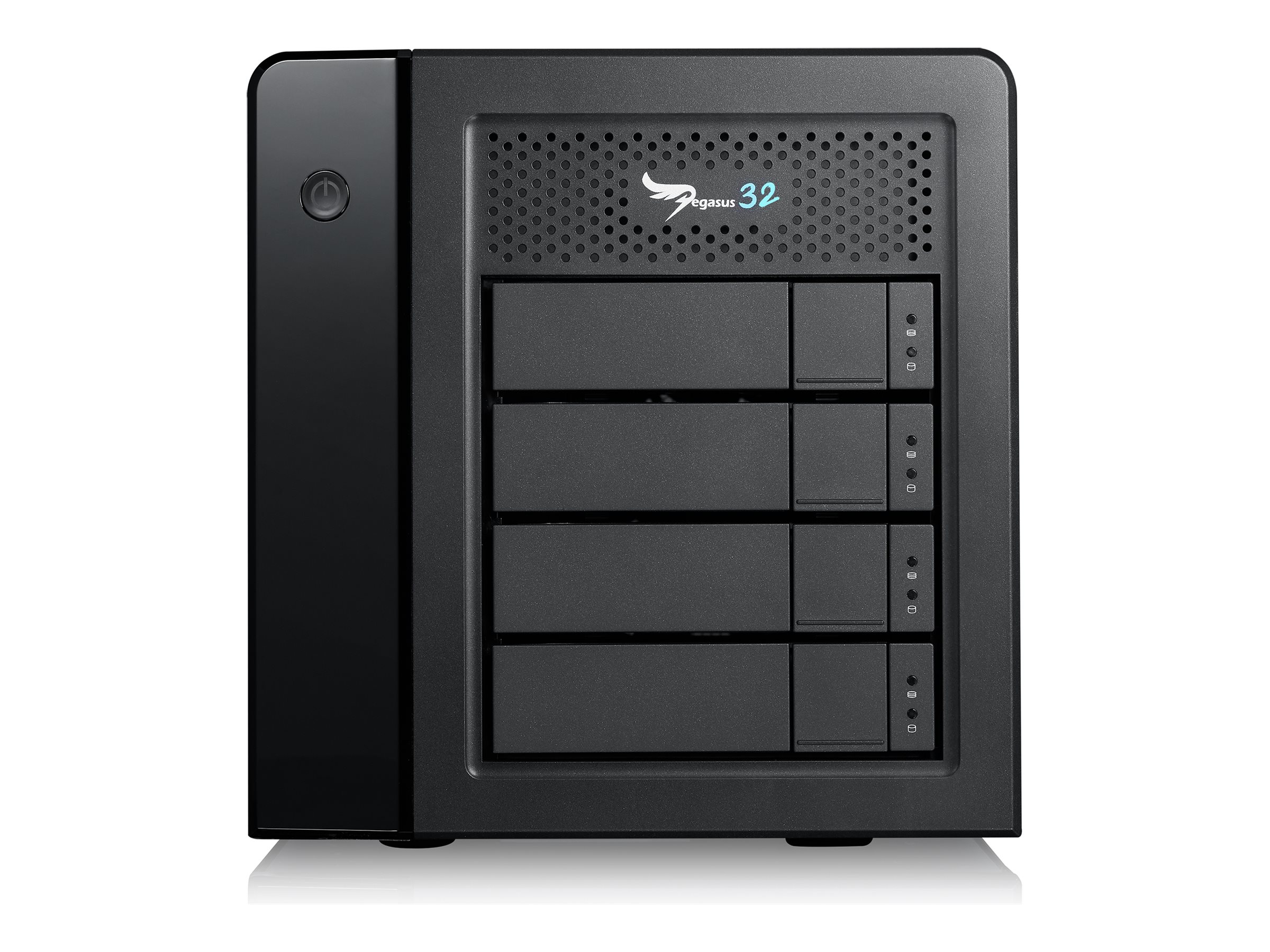

Promise Pegasus32 R4
- Hard drive array
- 40 TB
- 4 bays (SATA-600)
- HDD 10 TB x 4
- Thunderbolt 3, USB 3.2 Gen 2 (external)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,599.00 |
| Mfr Part #: | P32R4HD40US |
| SHI Part #: | 38875687 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | Promise Pegasus32 R4 - Hard drive array - 40 TB - 4 bays (SATA-600) - HDD 10 TB x 4 - Thunderbolt 3, USB 3.2 Gen 2 (external) |
| Manufacturer | Promise Technology |
| MSRP | $3,599.00 |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.5 cm |
| Dimensions & Weight / Height | 19.2 cm |
| Dimensions & Weight / Weight | 6.8 kg |
| Dimensions & Weight / Width | 18.7 cm |
| Hard Drive / Capacity | 10 TB |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | Promise |
| Header / Country Kits | United States |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface |
|
| Storage / HDD Array External Interface Class |
|
| Storage / Total Array Capacity | 40 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Built-in Devices | LED panel |
| Installed Devices / Modules Qty | 4 |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | SATA-600 |
| Dimensions & Weight | |
| Depth | 24.5 cm |
| Height | 19.2 cm |
| Weight | 6.8 kg |
| Width | 18.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap - 3.5" |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Localization | United States |
| Hard Drive | |
| Capacity | 4 x 10 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt 3 / USB-C cable - 70 cm |
| Compliant Standards | TUV, VCCI, BSMI, ICES-003 Class B, FCC, cTUVus, RCM, MSIP, RoHS 2011/65/EU, BIS, EMC 2014/30/EU, LVD 2014/35/EU, SPRING, DisplayPort 1.4 |
| Features | Built-in cooling fan, daisy chaining support, kensington security slot |
| Software Included | Promise Utility |
| Power | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Power Device | Internal power supply |
| Power Provided | 250 Watt |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Processor | |
| CPU | 1 x 8067 |
| RAM | |
| Installed Size | 1 GB |
| Storage | |
| HDD Array External Interface | Thunderbolt 3, USB 3.2 Gen 2 |
| Max Supported Capacity | 40 TB |
| Total Array Capacity | 40 TB |
| Storage Controller | |
| Data Transfer Rate | 600 MBps |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Type | RAID |
| System Requirements | |
| OS Required | Windows 10 64-bit Edition, Apple macOS 10.14 or later |
