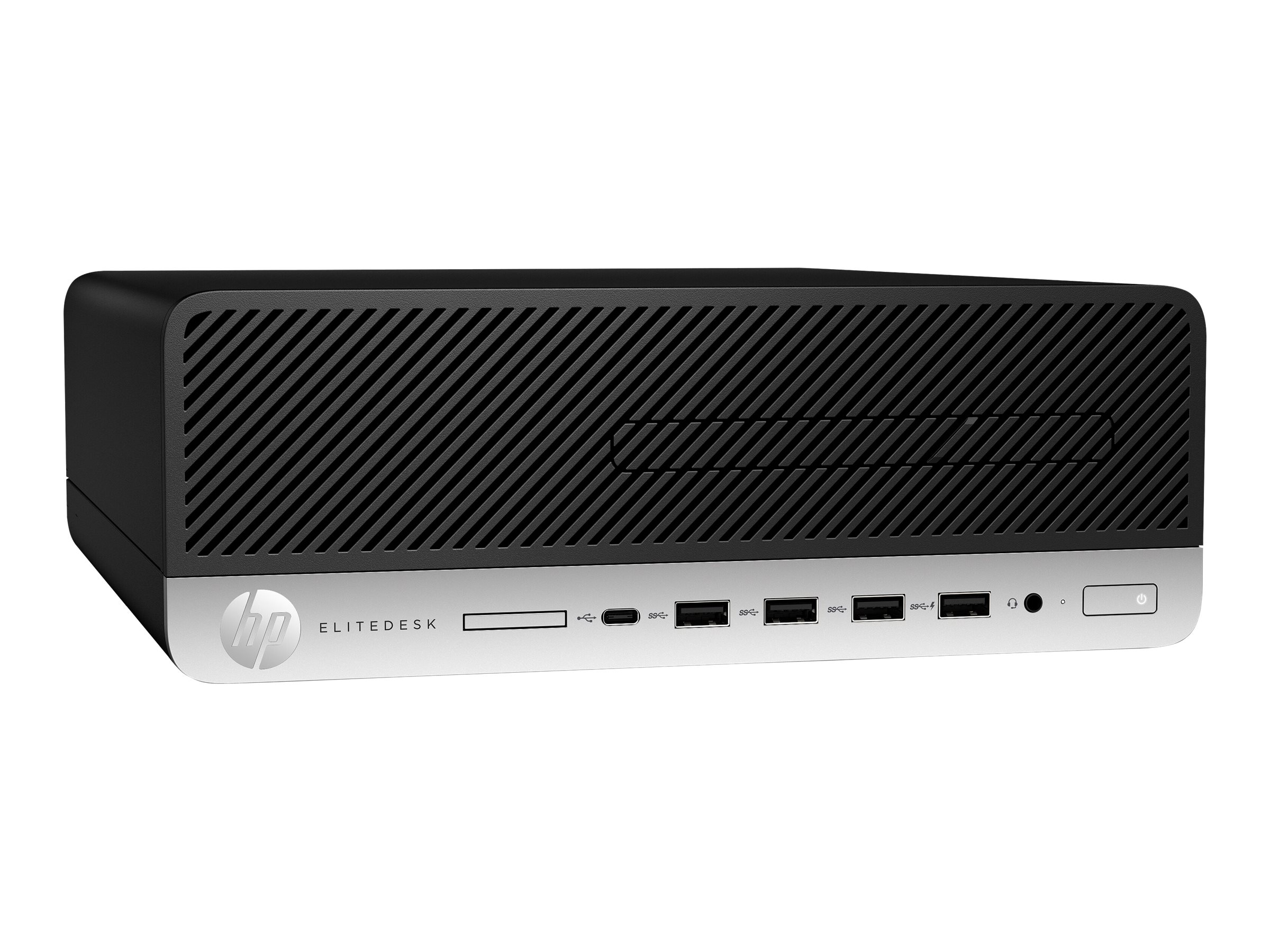

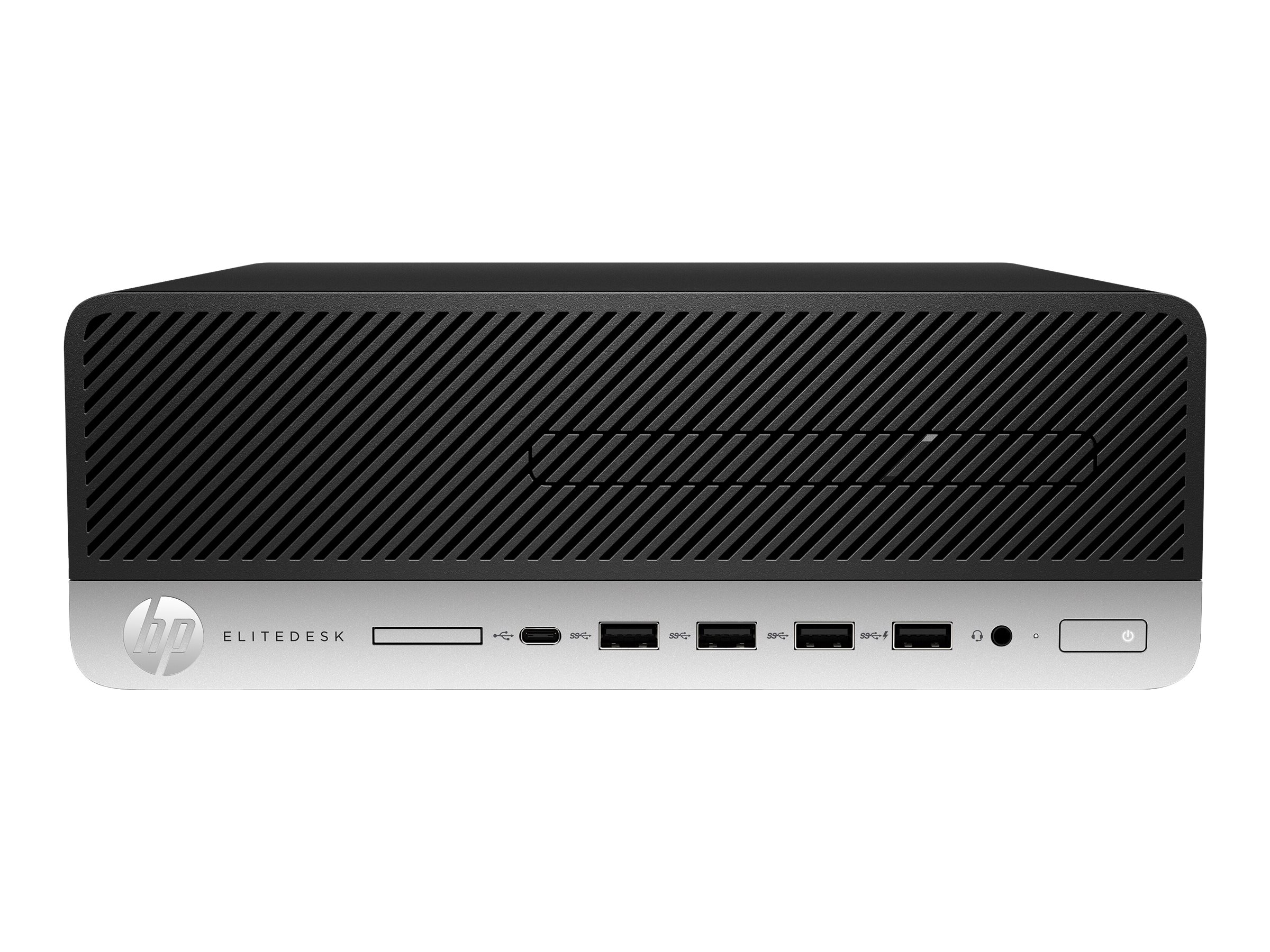

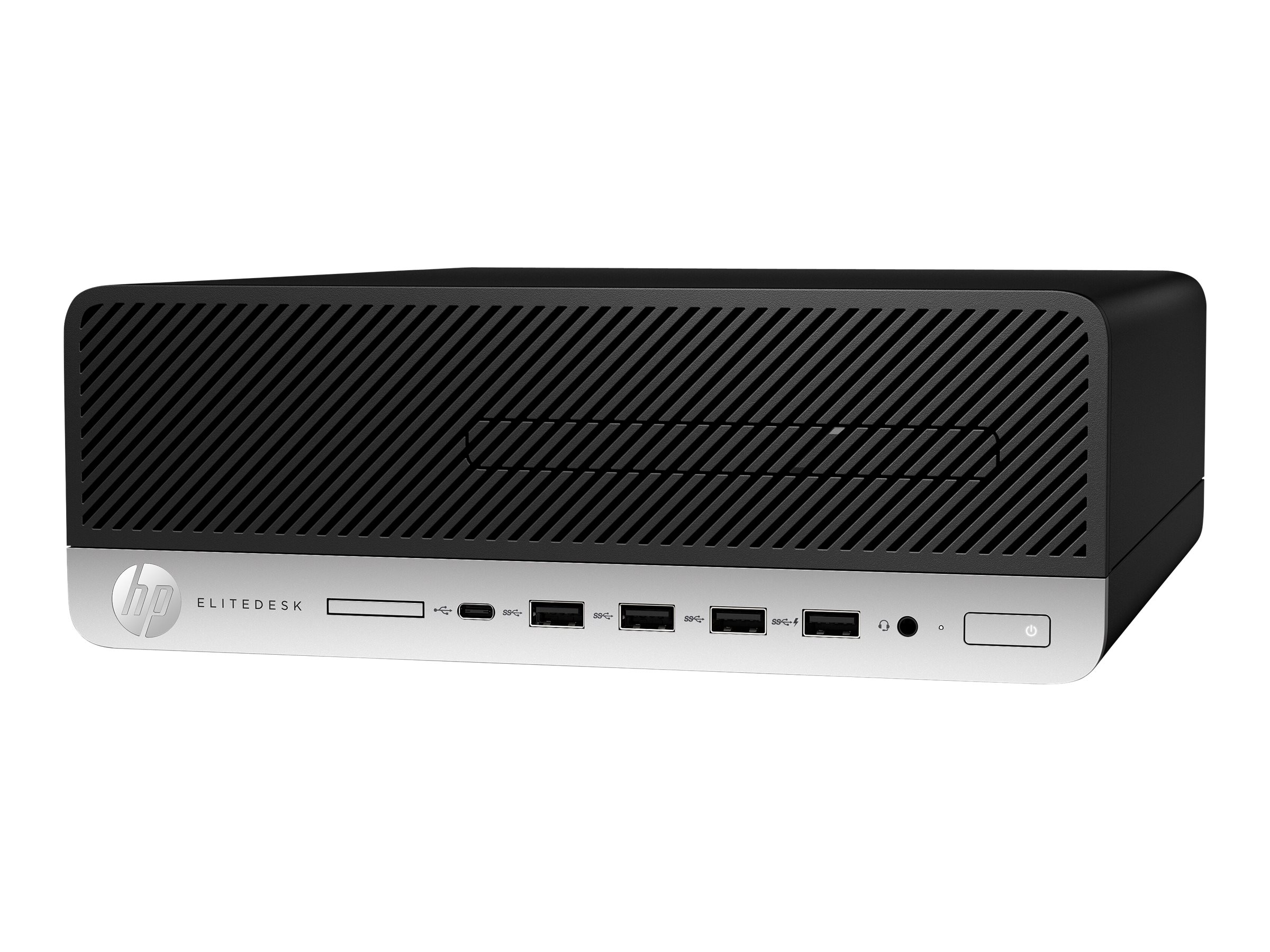

HP EliteDesk 705 G5 - SFF
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HP EliteDesk 705 G5 - SFF
- Ryzen 7 Pro 3700 / 3.6 GHz
- RAM 8 GB
- SSD 256 GB
- NVMe, TLC
- DVD-Writer
- Radeon R7 430
- GigE
- Win 10 Pro 64-bit
- monitor: none
- keyboard: US
- Smart Buy
| Additional Details | |
|---|---|
| Mfr Part #: | 8LJ48UT#ABA |
| SHI Part #: | 38874138 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- Video adapter
- DisplayPort (M) to HDMI (F)
- 4K support
- for HP 260 G4, t540; Desktop Pro 300 G6; Elite Slice G2; EliteDesk 805 G6; ProDesk 405 G6
- 90 Watt
- active PFC
- United States
- for Elite Slice, Slice for Meeting Rooms G2, Slice G2; EliteDesk 705 G5, 800 G5
Memory (RAM)
- DIMM 288-pin
- 2666 MHz / PC4-21300
- 1.2 V
- unbuffered
- non-ECC
- for HP 280 G3, 280 G4, 280 G5, 285 G3, 290 G2, 290 G3, 290 G4, 295 G6; Desktop Pro A 300 G3, Pro A G3, Pro 300 G6; EliteDesk 705 G5 (DIMM), 800 G5 (DIMM), 800 G6 (DIMM), 805 G6 (DIMM); Engage Flex Pro-C Retail System; ProDesk 400 G7 (DIMM), 405 G6 (DIMM), 600 G5 (DIMM); Workstation Z1 G5, Z1 G6
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | HP EliteDesk 705 G5 - SFF - Ryzen 7 Pro 3700 / 3.6 GHz - RAM 8 GB - SSD 256 GB - NVMe, TLC - DVD-Writer - Radeon R7 430 - GigE - Win 10 Pro 64-bit - monitor: none - keyboard: US - Smart Buy |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 29.6 cm |
| Dimensions & Weight / Height | 9.5 cm |
| Dimensions & Weight / Weight | 4.53 kg |
| Dimensions & Weight / Width | 27 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Hard Drive / Interface | PCI Express 3.0 x4 |
| Hard Drive / Interface Type | PCI Express 3.0 x4 |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Mainboard / Chipset Type | AMD PRO 560 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD-Writer |
| OS Provided / Type | Windows 10 Pro 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.6 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 3700 |
| Processor / Type | Ryzen 7 Pro |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2666 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Personal computer |
| Video Memory / Technology | GDDR5 SDRAM |
| Video Output / Graphics Processor | AMD Radeon R7 430 |
| Video Output / HDCP compatible | Yes |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Max Sampling Rate | 192 kHz |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 32 MB |
| Installed Size | L3 cache - 32 MB |
| Card Reader | |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card, SDXC UHS-I Memory Card, SDXC UHS-II Memory Card |
| Type | 5 in 1 card reader |
| Dimensions & Weight | |
| Depth | 29.6 cm |
| Height | 9.5 cm |
| Weight | 4.53 kg |
| Width | 27 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 23 cm |
| Shipping Height | 49.9 cm |
| Shipping Weight | 7.33 kg |
| Shipping Width | 39.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | Small form factor |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | AMD Radeon R7 430 |
| HDCP Compatible | Yes |
| Max Monitors Supported | 2 |
| Video Interfaces | DisplayPort |
| Video Memory | 2 GB GDDR5 SDRAM |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe), triple-level cell (TLC) |
| Interface Type | PCI Express 3.0 x4 |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP Business Slim Keyboard |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, DisplayPort 1.2, HDCP 1.4 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111EPH |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X) |
| Operating System / Software | |
| OS Provided | Windows 10 Pro 64-bit Edition English |
| Software | HP Support Assistant, HP Hotkey Support, Windows Defender, HP Secure Erase, HP Client Catalog, HP BIOS Config Utility, HP Setup Integrated OOBE, HP JumpStart, HP PC Hardware Diagnostics, HP System Software Manager, Power On Authentication, HP Manageability & Integration Kit Gen3 (free download), HP BIOSphere Gen5, HP Privacy Settings, HP Client Security Suite Gen5, HP Cloud Recovery, HP Image Assistant Gen4, HP Audio |
| Optical Storage | |
| Type | DVD-Writer - SATA |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Efficiency | 92% |
| Power Factor Correction | Yes (active) |
| Power Provided | 180 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | AMD PRO 560 |
| Clock Speed | 3.6 GHz |
| CPU | AMD Ryzen 7 Pro 3700 |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| L2 cache | 4 MB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 2666 MHz |
| Form Factor | DIMM 288-pin |
| Installed Size | 8 GB (installed) / 128 GB (max) |
| Rated Memory Speed | 2666 MHz |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Channel Qty | 3 |
| Type | 1 x SATA |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
