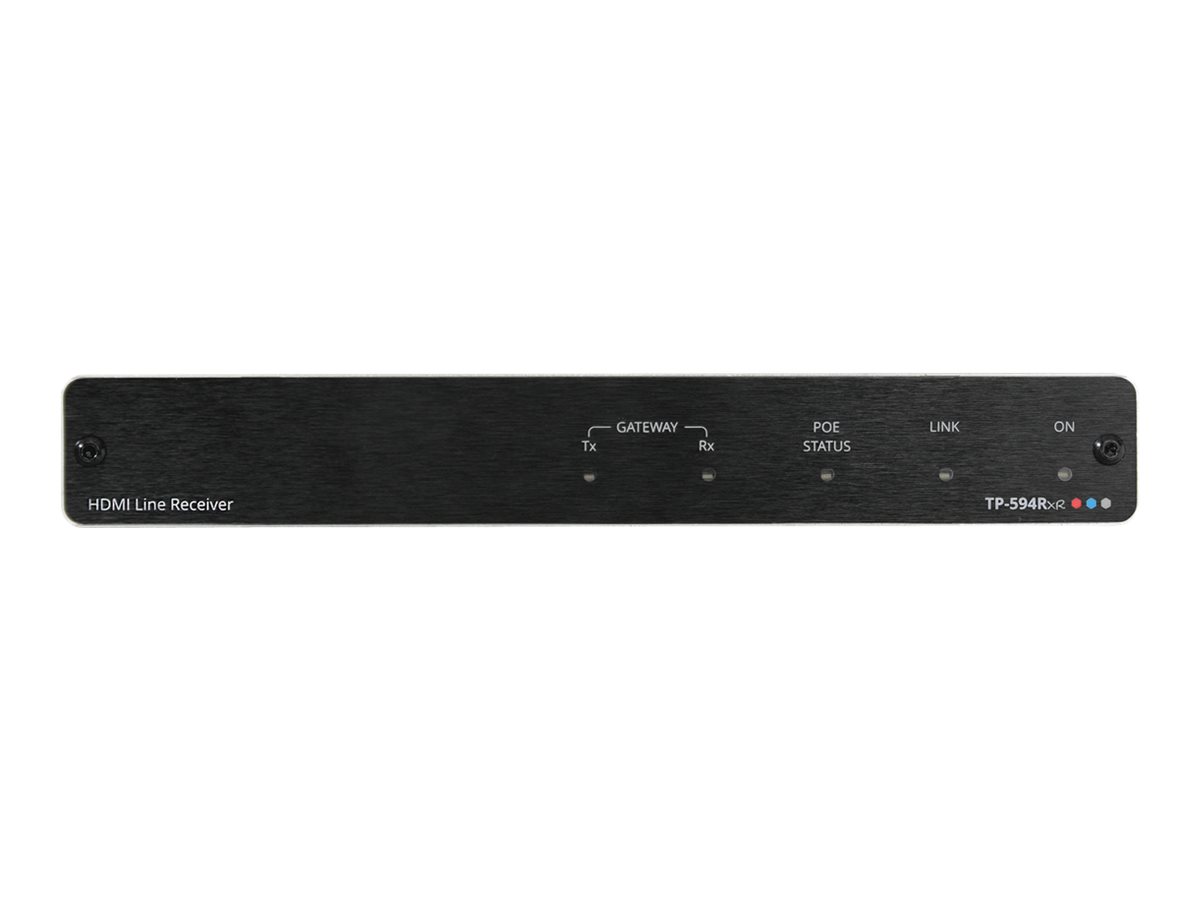

Kramer MegaTOOLS TP-594Rxr
MSRP$658.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Kramer MegaTOOLS TP-594Rxr
- Video/audio/infrared/serial/network extender
- receiver
- HDBaseT 2.0
- up to 100 m
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $658.00 |
| Mfr Part #: | 50-00010290 |
| SHI Part #: | 38745387 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Kramer Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Kramer MegaTOOLS TP-594Rxr - Video/audio/infrared/serial/network extender - receiver - HDBaseT 2.0 - up to 100 m |
| Manufacturer | Kramer Electronics |
| MSRP | $658.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.5 cm |
| Dimensions & Weight / Height | 2.54 cm |
| Dimensions & Weight / Weight | 400 g |
| Dimensions & Weight / Width | 18.75 cm |
| Header / Brand | Kramer |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT 2.0 |
| Networking / Data Transfer Rate | 17.95 Gbps |
| Networking / Form Factor | External |
| Networking / Type |
|
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 11.5 cm |
| Height | 2.54 cm |
| Weight | 400 g |
| Width | 18.75 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.5 cm |
| Shipping Height | 5.2 cm |
| Shipping Weight | 1 kg |
| Shipping Width | 34.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial/network extender (receiver) |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | UL, RoHS, WEEE, CEC, HDCP 2.2 |
| Included Accessories | Mounting bracket |
| Mounting Kit | Included |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 2.0 |
| Data Transfer Rate | 17.95 Gbps |
| Features | Manageable, firmware upgradable, HDCP compliant, reset button, fanless, Audio Return Channel (ARC), 3D support, built-in DIP switch, 4K resolution support, EDID Pass-Through, 2K resolution support, I-EDIDPro Kramer Intelligent EDID Processing, Dolby TrueHD support, x.v.Color support, DTS-HD support, HDR 4K60 4:4:4 compatible, bi-directional IR, bi-directional RS-232, YUV 4:2:0, aluminum housing |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 100 m |
| Remote Management Protocol | HTTP |
| Status Indicators | Power, PoE, link/activity, input, link |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE |
