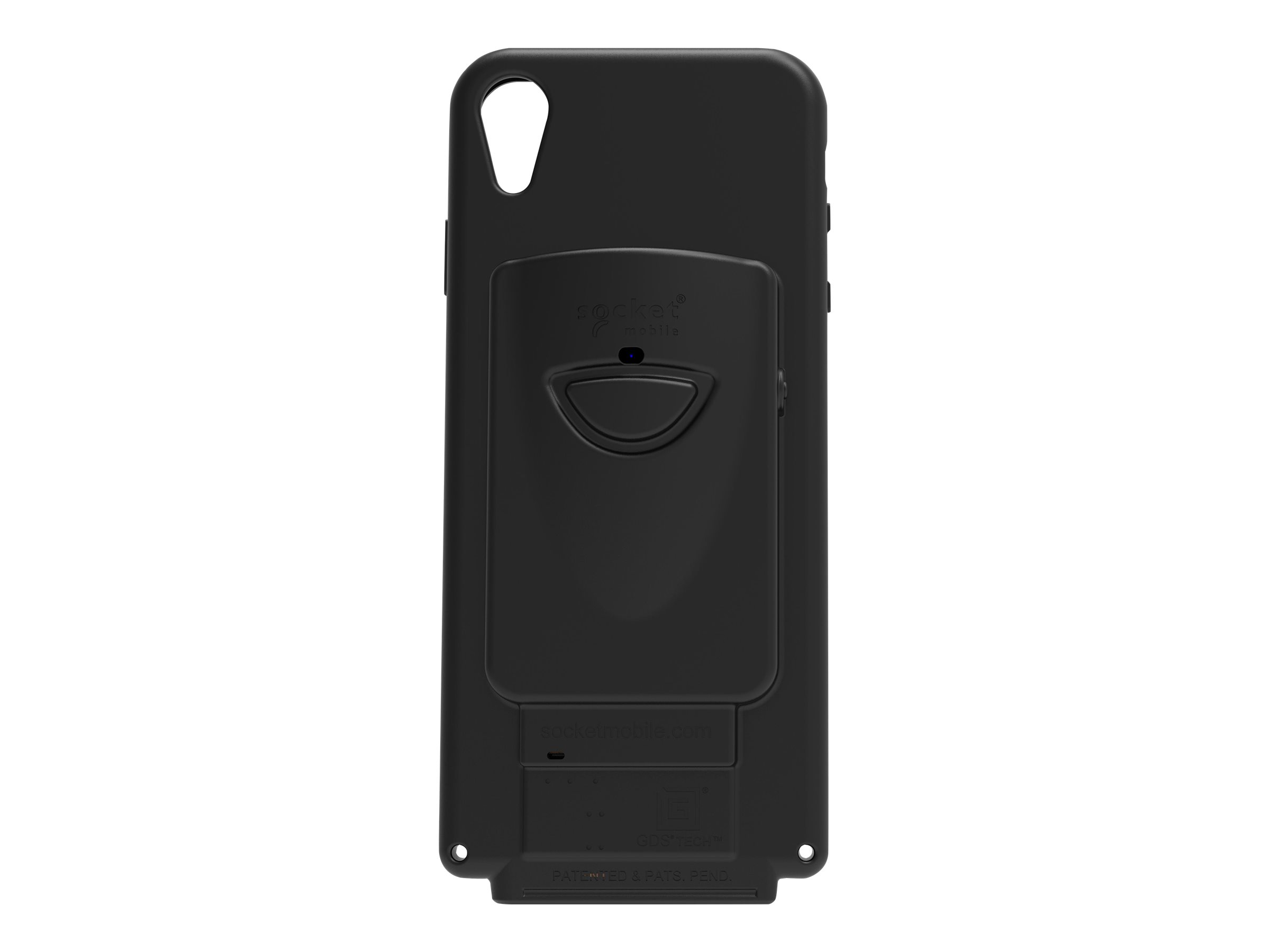

DuraSled DS860 - Barcode scanner
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
DuraSled DS860 - Barcode scanner
- companion
- 2D imager
- decoded
- Bluetooth 2.1 EDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CX3586-2237 |
| SHI Part #: | 38680488 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Socket Mobile |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | DuraSled DS860 - Barcode scanner - companion - 2D imager - decoded - Bluetooth 2.1 EDR |
| Manufacturer | Socket Mobile |
| MSRP | $546.00 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.94 cm |
| Dimensions & Weight / Height | 17.882 cm |
| Dimensions & Weight / Weight | 118.5 g |
| Dimensions & Weight / Width | 7.976 cm |
| Header / Brand | Socket |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Discrete 2 of 5, MicroPDF417, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, Australian Post, Japanese Post, Kix (Netherlands) Post, UPC-E1, ISSN, UK Post, OCR-A, OCR-B, MICR E-13B, Micro QR code, GS1 DataBar Expanded, GS1 DataBar Limited, Intelligent Mail Barcode, MSI, GS1-128, Chinese 2 of 5, DotCode, Composite AB, Composite C, US Planet, US Postnet, USPS 4-state (US4CB), Han Xin, Korean 3 of 5 |
| Interface Type | Bluetooth 2.1 EDR |
| Max Working Distance | 49.5 cm |
| OK Notification | LED indicator |
| Print Contrast Signal (PCS) | 20% |
| Scan Element Type | 2D imager |
| Sensor Resolution | 640 x 400 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 2.94 cm |
| Height | 17.882 cm |
| Weight | 118.5 g |
| Width | 7.976 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Type | Barcode scanner - companion |
| Power | |
| Battery | 1 x lithium ion |
