Axiom C2110n Series - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

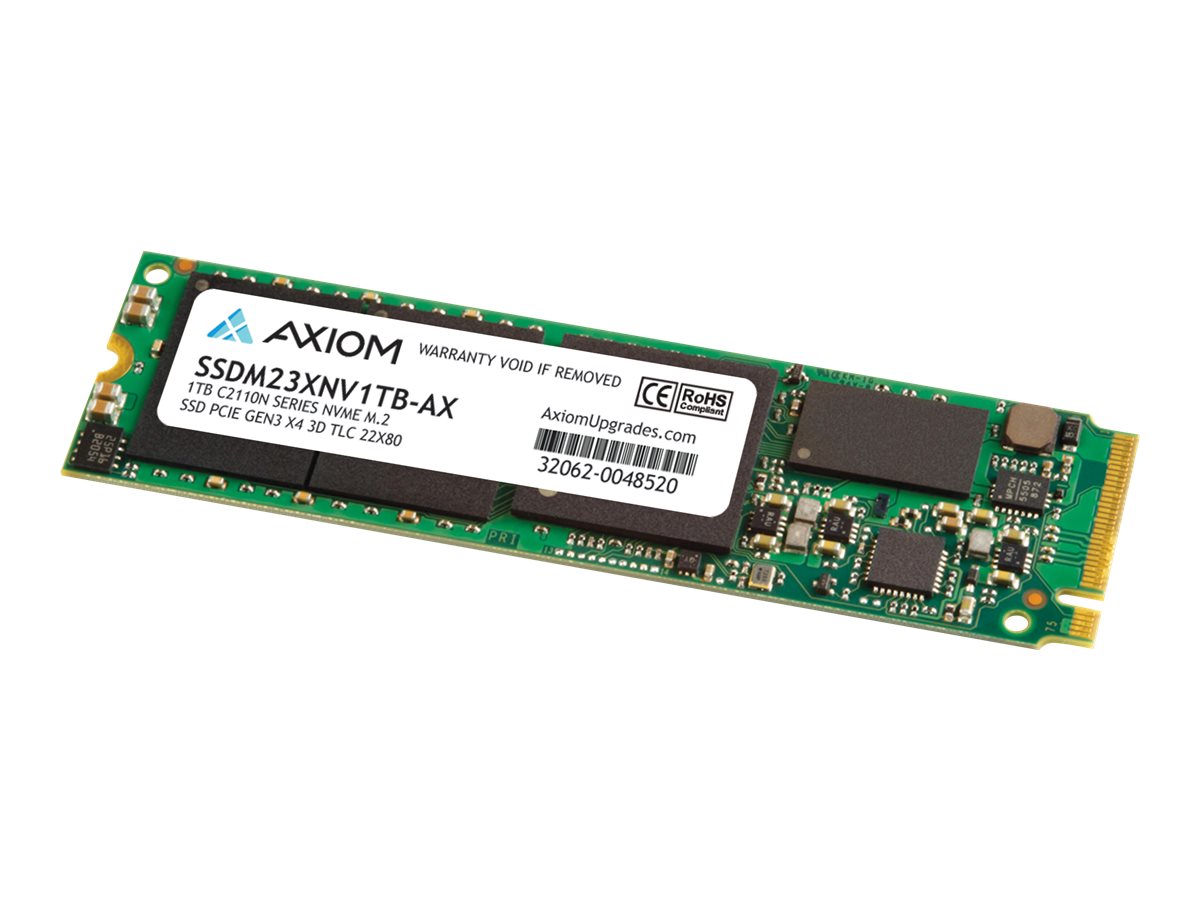

Axiom C2110n Series - SSD
- 1 TB
- internal
- M.2 2280
- PCIe 3.1 x4 (NVMe)
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | SSDM23XNV1TB-AX |
| SHI Part #: | 38654503 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C2110n Series - SSD - 1 TB - internal - M.2 2280 - PCIe 3.1 x4 (NVMe) - TAA Compliant |
| Manufacturer | Axiom Memory |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 40 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 1 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 1 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | NVM Express (NVMe), Silicon Motion controller, dynamic SLC caching, Global Wear Leveling, NVM Express (NVMe) 1.3, StaticDataRefresh Technology, 3D NAND Technology, Garbage Collection technology, Advanced LDPC ECC Technology, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, LDPC error correction, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.1 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 40 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.609 |
| Internal Data Rate | 2115 MBps (read) / 1700 MBps (write) |
| Maximum 4KB Random Read | 240000 IOPS |
| Maximum 4KB Random Write | 260000 IOPS |
| SSD Endurance | 606 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
