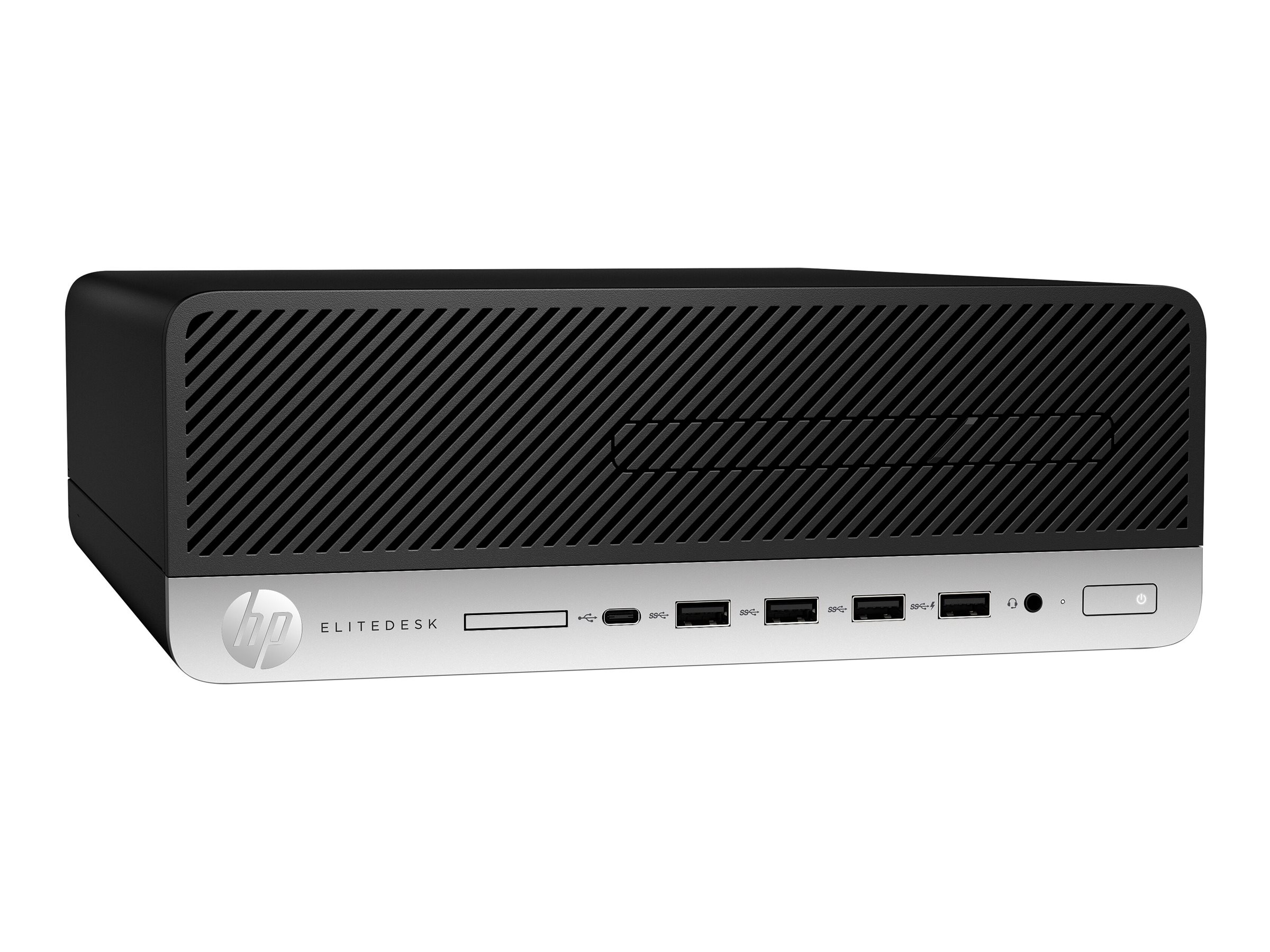

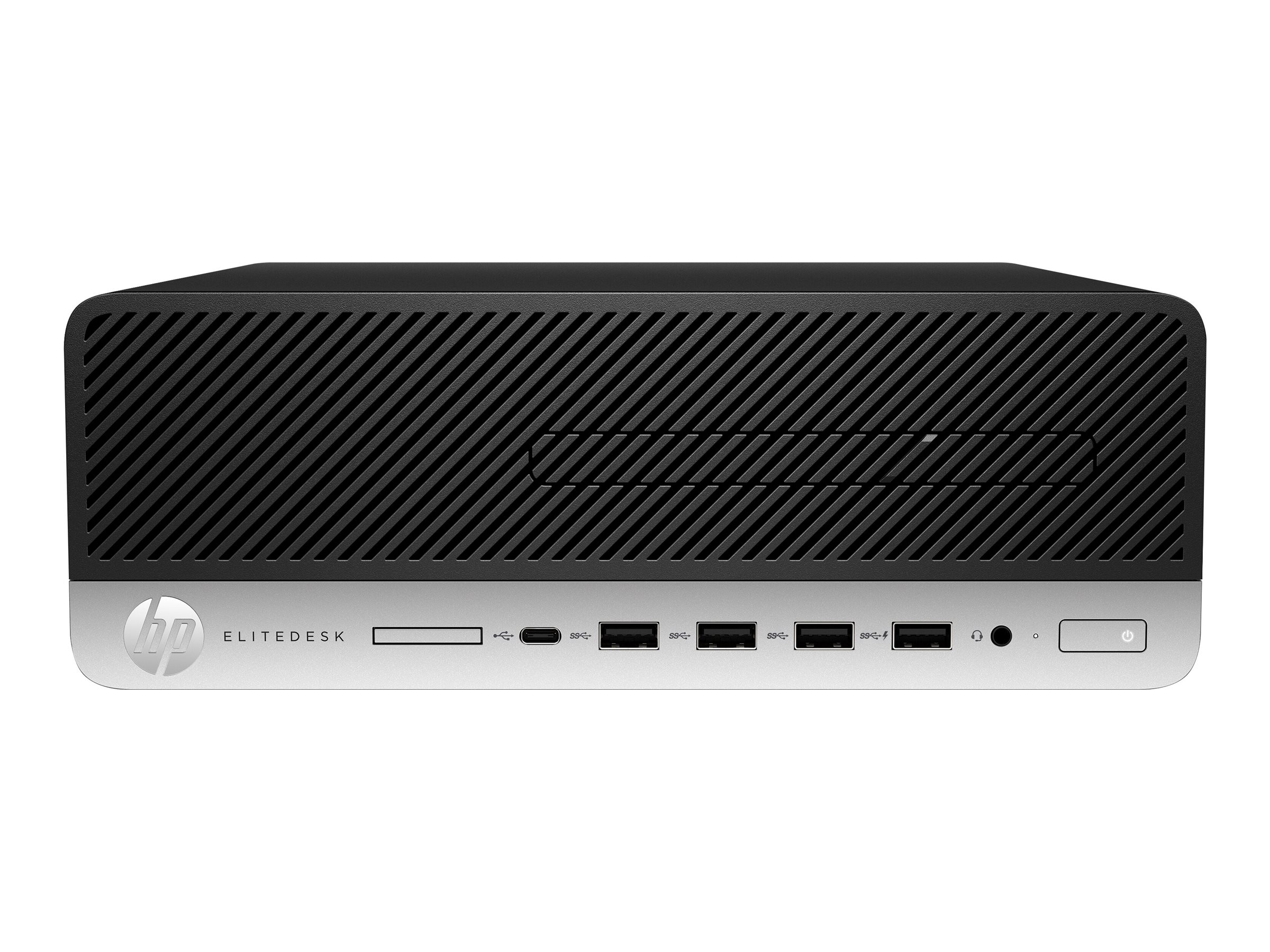

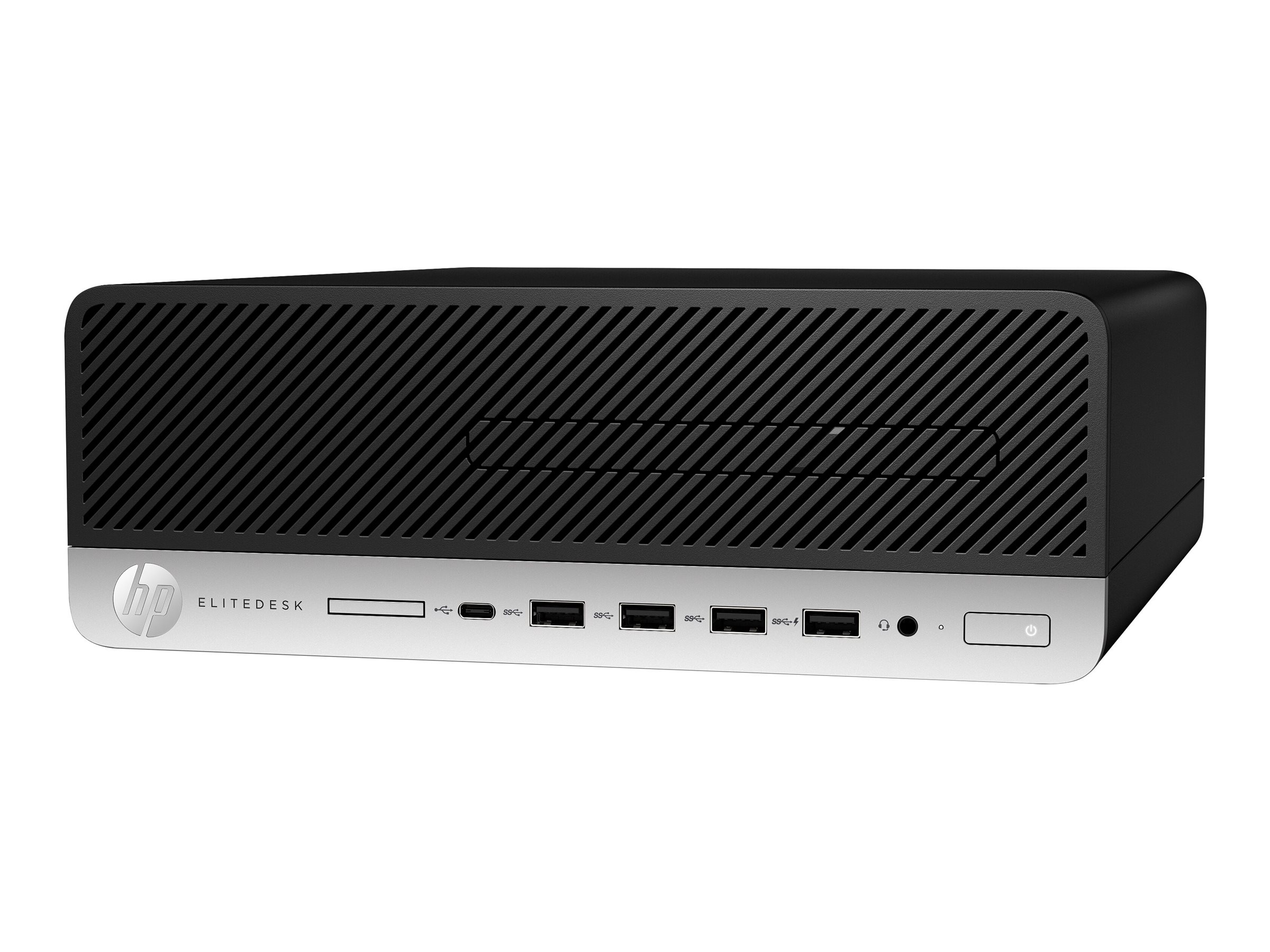

HP EliteDesk 705 G5 - SFF

Login for Price
HP EliteDesk 705 G5 - SFF
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Ryzen 3 Pro 3200G / 3.6 GHz
  • RAM 8 GB
  • SSD 256 GB
  • NVMe, TLC
  • DVD-Writer
HP EliteDesk 705 G5 - SFF
  • Ryzen 3 Pro 3200G / 3.6 GHz
  • RAM 8 GB
  • SSD 256 GB
  • NVMe, TLC
  • DVD-Writer
  • Radeon Vega 8
  • GigE
  • Win 10 Pro 64-bit
  • monitor: none
  • keyboard: US
  • Smart Buy
  Additional Details
Mfr Part #: 8LX25UT#ABA
SHI Part #: 38617844
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware
Product Line: HPI - Desktops

Audio/Video Cables

HP DisplayPort to HDMI 4K Adapter
HP DisplayPort to HDMI 4K Adapter
  • Video adapter
  • DisplayPort (M) to HDMI (F)
  • 4K support
  • for HP 260 G4, t540; Desktop Pro 300 G6; Elite Slice G2; EliteDesk 805 G6; ProDesk 405 G6
Login for Price
HP - Power adapter - AC 100-240 V
HP - Power adapter - AC 100-240 V
  • 90 Watt
  • active PFC
  • United States
  • for Elite Slice, Slice for Meeting Rooms G2, Slice G2; EliteDesk 705 G5, 800 G5
Login for Price

Memory (RAM)

HP - DDR4 - module - 4 GB
HP - DDR4 - module - 4 GB
  • DIMM 288-pin
  • 3200 MHz / PC4-25600
  • 1.2 V
  • unbuffered
  • non-ECC
  • Smart Buy
Login for Price
HP - DDR4 - module - 8 GB
HP - DDR4 - module - 8 GB
  • DIMM 288-pin
  • 3200 MHz / PC4-25600
  • 1.2 V
  • unbuffered
  • non-ECC
  • promo
Login for Price
HP - DDR4 - module - 16 GB
HP - DDR4 - module - 16 GB
  • DIMM 288-pin
  • 2666 MHz / PC4-21300
  • 1.2 V
  • unbuffered
  • non-ECC
  • for HP 280 G3, 280 G4, 280 G5, 285 G3, 290 G2, 290 G3, 290 G4, 295 G6; Desktop Pro A 300 G3, Pro A G3, Pro 300 G6; EliteDesk 705 G5 (DIMM), 800 G5 (DIMM), 800 G6 (DIMM), 805 G6 (DIMM); Engage Flex Pro-C Retail System; ProDesk 400 G7 (DIMM), 405 G6 (DIMM), 600 G5 (DIMM); Workstation Z1 G5, Z1 G6
Login for Price
General Information
CategoryDesktop computers
DescriptionHP EliteDesk 705 G5 - SFF - Ryzen 3 Pro 3200G / 3.6 GHz - RAM 8 GB - SSD 256 GB - NVMe, TLC - DVD-Writer - Radeon Vega 8 - GigE - Win 10 Pro 64-bit - monitor: none - keyboard: US - Smart Buy
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorSmall form factor
Dimensions & Weight / Depth29.6 cm
Dimensions & Weight / Height9.5 cm
Dimensions & Weight / Weight4.53 kg
Dimensions & Weight / Width27 cm
Display / TypeNone.
Hard Drive / Capacity256 GB
Hard Drive / InterfacePCI Express 3.0
Hard Drive / Interface TypePCI Express 3.0
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeAMD PRO 560 FCH
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD-Writer
OS Provided / TypeWindows 10 Pro 64-bit Edition
Packaged Quantity1
Processor / Clock Speed3.6 GHz
Processor / ManufacturerAMD
Processor / Number of CoresQuad-Core
Processor / Processor Number3200G
Processor / TypeRyzen 3 Pro
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed2666 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity256 GB
System / TypePersonal computer
Video Output / Graphics ProcessorAMD Radeon Vega 8
Audio Output
Max Sampling Rate192 kHz
Sound Output ModeStereo
Cache Memory
Cache Per Processor4 MB
Installed Size4 MB
Card Reader
Type5 in 1 card reader
Dimensions & Weight
Depth29.6 cm
Height9.5 cm
Weight4.53 kg
Width27 cm
Dimensions & Weight (Shipping)
Shipping Depth23 cm
Shipping Height49.9 cm
Shipping Weight7.33 kg
Shipping Width39.9 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Bays
  • 1 (total) / 1 (free) x internal 2.5" / 3.5" shared
  • 1 (total) / 0 (free) x external 5.25" Slim Line
Interfaces
  • 1 x headphones - mini-jack (1 in front)
  • 7 x USB 3.1 Gen 1 (3 front, 4 rear)
  • 1 x USB 3.1 Gen 1 (1 in front) (charging)
  • 1 x USB-C 3.1 Gen 2 (1 in front) (charging)
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 2 x DisplayPort
  • 2 x LAN (Gigabit Ethernet)
  • 2 x USB 2.0
Slots
  • 1 (total) / 1 (free) x M.2 Card - 2230 (for wireless module)
  • 2 (total) / 1 (free) x M.2 Card - 2230/2280 (for internal storage)
  • 1 (total) / 1 (free) x PCIe 3.0 x1
  • 1 (total) / 1 (free) x PCIe 3.0 x16
General
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorSFF
TypePersonal computer
Graphics Controller
Graphics ProcessorAMD Radeon Vega 8
Video InterfacesDisplayPort
Hard Drive
Capacity1 x 256 GB
FeaturesNVM Express (NVMe), triple-level cell (TLC)
Interface TypePCI Express 3.0
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP Business Slim Keyboard
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Compliant StandardsFCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, DisplayPort 1.2, HDCP 1.4
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
TechnologyOptical
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerRealtek RTL8111EPH
Ethernet Ports2 x Gigabit Ethernet
FeaturesWake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Remote Management ProtocolSNMP 2
Operating System / Software
OS ProvidedWindows 10 Pro 64-bit Edition English
SoftwareHP Support Assistant, HP Hotkey Support, Windows Defender, HP Secure Erase, Absolute Persistence, HP Setup Integrated OOBE, HP JumpStart, HP PC Hardware Diagnostics, HP Sure Click, Power On Authentication, HP BIOSphere Gen5, HP Privacy Settings, HP Client Security Suite Gen5, HP Cloud Recovery, HP Sure Sense, HP SureRun Gen2, HP Sure Recover Gen2, HP Image Assistant Gen4, HP Sure Start
Optical Storage
TypeDVD-Writer - SATA
Power
80 PLUS Certification80 PLUS Platinum
Device TypePower supply
Efficiency92%
Power Factor CorrectionYes (active)
Power Provided180 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeAMD PRO 560 FCH
Clock Speed3.6 GHz
CPUAMD Ryzen 3 Pro 3200G
CPU Qty1
CPU UpgradabilityUpgradable
Max CPU Qty1
Max Turbo Speed4 GHz
Number of CoresQuad-Core
RAM
Configuration Features1 x 8 GB
Effective Memory Speed2666 MHz
Form FactorDIMM 288-pin
Installed Size8 GB (installed) / 128 GB (max)
Rated Memory Speed2666 MHz
Slots4 (total) / 3 (empty)
TechnologyDDR4 SDRAM
Storage Controller
Controller Interface TypeSATA-600 / PCIe
Type1 x SATA/NVMe
Sustainability Information
ENERGY STAR CertifiedYes
