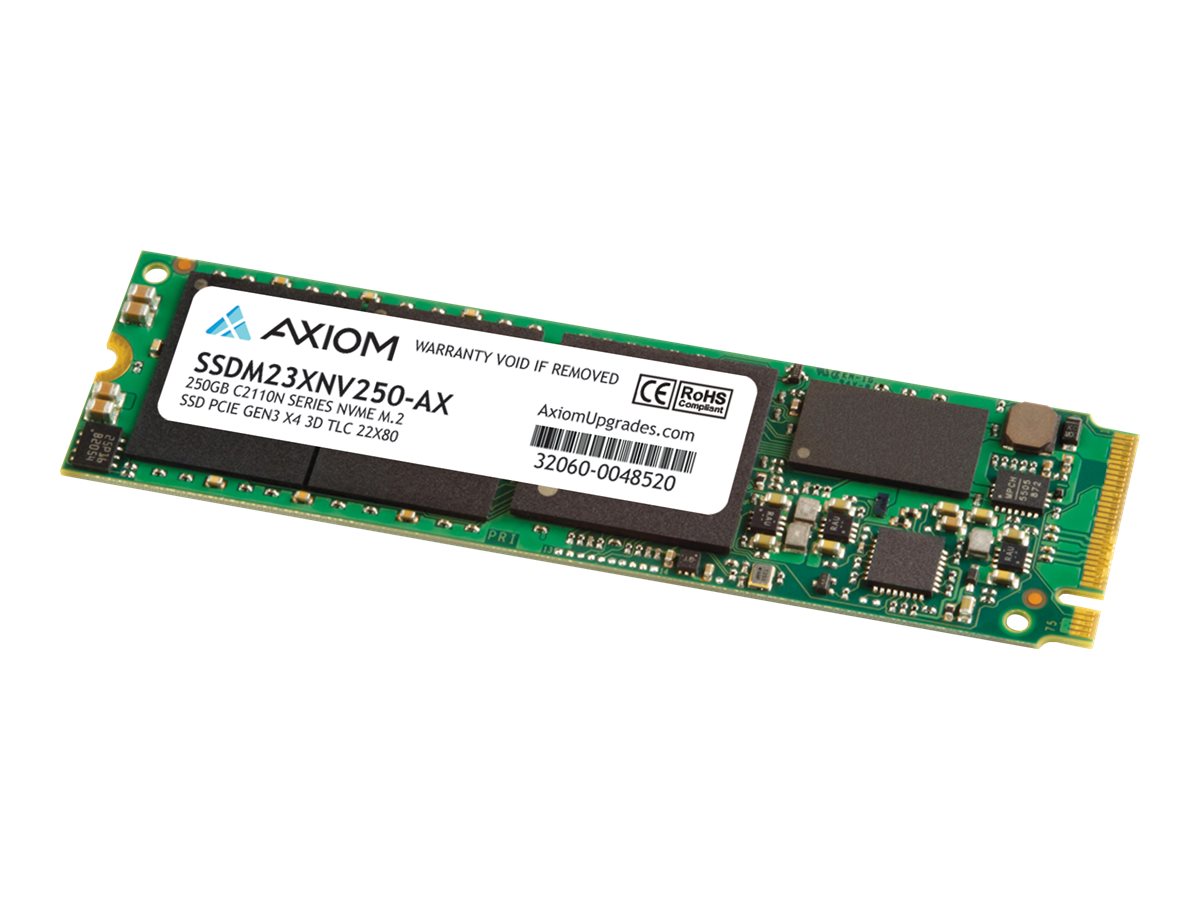

Axiom - Solid state drive
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Axiom - Solid state drive
- 250 GB
- internal
- M.2 2280
- PCI Express 3.1 x4 (NVMe)
| Additional Details | |
|---|---|
| Mfr Part #: | SSDM23XNV250-AX |
| SHI Part #: | 38418129 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom - Solid state drive - 250 GB - internal - M.2 2280 - PCI Express 3.1 x4 (NVMe) |
| Manufacturer | Axiom Memory |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 40 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 250 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.1 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.1 x4 (NVMe) |
| General | |
| Capacity | 250 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | 3D NAND Technology, NVM Express (NVMe) 1.3, Silicon Motion controller, dynamic SLC caching, StaticDataRefresh Technology, Garbage Collection technology, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, Dynamic and Static Wear Leveling, Low-Density Parity Check, Error Correction Code (ECC), NVM Express (NVMe), LDPC error correction, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.1 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 40 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| 4KB Random Read | 200000 IOPS |
| 4KB Random Write | 260000 IOPS |
| Drive Writes Per Day (DWPD) | 0.913 |
| Internal Data Rate | 2110 MBps (read) / 1700 MBps (write) |
| SSD Endurance | 227 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
