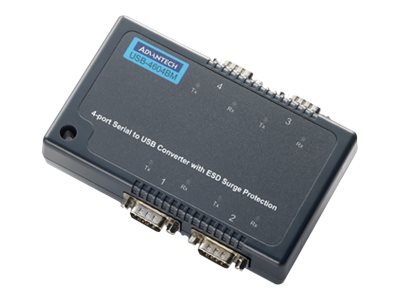

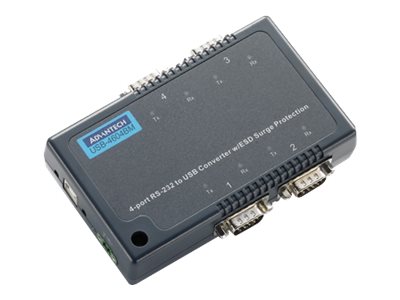

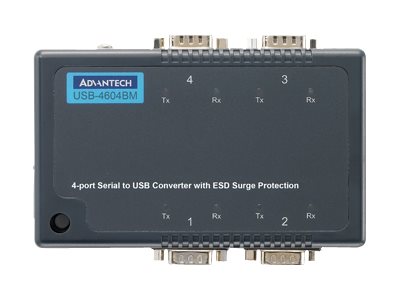

Advantech USB-4604BM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech USB-4604BM
- Serial adapter
- USB 2.0
- RS-232/422/485 x 4
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | USB-4604BM-BE |
| SHI Part #: | 38259580 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Advantech USB-4604BM - Serial adapter - USB 2.0 - RS-232/422/485 x 4 |
| Manufacturer | Advantech |
| MSRP | $328.50 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 3.2 cm |
| Dimensions & Weight / Width | 13.2 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 921.6 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 3.2 cm |
| Width | 13.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 4 x RS-232/422/485 - 9 pin D-Sub (DB-9) - male |
| General | |
| Device Type | Serial adapter |
| Form Factor | DIN rail mountable |
| Interface (Bus) Type | USB 2.0 |
| Miscellaneous | |
| Compliant Standards | Plug and Play, RoHS, FCC, EMC, FCC Part 15 B Class A |
| Networking | |
| Compliant Standards | USB 1.1, USB 2.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485 |
| Data Transfer Rate | 921.6 Kbps |
| Features | USB powered, flow control, surge protection, 15KV ESD Protector |
| Ports | RS-232/422/485 x 4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2000 / XP, Microsoft Windows CE 5.0, Microsoft Windows Server 2003, Microsoft Windows 7 / 8 / 8.1, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2 |
