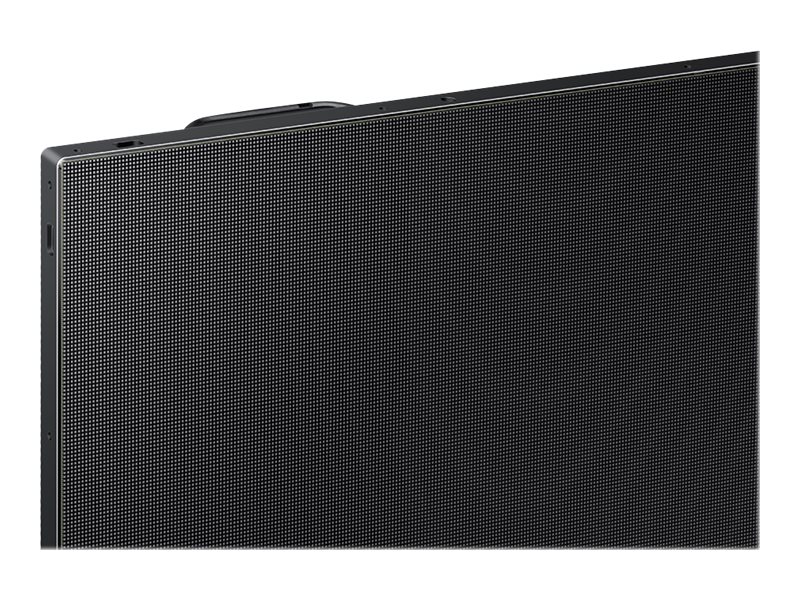

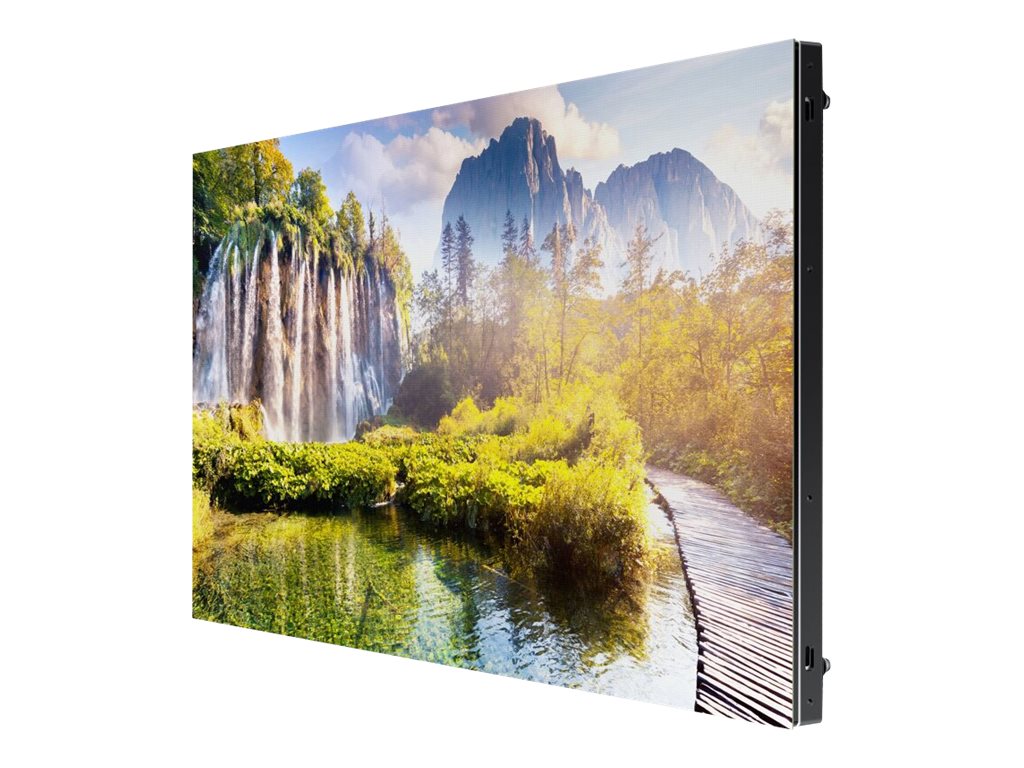

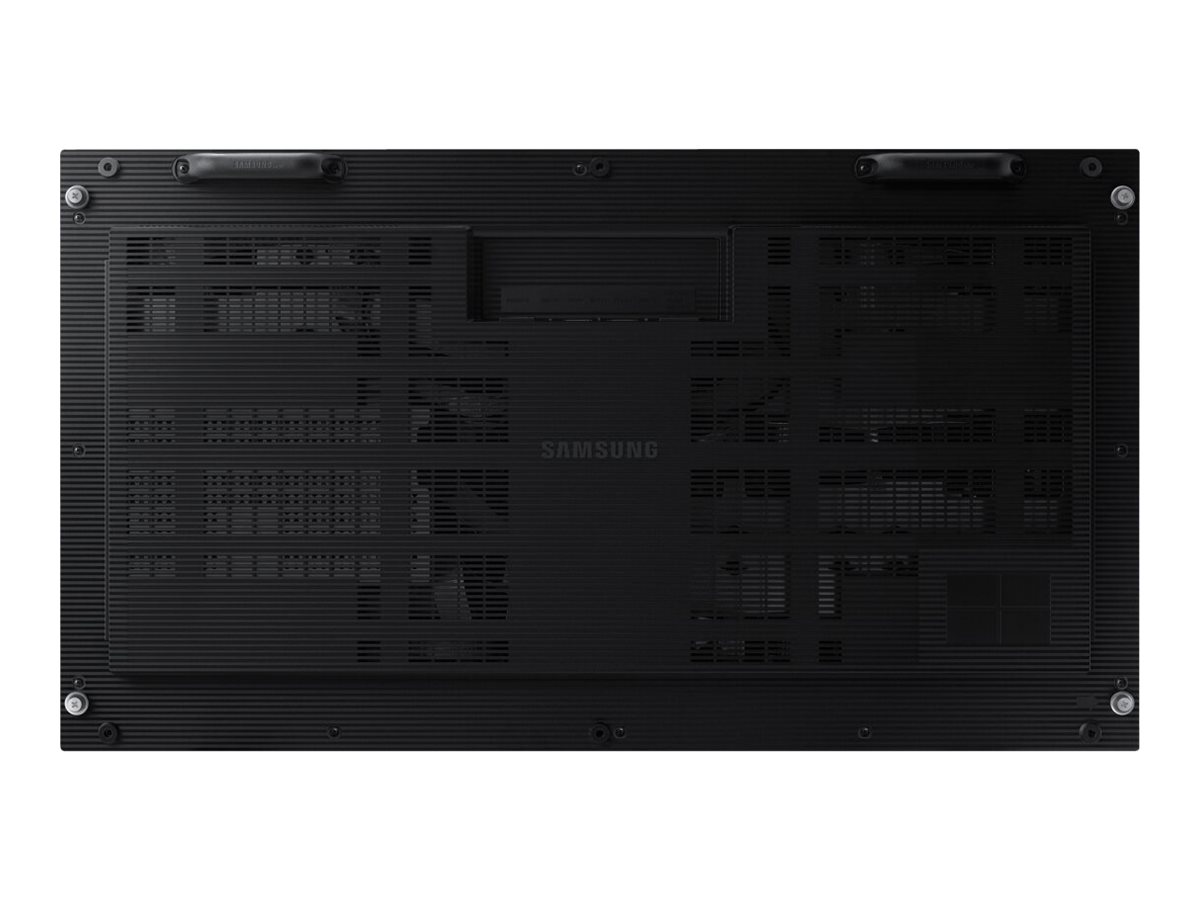

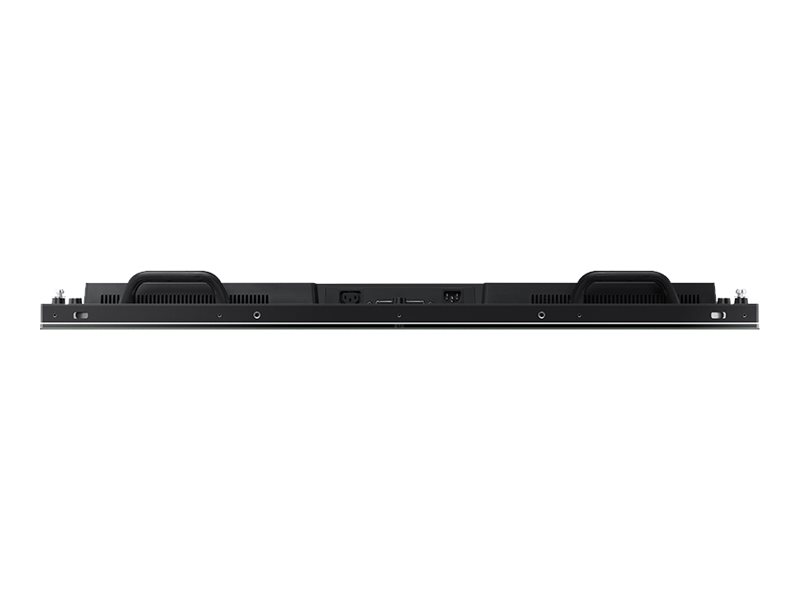

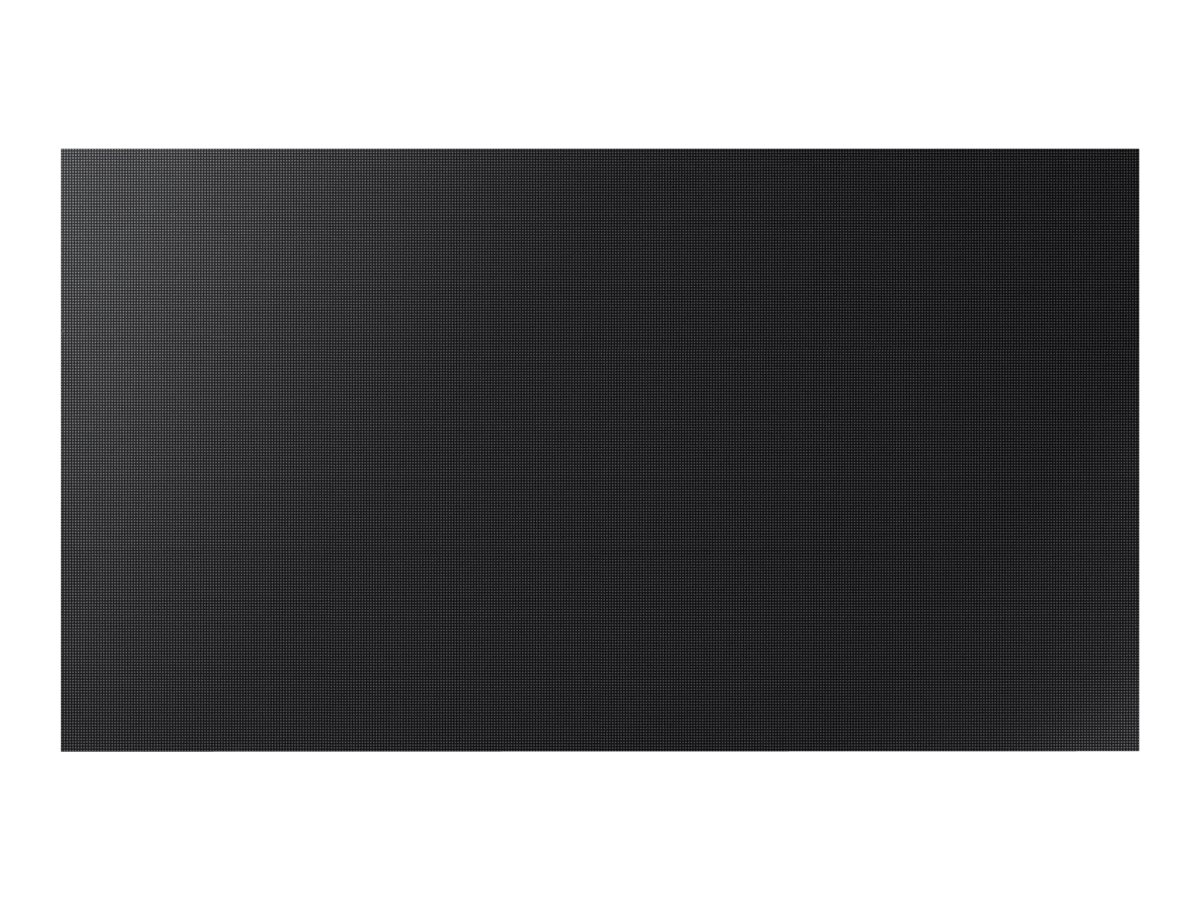

Samsung IE025R - LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Samsung IE025R - LED display unit
- digital signage 384 x 216 per unit
- SMD
| Additional Details | |
|---|---|
| Mfr Part #: | LH025IERKLS/GO |
| SHI Part #: | 38253594 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung IE025R - LED display unit - digital signage 384 x 216 per unit - SMD |
| Manufacturer | Samsung |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.95 cm |
| Dimensions & Weight / Height | 54 cm |
| Dimensions & Weight / Weight | 10.8 kg |
| Dimensions & Weight / Width | 96 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1200 cd/m² |
| Television / Image Contrast Ratio | 3000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 20.6 cm |
| Height (Shipping) | 69.9 cm |
| Weight (Shipping) | 16.5 kg |
| Width (Shipping) | 111.9 cm |
| Display | |
| Brightness | 1200 cd/m² |
| Color Temperature | 2800 - 10000K |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 3000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 7.95 cm |
| Height | 54 cm |
| Product Type | LED display unit |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 10.8 kg |
| Width | 96 cm |
| Miscellaneous | |
| Compliant Standards | EMC Class A, IP20 |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 150 W |
| Video Wall Display Unit Power Consumption (Typical) | 50 W |
| Video Wall Power Consumption (Max) | 289 W/m² |
| Video Wall Power Consumption (Typical) | 96 W/m² |
| Video Wall Display Unit | |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Front |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 2.5 mm |
| Resolution | 384 x 216 |
