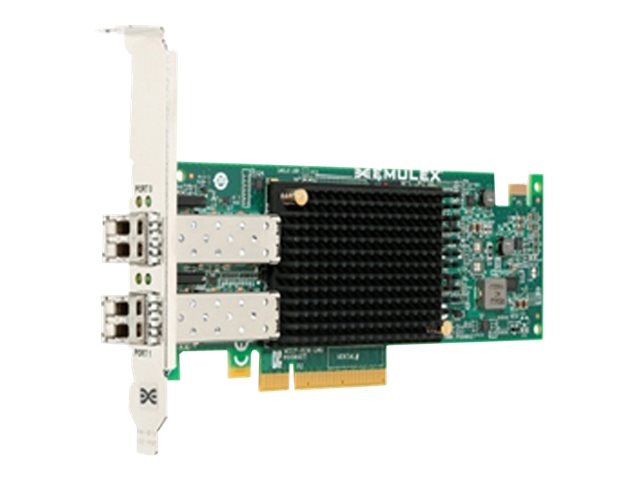

Emulex OneConnect OCe14102-U1-D
MSRP$212.36
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Emulex OneConnect OCe14102-U1-D
- Network adapter
- PCIe 3.0 x8 low profile
- 10Gb Ethernet x 2
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $212.36 |
| Mfr Part #: | 6FC2Y |
| SHI Part #: | 38181218 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Dell |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Emulex OneConnect OCe14102-U1-D - Network adapter - PCIe 3.0 x8 low profile - 10Gb Ethernet x 2 |
| Manufacturer | Dell |
| MSRP | $212.36 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Header / Brand | Emulex |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Gb Ethernet |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Miscellaneous | |
| Compliant Standards | C-Tick, RoHS, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, FCC Part 15 A, EN 60825-1, Directive 2004/108/EC, Directive 2011/65/EU, VCCI Class A, MSIP Class A, China RoHS, DHHS 21CFR (J), EN60950-1:2006 +A11+A1+A12, ICES-003:2012 Class A, EN55022:2010 Class A, AS/NZS CISPR22:2009+A1 Class A, EN 55024:2010 |
| Networking | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, LDAP support, VLAN support, port mirroring, manageable, MAC address filtering, IPv6 support, firmware upgradable, DCBX support, priority-based flow control, enhanced transmission selection, QoS, Jumbo Frames support, RDMA support, temperature sensor, IPv4 support, LLDP support, LSO, LRO, RSS, UEFI support, SR-IOV, LACP, DCB, AER, checksum offload support, MSI-X, CEE, EVB, PXE 2.1 support, VEPA |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Ports | 10Gb Ethernet x 2 |
| Remote Management Protocol | RMON 2, SNMP, RMON |
| Software / System Requirements | |
| OS Required | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Citrix XenServer, VMware ESX |
