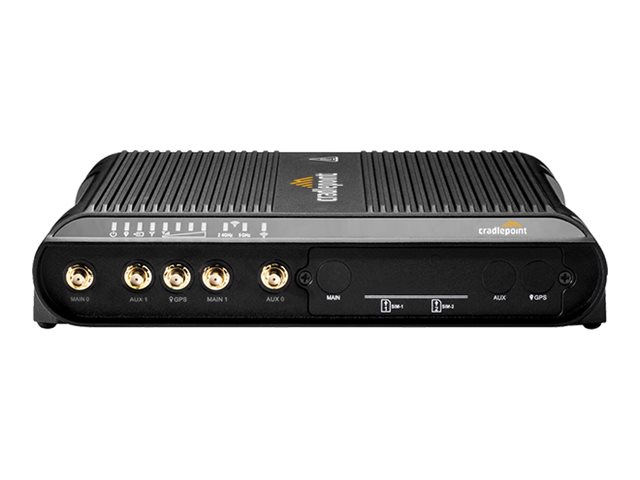

Cradlepoint COR IBR1700-1200M-B
In Stock
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cradlepoint COR IBR1700-1200M-B
- Wireless router
- WWAN
- 5-port switch
- GigE, 802.11ac Wave 2
- 802.11a/b/g/n/ac Wave 2
- Dual Band
- with 1 year NetCloud Mobile Essentials Plan
| Additional Details | |
|---|---|
| Mfr Part #: | MA1-1700120B-NNA |
| SHI Part #: | 38178324 |
| Category: | System administrators |
| UNSPSC: | 81111800 |
| Manufacturer: | Cradlepoint |
| Product Type: | Other |
Routers
| General Information | |
|---|---|
| Category | System administrators |
| Description | Cradlepoint COR IBR1700-1200M-B - Wireless router - WWAN - 5-port switch - GigE, 802.11ac Wave 2 - 802.11a/b/g/n/ac Wave 2 - Dual Band - with 1 year NetCloud Mobile Essentials Plan |
| Manufacturer | Cradlepoint |
| UNSPSC | 81111800 |
| Main Specifications | |
| Height | 4.00 |
| Length | 12.00 |
| UPC | 0810007800790 |
| Width | 10.00 |
| Antenna | |
| Antenna | External detachable |
| Communications | |
| Cellular Band | LTE B13, LTE B17, LTE B2, LTE B4, LTE B12, LTE B7, LTE B25, LTE B26, LTE B5, LTE B29, LTE B66, LTE B30, LTE B41, LTE B38, LTE B46, LTE B14, LTE B71 |
| Cellular Protocol | HSPA+, DC-HSPA+, FDD LTE, TDD LTE, LTE Advanced Pro |
| Max Transfer Rate | 1.2 Gbps |
| Type | Wireless cellular modem |
| Dimensions & Weight | |
| Depth | 19 cm |
| Height | 4.4 cm |
| Weight | 1.7 kg |
| Width | 22.43 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 SIM |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Built-in Devices | GPS, GLONASS, Beidou, Galileo |
| Bundled Services | 1 year NetCloud Mobile Essentials Plan |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, UPnP, IEEE 802.11ac Wave 2, UL, cUL, CB, RoHS, EN 60950-1, MIL-STD 810G, IP64, WEEE, PTCRB, GCF, RoHS2, SAE J1455 |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Device Type | Wireless router - 5-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | WPA2-Enterprise, IKEv2 |
| Features | Firewall protection, NAT support, VPN support, load balancing, VLAN support, Syslog support, content filtering, IDS, MAC address filtering, IPv6 support, IPS, IP address filtering, STP support, ACL support, QoS, virtual server support, DHCP server, Multiple SSID support, DNS proxy, port forwarding, Wireless Client Mode, DHCP relay, DHCP client, GRE tunneling, SMS remote control, Multicast Proxy support, metal housing, DSCP support, 4x4 MU-MIMO technology, 2x2 MU-MIMO technology, DMZ support, DynDNS, DSCP based QoS |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | L2TP, IPSec, DHCP, DNS, DDNS, IPv6 |
| Performance | Maximum throughput: 950 Mbps |
| Remote Management Protocol | SNMP, HTTP, CLI |
| Routing Protocol | OSPF, RIP, BGP, VRRP, NHRP, policy-based routing (PBR) |
| Status Indicators | Power, signal strength, WAN, GPS, 5 GHz, 2.4 GHz |
| Line Properties | |
| Line Coding Format | 256 QAM |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | 1 x GPIO / power cable - 3 m |
| Localization | North America |
| Power | |
| Power Consumption Operational | 24 watt |
| Voltage Required | DC 9 - 36 V |
