Server Technology PRO2 Switched POPS PDU STV-6509K (Primary)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

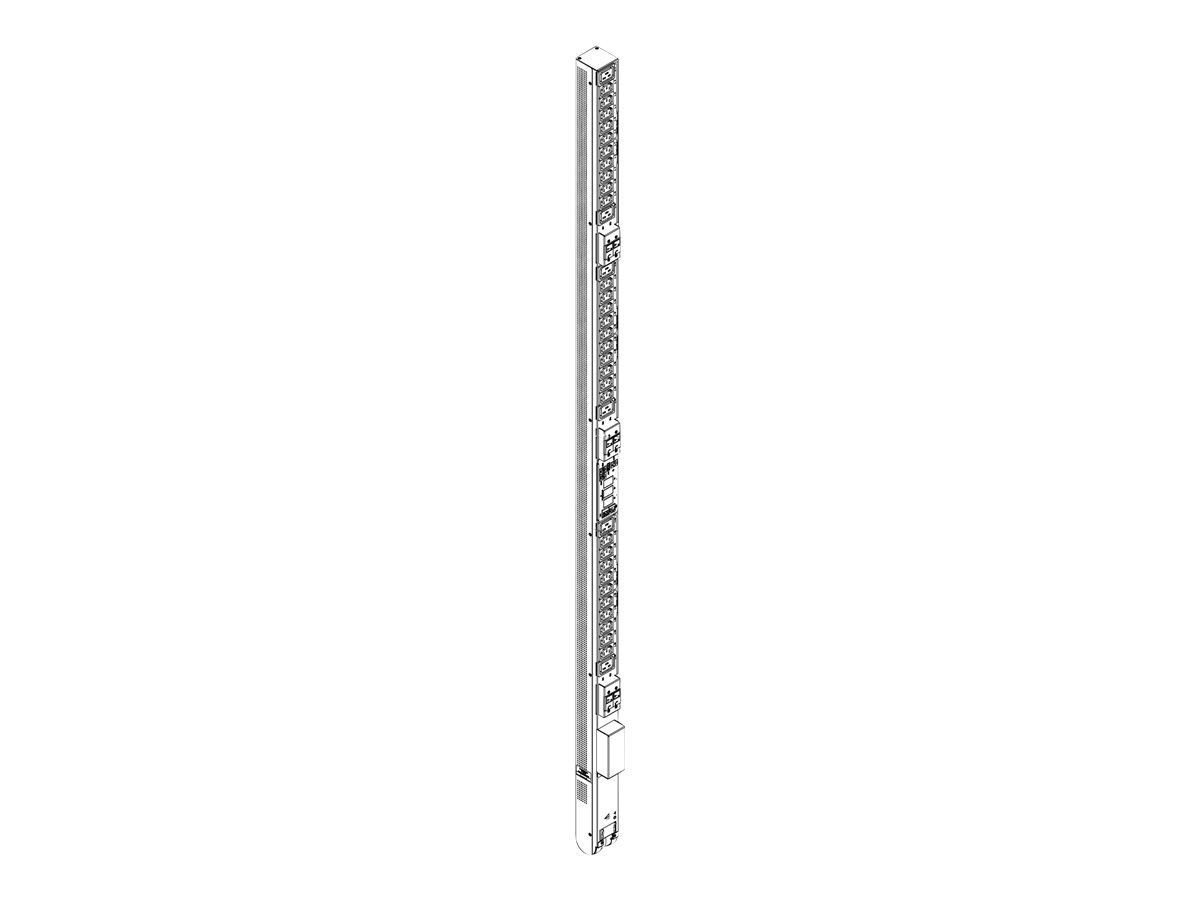

Server Technology PRO2 Switched POPS PDU STV-6509K (Primary)
- Power distribution unit (rack-mountable)
- AC 400 V
- 22 kW
- 3-phase WYE (star)
- RS-232, Ethernet 10/100/1000
- input: IEC 60309 3P+N+PE
- output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | STV-6509K |
| SHI Part #: | 38154317 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched POPS PDU STV-6509K (Primary) - Power distribution unit (rack-mountable) - AC 400 V - 22 kW - 3-phase WYE (star) - RS-232, Ethernet 10/100/1000 - input: IEC 60309 3P+N+PE - output connectors: 36 (30 x IEC 60320 C13, 6 x IEC 60320 C19) |
| Manufacturer | Legrand |
| MSRP | $3,950.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.8 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5.8 cm |
| Height | 177.8 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, TUV, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, CB, IEC 60950-1, WEEE, UL 489, RoHS 2011/65/EU, EN 62368-1, IEC 62368-1, CISPR 32, EN 55032, EN 55035, CISPR 35, ANSI C12.1, IEC 55032, IEC 55035 |
| Features | LED display, current meter, email alerts support, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), PDU Power Pivot, Per Outlet Power Sensing (POPS), measurement per phase, Outlet Switch Control, high retention locking outlets, apparent power meter, crest factor meter, Branch Current Monitoring, Auto-Flip Current Display, Branch Circuit Protection, 6 x 20 A circuit breakers, voltage meter, outlet grouping, hot-swappable network card, 10kAIC breaker |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI, SFTP, SMTP, IPv4, IPv6, TACACS+, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+PE |
| Input Voltage | AC 400 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 22 kW |
| Power Output Connectors Details |
|
