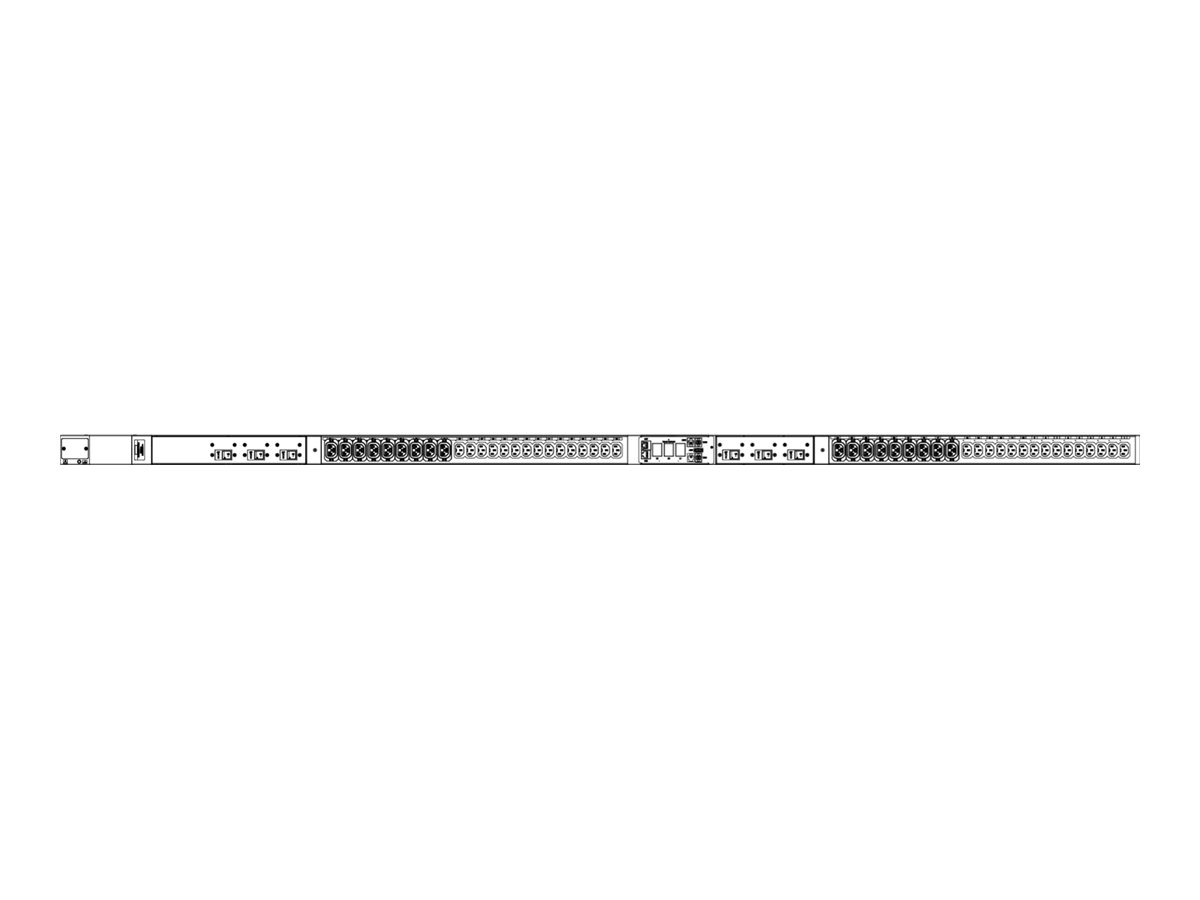

Server Technology PRO2 Switched PDU C2W48TE-5CAE2M99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Server Technology PRO2 Switched PDU C2W48TE-5CAE2M99
- Power distribution unit (rack-mountable)
- AC 415 V
- 17.3 kW
- RS-232, Ethernet 10/100/1000
- input: NEMA L22-30P
- output connectors: 48 (30 x IEC 60320 C13, 18 x IEC 60320 Cx)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | C2W48TE-5CAE2M99 |
| SHI Part #: | 38154315 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Server Technology PRO2 Switched PDU C2W48TE-5CAE2M99 - Power distribution unit (rack-mountable) - AC 415 V - 17.3 kW - RS-232, Ethernet 10/100/1000 - input: NEMA L22-30P - output connectors: 48 (30 x IEC 60320 C13, 18 x IEC 60320 Cx) |
| Manufacturer | Legrand |
| MSRP | $3,587.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.4 cm |
| Dimensions & Weight / Height | 203.2 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Server Technology |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.4 cm |
| Height | 203.2 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Compliant Standards | UL, ICES-003 Class A, UL 60950-1, IEC 60950-1, UL 489, cTUVus, FCC Part 15 B Class A, TLS v1.2, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, FCC Subpart B 15.107, FCC Subpart B 15.109, ANSI C12.1, CAN/CSA C22.2 No. 60950-1 |
| Features | LED display, voltage monitoring, email alerts support, active power meter, energy meter, power factor meter, Per Input Power Sensing (PIPS), measurement per phase, High Density Outlet Technology (HDOT), switched per outlet, locking outlets, apparent power meter, Auto-Flip Current Display, Branch Circuit Protection, outlet grouping, hot-swappable network card, 10 kAIC (North America) / (5 kAIC ROW) Interrupt Rating |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2, CLI, SFTP, SMTP, IPv4, IPv6, TACACS+, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L22-30P |
| Input Voltage | AC 415 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 17.3 kW |
| Power Output Connectors Details |
|
