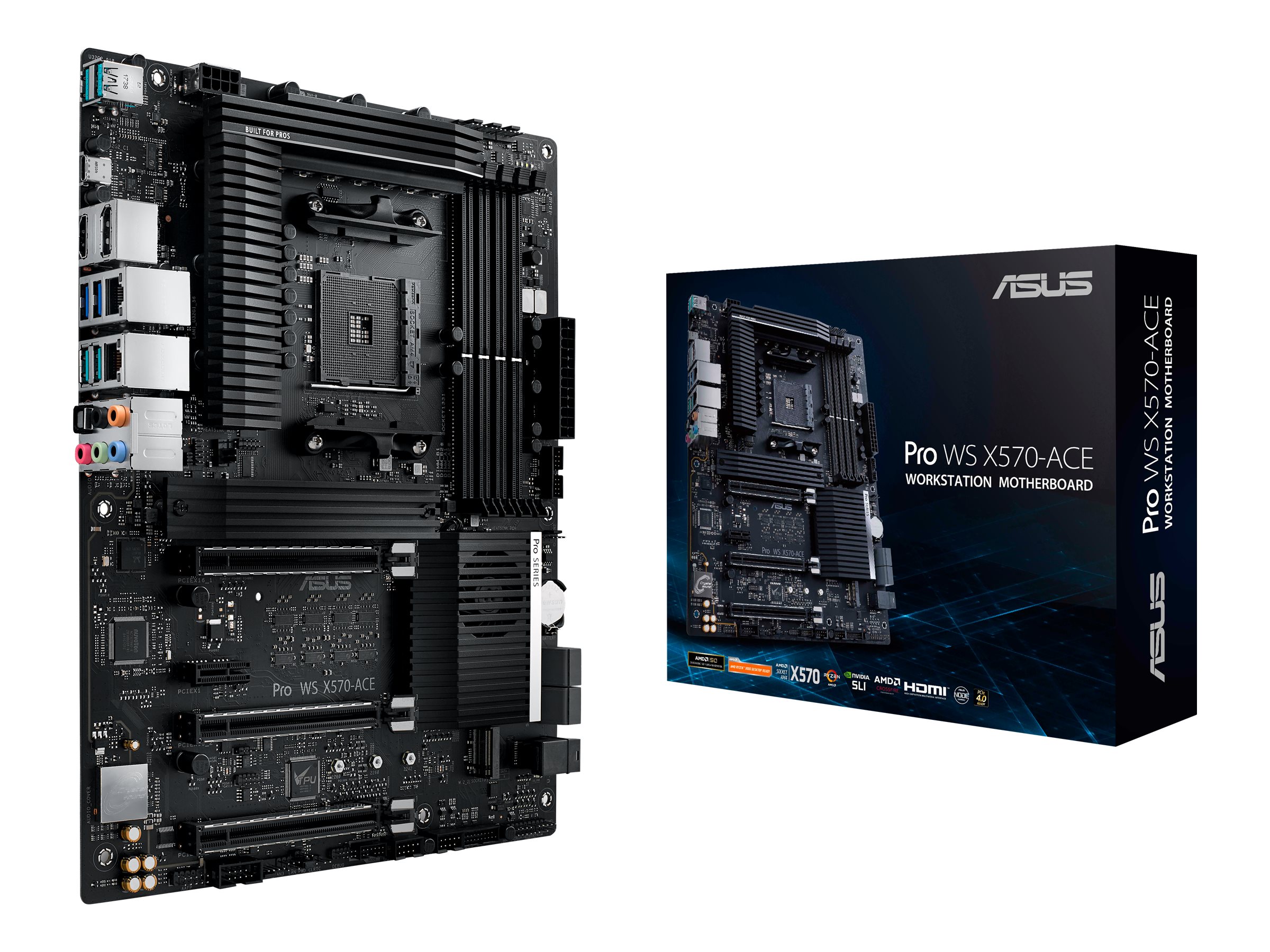

ASUS Pro WS X570-ACE
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASUS Pro WS X570-ACE
- Motherboard
- ATX
- Socket AM4
- AMD X570
- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
- 2 x Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | PRO WS X570-ACE |
| SHI Part #: | 37785947 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Pro WS X570-ACE - Motherboard - ATX - Socket AM4 - AMD X570 - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | AMD X570 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALCS1200A |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 6.0 support, SMBIOS 3.2 support |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, AMD 3-way CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, Dual Intelligent Processors 5, LANGuard, ASUS Overvoltage Protection, ASUS Crystal Sound 3, ASUS Fan Xpert 4, ASUS SafeSlot, ASUS 5X Protection III, M.2 heatsink, ASUS OptiMem, Armoury Crate, ASUS Node, PowIRstage IR3555 MOSFETs, ProCool II Power Connector |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | AMD X570 |
| Compatible Processors | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Controller | Intel I211-AT / Realtek RTL8117 |
| Network Interfaces | 2 x Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 4 x Serial ATA cable |
| Compliant Standards | Plug and Play |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 screw, I/O back cover, ASUS VGA Holder |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, ASUS Control Center |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
