Panasonic i-Pro Extreme WV-S1570L
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

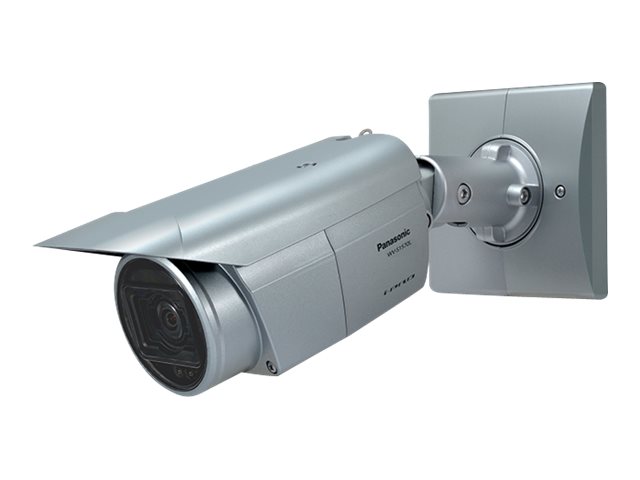

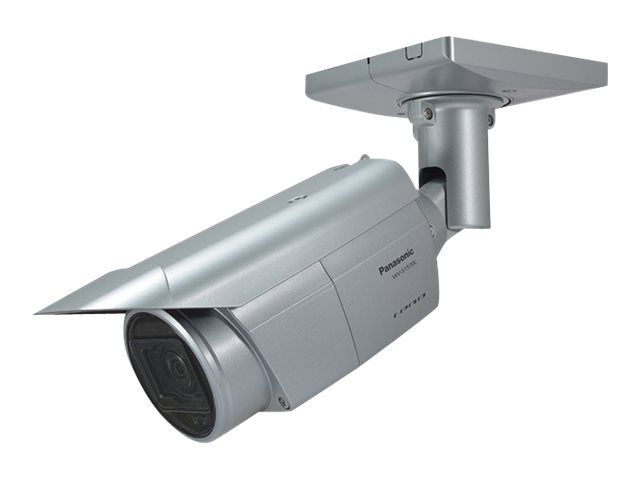

Panasonic i-Pro Extreme WV-S1570L
- Network surveillance camera
- outdoor
- dustproof / waterproof / vandal-proof
- color (Day&Night)
- 3840 x 2160
- motorized
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 0
| Additional Details | |
|---|---|
| Mfr Part #: | WV-S1570L |
| SHI Part #: | 37683753 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Panasonic i-Pro Extreme WV-S1570L - Network surveillance camera - outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 3840 x 2160 - motorized - audio - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 0 |
| Manufacturer | Panasonic |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.3 cm |
| Dimensions & Weight / Height | 37.7 cm |
| Dimensions & Weight / Weight | 2.1 kg |
| Dimensions & Weight / Width | 13.3 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | Silver |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 640 x 360, 2560 x 1440, 3840 x 2160, 320 x 180 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 4 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | Backlight Compensation (BLC), digital noise reduction, image mirror, Adaptive Black Stretch (ABS), Iintelligent Video Motion Detection (i-VMD), Intelligent Auto (iA), Super Dynamic technology, Highlight Compensation (HLC), Video Motion Detection Technology, Privacy Zone, fog compensation, Variable Bitrate (VBR), Multicast Streaming, auto white balance, Group of Pictures (GOP), ONVIF (Profile S) support, ONVIF (Profile G) support, Auto VIQS, Unicast Streaming, ONVIF (Profile T) support, max gain setting |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 13.3 cm |
| Device Type | Network surveillance camera |
| Height | 37.7 cm |
| Weight | 2.1 kg |
| Width | 13.3 cm |
| Image Sensor | |
| Type | CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 3 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, MLD |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 4.3 mm - 8.6 mm |
| Focus Adjustment | Motorized |
| Horizontal Field of View (degree) | 53 - 104 |
| Lens Iris | F/1.5-2.4 |
| Min Focus Distance | 1 m |
| Optical Zoom | 2 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 30 - 56 |
| Miscellaneous | |
| Color | Metallic silver |
| Compliant Standards | UL, cUL, EN55024, ICES-003 Class A, NEMA Type 4X, UL 60950-1, IEC 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, IK10, FIPS 140-2 Level 1, IP66, IEC 62262 IK10, UL 50E, IEC 60529, EN 55032 Class B, IEEE 802.3af |
| Panning | |
| Range (degree) | -180 to +180 |
| Power | |
| Power Device | 10 Watt |
| Power Requirements | DC 12 V / PoE Class 0 - 830 mA |
| Software / System Requirements | |
| OS Required | Android, Apple iOS |
| Tilting | |
| Range (degree) | -100 to +100 |
