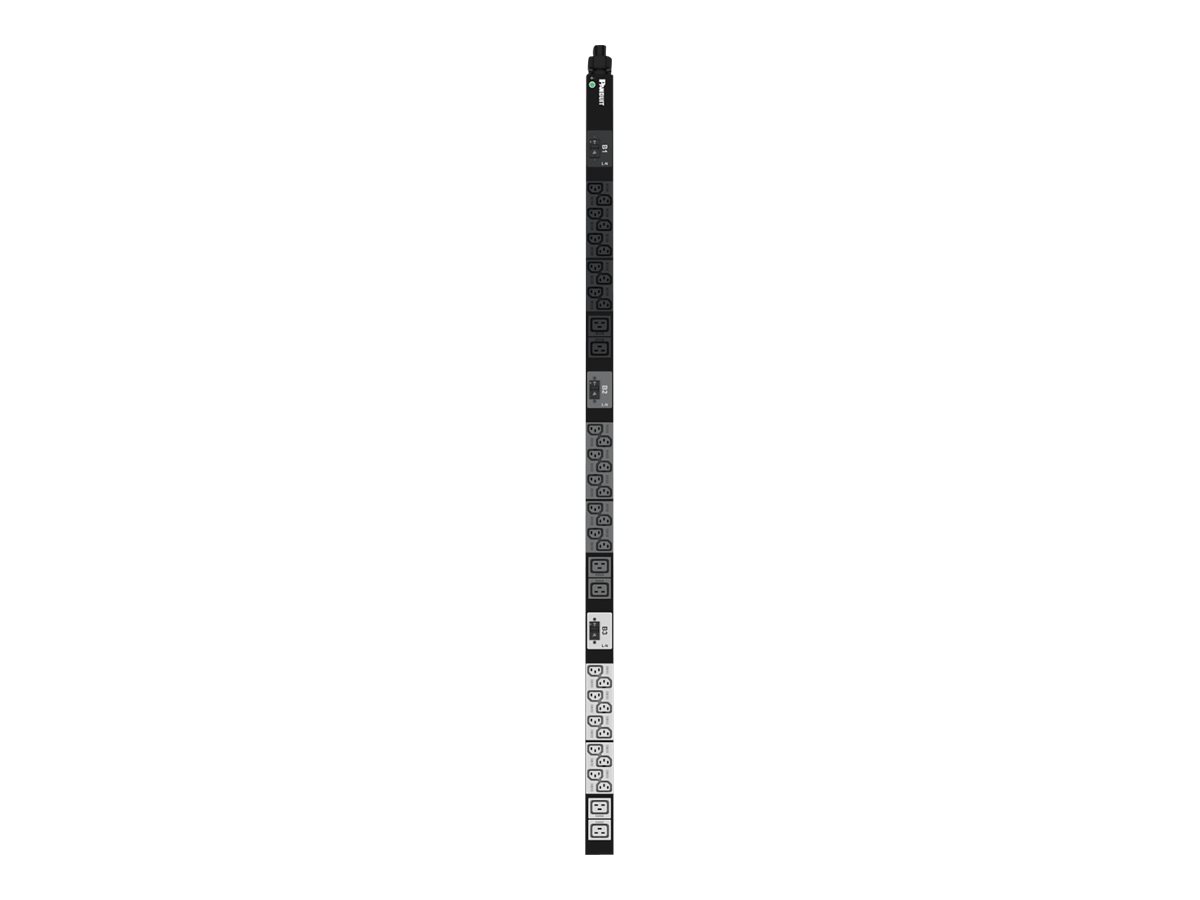

Panduit SmartZone - Power distribution unit (rack-mountable)
MSRP$1,531.30
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Panduit SmartZone - Power distribution unit (rack-mountable)
- AC 415 V
- 17300 VA
- 3-phase WYE (star)
- input: IEC 60309 3P+N+E
- output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- North America
- black
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,531.30 |
| Mfr Part #: | P36B03M |
| SHI Part #: | 37598941 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Panduit |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Panduit SmartZone - Power distribution unit (rack-mountable) - AC 415 V - 17300 VA - 3-phase WYE (star) - input: IEC 60309 3P+N+E - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - North America - black |
| Manufacturer | Panduit |
| MSRP | $1,531.30 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.33 cm |
| Dimensions & Weight / Height | 175.01 cm |
| Dimensions & Weight / Width | 5.08 cm |
| Header / Brand | Panduit |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 17300 VA |
| Power Device / Voltage Required | AC 415 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 5.33 cm |
| Height | 175.01 cm |
| Width | 5.08 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 10 °C |
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Localization | North America |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | RoHS, REACH, UL, CB, IP44 |
| Features | Tool-less, vertical orientation, local metered |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 17300 VA |
| Power Output Connectors Details |
|
