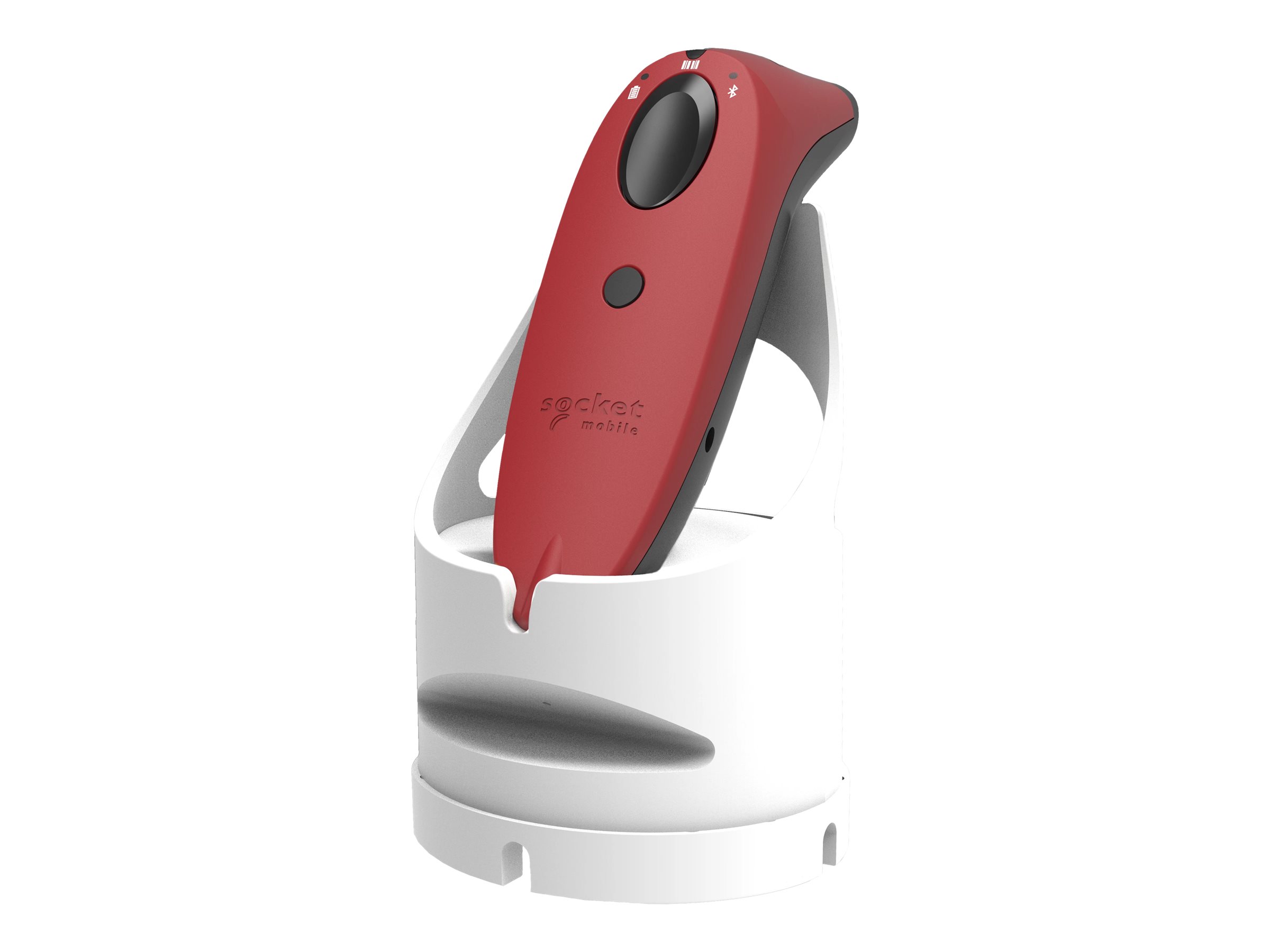

SocketScan S760 - With charging dock (white)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SocketScan S760 - With charging dock (white)
- barcode scanner
- portable
- 2D imager
- decoded
- Bluetooth 2.1 EDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CX3506-2107 |
| SHI Part #: | 37518624 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Socket Mobile |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | SocketScan S760 - With charging dock (white) - barcode scanner - portable - 2D imager - decoded - Bluetooth 2.1 EDR |
| Manufacturer | Socket Mobile |
| MSRP | $511.00 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.22 cm |
| Dimensions & Weight / Height | 4.01 cm |
| Dimensions & Weight / Weight | 117 g |
| Dimensions & Weight / Width | 3.71 cm |
| Header / Brand | Socket |
| Miscellaneous / Product Color | Red |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Bookland, Chinese 2 of 5, Codabar, Code 11, Code 128, Code 39, Code 93, Composite AB, Composite C, Composite TLC, Discrete 2 of 5, EAN/JAN, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN, Matrix 2 of 5, MSI, UPC, UPC-A, UPC-E0, Aztec code, Data Matrix, DotCode, Han Xin, MaxiCode, MicroPDF417, Micro QR code, PDF417, QR code, Australian Post, Japanese Post, Kix (Netherlands) Post, UPU FICS, US Planet, US Postnet, USPS 4-state (US4CB), MICR E-13B, OCR-A, OCR-B |
| Features | Antimicrobial protection |
| Interface Type | Bluetooth 2.1 EDR |
| Light Source Wave Length | 660 nm |
| Max Working Distance | 49.5 cm |
| Minimum Bar Width | 4 mil |
| OK Notification | LED indicator |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | 2D imager |
| Sensor Resolution | 640 x 400 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 13.22 cm |
| Height | 4.01 cm |
| Weight | 117 g |
| Width | 3.71 cm |
| Environmental Parameters | |
| Drop Specification | 1.22 m |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Red |
| Type | Barcode scanner - portable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x power DC jack to USB cable - external |
| Compliant Standards | CAN/CSA C22.2, CISPR 22, C-Tick, EN 50581, EN55022, EN55024, FCC Part 15 Class C, ICES-003, IEC 60950-1, IEC/EN 62471, RoHS, RSS-210, TELEC, UL 60950-1 |
| Included Accessories | Wrist strap |
| Networking | |
| Wireless Connectivity | Bluetooth 2.1 EDR |
| Power | |
| Battery | 2 x nickel metal hydride - AA type |
| System Requirements | |
| OS Required | Android, Apple iOS, Microsoft Windows 7 / 8 / 10, Apple MacOS |
