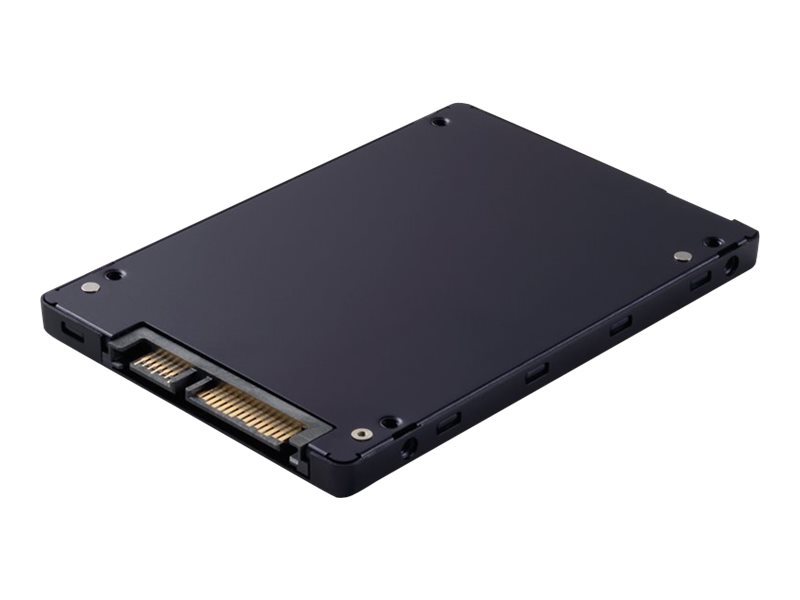

Lenovo ThinkSystem 5200 Entry
MSRP$399.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Lenovo ThinkSystem 5200 Entry
- SSD
- encrypted
- 480 GB
- internal
- 3.5"
- SATA 6Gb/s
- 256-bit AES
- for ThinkSystem ST50 7Y48, 7Y49
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $399.00 |
| Mfr Part #: | 4XB7A14050 |
| SHI Part #: | 37516660 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Lenovo ThinkSystem 5200 Entry - SSD - encrypted - 480 GB - internal - 3.5" - SATA 6Gb/s - 256-bit AES - for ThinkSystem ST50 7Y48, 7Y49 |
| Manufacturer | Lenovo |
| MSRP | $399.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Hard Drive / Capacity | 480 GB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Lenovo |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Storage / Type | Solid state drive |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem ST50 7Y48, 7Y49 |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 19.3 cm |
| Shipping Height | 9.5 cm |
| Shipping Weight | 484 g |
| Shipping Width | 25.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 480 GB |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | 3D NAND Technology, 64-layer cell structure, S.M.A.R.T. |
| Form Factor | 3.5" |
| Hardware Encryption | Yes |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | TUV, RRL, IC, RoHS, UL 60950-1 Second Edition, KCC, BSMI CNS 13438, FCC CFR47 Part 15 B, RCM, WEEE 2002/96/EC, IEC60950/EN60950, EN 55032 Class B, KCC KN32 Class B, AS/NZS CISPR32 Class B, KCC KN35 Class B, Micron Green Standard, VCCI 2015.04 Class B, ICES-003:2016 |
| Performance | |
| 4KB Random Read | 81000 IOPS |
| 4KB Random Write | 3100 IOPS |
| Average Latency | 200 µs |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 0.7 |
| Internal Data Rate | 540 MBps (read) / 385 MBps (write) |
| SSD Endurance | 610 TB |
| Power | |
| Power Consumption | 6 Watt (typical) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
