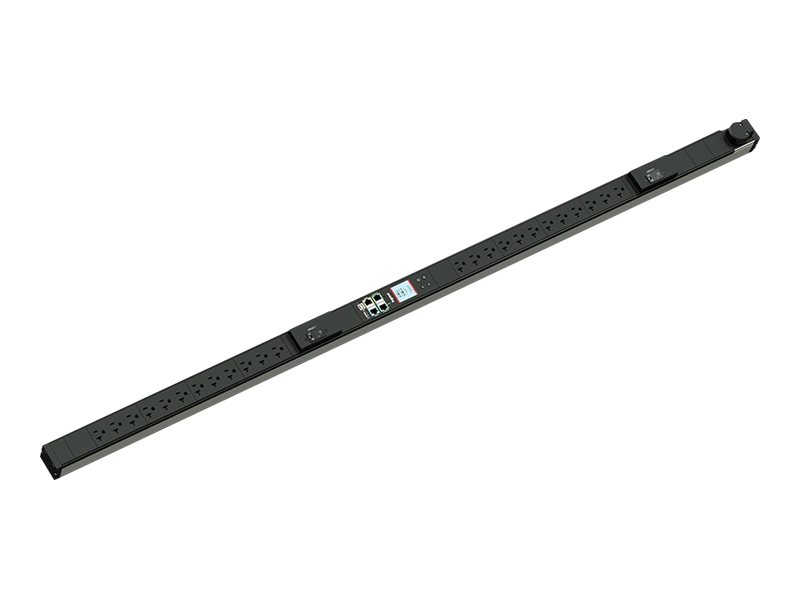

Legrand Rack PDU, Network Metered, ZeroU, 24A, 120V, (24) 5-20R, L5-30P Cord
MSRP$1,680.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Legrand Rack PDU, Network Metered, ZeroU, 24A, 120V, (24) 5-20R, L5-30P Cord
- Power distribution unit (rack-mountable)
- AC 120 V
- 2900 VA
- 1-phase 3 Wire
- Ethernet 10/100, RS-232
- input: NEMA L5-30P
- output connectors: 24 (24 x NEMA 5-20R)
- 0U
- 3 m cord
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,680.00 |
| Mfr Part #: | LP-41300 |
| SHI Part #: | 37199584 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | C2G |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Legrand Rack PDU, Network Metered, ZeroU, 24A, 120V, (24) 5-20R, L5-30P Cord - Power distribution unit (rack-mountable) - AC 120 V - 2900 VA - 1-phase 3 Wire - Ethernet 10/100, RS-232 - input: NEMA L5-30P - output connectors: 24 (24 x NEMA 5-20R) - 0U - 3 m cord - black, silver |
| Manufacturer | C2G |
| MSRP | $1,680.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Weight | 5.19 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Legrand |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 2900 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 5 cm |
| Height | 153.9 cm |
| Weight | 5.19 kg |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 45 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 |
| Features | Splash-resistant, bottom-front feed, LCD display, current meter, overload protection, vertical orientation, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, monitored, load monitoring, user defined notifications, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, 2 x 20 A circuit breakers, 2 x LEGBXA6 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 120 V |
| Input Wiring | 1-phase 3 Wire |
| Max Electric Current | 30 A |
| Output Voltage | AC 120 V |
| Power Capacity | 2900 VA |
| Power Capacity Details | 2.4 kVA at 100 V, 2.9 kVA at 120 V |
| Power Output Connectors Details | 24 x power NEMA 5-20R 16 A |
