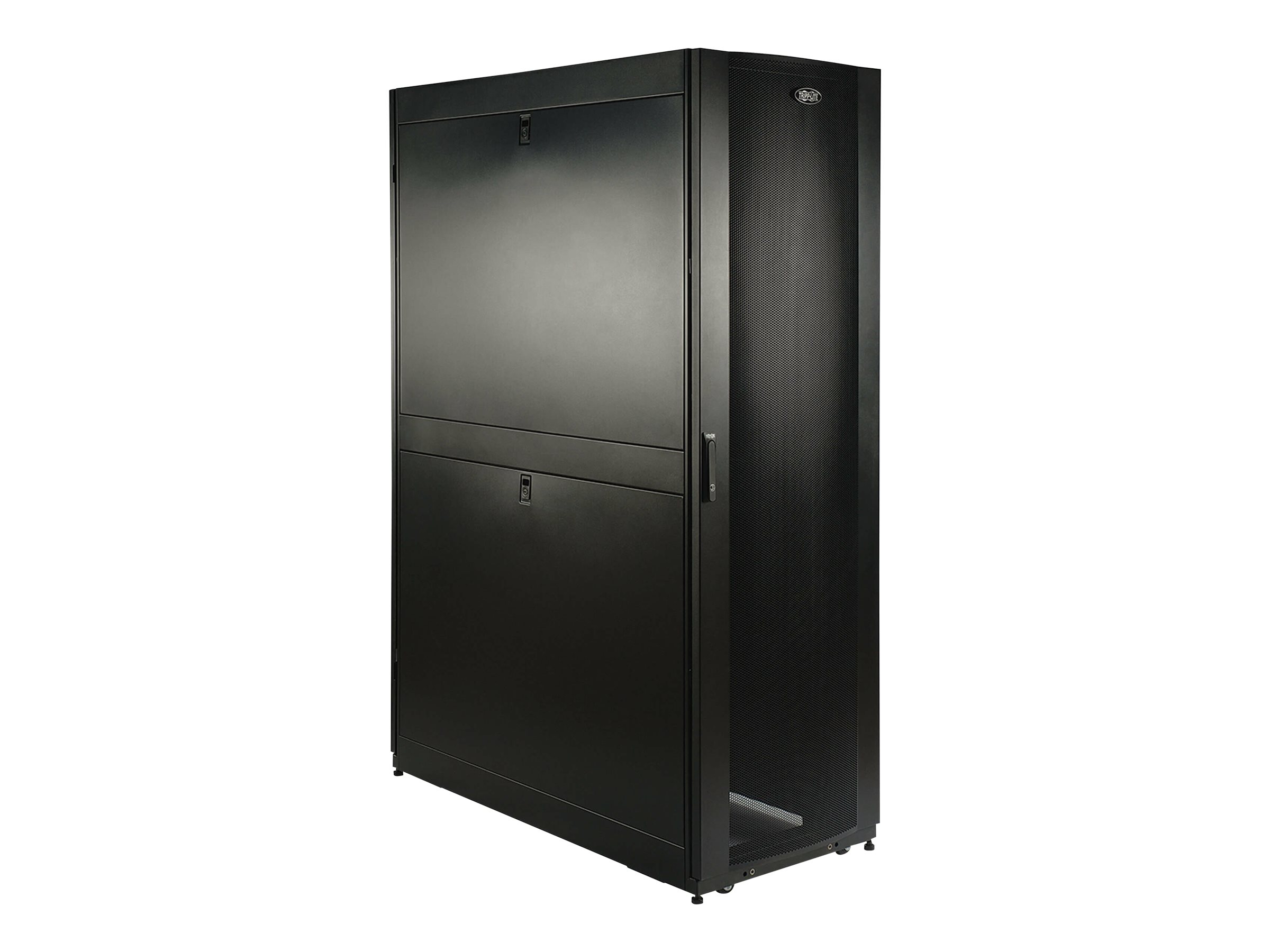

Tripp Lite 48U Rack Enclosure Server Cabinet Doors & Sides Extra-Deep 48in

? Ships fully assembled for rapid deployment and roll into place on pre-installed casters (casters are removable)

? Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.

? Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).

? Enclosure includes mounting hardware of M6 cage nuts and 50 pieces of M6 screws

? Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.

? Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.

? Maximum usable internal depth of 42 inches/1070mm (front to rear rail).

? Weight ratings of 3000 lb stationary and 2250 lb rolling.

? Front door is locking, reversible and removable.

? Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.

? Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors.

? Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 600mm or 24".

? Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.

? Compact design allows the enclosure to roll through standard height commercial doorways.

? Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.

? Open bottom for cable access.

? Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.

? Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.

? Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

? Compatibility with airflow optimization accessories as well as cable management accessories.
