Tripp Lite HDMI over Cat6 Extender Kit with PoC

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
4K x 2K @ 60 Hz, 4:4:4:, HDR, 125 ft. (38.1 m), TAA Video/audio extender HDMI up to 38 m TAA Compliant

Tripp Lite HDMI over Cat6 Extender Kit with PoC

4K x 2K @ 60 Hz, 4:4:4:, HDR, 125 ft. (38.1 m), TAA
Video/audio extender
HDMI
up to 38 m
TAA Compliant

Additional Details
Mfr Part #:	B127-1A1-HH
SHI Part #:	37165776
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	Eaton
Product Type:	Hardware

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-1A1-HH extends 4K video and stereo audio signals from an HDMI source device to an HDMI display up to 125 feet (38.1 meters) away via user-supplied Cat6 cabling.

The B127-1A1-HH supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, EDID and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted.

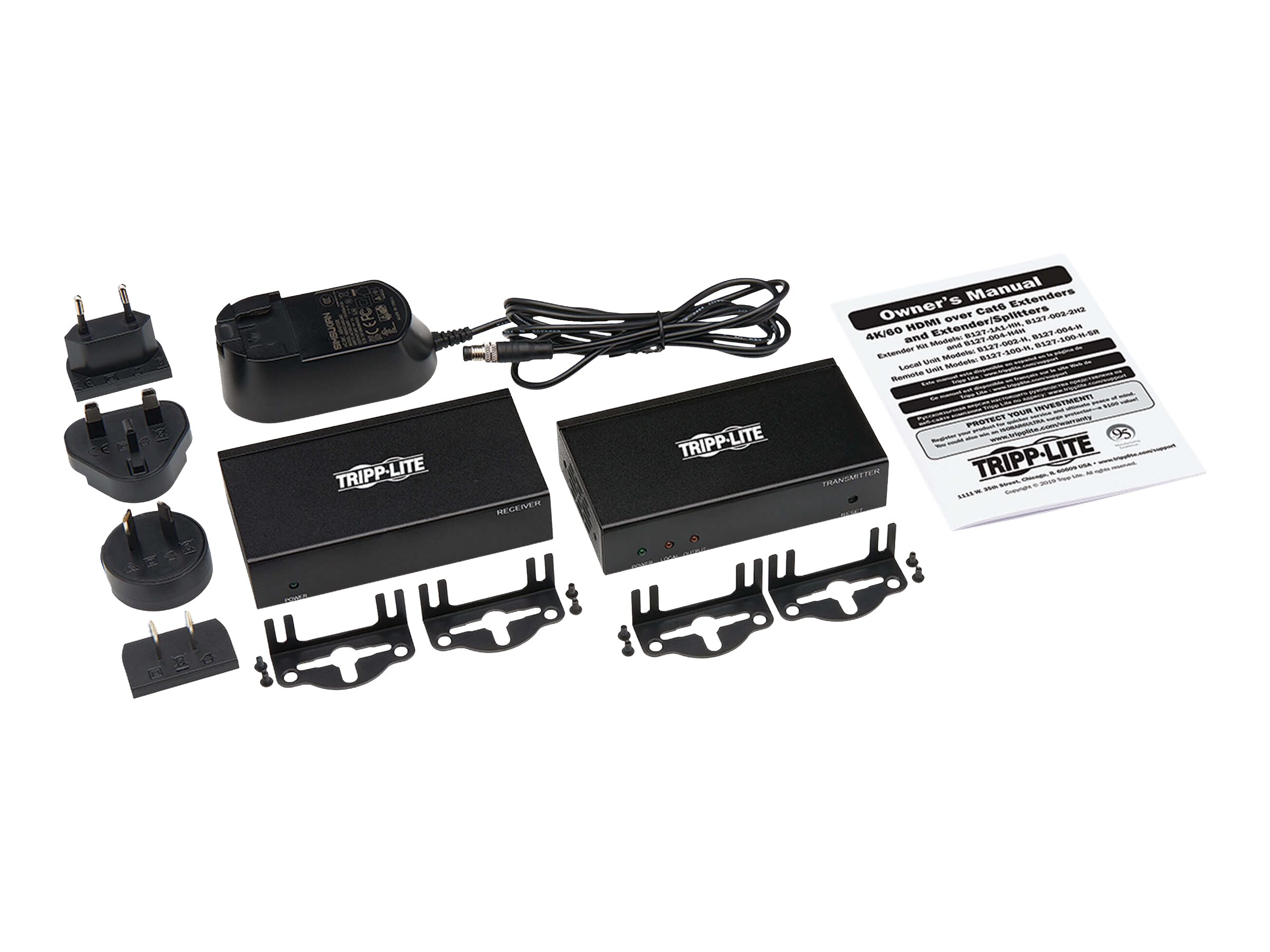

The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with user-supplied HDMI cables (such as Tripp Lite's P568- or P569-Series). Then, connect the two units using Cat6 patch cable (such as Tripp Lite N202-Series cable). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 125 feet away.

The B127-1A1-HH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Audio/Video Cables

Eaton Tripp Lite Series 4K HDMI Cable (M/M)

4K 60 Hz, HDR, 4:4:4, Gripping Connectors, Black, 6 ft.
HDMI cable
HDMI male to HDMI male
1.83 m
shielded
black

MSRP $14.95

$7.00

Tripp Lite High-Speed HDMI Cable with Gripping Connectors 4K 60 Hz 4:4:4 M/M Black 3ft

HDMI cable
HDMI (M) to HDMI (M)
91 cm
shielded
black
molded

MSRP $13.80

$7.00

Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'

Patch cable
RJ-45 (M) to RJ-45 (M)
15.3 m
CAT 6
booted, snagless, solid
blue

MSRP $50.88

$26.00

General Information
Category	Serial port cards
Description	Tripp Lite HDMI over Cat6 Extender Kit with PoC - 4K x 2K @ 60 Hz, 4:4:4:, HDR, 125 ft. (38.1 m), TAA - Video/audio extender - HDMI - up to 38 m - TAA Compliant
Manufacturer	Eaton
UNSPSC	43201559
Main Specifications
Header / Brand	Tripp Lite
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDMI
Networking / Form Factor	Desktop
Networking / Type	Video/audio extender
Packaged Quantity	1
Service & Support / Type	1-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Transmitter: 11.5 cm x 6.25 cm x 2.69 cm / 204 g Receiver: 11.5 cm x 6.25 cm x 2.69 cm / 204 g
Environmental Parameters
Humidity Range Operating	0 - 85% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

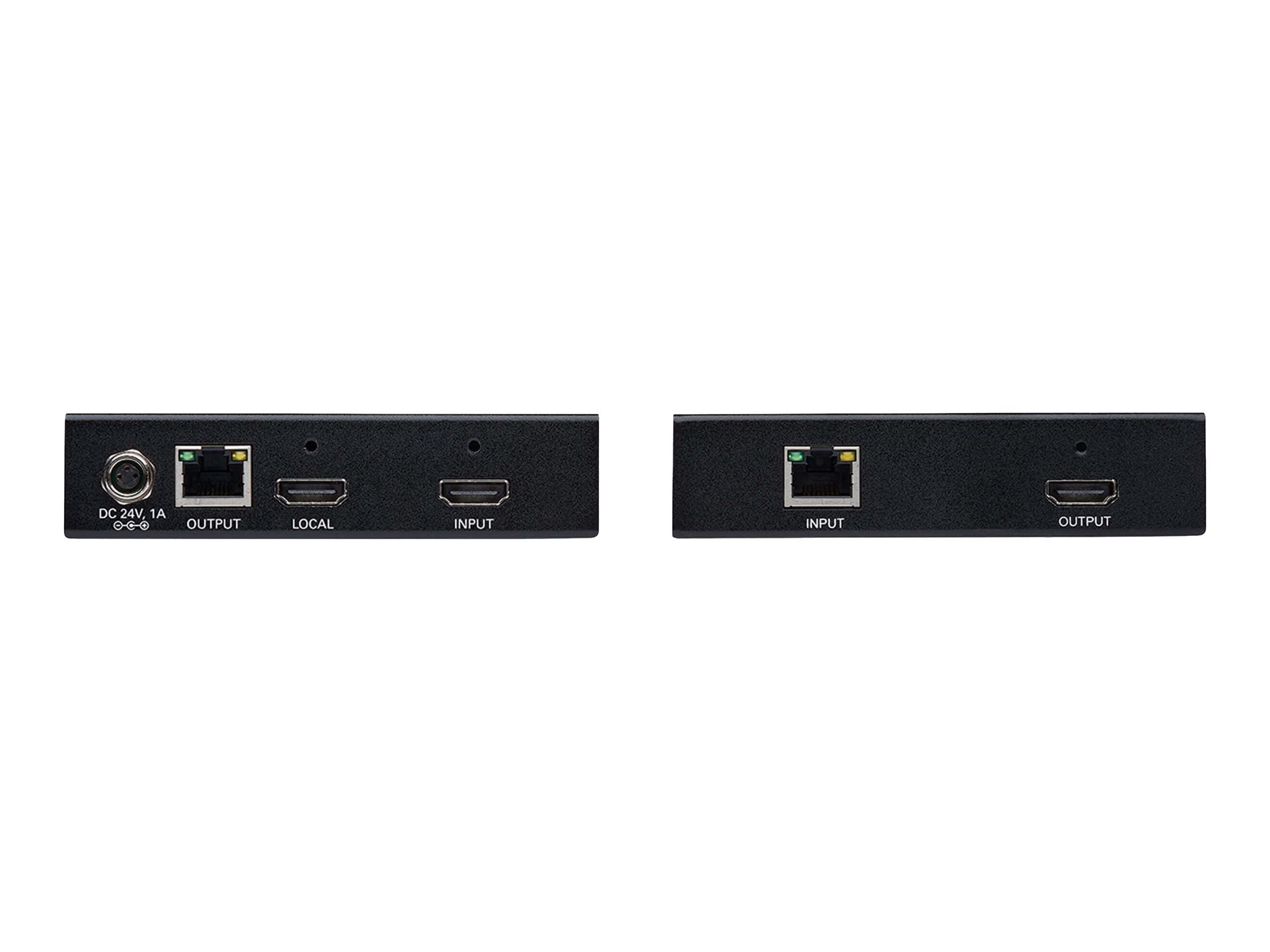

Interfaces	2 x HDMI (local unit) - 19 pin HDMI Type A female 1 x network (local unit) - RJ-45 female 1 x HDMI (remote unit) - 19 pin HDMI Type A female 1 x network (remote unit) - RJ-45 female
General
Color	Black
Device Type	Video/audio extender
Form Factor	Desktop
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	Plug and Play, UL, TUV, cUL, GS, CCC, FCC, AS/NZS 3112, RoHS, REACH, EDID compatible, BS 1363
Included Accessories	4 power plug adapters
Mounting Kit	Included
TAA Compliant	Yes
Networking
Compliant Standards	HDCP 2.2
Connectivity Technology	Wired
Data Link Protocol	HDMI
Features	7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, 24-bit True Color support, HDR 4K60 4:4:4 compatible, HDR support
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	38 m
Status Indicators	Power, active, connection status, local
Power
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
