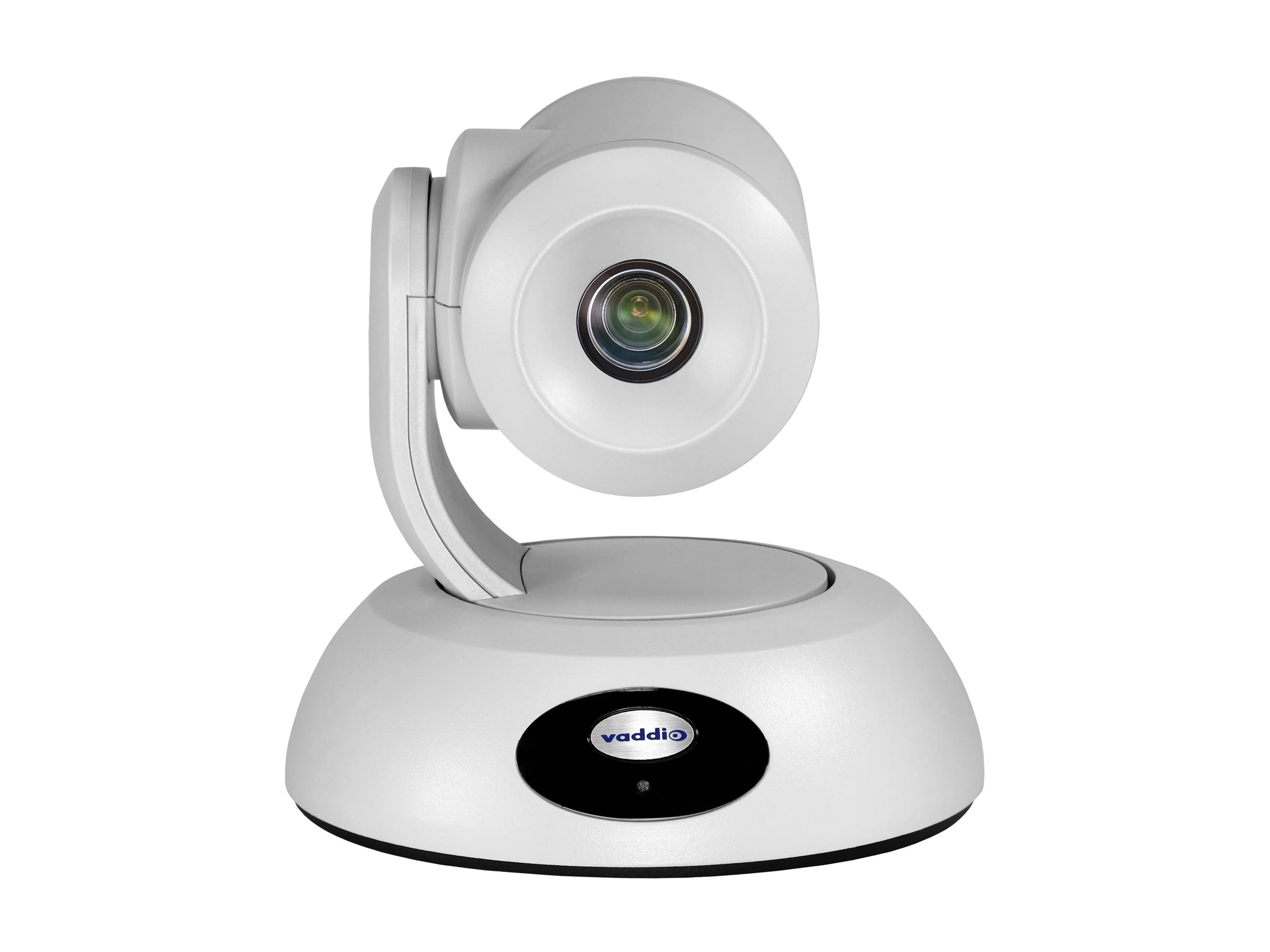

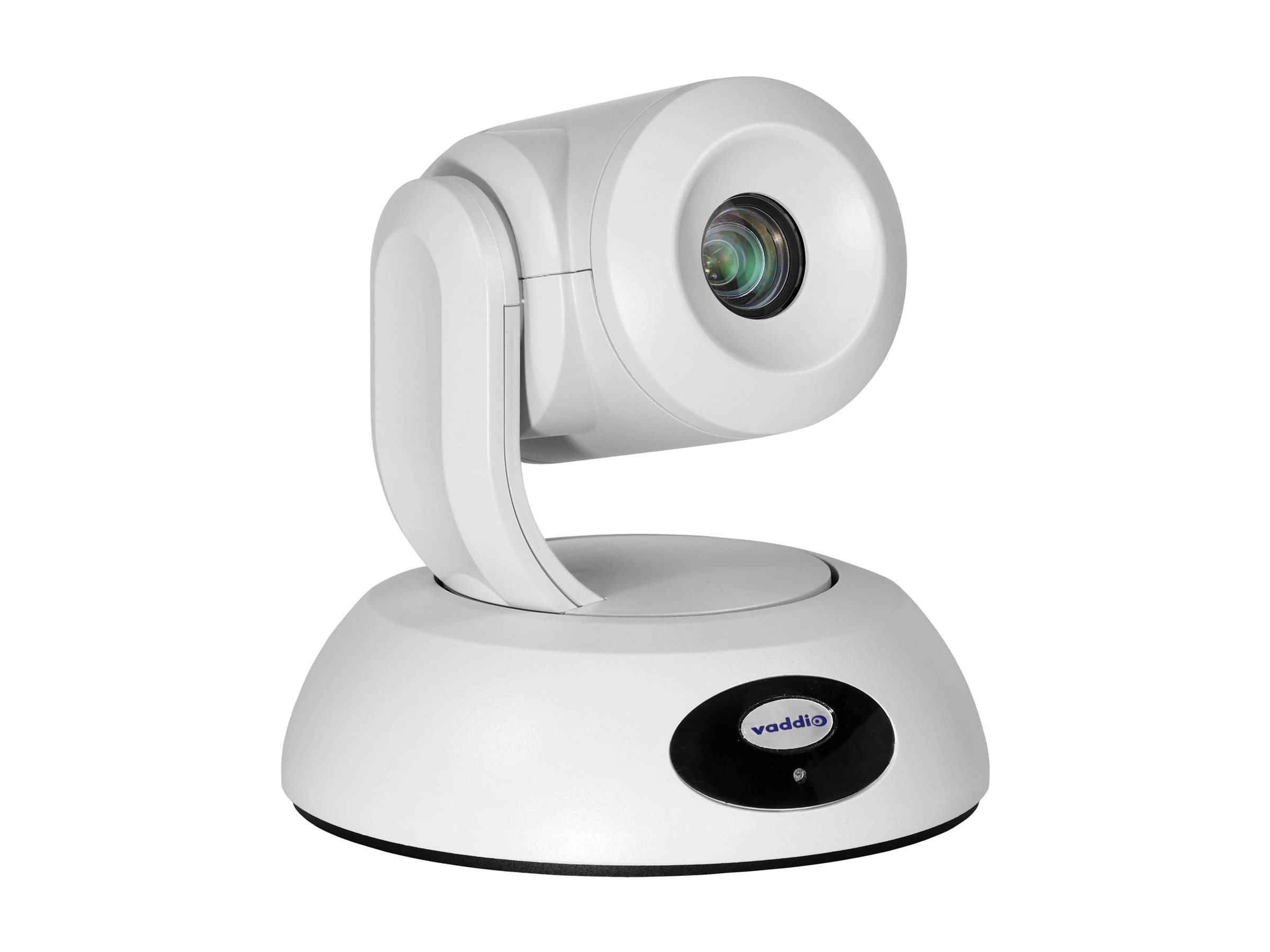

Vaddio RoboSHOT 30E QCCU Conference Camera System

MSRP$8,516.00
$7,505.00
Vaddio RoboSHOT 30E QCCU Conference Camera System
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Includes PTZ Camera and Receiver
  • White
  • Conference camera
  • PTZ
  • color
Vaddio RoboSHOT 30E QCCU Conference Camera System
  • Includes PTZ Camera and Receiver
  • White
  • Conference camera
  • PTZ
  • color
  • 8.6 MP
  • motorized
  • component, HDMI, HD-SDI
  • H.264
  • DC 36 V
  Additional Details
Price: $7,505.00
MSRP: $8,516.00
Mfr Part #: 999-99170-000W
SHI Part #: 37165000
Category: Video conference cameras
UNSPSC: 45121506
Manufacturer: Vaddio
Product Type: Hardware
General Information
CategoryVideo conference cameras
DescriptionVaddio RoboSHOT 30E QCCU Conference Camera System - Includes PTZ Camera and Receiver - White - Conference camera - PTZ - color - 8.6 MP - motorized - component, HDMI, HD-SDI - H.264 - DC 36 V
ManufacturerVaddio
MSRP$8,516.00
UNSPSC45121506
Main Specifications
Dimensions & Weight / Depth17.15 cm
Dimensions & Weight / Height17.63 cm
Dimensions & Weight / Weight2.2 kg
Dimensions & Weight / Width17.91 cm
Header / BrandVaddio
Header / Country KitsNorth America
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type2-year warranty
Camera
Digital Video FormatH.264
FeaturesManual white balance, Backlight Compensation (BLC), brightness control, Automatic Tracing White (ATW), manual gain control, auto gain control, auto white balance, noise reduction, Tri-Synchronous Motion, Enhanced Wide Dynamic Range
Frame Rate (max)60 frames per second
Minimum Illumination1 lux F1.6
TypeColor - pan / tilt / zoom
Video Modes1080/60i, 720/60p, 1080/50i, 720/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 720/30p, 720/25p, 1080/59.94i, 1080/59.94p, 720/59.94p
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Relative Humidity (operating)20 - 80% (non-condensing)
Expansion / Connectivity
Ports
  • Serial RS-232 - RJ-45
  • EZPower HD video - RJ-45
  • LAN - RJ-45
General
Camera Mount TypeWall mount
Connectivity TechnologyWired
Depth17.15 cm
Device TypeConference camera
Height17.63 cm
LocalizationNorth America
Weight2.2 kg
Width17.91 cm
Image Sensor
Type8.6 MP Exmor CMOS 1/2.5"
Interfaces
Control InterfaceRS-232
Network ProtocolsRTSP
VideoComponent video, HDMI, HD-SDI
Lens Construction
Focal Length4.3 mm - 129 mm
Focus AdjustmentAutomatic, manual
Horizontal Field of View (degree)4.1 - 70.2
Lens IrisF/1.6-4.7
Min Focus Distance1 cm
Optical Zoom30 x
TypeMotorized zoom
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
ColorWhite
Compliant StandardsEN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, FCC Part 15 A, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, ICES-003:2012 Class A, EN 61000-4-8:2010, EMC 2014/30/EU, EN 55032:2015, EN 61000-4-4:2004, IEC60950-1:2005, Second edition + A1:2009 + A2:2013, FCC Subpart B 15.107, FCC Subpart B 15.109, EN 55024:2010 Class A, EN 61000-4-3:2006+A1:2008, KN24:2008, CISPR 24:1997+A1:2000+A2:2002, EN 61000-4-2:1995+A1:1998+A2:2001, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Included AccessoriesWall mount kit, Vaddio IR Remote Commander, Vaddio Quick-Connect Universal CCU Cat-5 Interface, 2 rack ears
Panning
Range (degree)-160 to +160
Speed (degree/sec)Up to 0.35
Power
Power DevicePower adapter - external
Power RequirementsDC 36 V
Tilting
Range (degree)-30 to +90
Speed (degree/sec)Up to 120
