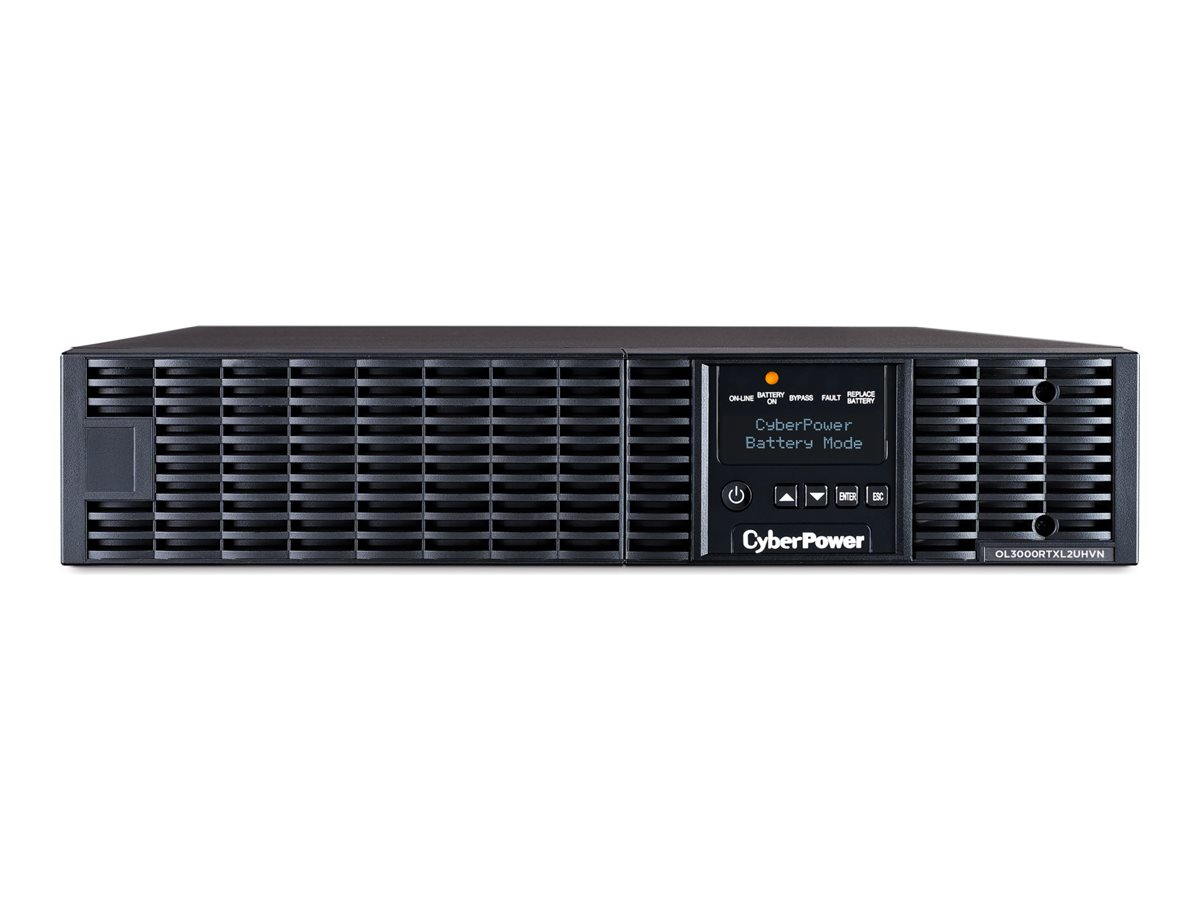

CyberPower Smart App Online OL3000RTXL2UHVN


$3,413.00
CyberPower Smart App Online OL3000RTXL2UHVN

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external)
  • AC 200-240 V
  • 2.7 kW
  • 3000 VA 9 Ah
  • Ethernet, RS-232, USB
CyberPower Smart App Online OL3000RTXL2UHVN
  • UPS (rack-mountable / external)
  • AC 200-240 V
  • 2.7 kW
  • 3000 VA 9 Ah
  • Ethernet, RS-232, USB
  • output connectors: 3
  • 2U
  Additional Details
Price: $3,413.00
Mfr Part #: OL3000RTXL2UHVN
SHI Part #: 37114731
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: CyberPower
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionCyberPower Smart App Online OL3000RTXL2UHVN - UPS (rack-mountable / external) - AC 200-240 V - 2.7 kW - 3000 VA 9 Ah - Ethernet, RS-232, USB - output connectors: 3 - 2U
ManufacturerCyberPower
MSRP$3,059.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth60 cm
Dimensions & Weight / Height8.8 cm
Dimensions & Weight / Weight31 kg
Dimensions & Weight / Width43.3 cm
General / SubcategoryUPS
Header / BrandCyberpower
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty3
Power Device / Power Capacity (VA)3000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 200-240 V
Product TypeUPS
Service & Support / Type3-year warranty
System Requirements / OS Required
  • Linux
  • Microsoft Windows 2000
  • Microsoft Windows 2003
  • Microsoft Windows 7
  • Microsoft Windows Server 2008
  • Microsoft Windows Vista (32/64 bits)
  • Microsoft Windows XP (32/64 bits)
Battery
Capacity9 Ah
Quantity6
Recharge Time4 hours
Run Time (Up To)
  • 11 min at half load
  • 3.5 min at full load
TechnologyLead acid
Voltage Provided12 V
Dimensions & Weight
Depth60 cm
Height8.8 cm
Weight31 kg
Width43.3 cm
Dimensions & Weight (Shipping)
Shipping Depth89 cm
Shipping Height21.4 cm
Shipping Weight39.4 kg
Shipping Width59 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission50 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 1 x LAN
General
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • Power cable 3 m
  • USB cable - external
  • Serial cable - external
  • Phone cable - external
Compliant StandardsUL 1778, FCC, RoHS, CSA C22.2 No. 107.3
Equipment Protection Value400000 US Dollars
FeaturesAudible alarm, LCD display, internal bypass, GreenPower UPS Technology, overload protection, cold-start function, hot-swappable batteries, Smart Battery Management (SMB)
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, RS-232, USB
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3
Power Device
Circuit ProtectionCircuit breaker
Dataline Surge ProtectionNetwork/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Frequency Provided50/60 Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power NEMA L6-20P
Input VoltageAC 200-240 V
Input Voltage RangeAC 120 - 280 V
Output VoltageAC 200/208/220/230/240 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity2.7 kW / 3000 VA
Power Output Connectors Details
  • 1 x power NEMA L6-30
  • 2 x power NEMA L6-20
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
OS RequiredLinux, Microsoft Windows 2000, Microsoft Windows 7, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows XP (32/64 bits)
Software IncludedPowerPanel Business Edition
Sustainability Information
ENERGY STARYes
