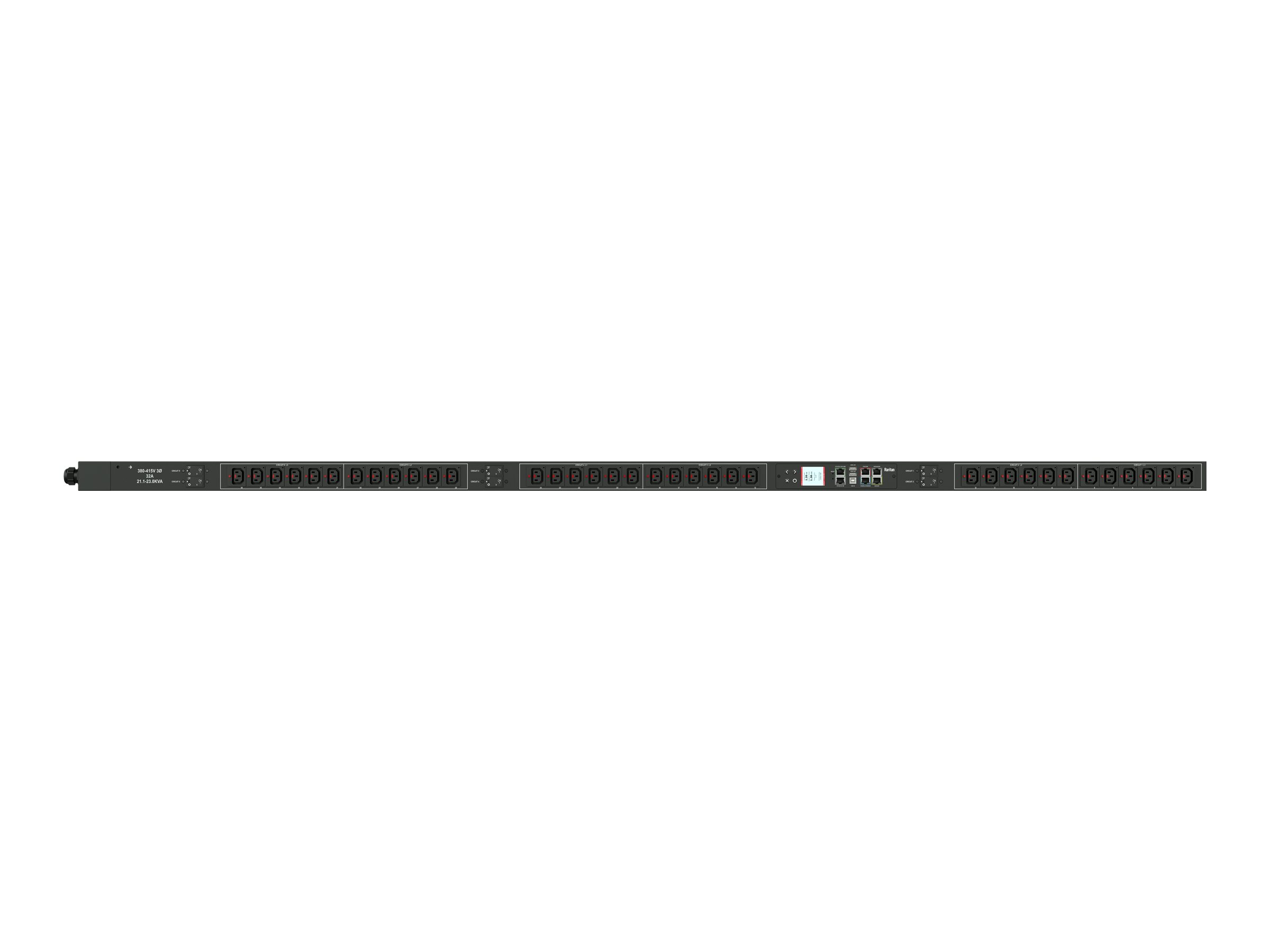

Raritan PX3-5703V-E2V2
MSRP$3,549.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX3-5703V-E2V2
- Power distribution unit (rack-mountable)
- AC 400 V
- 22200 VA
- 3-phase WYE (star)
- Ethernet 10/100, USB, Ethernet 10/100/1000
- input: IEC 60309 3P+N+E
- output connectors: 36 (36 x IEC 60320 C13)
- 0U
- 3 m cord
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,549.00 |
| Mfr Part #: | PX3-5703V-E2V2 |
| SHI Part #: | 37106266 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX3-5703V-E2V2 - Power distribution unit (rack-mountable) - AC 400 V - 22200 VA - 3-phase WYE (star) - Ethernet 10/100, USB, Ethernet 10/100/1000 - input: IEC 60309 3P+N+E - output connectors: 36 (36 x IEC 60320 C13) - 0U - 3 m cord |
| Manufacturer | Legrand |
| MSRP | $3,549.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 198.1 cm |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 22200 VA |
| Power Device / Voltage Required | AC 400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 198.1 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | IEC 62053-21, ISO 62053-21 |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, metering per input line, metering per branch circuit breaker, monitored, switched, locking outlets, environmental sensor ready |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, JSON-RPC, Modbus, DHCP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 400 V |
| Input Voltage Range | AC 380 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V |
| Power Capacity | 22200 VA |
| Power Output Connectors Details | 36 x power IEC 60320 C13 |
