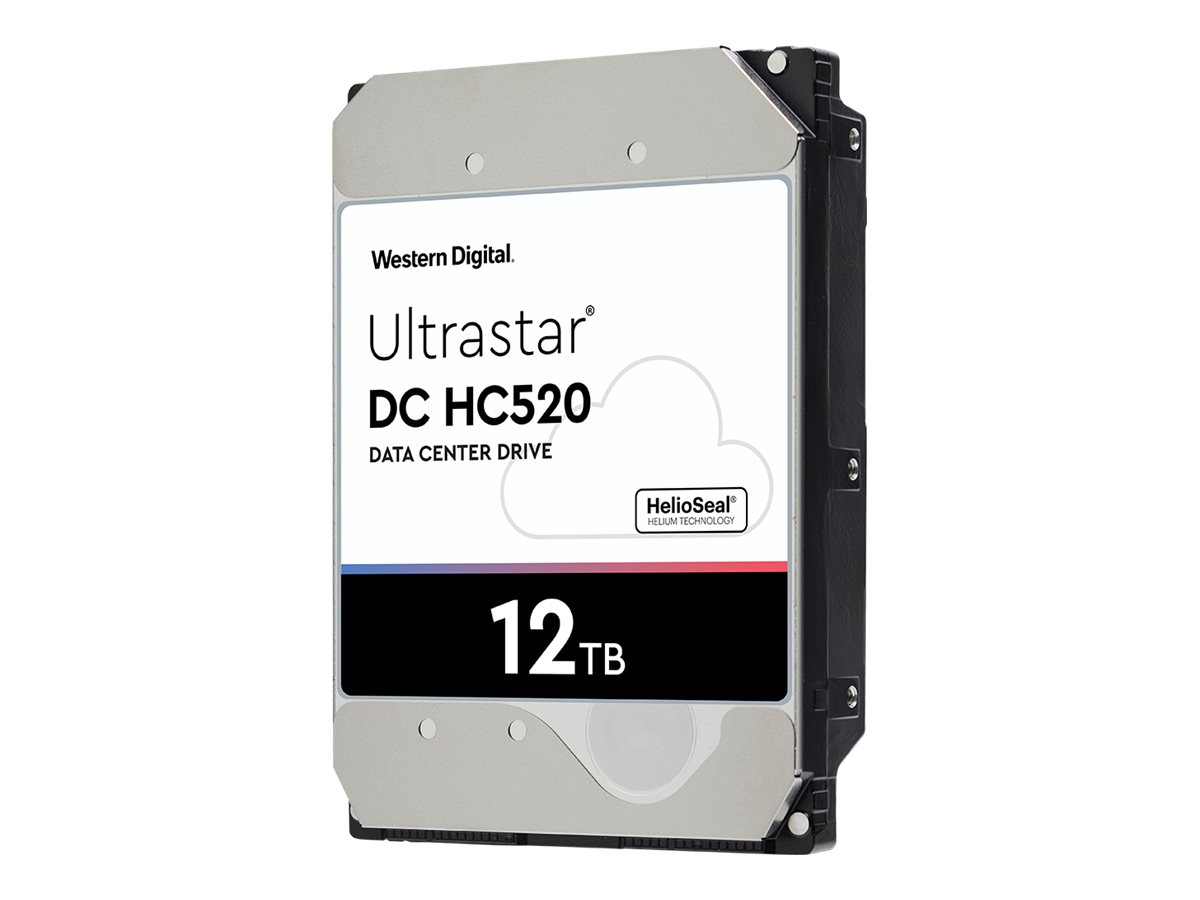

WD Ultrastar DC HC520 HUH721212AL5200
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
WD Ultrastar DC HC520 HUH721212AL5200
- Hard drive
- 12 TB
- hot-swap
- 3.5"
- SAS 12Gb/s
- 7200 rpm
- buffer: 256 MB
| Additional Details | |
|---|---|
| Mfr Part #: | HUH721212AL5200 |
| SHI Part #: | 37096275 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Ultrastar DC HC520 HUH721212AL5200 - Hard drive - 12 TB - hot-swap - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB |
| Manufacturer | Western Digital |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 147 mm |
| Dimensions & Weight / Height | 26.1 mm |
| Dimensions & Weight / Weight | 660 g |
| Dimensions & Weight / Width | 101.6 mm |
| Hard Drive / Capacity | 12 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Hard Drive Type | Hot-swap hard drive |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Hard drive |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 5 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (non-operating) | 300 g @ 2 ms half-sine wave |
| Shock Tolerance (operating) | 70 g @ 2 ms half-sine wave |
| Vibration Tolerance (non-operating) | 1.04 g @ 2-200 Hz |
| Vibration Tolerance (operating) | 0.67 g @ 5-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SAS 12 Gb/s |
| General | |
| Buffer Size | 256 MB |
| Capacity | 12 TB |
| Depth | 147 mm |
| Device Type | Hard drive - hot-swap |
| Features | Advanced format 512e, 24x7 availability |
| Form Factor | 3.5" |
| Height | 26.1 mm |
| Interface | SAS 12Gb/s |
| Weight | 660 g |
| Width | 101.6 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Performance | |
| Average Latency | 4.16 ms |
| Drive Transfer Rate | 1.2 GBps (external) |
| Seek Time | 8 ms (average) |
| Spindle Speed | 7200 rpm |
| Power | |
| Power Consumption |
|
| Reliability | |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
