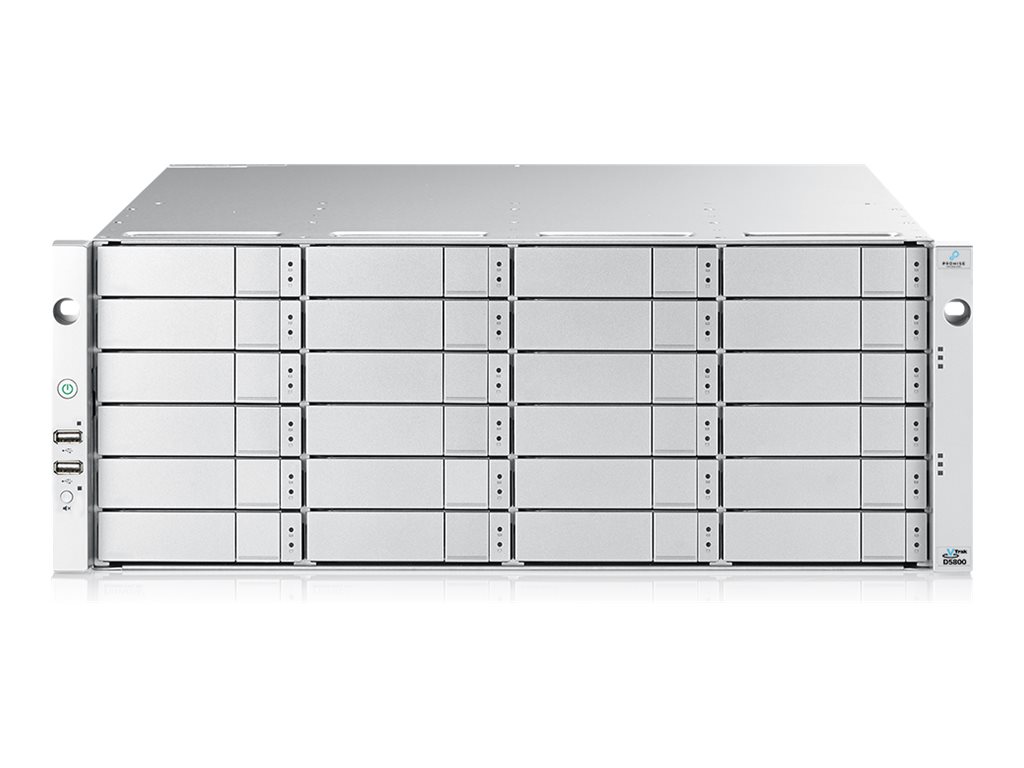

Promise VTrak D5800fxD
MSRP$54,779.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Promise VTrak D5800fxD
- NAS server
- 28 bays
- 336 TB
- rack-mountable
- SATA 6Gb/s / SAS 12Gb/s
- HDD 14 TB x 24
- RAID 0, 1, 5, 6, 10, 50, 60
- 10 Gigabit Ethernet / 32Gb Fibre Channel
- iSCSI support
- 4U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $54,779.00 |
| Mfr Part #: | D5800FXDAHD |
| SHI Part #: | 37094930 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | Promise VTrak D5800fxD - NAS server - 28 bays - 336 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - HDD 14 TB x 24 - RAID 0, 1, 5, 6, 10, 50, 60 - 10 Gigabit Ethernet / 32Gb Fibre Channel - iSCSI support - 4U |
| Manufacturer | Promise Technology |
| MSRP | $54,779.00 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.7 cm |
| Dimensions & Weight / Height | 17.4 cm |
| Dimensions & Weight / Weight | 43.8 kg |
| Dimensions & Weight / Width | 44.67 cm |
| Hard Drive / Capacity | 14 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Interface | Serial Attached SCSI 3 |
| Hard Drive / Interface Type | Serial Attached SCSI 3 |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays |
|
| Interfaces |
|
| General | |
| Depth | 50.7 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 4U |
| Height | 17.4 cm |
| Host Connectivity | 10 Gigabit Ethernet / 32Gb Fibre Channel |
| Installed Devices / Modules Qty | 24 (installed) / 28 (max) |
| Total Storage Capacity | 336 TB |
| Weight | 43.8 kg () |
| Width | 44.67 cm |
| Hard Drive | |
| Capacity | 24 x 14 TB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 7200 rpm |
| Type | HDD - 3.5" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC, VCCI, BSMI, RCM, IEEE CB, cTUVus, RoHS2, WEEE |
| Networking | |
| Data Link Protocol | 10GbE, 32Gb Fibre Channel |
| Features | Manageable, PDM |
| Network / Transport Protocol | SMB, CIFS, NFS, FTP |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), Microsoft Active Directory (AD), Calendaring Extensions to WebDAV (CalDAV) |
| Remote Management Protocol | SNMP, CLI, SSH |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, VMware vSphere Hypervisor 6.0 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor (ESXi) 8.0, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR |
| Software Included | Promise WebPAM PROe |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Type | 2 x RAID |
