Raritan PX3-1551-V2K1
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

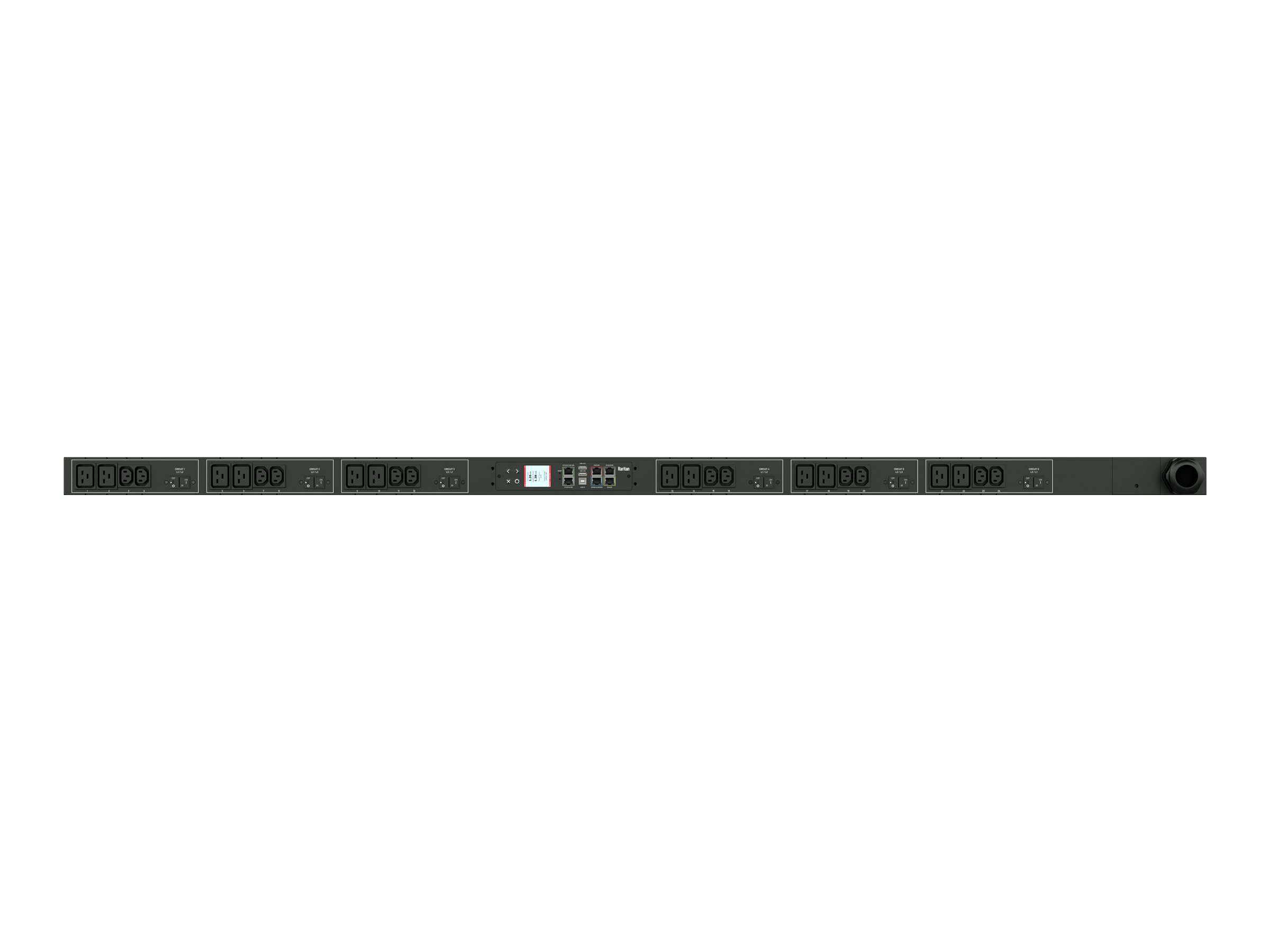

Raritan PX3-1551-V2K1
- Power distribution unit (rack-mountable)
- AC 208 V
- 17300 VA
- 3-phase delta
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: IEC 60309 3P+E
- output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- red
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-1551-V2K1 |
| SHI Part #: | 36997827 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-1551-V2K1 - Power distribution unit (rack-mountable) - AC 208 V - 17300 VA - 3-phase delta - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: IEC 60309 3P+E - output connectors: 24 (12 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - red |
| Manufacturer | Legrand |
| MSRP | $2,451.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 11.1 kg |
| Dimensions & Weight / Width | 5.9 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 17300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 8 cm |
| Height | 178 cm |
| Weight | 11.1 kg |
| Width | 5.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 13.6 cm |
| Shipping Height | 191 cm |
| Shipping Weight | 14 kg |
| Shipping Width | 36.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP67, IEC 62053-21, ISO 62053-21 |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, watertight plug, metering per input line, metering per branch circuit breaker, replaceable controller, monitored, 6 x LEGBX66-20 overload protection, cord retention, bottom-front feed cord entry |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 60 A |
| Output Voltage | AC 240 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Power Output Connectors Details |
|
