Intel Next Unit of Computing Kit NUC8I7BEKQA
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

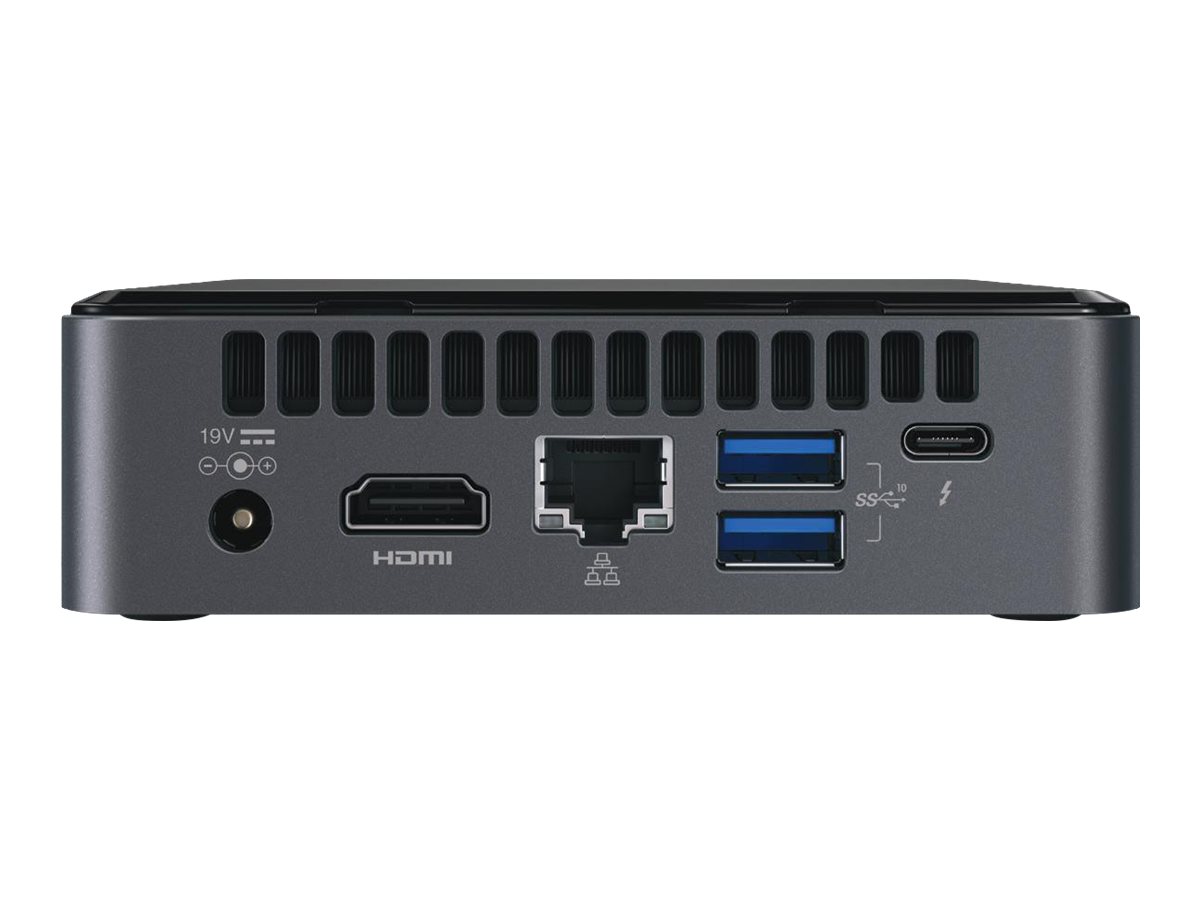

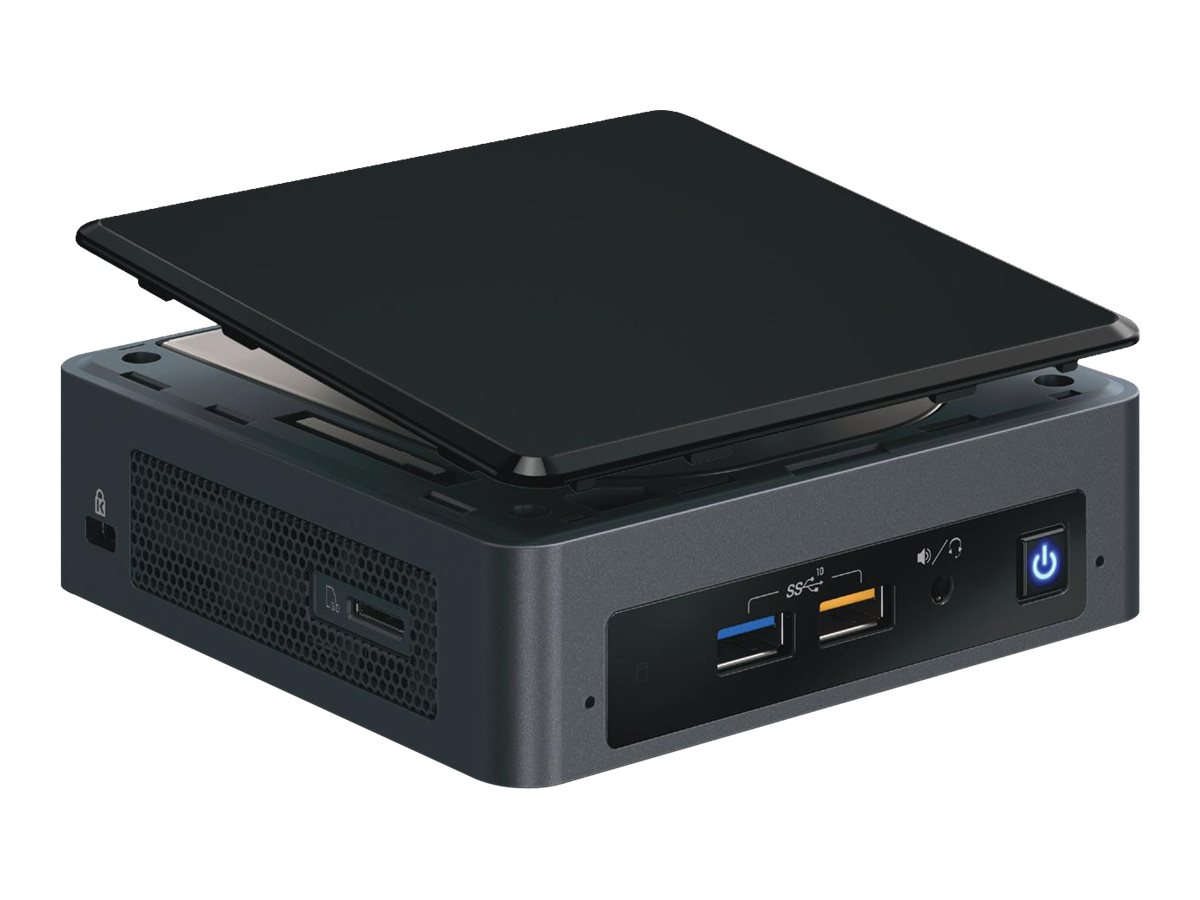

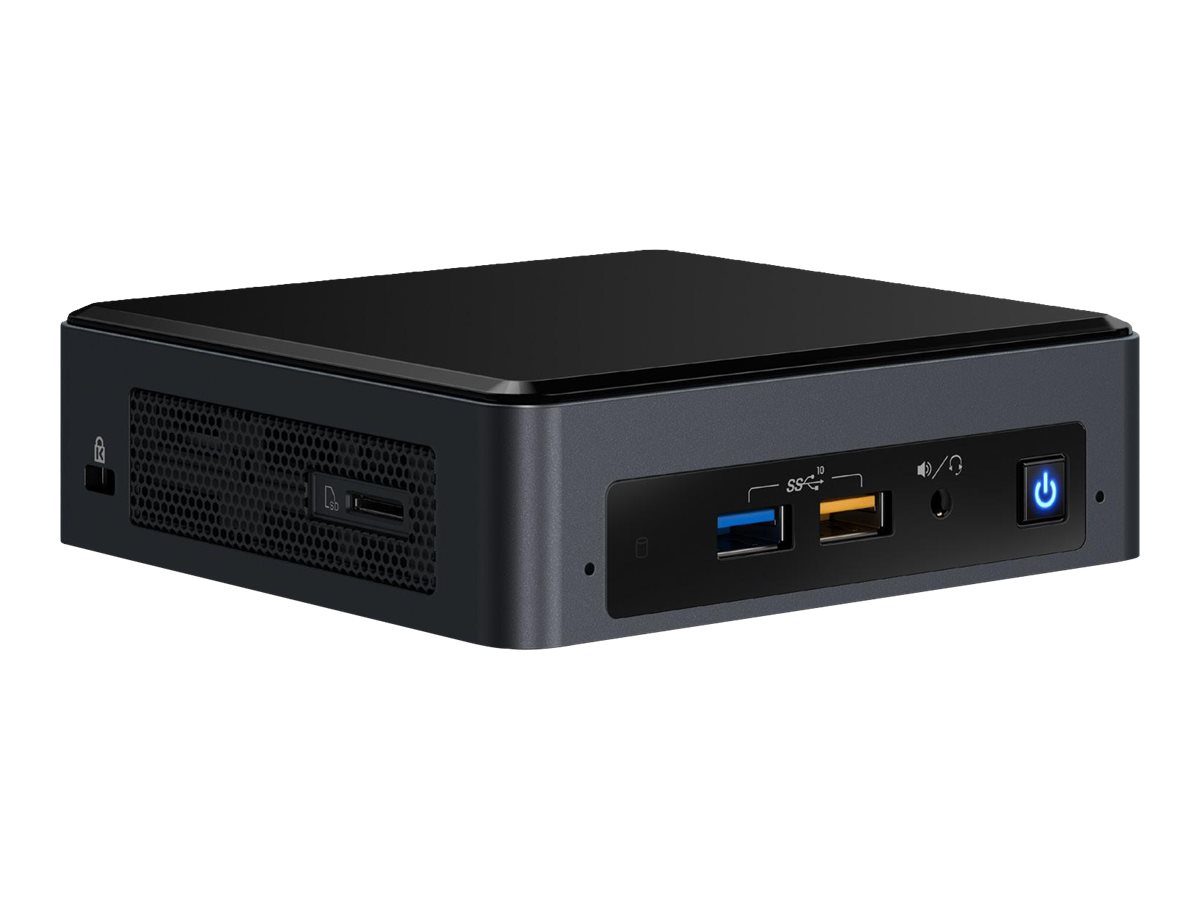

Intel Next Unit of Computing Kit NUC8I7BEKQA
- Enthusiast
- barebone
- mini PC
- 1 x Core i7 8559U / 2.7 GHz
- RAM 16 GB
- SSD 512 GB
- NVMe
- Iris Plus Graphics 655
- GigE
- WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0
- Win 10 Home 64-bit
| Additional Details | |
|---|---|
| Mfr Part #: | BOXNUC8I7BEKQA |
| SHI Part #: | 36935450 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Intel Next Unit of Computing Kit NUC8I7BEKQA - Enthusiast - barebone - mini PC - 1 x Core i7 8559U / 2.7 GHz - RAM 16 GB - SSD 512 GB - NVMe - Iris Plus Graphics 655 - GigE - WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0 - Win 10 Home 64-bit |
| Manufacturer | Intel |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 11.2 cm |
| Dimensions & Weight / Height | 3.6 cm |
| Dimensions & Weight / Width | 11.7 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | Intel |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 Home 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.7 GHz |
| Processor / Generation | 8 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | I7-8559U |
| Processor / Type | Core i7 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | PC barebone |
| Video Output / Graphics Processor | Intel Iris Plus Graphics 655 |
| Audio Input | |
| Type | Two microphones |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| Card Reader | |
| Supported Flash Memory Cards | SDXC UHS-I Memory Card |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 11.2 cm |
| Height | 3.6 cm |
| Width | 11.7 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card - 2242/2280 |
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | Mini PC |
| Type | PC barebone |
| Graphics Controller | |
| Graphics Processor | Intel Iris Plus Graphics 655 |
| Max Monitors Supported | 3 |
| Video Interfaces | HDMI |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD - PCI Express |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | ICES-003, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, VCCI V-2, EN 62311, VCCI V-4, Directive 2012/19/EU, Directive 2011/65/EU, KN24, China RoHS, CNS 13438, ETSI EN 301 489-17, KN32, ETSI EN 300 328, ETSI EN 301 489-1, ETSI EN 301 893, AS/NZS 2772.2, FCC CFR47 Part 15 E, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1 |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9560 |
| Operating System / Software | |
| OS Provided | Windows 10 Home 64-bit Edition |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Voltage Required | DC 12 - 19 V |
| Processor / Chipset | |
| Clock Speed | 2.7 GHz |
| CPU | Intel Core i7 (8th Gen) 8559U |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | Quad-Core |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 16 GB / 32 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM |
