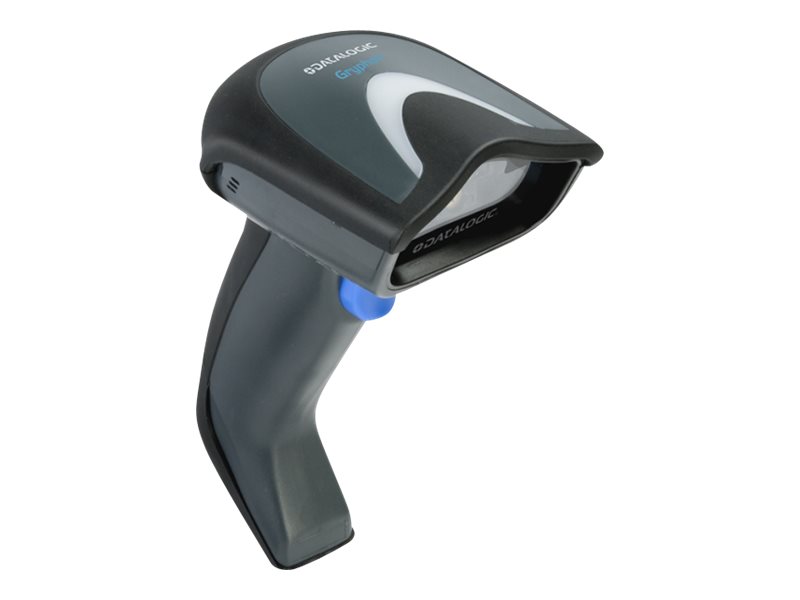

Datalogic Gryphon I GD4132
- Barcode scanner
- handheld
- linear imager
- 325 scan / sec
- decoded
- keyboard wedge, RS-232, USB, wand
| Additional Details | |
|---|---|
| Mfr Part #: | GD4132-BKK1 |
| SHI Part #: | 36435860 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Datalogic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Datalogic Gryphon I GD4132 - Barcode scanner - handheld - linear imager - 325 scan / sec - decoded - keyboard wedge, RS-232, USB, wand |
| Manufacturer | Datalogic |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 18.1 cm |
| Dimensions & Weight / Weight | 169 g |
| Dimensions & Weight / Width | 7.1 cm |
| Header / Brand | Datalogic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 5-year warranty |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | China Post, GS1 DataBar, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
| Interface Type | Keyboard wedge, RS-232, USB, wand |
| Light Source Wave Length | 630-670 nm |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | Linear imager |
| Scan Mode | Single-pass |
| Scan Speed | 325 scan / sec |
| Skew (Degrees) | 65 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 18.1 cm |
| Weight | 169 g |
| Width | 7.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 90% |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external - 2 m |
| Compliant Standards | IP52, China RoHS, EN 60825-1 Class 1, EU RoHS |
| Power | |
| Electric Current Required | 245 mA (operating), 120 mA (standby) |
