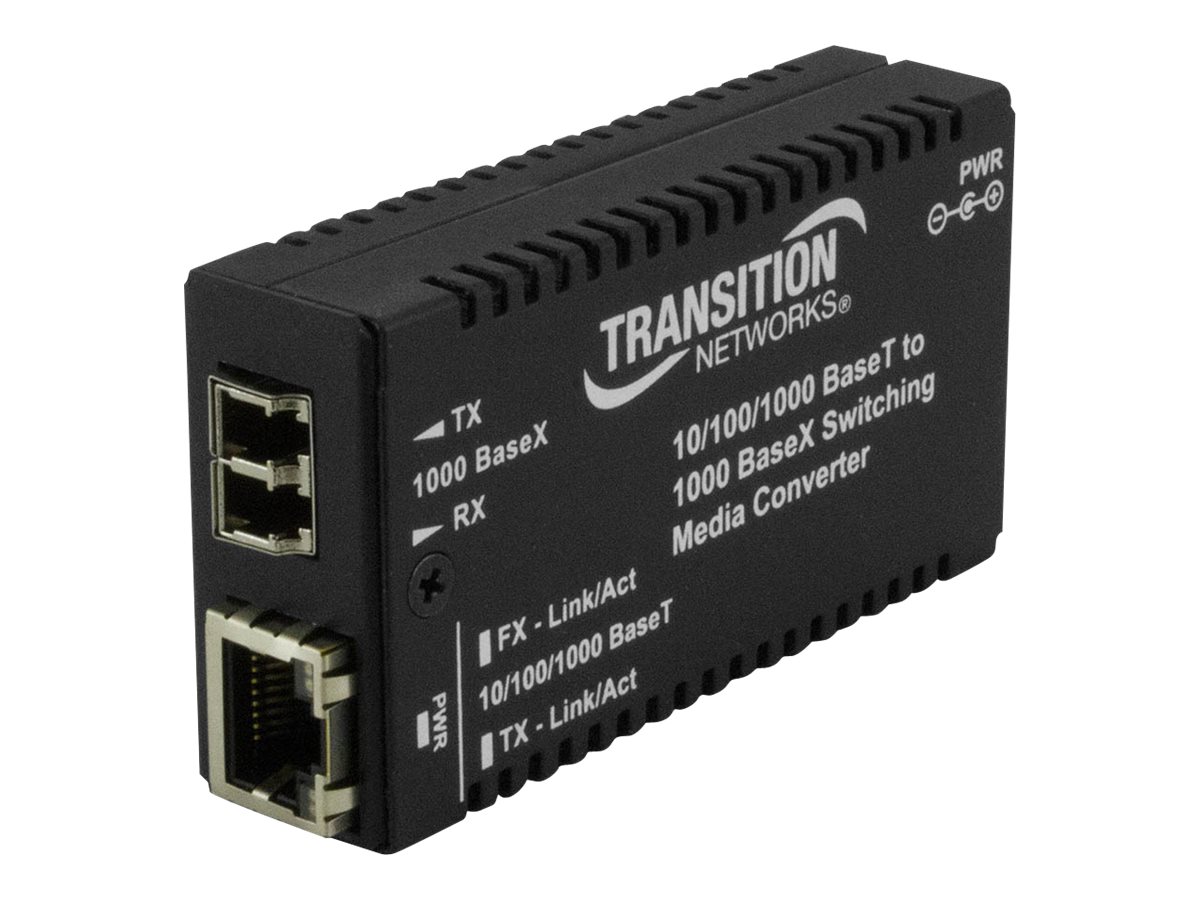

Transition Networks Mini Gigabit Ethernet Media Converter
MSRP$413.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Transition Networks Mini Gigabit Ethernet Media Converter
- Fiber media converter
- GigE
- 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T
- RJ-45 / LC multi-mode
- up to 550 m
- 850 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $413.00 |
| Mfr Part #: | M/GE-PSW-SX-01(LC)-NA |
| SHI Part #: | 36020006 |
| Category: | Channel converter |
| UNSPSC: | 43201540 |
| Manufacturer: | Transition Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Channel converter |
| Description | Transition Networks Mini Gigabit Ethernet Media Converter - Fiber media converter - GigE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / LC multi-mode - up to 550 m - 850 nm |
| Manufacturer | Transition Networks |
| MSRP | $413.00 |
| UNSPSC | 43201540 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.5 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 4.6 cm |
| Header / Brand | Transition Networks |
| Header / Country Kits | North America |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 8.5 cm |
| Height | 2.2 cm |
| Weight | 900 g |
| Width | 4.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CISPR 22 Class A, cUL, EN55024, EN 55022 Class A |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Link Pass-Through, Automatic Link Restoration, up to 10,240 bytes frame size |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Status Indicators | Power, link/activity |
| Power | |
| Power Consumption Operational | 3.15 Watt |
| Power Device | External power adapter |
