Hardware Computer Components Control/Interface Boards

Control/Interface Boards

SIIG 4-Port HDMI Splitter over Cat6 Extender with IR

$460.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Video/audio/infrared extender HDbitT over CAT 6 4 ports up to 40 m

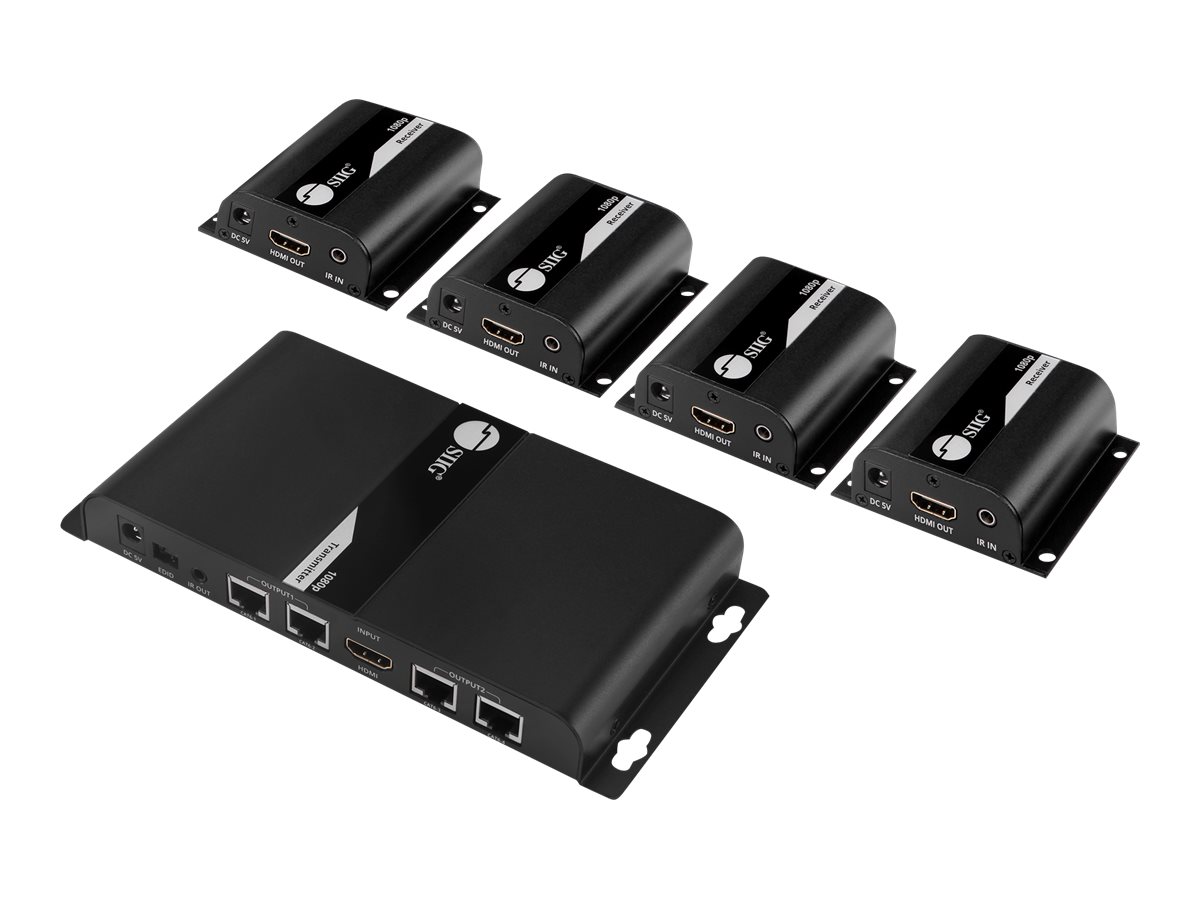

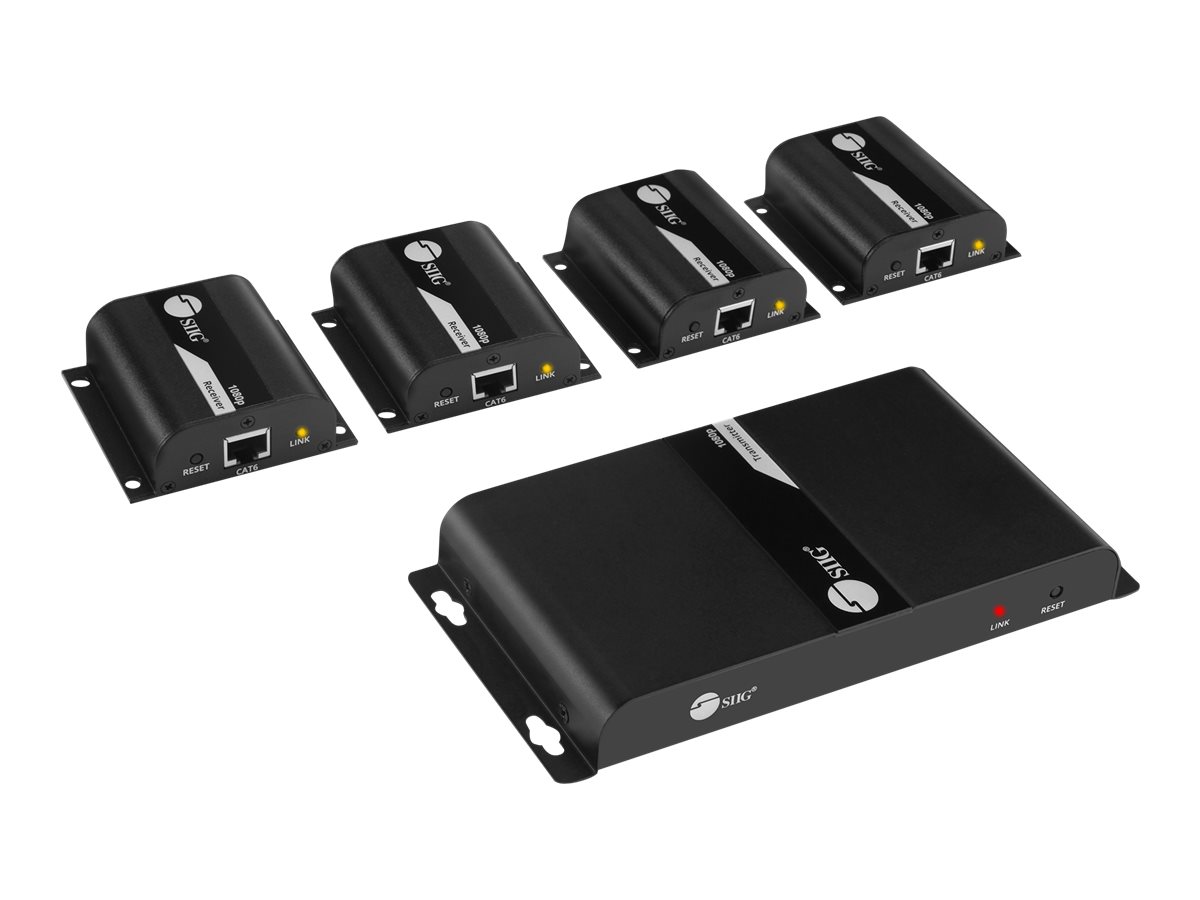

SIIG 4-Port HDMI Splitter over Cat6 Extender with IR

General Information
Category	Serial port cards
Description	SIIG 4-Port HDMI Splitter over Cat6 Extender with IR - Video/audio/infrared extender - HDbitT - over CAT 6 - 4 ports - up to 40 m - TAA Compliant
Manufacturer	SIIG
MSRP	$419.99
UNSPSC	43201559
Main Specifications
Header / Brand	SIIG
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDbitT
Networking / Form Factor	External
Networking / Type	Video/audio/infrared extender
Packaged Quantity	1
Service & Support / Type	2-year warranty
Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

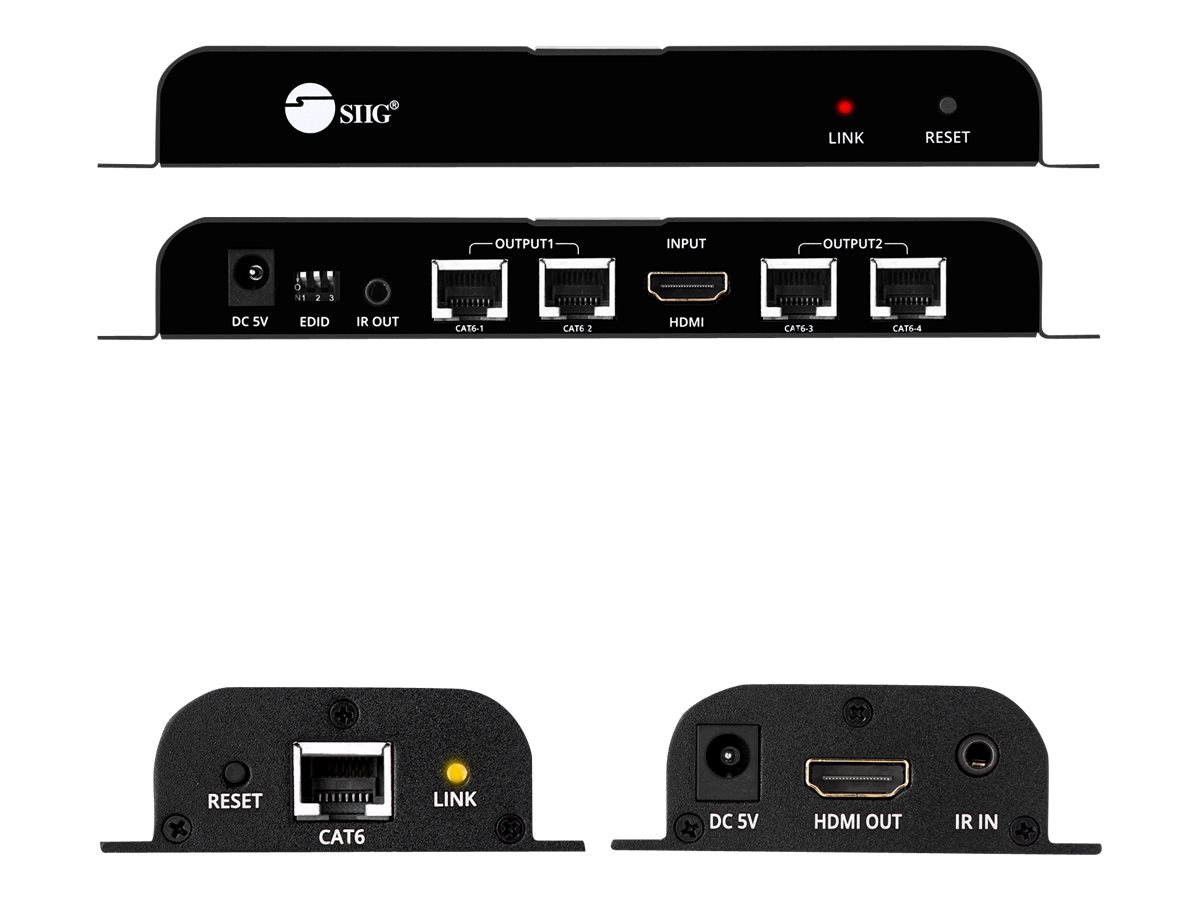

Interfaces	HDMI 1 x IR - mini jack
General
Device Type	Video/audio/infrared extender
Form Factor	External
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous

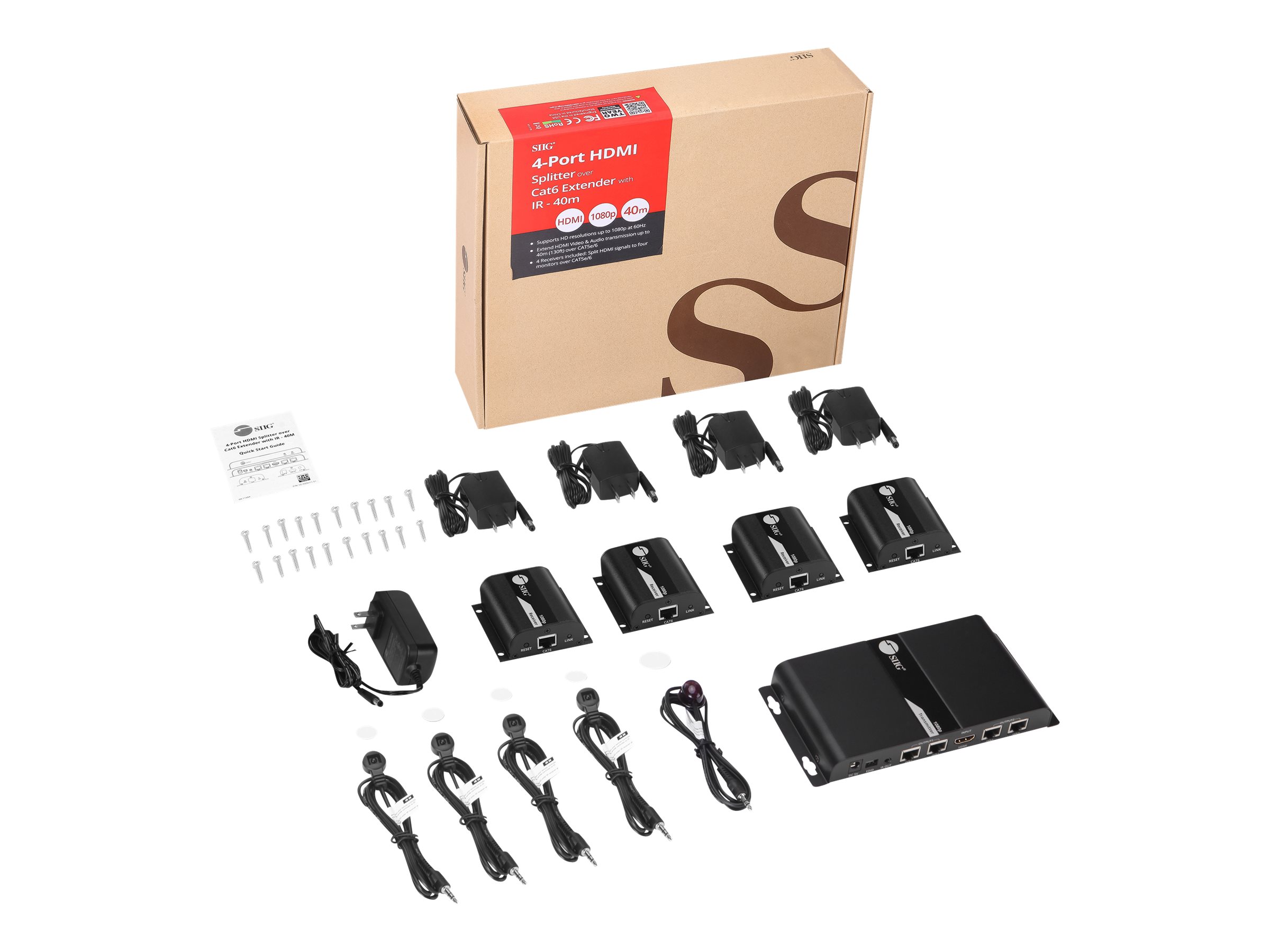

Cables Included	1 x IR blaster cable 4 x IR receiver cable
Compliant Standards	FCC, RoHS
TAA Compliant	Yes
Networking
Compliant Standards	HDCP 1.2, HDCP 1.3
Connectivity Technology	Wired
Data Link Protocol	HDbitT
Features	Wall mountable, HDCP compliant, reset button, 7.1 channel audio support, metal housing, EDID Management, DTS support, AC3 support
Max Resolution	1080p @ 60 Hz
Max Transfer Distance	40 m
Ports Qty	4
Power
Installed Qty	5
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
