Geist Switched Upgradeable Unit Level Monitoring EC MNS3EHW0-48PZB3-2PS56B0A10-S-A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

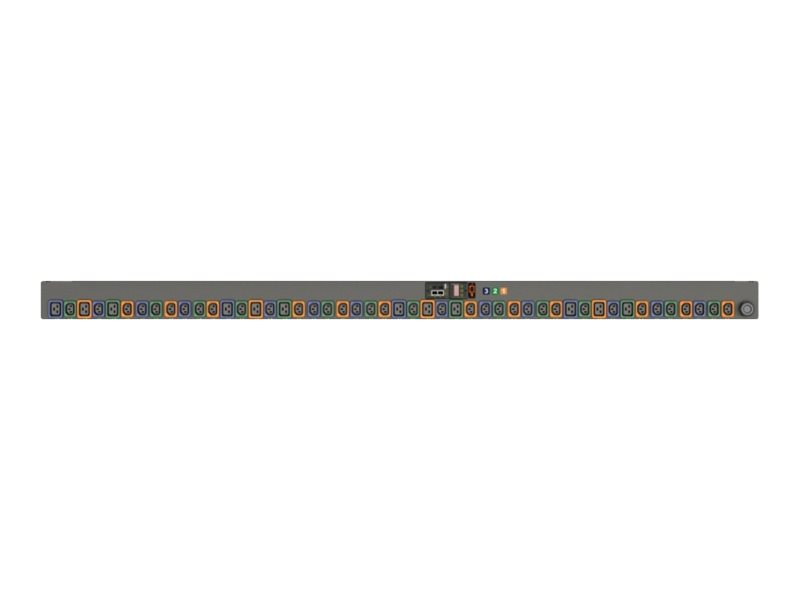

Geist Switched Upgradeable Unit Level Monitoring EC MNS3EHW0-48PZB3-2PS56B0A10-S-A
- Vertical form factor
- power distribution unit (rack-mountable)
- AC 230/400 V
- 11 kW
- 3-phase WYE (star)
- Ethernet 10/100
- input: IEC 60309 3P+N+E
- output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Mfr Part #: | NS30014L |
| SHI Part #: | 35796948 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Switched Upgradeable Unit Level Monitoring EC MNS3EHW0-48PZB3-2PS56B0A10-S-A - Vertical form factor - power distribution unit (rack-mountable) - AC 230/400 V - 11 kW - 3-phase WYE (star) - Ethernet 10/100 - input: IEC 60309 3P+N+E - output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - black powder coat |
| Manufacturer | Vertiv |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 9.4 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 230/400 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 177.8 cm |
| Width | 9.4 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.16 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years with product registration (within 120 days of purchase) |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cUL, EN55024, EMC, RoHS, IEC 60950-1, FCC Part 15 A, IP44, RCM, IEC 62053-21, EN 55032, ANSI C12.1 |
| Features | Daisy chaining support, LED display, voltage monitoring, current meter, LED indicators, rotating display, circuit/breaker current monitoring, phase monitoring, line monitoring, Visible Light Communication (VLC) technology, U-lock outlets, IP reset button, alternating phase/circuits, hard reboot button |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+E |
| Input Voltage | AC 230/400 V |
| Input Voltage Range | AC 200 - 240 / 346 - 415 V |
| Input Wiring | 3-phase WYE (star) |
| Max Electric Current | 20 A |
| Output Voltage | AC 230/400 V |
| Power Capacity | 11 kW |
| Power Output Connectors Details |
|
